technical data

Split

Sky Air

air conditioning systems

FBQ-B8V1-B8V3B

• Split Sky Air • Indoor Units 4

• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B

TABLE OF CONTENTS

FBQ-B8V1_FBQ-B8V3B

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

For indoor units only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5 Control systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . 11

Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

8 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

9 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

10 Fan characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

11 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Installation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Filter installation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Switch box connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B

• Split Sky Air • Indoor Units

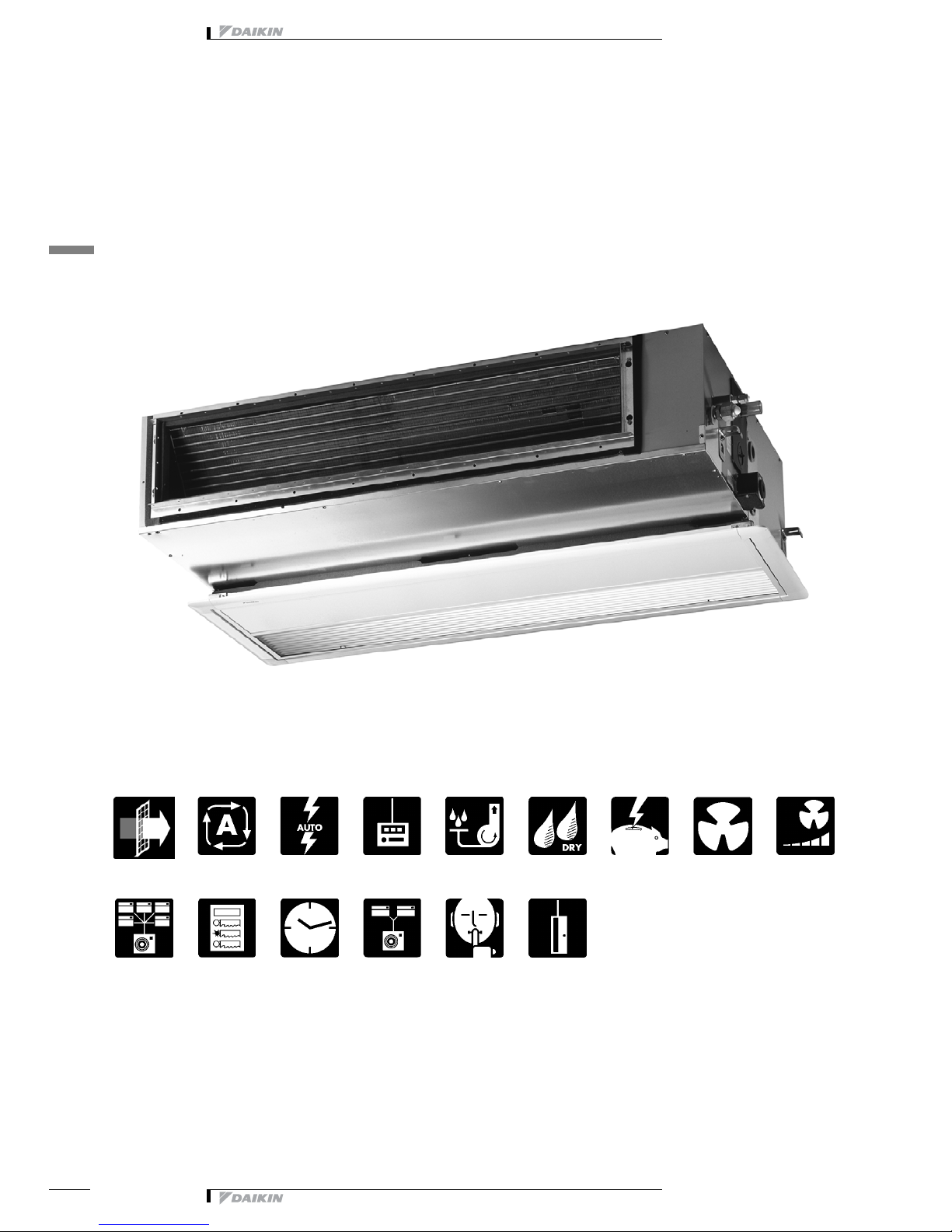

1 Features

IndoorUnit SplitSky FBQ-B8V1_FBQ- R-410a

• Lightweight and compact

• Slim design for flexible installation

• Blends unobtrusively with any interior décor: only the suction and

discharge grilles are visible

• The position of individual air discharge grilles can be altered,

enabling efficient temperature distribution, even in irregularly shaped

rooms.

• Optimum air distribution

• Quiet operation

• Maximum external static pressure (ESP) is 88Pa

heat pump optional standard 2 steps

35˜60 optional

• Split Sky Air • Indoor Units 6

• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B

2 Specifications

2-1 FOR INDOOR UNITS ONLY FBQ35B8V1 FBQ50B8V1 FBQ60B8V1 FBQ71B8V3B FBQ100B8V3B FBQ125B8V3B FBQ140B8V3B

Nominal input

(Indoor only) Cooling kW 0.065 0.085 0.125

Heating kW 0.065 0.085 0.125

2-2 TECHNICAL SPECIFICATIONS FBQ35B8V1 FBQ50B8V1 FBQ60B8V1 FBQ71B8V3B FBQ100B8V3B FBQ125B8V3B FBQ140B8V3B

Casing Colour White Non painted Non painted Non painted Non painted

Material Galvanised

steel plate Galvanised

steel Galvanised

steel

Dimensions Packing Height mm 400 400 400 400 400 400 400

Width mm 931 931 1231 1231 1631 1631 1631

Depth mm 991 991 991 991 991 991 991

Unit Height mm 300 300 300 300 300 300 300

Width mm 700 700 1000 1000 1400 1400 1400

Depth mm 800 800 800 800 800 800 800

Weight Unit kg 30 31 41 41.0 51.0 52.0 52.0

Packed Unit kg 41 42 50 47.0 58.0 59.0 59.0

Required Ceiling Void mm 350 350 350 350

Heat

Exchanger Dimensions Length mm 450 450 750 750 1150 1150 1150

Nr of Rows 3 3 3 3 3 3 3

Fin Pitch mm 1.75 1.75 1.75 1.75 1.75 1.75 1.75

NrofPasses4667131313

Face

Area m² 0.132 0.132 0.221 0.221 0.338 0.338 0.338

Nr ofStages 14 14 14 14 14 14 14

Empty Tubeplate

Hole 414

Tube type Hi-XA (7) Hi-XA (7) Hi-XA (7) Hi-XSS (7) Hi-XSS (7) Hi-XSS (7) Hi-XSS (7)

Fin Type Rhombus

Treatment Hydrophilic Hydrophilic Hydrophilic Hydrophilic

Fan Type Sirocco fan

Quantity 1112333

Air Flow Rate Cooling High m³/min 11.5 14 19 19.00 27.00 35.00 35.00

Low m³/min 9 10 14 14.00 20.00 24.00 24.00

Heating High m³/min 11.5 14 19 19.00 27.00 35.00 35.00

Low m³/min 9 10 14 14.00 20.00 24.00 24.00

Fan Max High Pa 88 88 88 86 86 86 86

Standard Pa 49 49 49 48 48 48 48

Low Pa 20 20 20 20

MotorQuantity 1111111

Numberofsteps2223333

Output

(high) W65 85 125 125 135 225 225

Drive Direct drive

Cooling SoundPower High dBA 52 53 60 60.0 62.0 63.0 63.0

Sound

Pressure High dBA 33 33 34 34.0 36.0 38.0 38.0

Low dBA 29 29 30 30.0 31.0 32.0 32.0

Heating Sound Power High dBA 52 53 60

Sound

Pressure High dBA 33 33 34 34.0 36.0 38.0 38.0

Low dBA 29 29 30 30.0 31.0 32.0 32.0

Refrigerant Type R-410A

Piping

connections Liquid (OD) Type

Flare connection Flare connection Flare connection Flare connection

Diameter (OD)

mm 6.4 6.4 6.4 9.5 9.5 9.5 9.5

Gas Type

Flare connection Flare connection Flare connection Flare connection

Diameter (OD)

mm 9.5 12.7 12.7 15.9 15.9 15.9 15.9

Drain

Diameter (OD)

mm 32 32 32

VP25

(I.D.25/O.D.32) VP25

(I.D.25/O.D.32)

Heat Insulation Both liquid and gas pipes

Drain-up Height mm 625 625 625 625

• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B

• Split Sky Air • Indoor Units

2 Specifications

Decoration

Panel Model BYBS45D BYBS45D BYBS71D BYBS71DJW1 BYBS125DJW

1BYBS125DJW

Colour White

DimensionsHmm55555555555555

W mm 800 800 1100 1100 1500 1500 1500

D mm 500 500 500 500 500 500 500

Weight kg 3.5 3.5 4.5 4.5 6.5 6.5 6.5

Air Filter Resin net with mold resistance

Air direction control Up and downwards

Temperature control Computerized control Microprocessor thermostat for cooling and heating

Safety Devices Inline fuse Inline fuse Fan motor thermal fuse

Inline fuse

Standard

Accessories Item Installation and operation manual Metal clamp for drain hose

Quantity 1111111

Item Drain hose Paper pattern for installation

Quantity 1111

Item Metal clamp for drain hose Drain hose

Quantity 1111

Item Washer for hanger bracket Insulation for fitting

Quantity 2222

Item Screws Washer for hanger bracket

Quantity 8888

Item Insulation for piping Screws for duct flanges

Quantity 12 12 12 12

Item Paper pattern fixing screws

Quantity 6666

Item Installation and operation manual

Quantity 1111

Notes Sound values are measured in an anechoic room.

Sound pressure level is a relative value, depending on the

distanceandacousticenvironment.Formoredetails,pleaserefer

to sound level drawings of this chapter.

The sound power level is an absolute value indicating the power

which a sound source generates.

The sound pressure level is measured via a microphone at 1m

distance of the unit.

2-3 ELECTRICAL SPECIFICATIONS FBQ35B8V1 FBQ50B8V1 FBQ60B8V1 FBQ71B8V3B FBQ100B8V3B FBQ125B8V3B FBQ140B8V3B

Power Supply Name V1 V1 V1 V3 V3 V3 V3

Phase 1111111

Frequency Hz50505050505050

Voltage V 230 230 230 230 230 230 230

Current Nominal

runningcurrent

(RLA)

Cooling A 0.5 0.7 0.9

Heating A 0.5 0.7 0.9

Voltage range Minimum -10%

Maximum +10%

Power Supply Intake Outdoor unit only

2-2 TECHNICAL SPECIFICATIONS FBQ35B8V1 FBQ50B8V1 FBQ60B8V1 FBQ71B8V3B FBQ100B8V3B FBQ125B8V3B FBQ140B8V3B

• Split Sky Air • Indoor Units 8

• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B

3 Safety device settings

Model Safety devices 35 45 - 50 60 71 100 125 140

FBQ∼B

Fuse 5A/250V 5A/250V 5A/250V −−−−

Fan motor thermal fuse (°C) 152±2 152±2 152±2 152±2 152±2 152±2 152±2

Fan motor thermal protector (°C) −−−−−−−

3TW21009-2G

• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B

• Split Sky Air • Indoor Units

4 Options

FBQ-B

Nr Item FBQ35,50 FBQ60,71 FBQ100,125,140

1 Panel related

Decoration panel BYBS45D BYBS71D BYBS125D

Service access panel KTBJ25K56W KTBJ25K80W KTBJ25K160W

2 Filter related

High-efficiency filter 65% (colorimetric method) *1 KAFJ252L56 KAFJ252L80 KAFJ252L160

High-efficiency filter 90% (colorimetric method) *1 KAFJ253L56 KAFJ253L80 KAFJ253L160

Filter chamber for bottom suction KAJ25L56D KAJ25L80D KAJ25L160D

Filter chamber for rear suction KAJ25L56B KAJ25L80B KAJ25L160B

3 Air inlet and air discharge outlet related

Air suction canvas KSA-25K56 KSA-25K80 KSA-25K160

Blind board/screening door KBBJ25K56 KBBJ25K80 KBBJ25K160

Air discharge adapter for round duct KDAJ25K56 KDAJ25K71 KDAJ25K140

Nr Item Type FBQ35,50 FBQ60,71 FBQ100,125,140

1 Remote control Wired type BRC1D52

2 Central remote control DCS302C51

3 Unified ON/OFF control DCS301B51

4 Schedule timer DST301B51

5 Adapter for wiring (interlock for fresh air intake fan) KRP1B54

6 Wiring adaptor for electrical appendices KRP4A51

7 Interface adapter for Sky Air series DTA112B51

8 Remote ON/OFF, forced OFF EKRORO

9 Option PCB for external electrical heater, humidifier and/or hour meter *2 EKRP1B2

3TW25119-1F

*1 If installing a high efficiency filter on the unit, an assembly chamber for either bottom or rear suction is required.

*2 Electrical heater, humidifier and hour meter are field supply. These parts should not be installed inside the equipment. (Refer to installation manual EKRP1B2).

• Split Sky Air • Indoor Units 10

• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B

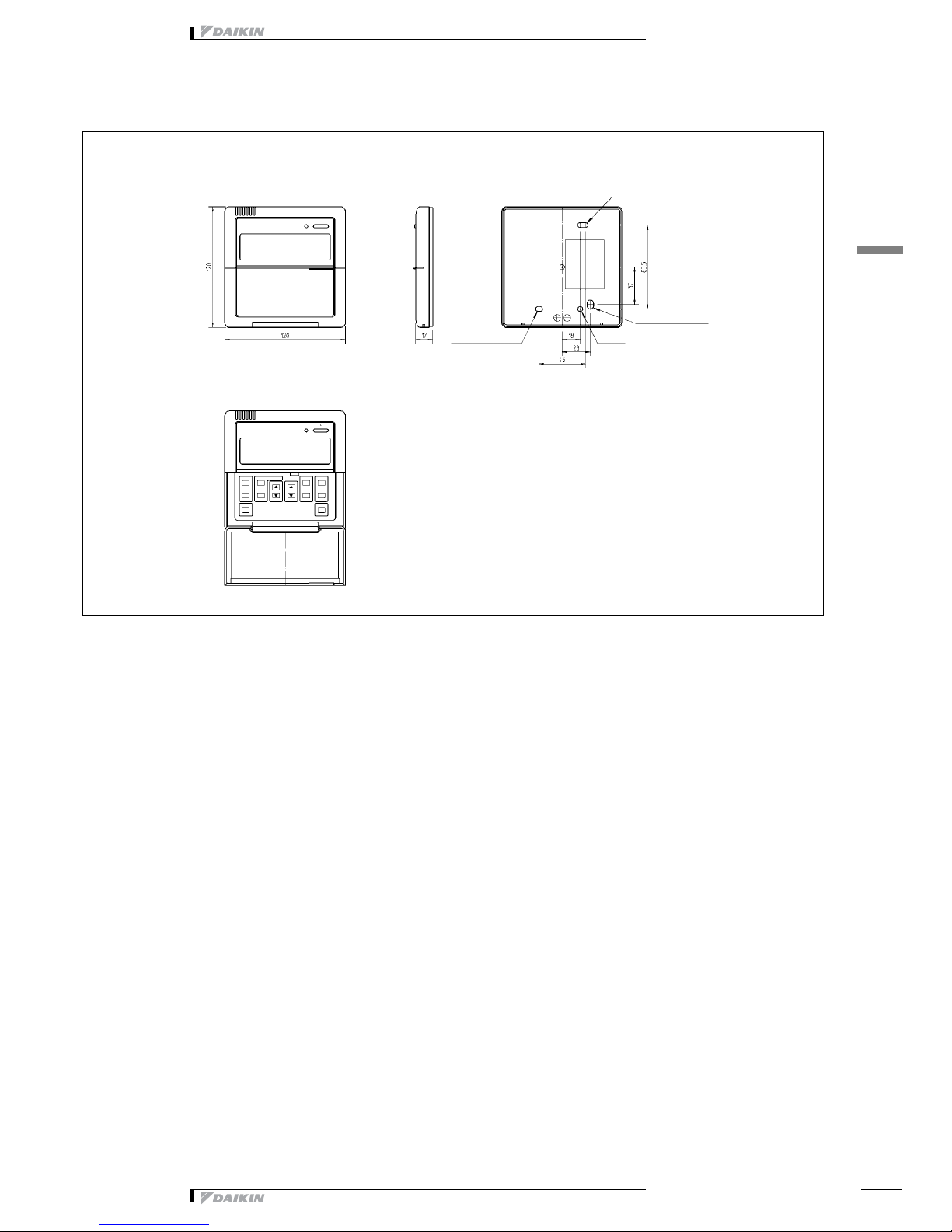

5 Control systems

3TW23651-2

6.5x9(Roundendslit)

Cover open

Cover closed

5 x 7 (Round end slit) HoleJ5

5 x 10 (Round end slit)

BRC1D52

This manual suits for next models

Table of contents

Other Daikin Air Conditioner manuals

Daikin

Daikin FWC02G User manual

Daikin

Daikin FTYN25GV1A User manual

Daikin

Daikin 3AMXM52N2V1B9 User manual

Daikin

Daikin Comfora FTXP20~71L2V1B User manual

Daikin

Daikin Siesta ATXM20R2V1B User manual

Daikin

Daikin EWLD120MBYNN User manual

Daikin

Daikin H-Series Dimension Guide

Daikin

Daikin FH(Y)35BJV1 User manual

Daikin

Daikin FTX09NMVJUA User manual

Daikin

Daikin LRYEQ16AY1 User manual

Daikin

Daikin FTXS80FVMA User manual

Daikin

Daikin FXMQ07PVJU User manual

Daikin

Daikin 5MKS90E7V3B User manual

Daikin

Daikin FXDQ20M9V3B9 User manual

Daikin

Daikin RXZ25NV1B9 User manual

Daikin

Daikin FDXS25F2VEB User manual

Daikin

Daikin VRV III BSVQ100PV1 User manual

Daikin

Daikin R32 Split Series User manual

Daikin

Daikin FTXB25BV1 User manual

Daikin

Daikin SUPER MULTI NX FTXS15LVJU User manual

Daikin

Daikin Altherma EPGA11DAV3 User manual

Daikin

Daikin FTXV41UVLT User manual

Daikin

Daikin RXM18WVJU9 User manual

Daikin

Daikin FTKM35UV16W User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
