1 Features

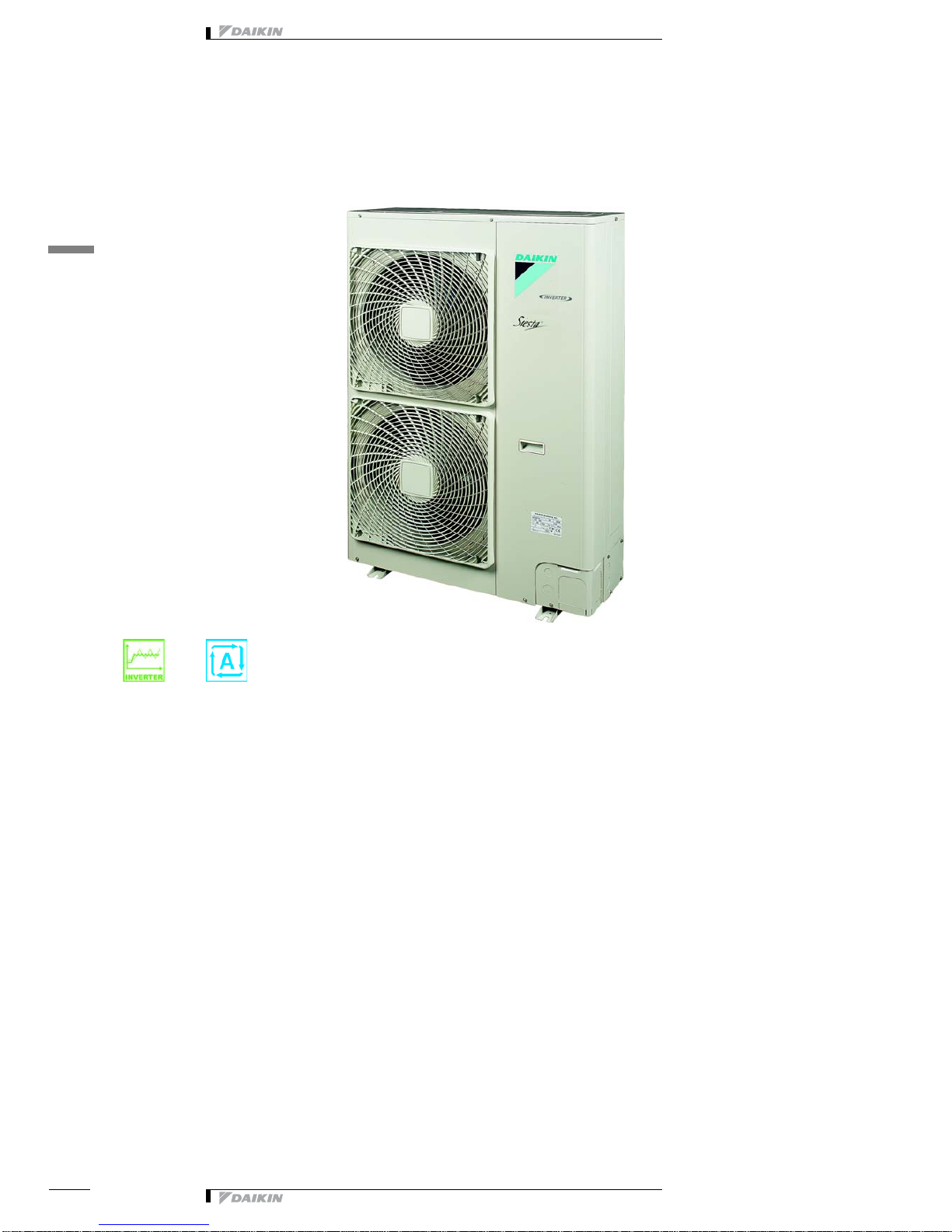

OutdoorUni Split-Sk AZQS-BY1

• Daikin outdoor units are neat, sturdy and can easily be mounted on a

roof or terrace or simply placed against an outside wall

• Outdoor units are fitted with either a swing or scroll compressor,

renowned for low noise and high energy efficiency

• Outdoor units for pair application

• Seasonal efficiency, optimized for all seasons.

• Seasonal efficiency gives an indication on how efficient an air

conditioner operates over an entire heating or cooling season.

Inverter Auto cooling-

heating

changeover

• Split - Sky Air • AZQS-BY1 3

• Outdoor Unit • AZQS-BY1

2 Specifications

Notes

(1) EER/COP according to Eurovent 2012, for use outside EU only

Notes

(1) EER/COP according to Eurovent 2012, for use outside EU only

2-1 Capacity and Power input ACQ100C/AZQS100BY1 ACQ125C/AZQS125BY1

Cooling capacity Nom. kW 9.5 12.1

Heating capacity Nom. kW 10.8 13.5

Power input Cooling Nom. kW 2.96 4.02

Heating Nom. kW 2.99 3.96

Seasonal efficiency

(according to

EN14825)

Cooling Energy label B -

Pdesign kW 9.50 -

SEER 4.65 -

Annual energy

consumption kWh 716 -

Heating (Average

climate) Energy label A -

Pdesign kW 7.60 -

SCOP 3.80 -

Annual energy

consumption kWh 2,800 -

Nominal efficiency

(cooling at 35°/27°

nominal load, heating

at 7°/20° nominal

load)

EER 3.21 3.01

COP 3.61 3.41

Annual energy consumption kWh 1,480 2,010

Energy label Cooling A B

Heating A B

2-2 Capacity and Power input ABQ100C/AZQS100BY1 ABQ125C/AZQS125BY1 ABQ140C/AZQS140BY1

Cooling capacity Nom. kW 9.5 12.1 13.0

Heating capacity Nom. kW 10.8 13.5 15.5

Power input Cooling Nom. kW 3.63 4.31 4.32

Heating Nom. kW 3.16 3.96 4.55

Seasonal efficiency

(according to

EN14825)

Cooling Energy label B -

Pdesign kW 9.50 -

SEER 4.65 -

Annual energy

consumption kWh 716 -

Heating (Average

climate) Energy label A -

Pdesign kW 6.78 -

SCOP 3.80 -

Annual energy

consumption kWh 2,498 -

Nominal efficiency

(cooling at 35°/27°

nominal load, heating

at 7°/20° nominal

load)

EER 2.62 2.81 3.01

COP 3.42 3.41

Annual energy consumption kWh 1,813 2,153 2,159

Energy label Cooling D C B

Heating B

2-3 Capacity and Power input AHQ100C/AZQS100BY1 AHQ125C/AZQS125BY1 AHQ140C/AZQS140BY1

Cooling capacity Nom. kW 9.5 12.1 13.0

Heating capacity Nom. kW 10.8 13.5 15.5

Power input Cooling Nom. kW 3.62 4.60 4.32

Heating Nom. kW 3.17 3.74 4.55

• Outdoor Unit • AZQS-BY1

• Split - Sky Air • AZQS-BY1

2 Specifications

Notes

(1) EER/COP according to Eurovent 2012, for use outside EU only

Seasonal efficiency

(according to

EN14825)

Cooling Energy label B -

Pdesign kW 9.50 -

SEER 4.60 -

Annual energy

consumption kWh 723 -

Heating (Average

climate) Energy label A -

Pdesign kW 7.60 -

SCOP 3.80 -

Annual energy

consumption kWh 2,800 -

Nominal efficiency

(cooling at 35°/27°

nominal load, heating

at 7°/20° nominal

load)

EER 2.62 2.63 3.01

COP 3.41 3.61 3.41

Annual energy consumption kWh 1,810 2,300 2,159

Energy label Cooling D -

Heating B A -

2-4 Technical Specifications AZQS100BY1 AZQS125BY1 AZQS140BY1

Capacity control Method Inverter controlled

Casing Colour Ivory white

Material Painted galvanizedsteel plate

Dimensions Unit Height mm 990 1,430

Width mm 940

Depth mm 320

Packed unit Height mm 1,170 1,610

Width mm 1,015

Depth mm 422

Weight Unit kg 82 101

Packed unit kg 88 108

Heat exchanger Fin Type WF fin

Treatment Anti-corrosion treatment (PE)

Compressor Quantity 1

Type Hermetically sealed swing compressor

Starting method Inverter driven

Fan Type Propeller fan

Discharge direction Horizontal

Quantity 1 2

Air flow rate Cooling Nom. m³/min 76 77 83

Super

low m³/min -

cfm -

Heating Nom. m³/min 83 62

Super

low m³/min -

cfm -

Fan motor Quantity 1 2

Model Brushless DC motor

Output W 200 94

Drive Direct drive

Speed Cooling Super

low rpm -

Heating Super

low rpm -

Sound power level Cooling dBA 70 71 70

Heating dBA -

Sound pressure level Cooling Nom. dBA 53 54 53

Heating Nom. dBA 57 58 54

Night quiet mode Level 1 dBA 49

2-3 Capacity and Power input AHQ100C/AZQS100BY1 AHQ125C/AZQS125BY1 AHQ140C/AZQS140BY1

• Split - Sky Air • AZQS-BY1 5

• Outdoor Unit • AZQS-BY1

2 Specifications

Notes

(1) See separate drawings for electrical data

(2) PED unit category: excluded from scope of PED due to article 1, item 3.6 of 97/23/EC

Operation range Cooling Ambien

tMin. °CDB -5

Max. °CDB 46

Heating Ambien

tMin. °CWB -15

Max. °CWB 15.5

Refrigerant Type R-410A

Charge kg 2.9 4.0

Control Expansion valve (electronic type)

GWP 1,975

Circuits Quantity 1

Refrigerant oil Type FVC50K

Charged volume l 0.9 1.35

Piping connections Liquid Quantity 1

Type Flare connection

OD mm 9.52

Gas Quantity 1

Type Flare connection

OD mm 15.9

Drain Quantity 5

Type Hole

ID mm -

OD mm 26

Piping length OU - IU Min. m 5

Max. m 50

System Equival

ent m70

Chargel

ess m30

Additional refrigerant charge kg/m See installation manual

Level difference IU - OU Max. m 30.0

IU - IU Max. m 0.5

Heat insulation Both liquid and gas pipes

Defrost method Reversed cycle

Defrost control Sensor for outdoor heatexchanger temperature

Safety devices Item 01 High pressure switch

02 Fan motor thermal protection

03 Fuse

2-5 Electrical Specifications AZQS100BY1 AZQS125BY1 AZQS140BY1

Power supply Name Y1

Phase 3N~

Frequency Hz 50

Voltage V 380-415

Voltage range Min. % -10

Max. % 10

Current Zmax List Complies to EN61000-3-11

Recommended fuses A 20

Current - 50Hz Maximum fuse amps (MFA) A -

Current - 60Hz Maximum fuse amps (MFA) A -

Wiring connections For power supply Remark See installation manual outdoor unit

For connection with

indoor Remark See installation manual outdoor unit

Power supply intake Outdoor unit only

2-4 Technical Specifications AZQS100BY1 AZQS125BY1 AZQS140BY1

• Outdoor Unit • AZQS-BY1

• Split - Sky Air • AZQS-BY1

3 Electrical data

3 - 1 Electrical Data

1WVFQQT *\`2QYGTUWRRN[ 8QNVCIGTCPIG /%# 61%# /(# /5% 4.# -9 (.# M9 (.#

#<35$8$  㧙  㧙     

#<35$8$  㧙  㧙     

#*3%8 #<35$8$  㧙       

#<35$8$  㧙  㧙     

#$3%8 #<35$8$  㧙  㧙     

#*3%8 #<35$8$  㧙  㧙     

#<35$8$  㧙  㧙     

#<35$8$  㧙  㧙     

#*3%8 #<35$8$  㧙  㧙     

#<35$8$  㧙  㧙     

#<35$8$  㧙  㧙     

#<35$;$  㧙  㧙     

#$3%8 #<35$;$  㧙  㧙     

#*3%8 #<35$;$  㧙  㧙     

#<35$;$  㧙  㧙     

#<35$;$  㧙  㧙     

#*3%8 #<35$;$  㧙  㧙     

#<35$;$  㧙  㧙     

#<35$;$  㧙  㧙     

1(/ +(/

/KP8

/CZ8

0`*\

8

/KP8

/CZ8

#$3%8

#%3%8

#*3%8

*\`8

%QOR

#%3%8

#$3%8

#%3%8

#$3%8

#*3%8

#%3%8

+PFQQT

#%3%8

#$3%8

6\PEROV

0LQLPXP&LUFXLW$PSHUH$

0D[LPXP)XVH$PSHUH$

1RWHV

&RROLQJ

+HDWLQJ

9ROWDJHUDQJH

7KHXQLWVDUHVXLWDEOHIRUXVHZLWKHOHFWULFDOV\VWHPVLQZKLFKWKHYROWDJHVXSSOLHGWRWKHXQLWWHUPLQDOVLVQRWEHORZRUDERYHWKHOLVWHGUDQJHOLPLWV

7KHPD[LPXPDOORZDEOHYROWDJHWKDWLVXQEDODQFHGEHWZHHQSKDVHVLVyy

7KHQH[WORZHUVWDQGDUGIXVHUDWLQJLVPLQLPXPyyDPSHUH

6HOHFWWKHZLUHVL]HDFFRUGLQJWRWKH0&$

(DUWKOHDNDJHFLUFXLWEUHDNHU

0&$

72&$

0)$

06&

5/$

2)0

,)0

)/$

.:















7RWDORYHUFXUUHQWDPSV>$@

)DQPRWRUUDWHGRXWSXW>N:@

)XOOORDGDPSV

5DWHGORDGDPSV>$@

0D[LPXPFXUUHQWRIWKHVWDUWLQJFRPSUHVVRU>$@

7KHy5/$yLVEDVHGRQWKHIROORZLQJFRQGLWLRQV

y0&$yLVWKHPD[LPXPLQSXWFXUUHQW

y0)$yLVXVHGWRVHOHFWWKHFLUFXLWEUHDNHUDQGWKHJURXQGIDXOWFLUFXLWLQWHUUXSWRU

,QGRRUWHPSHUDWXUHyyr&'%yyr&:%

,QGRRUWHPSHUDWXUHyyr&'%

2XWGRRUWHPSHUDWXUHyyr&'%

2XWGRRUWHPSHUDWXUHyyr&'%yyr&:%

7KHFDSDFLW\RIWKHy0)$yPXVWEHJUHDWHUWKDQWKDWRIWKHy0&$y

6HOHFWWKHy0)$yDFFRUGLQJWRWKHWDEOH

y72&$yLVWKHWRWDOYDOXHRIHDFKRYHUFXUUHQWVHW

2XWGRRUIDQPRWRU

,QGRRUIDQPRWRU

AZQS- BV1

AZQS- BY1

3D080873D

• Split - Sky Air • AZQS-BY1 7

• Outdoor Unit • AZQS-BY1

4 Options

4 - 1 Options

• Outdoor Unit • AZQS-BY1

• Split - Sky Air • AZQS-BY1

5 Combination table

5 - 1 Combination Table

5-;#+4

#%3%8

#%3%8

#%3%8

#$3%8

#$3%8

#$3%8

#$3%8

#*3%8

#*3%8

#*3%8

#*3%8

#<35$8$ 2 2 2

#<35$8$ #<35$;$ 2 2 2

#<35$8$ #<35$;$ 2 2 2

#<35$8$ #<35$;$ 2 2

/1&'.0#/'

%CUUGVVG &WEV %GKNKPIUWURGPFGF

AZQS-BV1

AZQS-BY1

4D080870D

Other manuals for AZQS-BY1

Table of contents

Other Daikin Air Conditioner manuals

Daikin

Daikin BEVQ100MVE User manual

Daikin

Daikin ERQ Series User manual

Daikin

Daikin M Series Guide

Daikin

Daikin ETSH12P30EF User manual

Daikin

Daikin R410A SPLIT SERIES FTXN25LV1B User manual

Daikin

Daikin FTK15JEVM User manual

Daikin

Daikin RY35GXV1 User manual

Daikin

Daikin FTXS-G Instruction manual

Daikin

Daikin FDKR200AV16 User manual

Daikin

Daikin RKS30 User manual

Daikin

Daikin RXTM30R2V1B How to use

Daikin

Daikin FVXS35KV1A User manual

Daikin

Daikin ADEQ35C2VEB User manual

Daikin

Daikin RZQS71-140C7V1B Instruction manual

Daikin

Daikin 2MXS40G2V1B User manual

Daikin

Daikin ATXD50CV4 User manual

Daikin

Daikin D-Series User manual

Daikin

Daikin SkyAir FBQ24PVJU User manual

Daikin

Daikin RXYSQ6T7Y1B9 Assembly instructions

Daikin

Daikin RXYSQ4TAY1B User manual

Daikin

Daikin RXP25N5V1B9 User manual

Daikin

Daikin SiBE041010 User manual

Daikin

Daikin VRV III-S User manual

Daikin

Daikin E Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
