Dahua Technology HDW2831TM-AS-S2 User manual

Eyeball Network Camera

Quick Start Guide

V1.0.

2ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Quick Start Guide

Foreword

General

This manual introduces the functions, installation, and operations of the camera.

Safety Instructions

The following categorized signal words with defined meaning might appear in the manual.

Signal Words Meaning

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, may result in

property damage, data loss, lower performance, or unpredictable

result.

Provides additional information as a supplement to the text.

Revision History

Version Revision Content Release Time

V1.0.2 Updated the description of device detaching and SD card

installation.

November

2021

V1.0.1 Updated "Important Safeguards and Warnings." April 2021

V1.0.0 First release. August 2019

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face,

fingerprints, and license plate number. You need to be in compliance with your local privacy

protection laws and regulations to protect the legitimate rights and interests of other people by

implementing measures which include but are not limited: Providing clear and visible identification

to inform people of the existence of the surveillance area and provide required contact information.

About the Manual

The manual is for reference only. Slight differences might be found between the manual and the

product.

We are not liable for any loss caused by the operations that do not comply with the manual.

The manual will be updated according to the latest laws and regulations of related jurisdictions.

For detailed information, see the paper User Manual, use our CD-ROM, scan the QR code or visit

our official website. The manual is for reference only. Slight differences might be found between

the electronic version and the paper version.

Quick Start Guide

All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the manual. Please

contact the customer service for the latest program and supplementary documentation.

There still might be deviation in technical data, functions and operations description, or errors

in print. If there is any doubt or dispute, please refer to our final explanation.

Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

Please visit our website, contact the supplier or customer service if there is any problem

occurred when using the device.

If there is any uncertainty or controversy, please refer to our final explanation.

Quick Start Guide

III

Important Safeguards and Warnings

Electrical Safety

All installation and operation should conform to your local electrical safety codes.

The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no

higher than PS2. Note that the power supply requirements are subject to the device label.

Make sure the power supply is correct before operating the device.

A readily accessible disconnect device shall be incorporated in the building installation wiring.

Prevent the power cable from being trampled or pressed, especially the plug, power socket and

the junction extruded from the device.

Environment

Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it

might cause over brightness or light marks, which are not the device malfunction, and affect the

longevity of Complementary Metal-Oxide Semiconductor (CMOS).

Do not place the device in a damp or dusty environment, extremely hot or cold temperatures, or

the locations with strong electromagnetic radiation or unstable lighting.

Keep the device away from any liquid to avoid damage to the internal components.

Keep the indoor device away from rain or damp to avoid fire or lightning.

Keep sound ventilation to avoid heat accumulation.

Transport, use and store the device within the range of allowed humidity and temperature.

Heavy stress, violent vibration or water splash are not allowed during transportation, storage

and installation.

Pack the device with standard factory packaging or the equivalent material when transporting

the device.

Install the device in the location where only the professional staff with relevant knowledge of

safety guards and warnings can access. The accidental injury might happen to the

non-professionals who enter the installation area when the device is operating normally.

Operation and Daily Maintenance

Do not touch the heat dissipation component of the device to avoid scald.

Carefully follow the instructions in the manual when disassembling operation about the device;

otherwise, it might cause water leakage or poor image quality due to unprofessional operations.

Make sure that the gasket ring is flat and properly installed in the groove before installing the

cover. Contact after-sales service for desiccant replacement if there is condensed fog on the lens

after unpacking or when the desiccant turns green (Not all models are included with the

desiccant).

We recommend using the device together with lightning arrester to improve lightning

protection effect.

We recommend grounding the device to enhance reliability.

Quick Start Guide

Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower,

or you can wipe the lens gently with soft cloth that is moistened with alcohol.

You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with

mild detergent. To avoid possible damage on device body coating which could cause

performance decrease, do not use volatile solvent such as alcohol, benzene, diluent to clean the

device body, nor can strong, abrasive detergent be used.

Dome cover is an optical component. Do not touch or wipe the cover with your hands directly

during installation or operation. For removing dust, grease or fingerprints, wipe gently with

moistened oil-free cotton with diethyl or moistened soft cloth. You can also remove dust with an

air blower.

WARNING

Strengthen the protection of network, device data and personal information by adopting

measures which include but not limited to using strong password, modifying password

regularly, upgrading firmware to the latest version, and isolating computer network. For some

device with old firmware versions, the ONVIF password will not be modified automatically along

with the modification of the system password, and you need to upgrade the firmware or

manually update the ONVIF password.

Use standard components or accessories provided by manufacturer and make sure the device is

installed and maintained by professional engineers.

The surface of the image sensor should not be exposed to laser beam radiation in an

environment where a laser beam device is used.

Do not provide two or more power supply sources for the device unless otherwise specified. A

failure to follow this instruction might cause damage to the device.

Quick Start Guide

Table of Contents

Foreword............................................................................................................................................................ I

Important Safeguards and Warnings............................................................................................................. III

1 Introduction................................................................................................................................................... 1

2 Network Configuration ................................................................................................................................. 2

Initializing Device....................................................................................................................................................................... 22.1

Changing Device IP Address.................................................................................................................................................. 42.2

Logging in to Web Page........................................................................................................................................................... 52.3

3 Installation..................................................................................................................................................... 6

Packing List................................................................................................................................................................................... 63.1

Dimensions................................................................................................................................................................................... 63.2

Installing Device ......................................................................................................................................................................... 73.3

3.3.1 Installation Direction................................................................................................................................................... 7

3.3.2 Installation Method...................................................................................................................................................... 7

3.3.3 Detaching the Device.................................................................................................................................................. 8

3.3.4 Installing SD Card (Optional) .................................................................................................................................... 8

3.3.5 Attaching Device........................................................................................................................................................... 8

3.3.6 Installing Waterproof Connector (Optional).....................................................................................................10

3.3.7 Adjusting Lens Angle ................................................................................................................................................10

Quick Start Guide

1Introduction

Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and

water damage. For the detailed operation, see FAQ manual.

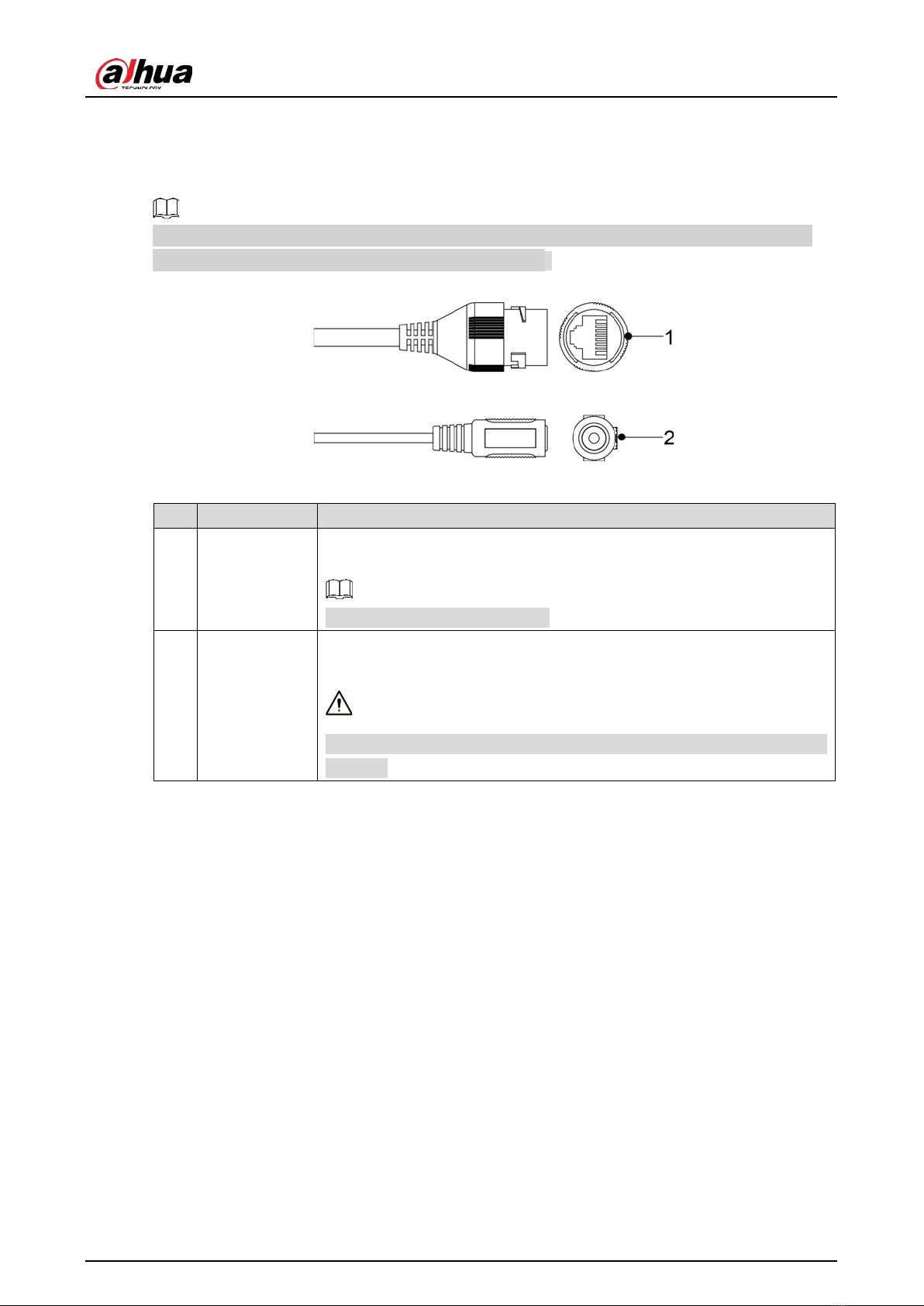

CablesFigure 1-1

Table 1-1 Cable information

No. Port Name Description

1 Ethernet port

Connects to network with network cable.

Provides power to the device with PoE.

PoE is available on select models.

2 Power input

Inputs 12 VDC power. Please be sure to supply power as instructed in the

manual.

Device abnormity or damage could occur if power

is not supplied

correctly.

Quick Start Guide

2Network Configuration

Device initialization and IP address setting can be finished with the ConfigTool or in web page. For

more information, see web operation manual.

Device initialization is available on select models, and it is required at first use or after the device

being reset.

Device initialization is available only when the IP addresses of the device (192.168.1.108 by

default) and the PC stay on the same network segment.

Plan useable network segment properly to connect the device to the network.

The following figures and interfaces are for reference only.

Initializing Device2.1

Double-click ConfigTool.exe to open the tool.Step 1

Click .Step 2

Click Search Setting.Step 3

SettingFigure 2-1

Select the searching way.Step 4

Current Segment Search (default)

Select the Current Segment Search checkbox. Enter the username in the Username

box and the password in the Password box. The system will search devices accordingly.

Other Segment Search

Select the Other Segment Search checkbox. Enter IP address in the Start IP box and

End IP box respectively. Enter user name and password. The system will search the

devices accordingly.

If you select the Current Segment Search checkbox and the Other Segment Search

checkbox together, the system searches for devices under both conditions.

Quick Start Guide

Enter the username and the password when you want to change IP, configure the

system, update the device, restart the device, and more.

Click OK.Step 5

Select one or several devices in uninitialized status, and then click Initialize.Step 6

Select the devices to be initialized, and then click Initialize.Step 7

If you do not provide the linked information for password reset, you can reset the

password only through XML file.

When initializing multiple devices, ConfigTool initializes all devices based on the

password reset mode of the first selected device.

Password settingFigure 2-2

Set and confirm the password of the devices, then enter a valid email address, and then clickStep 8

Next.

Quick Start Guide

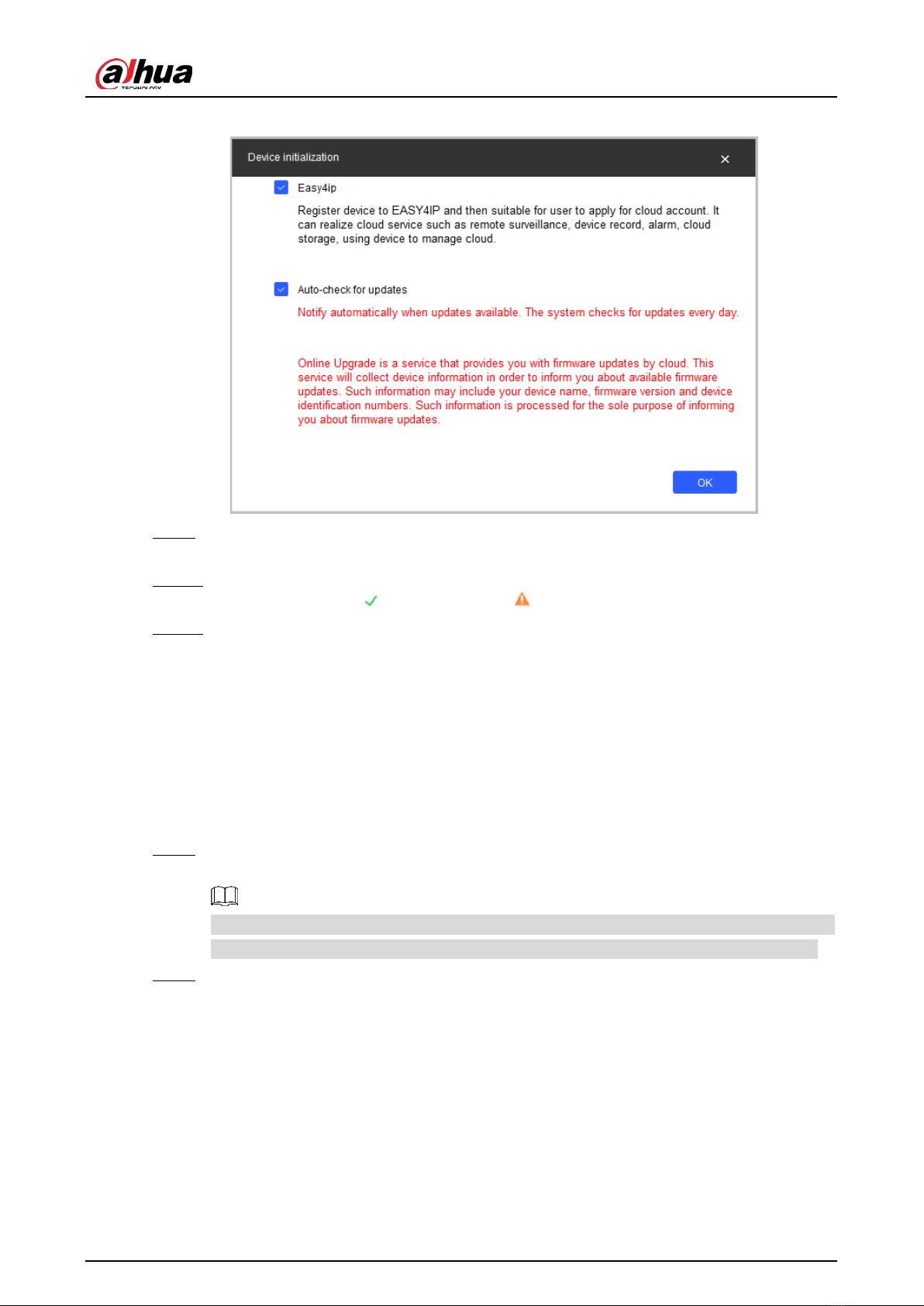

Device initializationFigure 2-3

Select Easy4ip or select Auto-check for updates according to the actual needs. If neither,Step 9

leave them unselected.

Click OK to initialize the device.Step 10

Click the success icon ( ) or the failure icon ( ) for the details.

Click Finish.Step 11

Changing Device IP Address2.2

You can change IP address of one or multiple devices in one time. This section is based on

changing IP addresses in batches.

Changing IP addresses in batches is available only when the corresponding devices have the

same login password.

Follow "Step 1" to "Step 4" in "2.1 Initializing Device" to search devices on your networkStep 1

segment.

After clicking Search setting, enter the username and password, and make sure they are the

same as what you set during initialization, otherwise there will be wrong password notice.

Select the devices whose IP addresses need to be changed, and then click Batch Modify IP.Step 2

This manual suits for next models

Table of contents

Other Dahua Technology Security Camera manuals

Dahua Technology

Dahua Technology N42BD32 User manual

Dahua Technology

Dahua Technology DH-IPC-HDW3441TP-ZS-S2 User manual

Dahua Technology

Dahua Technology D-IPC-HDBW3841EP-S-0280-S2 User manual

Dahua Technology

Dahua Technology IPC-HFW2849S-S-IL-0280B User manual

Dahua Technology

Dahua Technology DSS4004-S2 General instructions

Dahua Technology

Dahua Technology D-SDZ4032-HNR-ZB User manual

Dahua Technology

Dahua Technology IPC-HFW1531S-0360B User manual

Dahua Technology

Dahua Technology IPC-HDW3549H-ZAS-PV-27135 User manual

Dahua Technology

Dahua Technology DH-IPC-HFW3 User manual

Dahua Technology

Dahua Technology DH-IPC-PFW83242-A180-S2 User manual

Dahua Technology

Dahua Technology IR Eyeball User manual

Dahua Technology

Dahua Technology 49925TNI User manual

Dahua Technology

Dahua Technology IPC-HFW5449T1-ASE-D2-0360B User manual

Dahua Technology

Dahua Technology EZ-IP BULLET User manual

Dahua Technology

Dahua Technology IPC-HFW2431T-ZS User manual

Dahua Technology

Dahua Technology 22204TNI User manual

Dahua Technology

Dahua Technology DH-HAC-HUM1220GN-B User manual

Dahua Technology

Dahua Technology NAVIGATOR X1550 User manual

Dahua Technology

Dahua Technology IPC-HDW2431T-AS-S2 User manual

Dahua Technology

Dahua Technology HD IR Mini Bullet User manual

Dahua Technology

Dahua Technology IPC-HFW2531T-ZS-S2 User manual

Dahua Technology

Dahua Technology IPC-HUM4231S-L4-0280B-S3 User manual

Dahua Technology

Dahua Technology D-IPC-HUM8441-E1-L1 User manual

Dahua Technology

Dahua Technology IPC-HFW2431DG-4G User manual

Popular Security Camera manuals by other brands

Okina USA

Okina USA SIR36-870VF650LP user manual

Divio

Divio NDR155PA user manual

Canon

Canon VB-C500D Specifications

Easy Access

Easy Access EasyGuard user manual

Vivotek

Vivotek FD9389-EHV-v2 Quick installation guide

TUYA

TUYA COSMO W2 manual

Eusso

Eusso UNC7500-IR Advanced installation guide

urmet domus

urmet domus 1096/204 user manual

VC VC20 series operating manual

Axis

Axis Q1614 installation guide

ieGeek

ieGeek DD201 manual

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Installation and user guide

Vicon

Vicon V662-D-1 Installation and operation guide

Grundig

Grundig GCH-K0274P owner's manual

Lorex

Lorex VANTAGE LBC7032 quick start guide

4xem

4xem WPT Specifications

Samsung

Samsung SCV-3082 Specifications

Vitek

Vitek VTC-C544 Specifications
