Daewoo DWD-L100 Series User manual

Service Manual

Drum Washing Machine

Model: DWD-L100 Series

MAY. 2010

? Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information, please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

S/M No. : DWDLD14002

DRUM WASHING MACHINE

SERVICE MANUAL

1. WHAT IS DRUM WASHING MACHINE? ......................................1

2. WASHER SPECIFICATION ..........................................................2

3. PARTS LIST BY ASS'Y .................................................................4

4. CONTROL PART FUNCTION SPECIFICATION ........................23

5. ELECTRONIC FIELD PARTS LIST AND SPECIFICATION .......38

6. WIRING DIAGRAM .....................................................................39

 Waterconsumptionisreducedbyusingthepowerofthelaundryfalling(free-fall)createdwhenrotating

thedrum.Withtemperaturecontrolsystem,thisdrumwashingmachinesavesenergyandimproves

washingperformanceatthesametime.

1. WHAT IS DRUM WASHING MACHINE?

1. Drum Washing Machine

◈WaistCare

 Designedbythewaist,andthemostcomfortable

angleejectintothelaundryisconvenientandeasyto

manipulate.

◈StarDrum

 UsingStarDrumisabletoshowusershigher

WashingPerformanceandMinimaldamageof

laundry,waterconsumption.

◈LuxuryAudioDial

 UsingtheadvancedAudioDialisluxurydesignof

exterior.

◈DDinvertermotor

 Thedirect-drivetypeofwhichmotorisdirectly

connectedtodrumwithoutaninterimclutch,

significantlyreducesnoiseandvibration.

◈Self-CleaningCourseofDrum.

 EnablesthemachinetodoSelf-CleaningofDrum.



◈DigitalCondensingDrySystem.

 CondensingDrySystemwithsaveingenergy.

2. Key Features

• DD Control: Direct drive type of direct connection between drum and motor

• Rotation by powerful high-performance BLDC motor

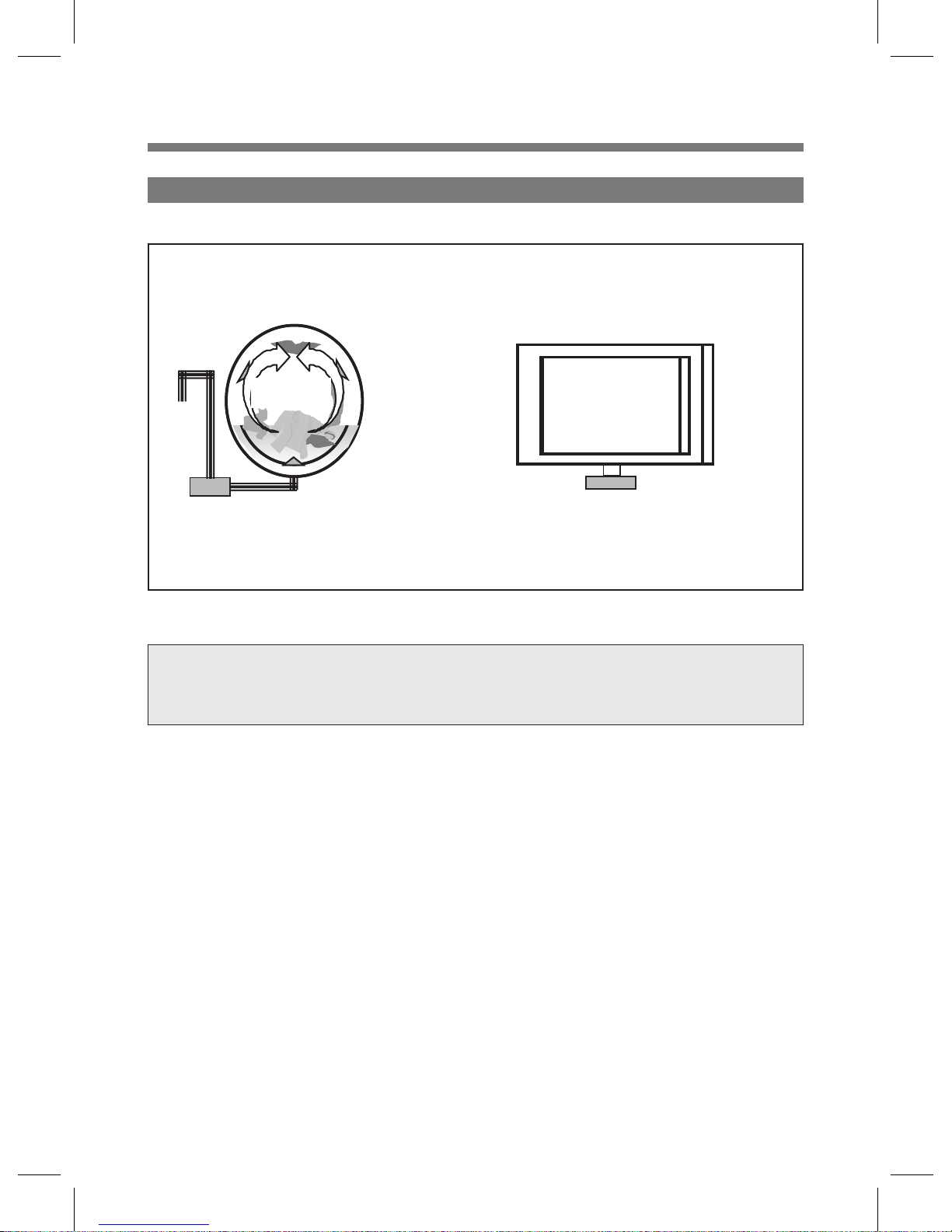

3. Power System

Pump Drainage BLDC

LAUNDRY

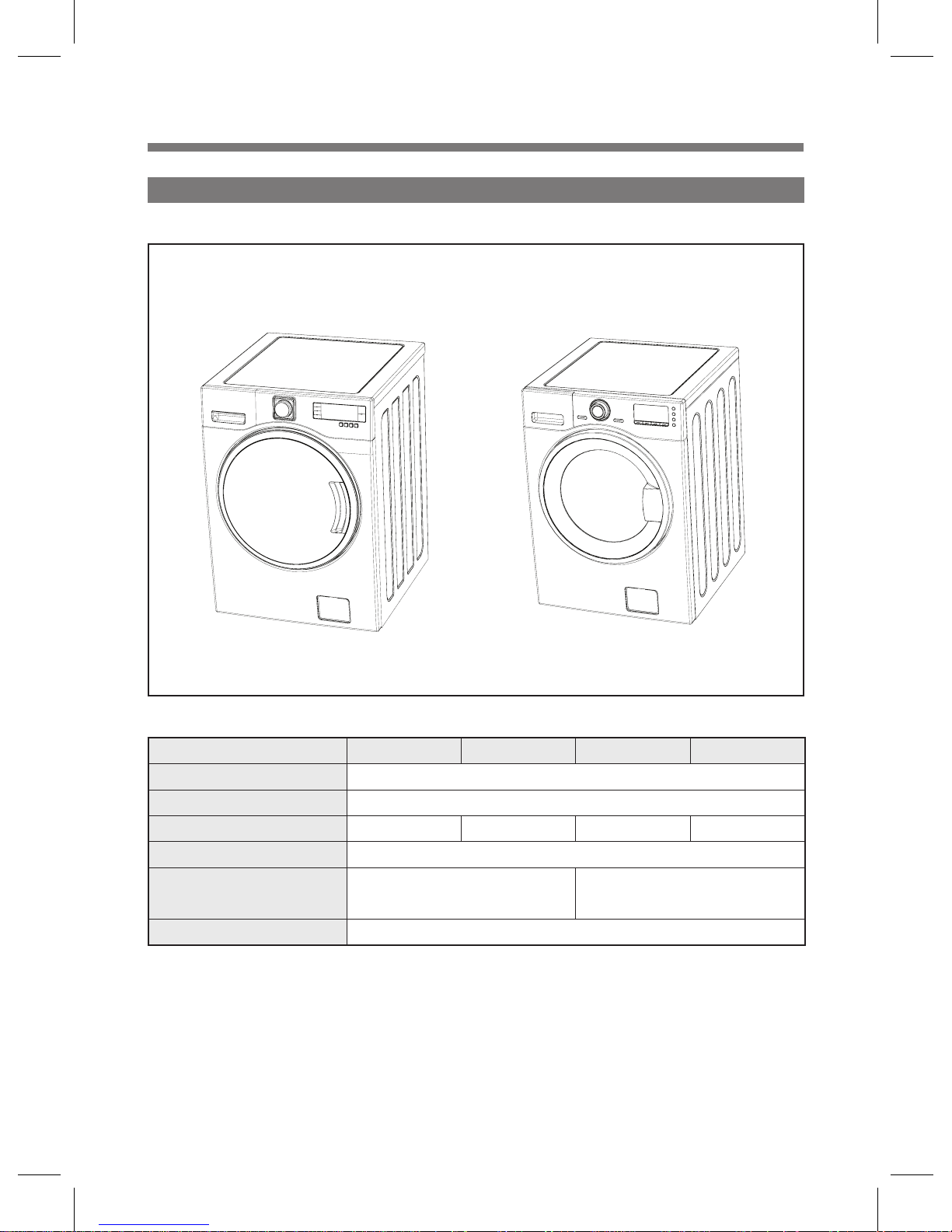

2. WASHER SPECIFICATION

1. Product Specification

■ 1st Model ■ 2st Model

MODEL DWC-LU1011/1211 DWD-LU1011/1211 DWC-LD1411/1611 DWD-LD1411/1611

Dimension(mm) 600X645X850

Maximummassoftextile(kg) 9Kg

UnitWeight(net/gross) 78/82 71/75 76/80 69/73

StandardWaterConsumption 65ℓ

SpinSpeed(RPM) DWC(DWD)-LU10XX:MAX1000

DWC(DWD)-LU12XX:MAX1200

DWC(DWD)-LD14XX:MAX1400

DWC(DWD)-LD16XX:MAX1600

OperatingWaterPressure 0.03MPa~0.8MPa(0.3kgf/cm2~8kgf/cm2)

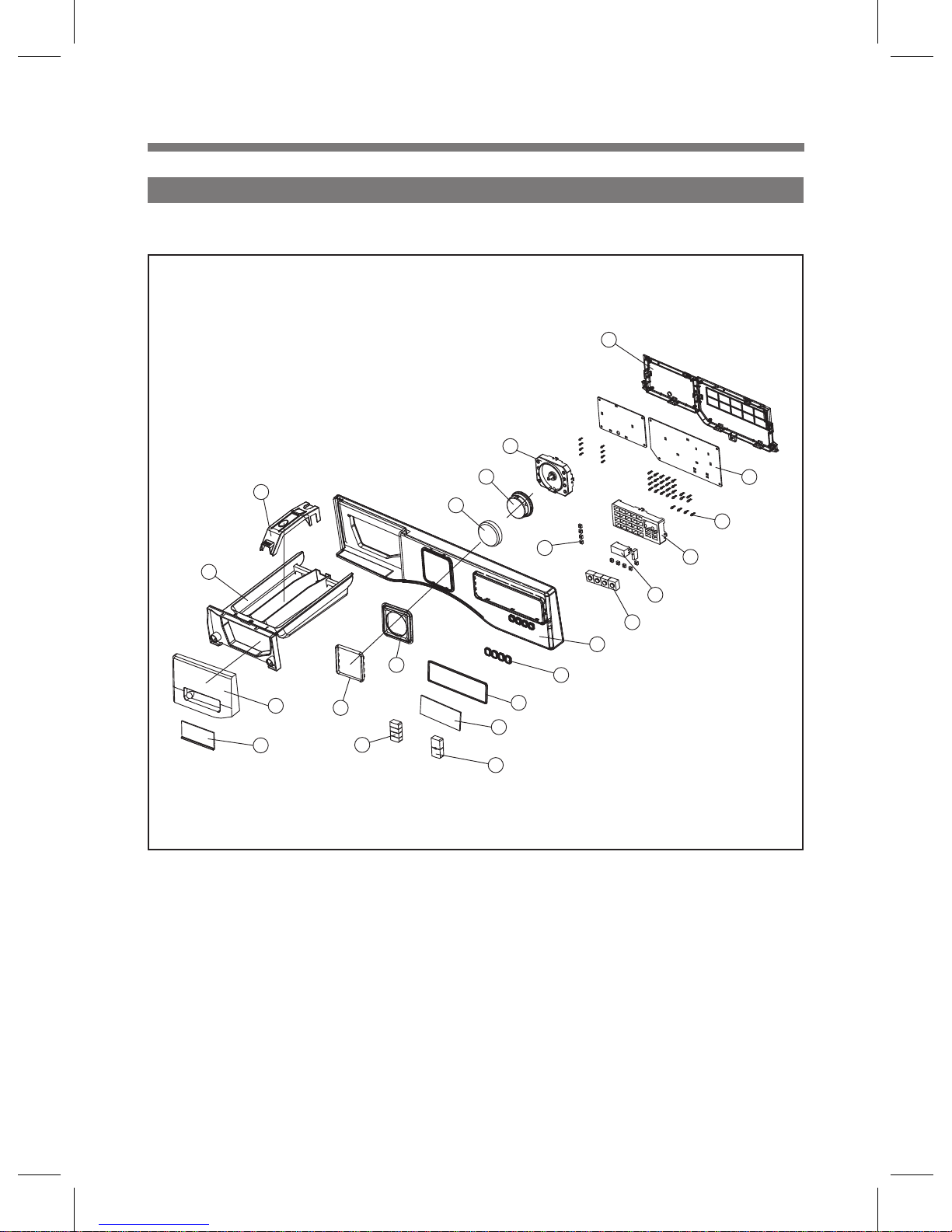

1. PANEL AS

3. PARTS LIST BY ASS'Y

A03

A02

A16

A15

A13

A14

A09-6

A09-5

A09-2

A09-0

A09-7

A11

A10

A01

A04

A05

A06

A07

A08

A09-1

A09-3

A09-4

■ 1st Model

No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK

A01 PANEL *F 36142T2000 ABS 1

A02 DECORATOR WINDOW COURSE 3611696000 ABS 1

A03 WINDOW COURSE 3615509200 C-LU1011 1

A04 DECORATOR WINDOW DISPLAY 3611696100 ABS 1

A05 BUTTON FUNCTION 3616644000 ABS 1

A06 BUTTON PS 3616644100 ABS 1

A07 WINDOW DISPLAY 3615509300 C-LU1011 1

A08 BUTTON LED 3616644200 C-LU1011 1

A09 PCB AS PRPSSWL010 1ST FRONT PCB AS (LD10/LU10) 1 EC

PCB AS PRPSSWL011 1ST FRONT PCB AS (LD12/LU12) 1 EC

PCB AS PRPSSWL012 1ST FRONT PCB AS (LD14) 1 EC

PCB AS PRPSSWL013 1ST FRONT PCB AS (LD16) 1 EC

PCB AS PRPSSWL000 1ST FRONT PCB AS (LD10/LU10) 1

STANDBY 1W

PCB AS PRPSSWL001 1ST FRONT PCB AS (LD12/LU12) 1

STANDBY 1W

PCB AS PRPSSWL002 1ST FRONT PCB AS (LD14) 1

STANDBY 1W

PCB AS PRPSSWL003 1ST FRONT PCB AS (LD16) 1

STANDBY 1W

A09-0 PCB BOARD 3614347000 L SERIES FRONT PCB BOARD 1

A09-1 CUSTOM LED 3613058300 C-LU1011 1

A09-2 LED LAMP DS0302WP-- 9MM FORMING TYPE , D=3MM 36

A09-3 SW TACT 5S50101402 2PIN, 6*6*5 9

A09-4 HOLDER LED OPTION 3613058000 HIPS 1

A09-5 HOLDER LED FUNCTION 3613058100 HIPS 1

A09-6 HOLDER LED COURSE 3613058200 HIPS 1

A09-7 CASE PCB F 36111T1N00 HIPS 1

A10 BUTTON DIAL OUTER 3616643800 ABS 1

A11 BUTTON DIAL INNER 3616643900 ABS 1

A12 CASE DETERGENT AS 36111T1P00 1

A13 CASE DETERGENT 36111T1J00 PP 1

A14 CAP SOFTENER 3610916600 PP 1

A15 CASE HANDLE 3611149200 ABS 1

A16 DECORATOR CASE HANDLE 3611696200 ABS 1

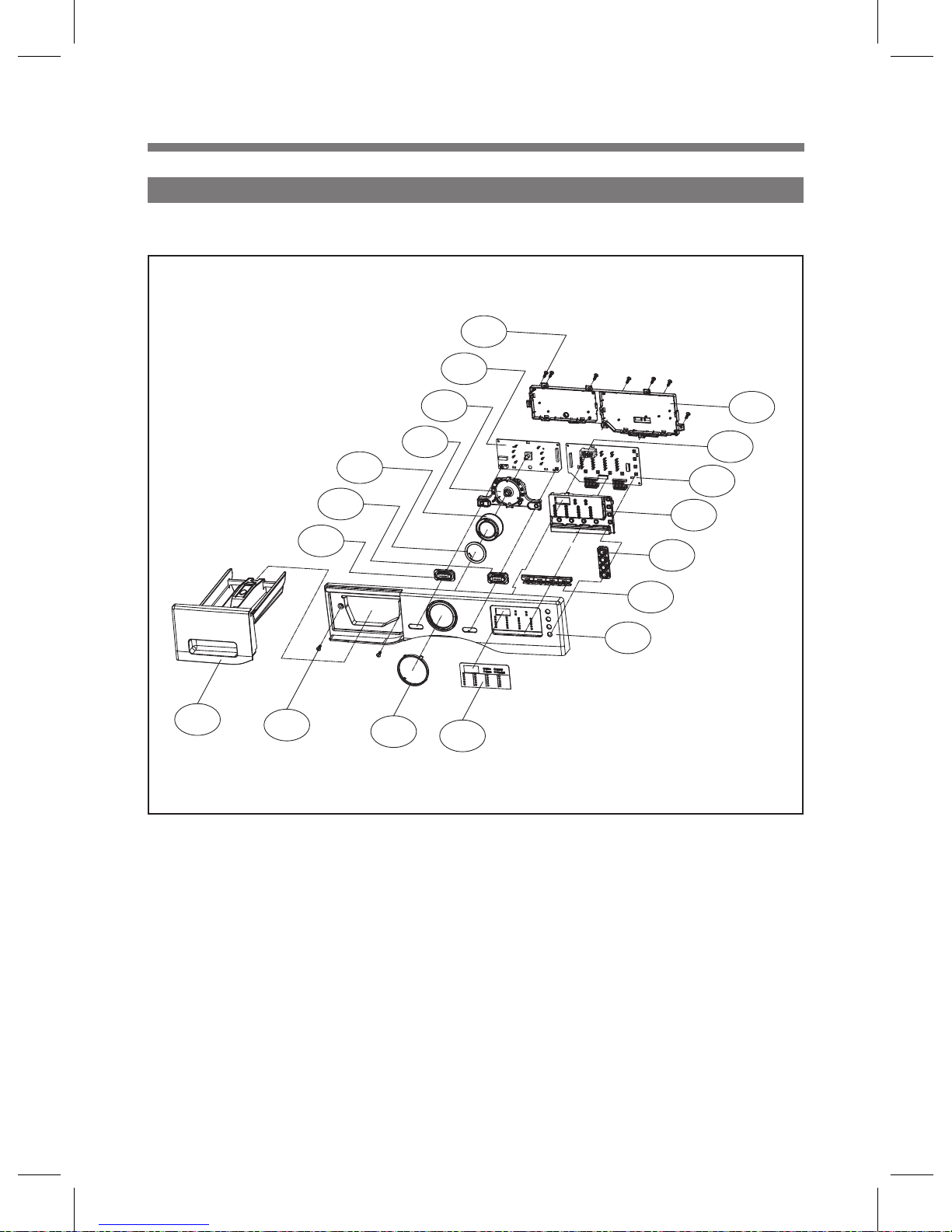

2. PANEL F AS

A01

A02

A03

A04

A05-3

A05-4

A06

A07

A08

A05-1

A05-0

A09

A13 A12 A11 A10

A05-2

A05

■ 2st Model

No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK

A01 PANEL FRONT 36142T2100 ABS 2 4x16 SUS 430

A02 BUTTON FUNCTION 3616644400 ABS 1

A03 BUTTON OPTION 3616644700 ABS 1

A04 HOLDER LED FUNCTION 3613058500 HIPS 1

A05 PCB AS PRPSSWL060

2nd FRONT PCB AS (LD10/LU10)

1 EC

PCB AS PRPSSWL061

2nd FRONT PCB AS (LD12/LU12)

1 EC

PCB AS PRPSSWL062 2nd FRONT PCB AS (LD14) 1 EC

PCB AS PRPSSWL063 2nd FRONT PCB AS (LD16) 1 EC

PCB AS PRPSSWL050

2nd FRONT PCB AS (LD10/LU10)

1 STANDBY1W

PCB AS PRPSSWL051

2nd FRONT PCB AS (LD12/LU12)

1 STANDBY1W

PCB AS PRPSSWL052 2nd FRONT PCB AS (LD14) 1 STANDBY1W

PCB AS PRPSSWL053 2nd FRONT PCB AS (LD16) 1 STANDBY1W

A05-0 HOLDER LED DISPLAY 3613058600 ABS 1

A05-1 CASE PCB F 36111T1R00 HIPS 1

A05-2 SCREW TAPPING 7122401611 T2S TRS 1 4x16 MFZN

A05-3 PCB BOARD F 3614348500 FR-1 1

A05-4 HOLDER LED COURSE 3613058400 HIPS 1

A06 BUTTON DIAL 3616644300 ABS 1

A07 DECORATOR BUTTON DIAL 3611696400 ABS 1

CHROMIUM CILDING

A08 BUTTON START 3616644600 ABS 1

A09 BUTTON POWER 3616644500 ABS 1

A10 DECORATOR FILM 3611696500 P.C FILM 1

A11 WINDOW COURSE 3615509400 TR-ABS 1

A12 SCREW TAPPING 7122401608 T2S TRS 1

A13 CASE DETERGENT AS 36111T1P10 PP 1

B01

B02

B03

B05

B04

B08

B07

B06

B10

B09

B11

B12

B13

B14

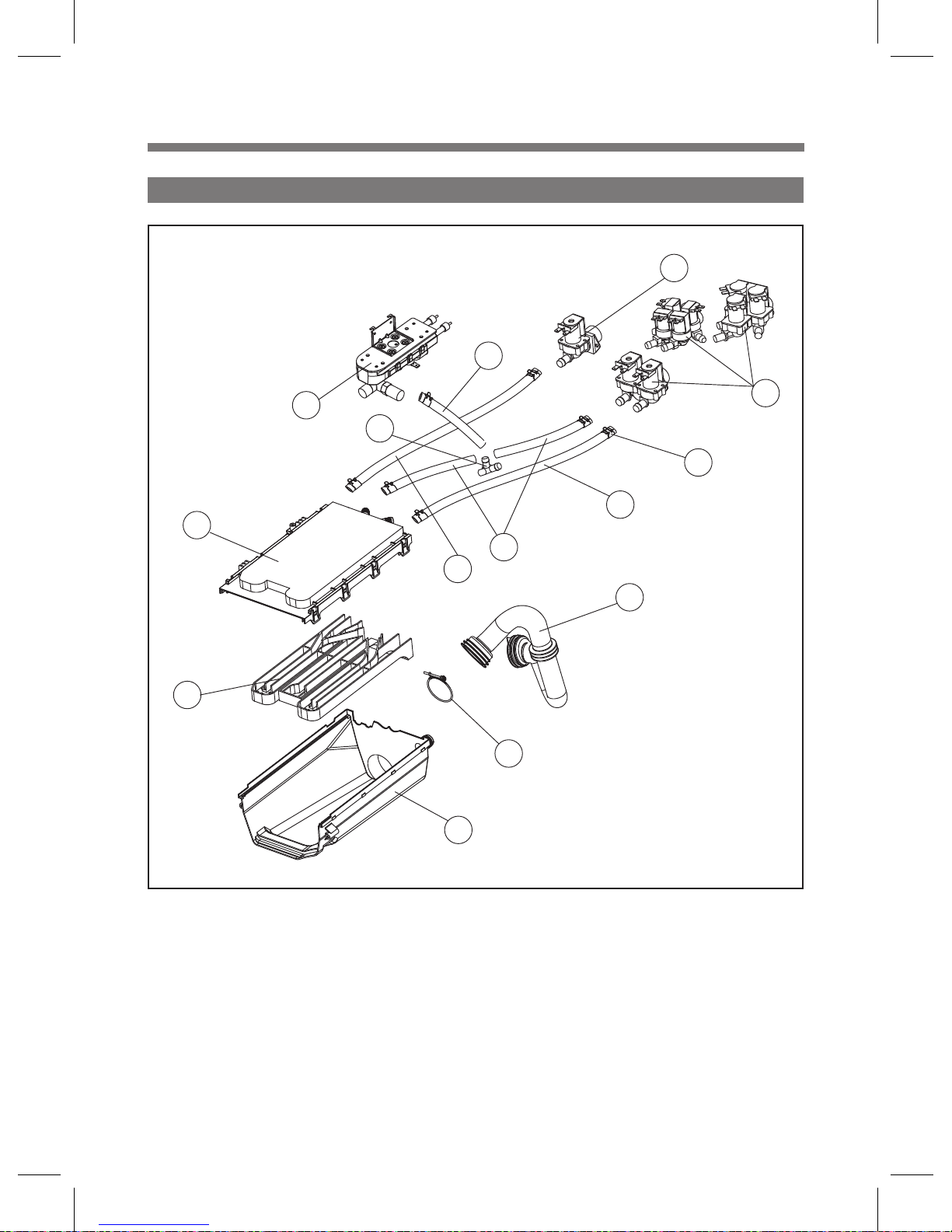

3. INLET BOX AS
