Da-Lite DESIGNER ELECTROL User manual

ELECTROL

INSTRUCTION BOOK FOR

DESIGNER ELECTROL

DA-LITE SCREEN COMPANY, INC.

3100 North Detroit Street

Post Office Box 137

Warsaw, Indiana 46581-0137

Phone: 219/267-8101

800-622-3737

Fax: 219/267-7804

http:// www.da-lite.com

e-mail: [email protected]

Before proceeding with the installation of the screen, please read the installation and operations instructions thoroughly!

CAUTION! Do not cut wrapping paper or tape with knife or any sharp tool. Remove by hand.

1. Carefully unpack the screen and remove the outer wrapping.

2. Always handle screen in upright position.

3. Remove the front cover of the screen from the back of the screen. Lift front cover up approximately 1/2" and pull

away from back of screen. See Figure 1.

4. There are two methods of mounting the screen: suspended from ceiling and wall mounted. See Figure 2.

NOTE: Allow 1/2" above screen (when mounted) for front cover of screen installation and removal.

5. Picture surface is centered in case. Case extends 5-1/2" beyond surface on either end. Do not attach anything to

screen slat on the bottom of the screen.

PRE-INSTALLATION

INSTALLATION

1. Hang screen from ceiling or wall. Make sure screen is level. Use a carpenter’s level and plum level.

2. Remove black tape from slat.

3. Install electrical hook-up that applies to your unit. Make sure to review your electrical installation checklist and

wiring diagrams (included) for either 120 volt switch, 220/240 volt switch or DRC low voltage control. See Figure 3.

NOTE: Screen must be wired to conform to local and national electrical codes.

▲

HANGER BRACKET

HANGER

FRONT

COVER

BACK OF

SCREEN


SURFACE


SURFACE

PICTURE SURFACE

SLAT

SLIP HANGER

EYES OVER

SCREWS WELL

SECURED IN

WALL.

WALL MOUNTING CEILING MOUNTING

PLACE “D”

RINGS OVER

HOOKS WELL

SECURED IN

CEILING.

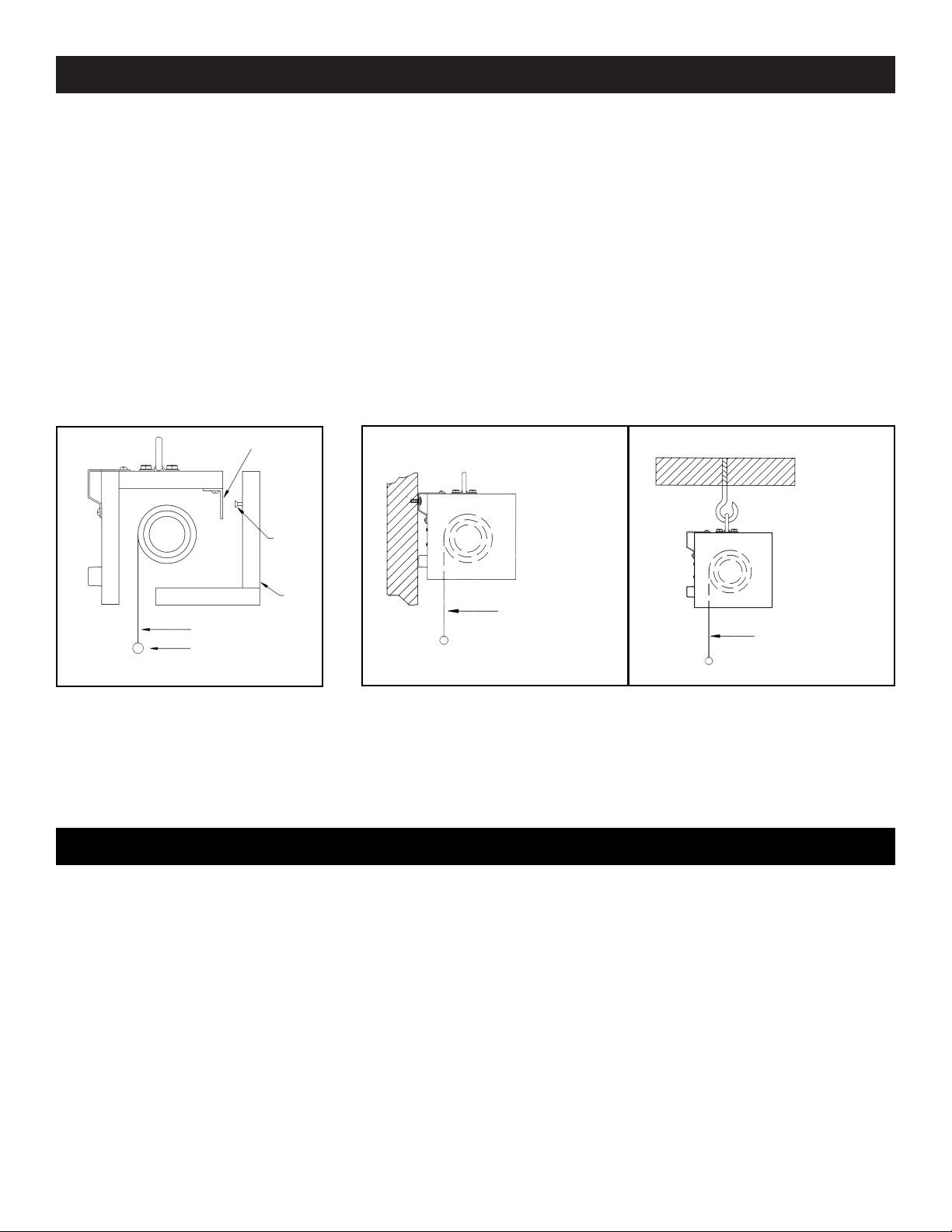

FIGURE 1 FIGURE 2

The screen surface travel is stopped automatically in the fully opened and closed positions by limit switches that are

properly adjusted at the factory. The screen should not be adjusted for more or less drop.

Should the picture surface get out of adjustment and it be necessary to adjust picture surface drop, proceed in the follow-

ing manner.

NOTE: Use a small flat screwdriver or allen wrench to make adjustments. See Figure 3.

CAUTION! When adjusting limit switches and testing, be prepared to stop screen quickly as serious damage may

occur.

More Screen Drop

1. Place operating switch in

Down" position.

2. When the screen stops, turn the white "Down" limit knob one-quarter turn counter-clockwise. Test by raising picture

surface approximately two feet, then lower again. Repeat until proper screen drop has been attained.

Less Screen Drop

1. Raise picture surface approximately two feet above desired level.

2. Place operating switch in "Off" position.

3. Turn the white "Down" limit knob one-quarter turn clockwise. Test by lowering screen until it stops. Repeat until

proper screen drop has been attained.

NOTE: The yellow "Up" adjustment knob controls where fabric stops in the case. Do not adjust bottom slat to come

in contact with the fabric on roller.

Replace Front Cover

Center front cover on back of case, raise about 1/2" above the back, push front cover into cover hanger brackets and

lower into place.

SCREEN ADJUSTMENT

▲

5-1/2"

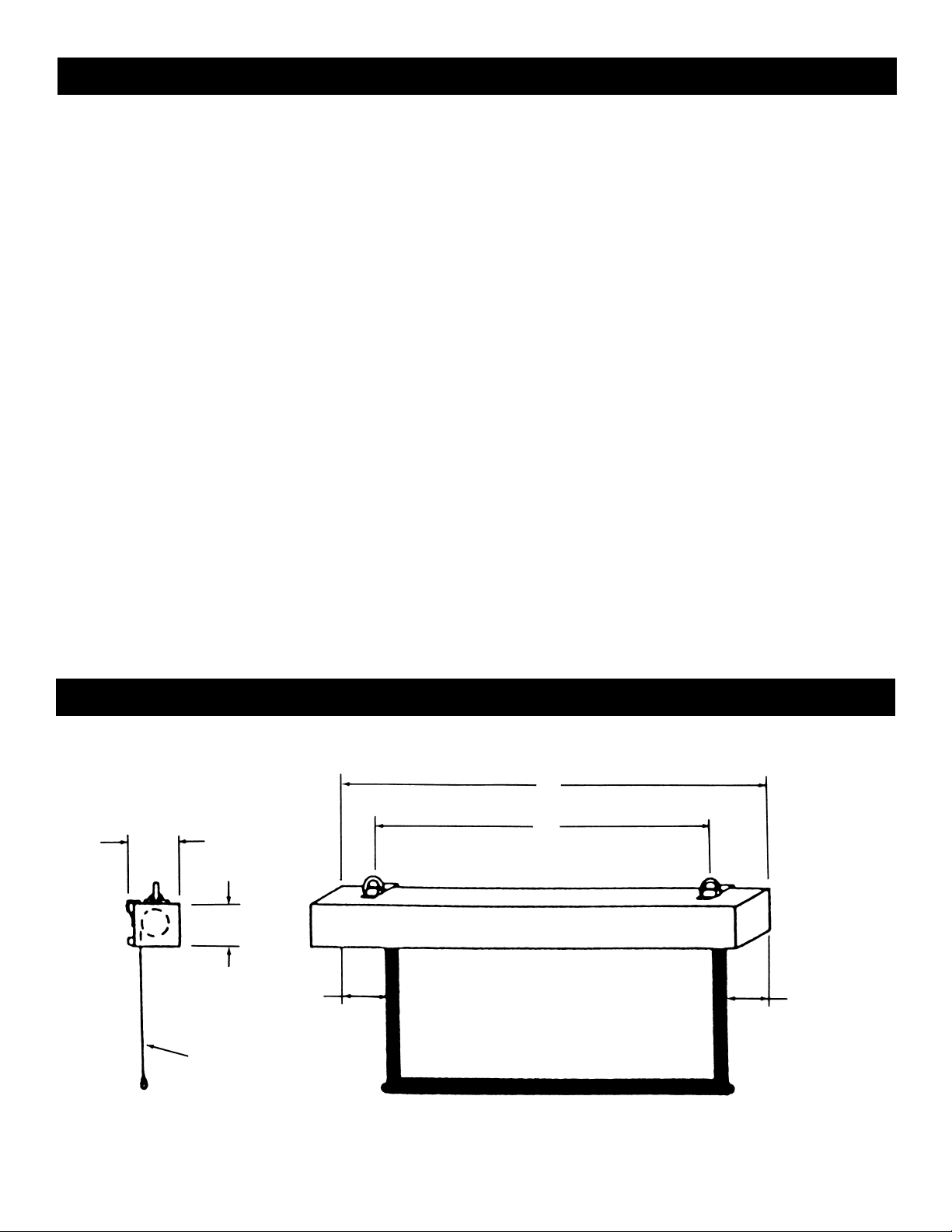

A = FABRIC WIDTH + 11"

B = FABRIC WIDTH

5-1/2" 5-1/2"


SURFACE

UP YELLOW LIMIT SWITCH KNOB

TO JUNCTION BOX MOUNTED IN

SCREEN CASE, IN WHICH INTERNAL

WIRING TERMINATES IN WHITE,

BLACK AND RED LEADS.

IN MULTIPLE CONTROL INSTALLATIONS

THIS SWITCH IS REPLACED BY THE LOW

VOLTAGE CONTROL, OPERATED FROM

PUSH BUTTON STATIONS. SEE DIAGRAM

Nos. 46967 AND 74425, AVAILABLE UPON

REQUEST.

OPERATING SWITCH, SWITCH

BOX, AND PLATE FURNISHED

WITH SCREEN. (SPDT WITH

CENTER OFF)

THIS SWITCH CANNOT BE USED WITH LVC.

NOTE: A single switch cannot be used to operate more than

one screen. Contact the factory for further information.

BLACK DOWN

BLACK

RED

DOWN

AC HOT

OFF

WHITE COMMON

BLACK WITH YELLOW

RED UP

ROCKER

SWITCH

AC COMMON

120 VOLTS

50/60 HZ.

2.5 MAX. AMP.

DOWN WHITE LIMIT SWITCH KNOB

MOTOR

EXTERNAL WIRING

TO BE COMPLETED

BY INSTALLER.

SIDE VIEW

OF SWITCH

AND BOX

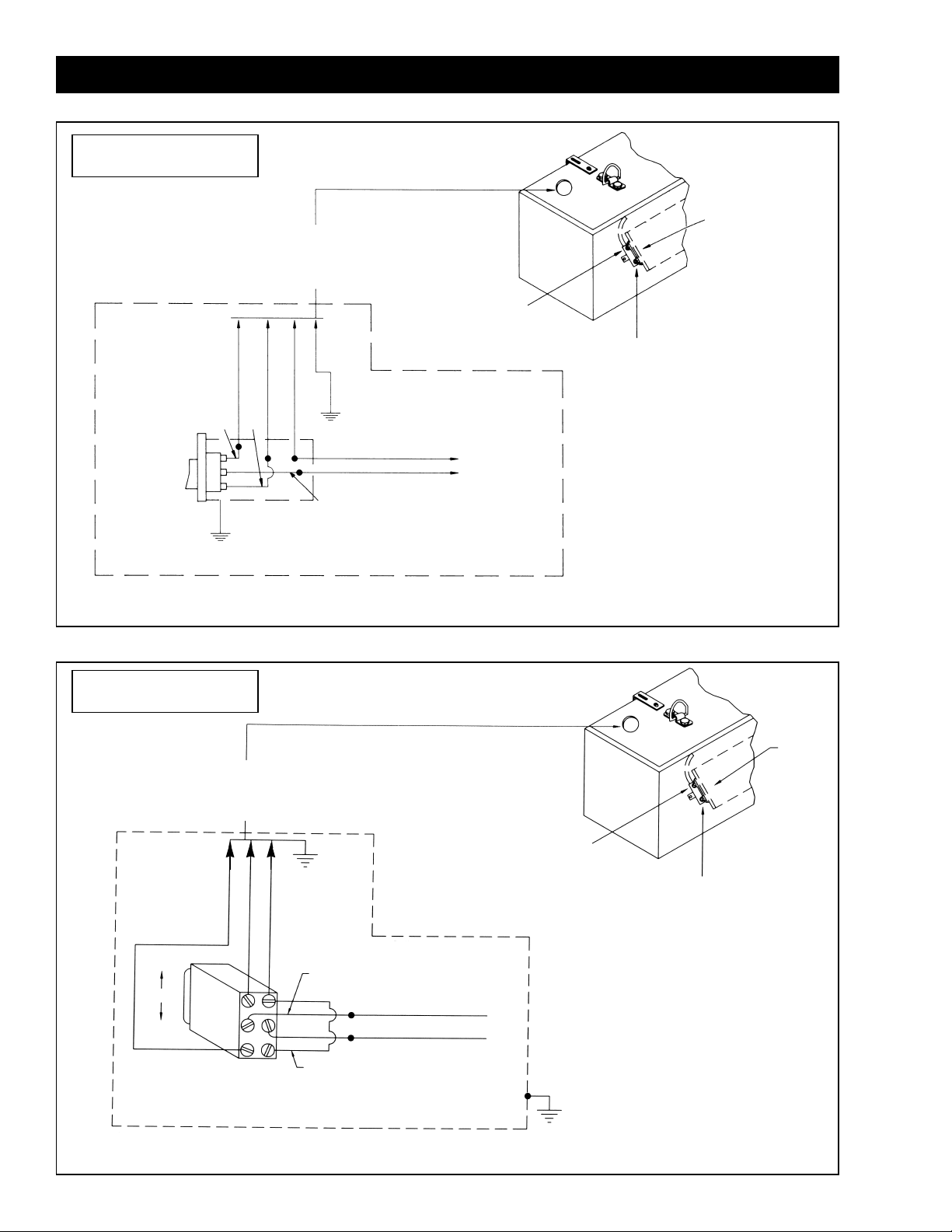

FIGURE 3

DESIGNER ELECTROL INSTALLATION

220 / 240V

WIRING DIAGRAM

UP YELLOW LIMIT SWITCH KNOB

TO JUNCTION BOX, MOUNTED IN

SCREEN CASE, IN WHICH INTERNAL

WIRING TERMINATES IN BLUE,

BROWN AND BLACK LEADS.

NOTE: MUST BE WIRED TO CONFORM TO

LOCAL WIRING CODE. THIS SWITCH

CANNOT BE USED WITH L.V.C.

OPERATING SWITCH, SWITCH

BOX, AND PLATE FURNISHED

WITH SCREEN.

THIS SWITCH CANNOT BE USED WITH LVC.

NOTE: A single switch cannot be used to operate more than

one screen. Contact the factory for further information.

DOWN WHITE LIMIT SWITCH KNOB

MOTOR

FIGURE 3

BLACK (UP)

DOWN

OFF

BLUE (COMMON)

BROWN /

YELLOW

ROCKER

SWITCH

220 /240V. AC 50HZ.

2 AMP. MAX.

BROWN (DOWN)

BLUE JUMPER WIRE

BLUE AC COMMON

BROWN AC HOT

JUNCTION

BOX

IN MULTIPLE CONTROL INSTALLATIONS

THIS SWITCH IS REPLACED BY THE LOW

VOLTAGE CONTROL, OPERATED FROM

PUSH BUTTON STATIONS.

EXTERNAL WIRING

TO BE COMPLETED

BY INSTALLER.

REAR VIEW OF DPDT,

WITH CENTER OFF.

120V

WIRING DIAGRAM

TROUBLESHOOTING

SYMPTOM

1. Screen will not operate or will

not go “down”.

Motor does not hum.

Motor hums.

2. Screen will not move “up”.

Motor does not hum.

Motor hums.

3. Incorrect stopping position in

downward direction.

4. Incorrect stopping position in

upward direction.

5. Noise

NOTE: Screen will operate with a

low pitched hum.

6. Coasting.

7. Roller displaced from mounting

bracket.

CAUSE

(a) Blown fuse.

(b) Tripped power supply circuit breaker.

junction.

Power at junction box.

(d) Thermal overload tripped.

(e) Broken wire in the "down" position.

(f) Defective motor.

(g) Temporary binding.

(h) Motor burned out.

(a) Blown fuse.

(b) Tripped power supply circuit breaker.

junction.

Power at junction box.

(d) Thermal overload tripped.

(e) Broken wire in the "up" position.

(f) Defective motor.

(g) Temporary binding.

(h) Motor burned out.

(a) "Down" limit switch out of adjust-

ment.

(a) "Up" limit switch out of adjustment.

(a) Squeaking rubber end plug on

motor.

(b) Grinding due to foreign object in

screen rubbing on roller or fabric.

(a) Defective brake.

(a) Pin end slipped out of nylon bearing.

SOLUTION

(a) Replace fuse.

(b) Reset circuit breaker.

connections. Correct any improper

connections.

“Down” Position

Check for power across black and

white leads.

(d) Let motor cool down for 15 minutes.

Try again.

(e) Check for continuity. Cut off old

splice and reconnect.

(f) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(g) With power OFF, turn roller by hand

to free binding.

(h) Replace motor assembly.

(a) Replace fuse.

(b) Reset circuit breaker.

connections. Correct any improper

connections.

“Up” Position

Check for power across red and

white leads.

(d) Let motor cool down for 15 minutes.

Try again.

(e) Check for continuity. Cut off old

splice and reconnect.

(f) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(g) With power off, turn roller by hand to

free binding.

(h) Replace motor assembly.

(a) See installation instructions.

(a) Adjust "up" limit switch. Turn clock-

wise to expose more fabric. See in-

stallation instructions.

(a) Adjust roller to center of case.

(b) Remove foreign object.

(a) Replace motor assembly.

(a) Remove pin end mounting. Realign

motor in tube. Re-attach pin end.

Printed in U.S.A. 76401 Rev. 1/98

LIMITED ONE YEAR WARRANTY ON DA-LITE PROJECTION SCREENS

Da-Lite Screen Company, Inc. warrants its screens to the original purchaser only, to be free from defects in materials

and workmanship for a period of one (1) year from the date of purchase by the original purchaser provided they are prop-

erly operated according to Da-Lite’s instructions and are not damaged due to improper handling or treatment after ship-

ment from the factory.

This warranty does not apply to equipment showing evidence of misuse, abuse, or accidental damage, or which has

been tampered with or repaired by person other than authorized Da-Lite personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the

merchandise. Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the

screen or part to Da-Lite, transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not

responsible for damage in shipment. To protect yourself against damage or loss in transit, insure the product and prepay

all transportation expenses.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES AS

TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of fitness for use, or merchantability, that may

be mandated by statue or rule of law are limited to the one (1) year warranty period. This warranty gives you specific

legal rights, and you may also have other rights which vary from state-to-state. NO LIABILITY IS ASSUMED FOR

EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION OF EQUIPMENT, OR FOR INCIDENTAL,

DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite Screen, you may contact our Customer

Service Department at P.O. Box 137, Warsaw, Indiana 46581-0137 (219/267-8101) Toll Free (800/622-3737).

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE BOUND BY THIS WAR-

RANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH DA-LITE’S WRITTEN

INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.
