Da-Lite Large advantage electrol User manual

Instruction Book for

LARGE ADVANTAGE®ELECTROL®

Tools required for iNsTAllATioN

1. The case provides multiple attachment points for bolts,

cables, or threaded rod. Page 4 shows threaded rod installed.

The variable position-mounting bracket may be located

anywhere along the length of the case. It is recommended to

keep the brackets spaced evenly enough to distribute the

weight of the screen. One mounting bracket is required for

every 4' of case length.

2. Tighten bolts until trim flange is flush with ceiling.

NOTE: For proper operation, screen assembly must be level

after installation.

3. Remove 2 screws to open junction box. Install electrical

connections that apply to your unit. Make sure to review the

wiring diagram for proper hook up. Replace junction box

cover and secure with 2 screws.

NOTE: Please Note: Motor Operator Projection Screen

Models LADT, LADDT, LAD and LADD must be installed in

accordance with the requirements of the Local Building

Codes, the Canadian Electrical Code (CEC), CAN/CSA C22.1

and the National Electric Code (NEC), NFPA 70. An

appropriate disconnect device shall be provided as part of the

building installation.

If your case was ordered in advance of the screen and roller

assembly, your installation is now complete. Continue to

step 4 if your Large Advantage Electrol was ordered as a

complete unit.

4. Carefully remove paper and tape from roller assembly

CAUTION! DO NOT USE A KNIFE OR SHARP OBJECT

TO CUT TAPE; YOU WILL DAMAGE THE SCREEN.

PULL ORANGE STRING.

5. Test installation by running screen up and down a few times.

Be prepared to stop screen should any objects obstruct the

movement of the screen. To prevent damage to the motor,

the standard duty cycle is 1 minute on and 3 minutes off.

CAse iNsTAllATioN

iMPorTANT sAfeTY iNsTruCTioNs

When using your video equipment, basic safety precautions should always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over,

pulled, or contact hot surfaces.

3. If an extension cord is necessary, a cord with a current

rating at least equal to that of the appliance should be

used. Cords rated for less amperage than the appliance

may overheat.

4. To reduce the risk of electric shock, do not disassemble

this appliance. Contact an authorized service dealer

when repair work is required. Incorrect reassembly can

cause electric shock when the appliance is used

subsequently.

5. The use of an accessory attachment not recommended

by the manufacturer may cause a risk of fire, electric

shock, or injury to persons.

Pre-iNsTAllATioN

1. Carefully unpack case from shipping crate.

2. Set aside the Installation Kit. Items inside will be used during

installation.

3. Make sure to recheck measurement of case for proper

installation clearance.

4. Remove any protective foam from case.

5. If necessary. adjust hanger brackets with a 3/4" open wrench

or socket driver.

#2 Phillips Screwdriver 3/4“ Open Wrench

or Socket Driver

If your screen was shipped with the motor and roller already installed proceed to step 7.

1. Remove the access door. First, remove the 2 bolts from each

end with a 9/16" open wrench or socket driver. Next, use a

5/32" hex key to remove the two screws in the center of the

access door. This will allow the door to drop open on the hinges

(Figure 1).

2. Carefully unpack screen and roller assembly. Leave packing

paper on the roller.

3. Remove the square peg bracket from the motor end of the

roller assembly (Figure 2).

4. Remove the safety clip from the motor attachement bracket

located in the motor end of the screen housing.

5. Use a 1/2" open wrench or socket driver to loosen the four bolts

that secure pin end mounting bracket into housing. Lift pin end

of roller into position and slide the bracket into the roller pin.

Tighten all four bolts. Slide the pin end bracket towards the end

of the case (Figure 3).

6. Place the roller assembly into the case with the motor on the

left side. The limit switches should be facing down. Line up the

head of the motor with the motor attachment bracket.

7. Complete electrical hook-up by snapping motor 1/3 wire

connectors into case connectors (Figure 2).

8. Return to motor end and insert safety clip over casting bracket

to secure motor end.

9. Carefully remove tape strips securing picture surface around

roller. Slat should move freely. (Only if the roller assembly is pre

installed.)

CAUTION! DO NOT CUT TAPE ON FABRIC WITH A KNIFE

OR ANY SHARP TOOL. REMOVE BY HAND.

10. Test installation by running screen up and down a few times.

Be prepared to stop screen should any objects obstruct the

movement of the screen. To prevent damage to the motor, the

standard duty cycle is 1 minute on and 3 minutes off.

11. Re-install the access door. Procedure is the reverse of step 1

listed above.

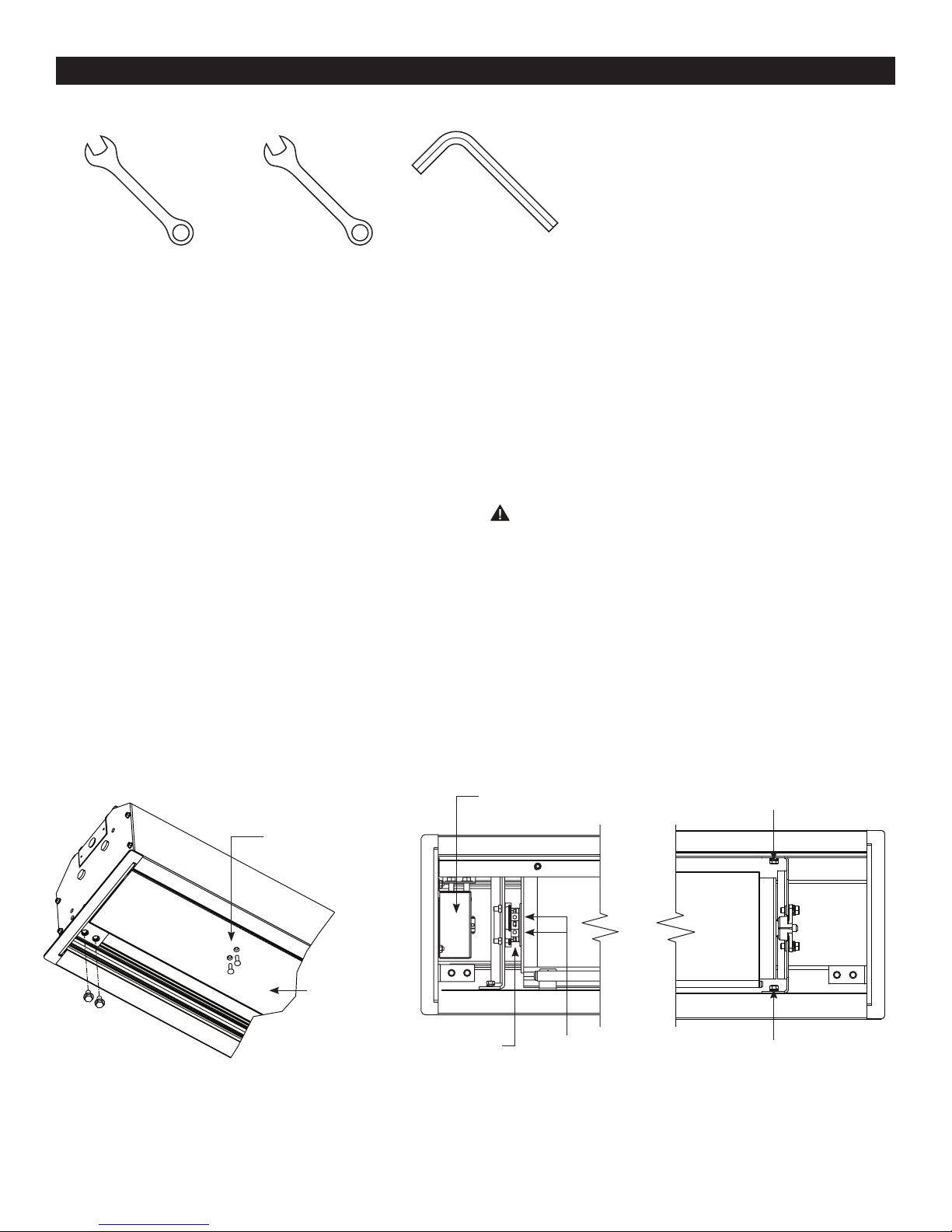

Tools required for screen and roller assembly:

sCreeN ANd roller AsseMBlY iNsTAllATioN

Bolts

Figure 3Figure 1 Figure 2

9/16“ Open Wrench

or Socket Driver

1/2“ Open Wrench

or Socket Driver

5/32“ Hex Key

Bolts

Access Door

Door Support Screws

Screen Motor

LVC Control Box

Screen Motor

Limit Switches

lArge AdVANTAge®eleCTrol®iNsTAllATioN

Variable Position

Mounting Brackets

Electrical

Junction Box

Electrical

Junction Box

Screen Roller

Access Door

Audience Side

Self-Trimming

Flange

2-3/16"

(Suggested) 1/2"

Threaded Rod (Not

Included) Attached to

Mounting Bracket

Finished

Ceiling

Self-Trimming

Flange

12-3/16"

13-1/8"

11"

9-1/8"

11-7/16"

10-15/16"

sCreeN AdJusTMeNT

More sCreeN droP

less sCreeN droP

Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite.

Should it be necessary to adjust for more or less drop of picture, proceed in the following manner:

NOTE: Use a screw driver or 5/32" Allen wrench to make adjustments.

1. Place operating switch in “down” position.

2. When the screen stops, turn the white “down” limit knob

one-quarter turn counterclockwise (Figure 4). Test by raising

picture surface approximately two feet, then lower again.

Repeat until desired picture surface position is attained.

CAUTION: DO NOT ADJUST FOR MORE DROP THAN

WHAT WAS ORDERED. AT LEAST 1-1/2 WRAPS OF

FABRIC MUST REMAIN ON THE ROLLER. THIS SCREEN

COMES STANDARD WITH 0" OR 2" BLACK AT THE TOP.

SEE THE SPECIFICATION DATA SHEET FOR DETAILS.

1. Raise picture surface approximately two feet above

desired level.

2. Place operating switch in “off” position.

3. Turn the white “down” limit switch one-quarter turn clockwise

(Figure 4). Test by raising picture surface approximately two

feet, then lower again. Repeat until desired picture surface

position is attained.

Figure 4

Screen Motor

LVC Control Box

Screen Motor

Limit Switches

120V WiriNg diAgrAM WiTH oPTioNAl BuilT-iN loW VolTAge CoNTrol

NOTE: 20-24 AWG wire recommended for connecting wall

switch to low voltage controller.

CAUTION: DO NOT USE 3-POSITION HIGH VOLTAGE

ROCKER SWITCH WITH THIS UNIT! THIS WILL DAMAGE

THE LOW VOLTAGE CONTROL BOARD.

Eye Port:

Plug IR or RF

Remote Here

Power Input

120VAC / 60Hz

Black (Hot)

White (Common)

Black (Down)

Red (Up)

Green (Ground)

Screen Motor

Red (Up)

White (Common)

Black (Down)

Front of

Wall Switch

Back of Wall

Switch

Green (Ground)

White (Common

Black (Down)

Red (Up)

Green (Ground)

240V WiriNg diAgrAM WiTH oPTioNAl BuilT-iN loW VolTAge CoNTrol

NOTE: 20-24 AWG wire recommended for connecting wall

switch to low voltage controller.

CAUTION: DO NOT USE 3-POSITION HIGH VOLTAGE

ROCKER SWITCH WITH THIS UNIT! THIS WILL DAMAGE

THE LOW VOLTAGE CONTROL BOARD.

Eye Port:

Plug IR or RF

Remote Here

Power Input

120VAC / 60Hz

Brown (Hot)

White (Common)

Screen Motor

Red (Up)

Blue (Common)

Black (Down)

Front of

Wall Switch

Back of Wall

Switch

Green/Yellow (Ground)

Green/Yellow

(Ground)

Blue (Common)

Brown (Down)

Black (Up)

Black

Blue (Common

Brown (Down)

Black (Up)

Green/Yellow (Ground)

Wire Nut

TrouBlesHooTiNg

Visit www.da-lite.com/products/tutorials.php to find installation

and troubleshooting tutorials. You will also find a link to Live

Chat for interactive support.

You can contact us by email at [email protected] or by phone at

800.622.3737 or 574.267.8101 with any additional

troubleshooting questions.

Symptom Cause Solution

Screen will not operate

and motor does not hum.

Incorrect line voltage. Verify 115-125V (or 220-240V). If insufﬁcient

voltage, rewire incoming electric line.

Blown fuse. Replace fuse.

Tripped circuit breaker. Reset circuit breaker.

No power to operating switch

or junction.

Check above. Tighten all loose wire

connections. Correct any improper

connections.

Down Position

Check for power across black and white leads.

Up Position

Check for power across red and white leads.

Screen will not operate

and motor does not hum.

Power at junction box.

Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “down” or “up”

position.

Check for continuity. Cut off old splice and

reconnect.

Defective motor, limit switch or

capacitor.

Replace motor assembly. NOTE: Motor is a

sealed assembly.

Capacitor burned out. Replace motor assembly.

Screen does not stop

at correct position. Limit switch out of adjustment. See Screen Adjustment section.

Noise.

NOTE: Screen will operate

with a low pitched hum.

Squeaking, rubber end plug rubbing on

motor. Center roller in case.

Grinding. Foreign object in screen

rubbing on roller or fabric. Remove.

Gear noise. Replace motor assembly.

Coasting. Defective brake. Replace motor assembly.

Fabric hangs crooked.

Screen not installed properly. Check for level and plumb.

Fabric has backed up inside case.

Adjust “down” limit switch slowly until roller is

exposed and wrinkle comes out, then readjust

for proper drop.

Fabric is damaged. Replace fabric.

Other manuals for Large advantage electrol

Table of contents

Other Da-Lite Projection Screen manuals

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol User manual

Da-Lite

Da-Lite Cosmopolitan Electrol User manual

Da-Lite

Da-Lite Presenter P-50 User manual

Da-Lite

Da-Lite Tensioned Cosmopolitan electrol User manual

Da-Lite

Da-Lite VERSATOL User manual

Da-Lite

Da-Lite ViewShare Tensioned Advantage Electrol... User manual

Da-Lite

Da-Lite Cosmopolitan Electrol User manual

Da-Lite

Da-Lite DESIGNER ELECTROL User manual

Da-Lite

Da-Lite IMAGER User manual

Da-Lite

Da-Lite TILT-LOCK Manual

Da-Lite

Da-Lite TENSIONED PROFESSIONAL ELECTROL User manual

Da-Lite

Da-Lite TENSIONED ADVANTAGE ELECTROL User manual

Da-Lite

Da-Lite Advantage Manual With CSR User manual

Da-Lite

Da-Lite TENSIONED ADVANTAGE ELECTROL User manual

Da-Lite

Da-Lite Tensioned large advantage deluxe electrol User manual

Da-Lite

Da-Lite Floor Model C User manual

Da-Lite

Da-Lite Contour Electrol User manual

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL User manual

Da-Lite

Da-Lite DESIGNER CONTOUR MANUAL User manual

Da-Lite

Da-Lite Fast-Fold User manual

Da-Lite

Da-Lite Fast-Fold truss Frame User manual

Da-Lite

Da-Lite ADVANTAGE ELECTROL Assembly instructions

Da-Lite

Da-Lite ADVANTAGE ELECTROL User manual

Da-Lite

Da-Lite Multi vision imager User manual

Popular Projection Screen manuals by other brands

FART PRODUKT

FART PRODUKT Standard SCREEN Installation instruction

Draper

Draper E Series Installation & operating instructions

Elite Screens

Elite Screens Elite Tripod Series user guide

Laarhoven

Laarhoven Companion II General assembly instructions

Renogy

Renogy RMS-LFPS-US manual

Samsung

Samsung S*H65* user manual

FONESTAR

FONESTAR PPTR-43100-FA quick start guide

Slide Clear

Slide Clear Varro XL installation instructions

Elite Screens

Elite Screens M85XWS1-SRM manual

OS РХ-090Н user manual

Niko

Niko 10-845 Product information

Speaka Professional

Speaka Professional 2357532 Important information

Sima

Sima XL-72 instruction manual

Jasic

Jasic EVO 2.0 ET-200P Fitting instructions

Elite Screens

Elite Screens Starling 2 Series user guide

InFocus

InFocus SC-WALL GRY-92H Instruction guide

Barco

Barco OverView MVL-615 Brochure & specs

Draper

Draper Envoy Installation & operating instructions
