INSTRUCTION BOOK FOR

IDEA™ Panoramic

Preparation

Note: It requires at least four people to assemble an IDEA

Panoramic. To maintain optimal projected image geometry and

screen alignment, a lat and straight wall free from obstructions

and angular distortions should be used.

Tools Required For Assembly

Phillips Screwdriver Level

Rubber Mallet Measuring Tape ⅜” Open Wrench

or Socket Driver

Hardware Provided

#8 x ½” Screws

Number of supplied screws

varies by screen size

44” Wall Bracket

Number of supplied brackets varies by screen size. See Table 1.

28” Wall Bracket

Number of supplied brackets varies by screen size. See Table 1.

18” Wall Bracket

Number of supplied brackets varies by screen size. See Table 1.

(2) Seam Brace

(6) LBrackets

(Not included on units with

full length marker tray)

(8) 1032 Nuts

Choose a clean work area for assembly using padded material or

other soft, clean materials. The work area should be larger than

the overall screen size and directly in front of the location where

the screen is to be installed.

Wall Brackets Included

Item Number Overall Dimensions Center Panel Viewing Area

(H x W) Center Panel Wall Brackets Side Panel Wall Brackets

27963 46¾" x 144¾" 46" x 81¾" (2) 28" (2) 28"

27978 46¾" x 144¾" 46" x 73½" (2) 28" (2) 28"

27960 50¾" x 144¾" 50" x 89" (2) 44" (2) 18"

27975 50¾" x 144¾" 50" x 80" (2) 28" (2) 28"

27957 53¾" x 144¾" 53" x 94¼" (2) 44" (2) 18"

27972 53¾" x 144¾" 53" x 84¾" (2) 28" (2) 28"

27954 60¼" x 144¾" 59½" x 106" (2) 44" (2) 18"

27969 60¼" x 144¾" 59½" x 95¼" (2) 44" (2) 18"

27962 46¾" x 168¾" 46" x 81¾" (2) 28" (2) 28"

27977 46¾" x 168¾" 46" x 73½" (2) 28" (2) 44"

27959 50¾" x 168¾" 50" x 89" (2) 44" (2) 28"

27974 50¾" x 168¾" 50" x 80" (2) 28" (2) 44"

27956 53¾" x 168¾" 53" x 94¼" (2) 44" (2) 28"

27971 53¾" x 168¾" 53" x 84¾" (2) 28" (2) 28"

27953 60¼" x 168¾" 59½" x 106" (2) 44" (2) 28"

27968 60¼" x 168¾" 59½" x 95¼" (2) 44" (2) 28"

27961 46¾" x 192¾" 46" x 81¾" (2) 28" (2) 44"

27976 46¾" x 192¾" 46" x 73½" (2) 28" (2) 44"

27958 50¾" x 192¾" 50" x 89" (2) 44" (2) 44"

27973 50¾" x 192¾" 50" x 80" (2) 28" (2) 44"

27955 53¾" x 192¾" 53" x 94¼" (2) 44" (2) 44"

27970 53¾" x 192¾" 53" x 84¾" (2) 28" (2) 44"

27952 60¼" x 192¾" 59½" x 106" (2) 44" (2) 28"

27967 60¼" x 192¾" 59½" x 95¼" (2) 44" (2) 44"

Table 1

Hardware Provided

Cleaning

Everyday Cleaning: The supplied foam eraser can be used to clean marks on the screen surface made by everyday dry erase marker

usage. Do not use spray cleaner in combination with the foam eraser.

Thorough Cleaning: For periodic full screen cleaning or to clean persistent marks from dry erase markers, use the supplied Da-Lite

spray cleaner and cleaning cloth. Use clean or dry sections of the microiber cloth when erasing the screen. This is important to prevent

smearing on the screen while cleaning. To clean permanent markers and other unintentional marks on the surface, use the supplied

foam eraser or the Da-Lite spray cleaner and cleaning cloth.

Assembly Instructions for Panoramics with 24” Marker Tray

1. Carefully unpack unit and place all panels on top of the clean

work area. The viewing surface of each panel must face down.

2. Slide all three panels together, aligning the both the top and

bottom frames (Figure 1).

3. Find (1) seam brace and remove the release liner from both strips

of adhesive tape.

4. Ensuring that the panels are still in alignment, line up the seam

brace with one of the panel seams with adhesive side facing

down. Do not press adhesive into panels yet. Maintain at least a

small gap between the adhesive and the panel.

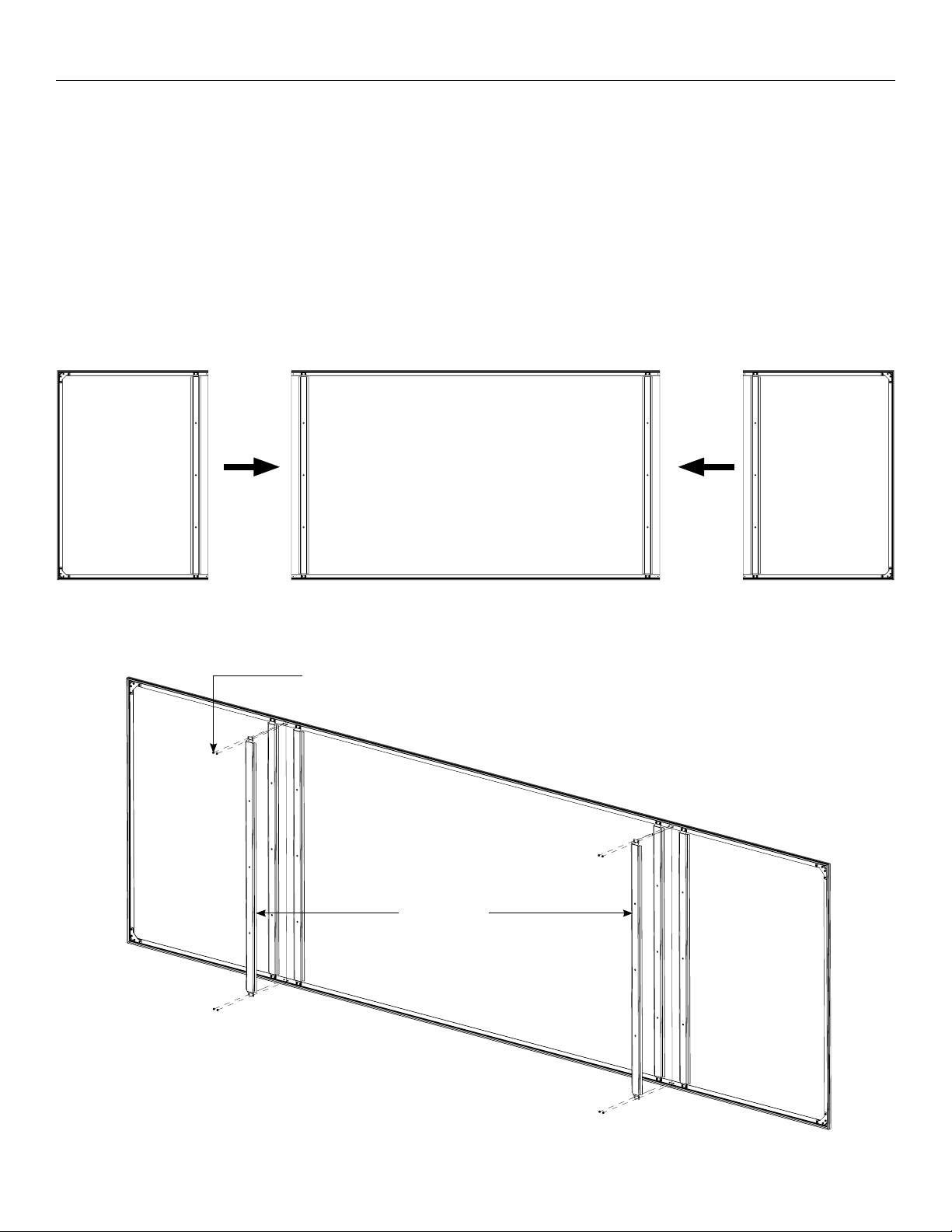

Figure 1

Figure 2

5. Use ⅜” open wrench or socket driver and (4) 1032 nuts to attach

seam brace onto the studs on the top and bottom of screen

frame at the panel seam. Tighten all four nuts once attached to

the frame (Figure 2).

NOTE: For optimal seam alignment, hold the panels together

tightly while the seam brace is being adhered and the lock nuts

are being tightened.

6. Press adhesive into panels. Apply steady pressure along the

length of the seam brace to attach irmly.

7. Repeat Steps 36 to attach the other seam brace.

1032 Nuts

Seam Braces

Wall Mounting for Panoramics with 24” Marker Tray

NOTE: The screen is shipped with four wall brackets and lengths

shipped vary by screen size. Two brackets will be used on the

center panel and one bracket on each of the side panels.

Measure gap on each side panel to determine which two

brackets will be used with these panels. These brackets will be of

an equal length. The remaining two brackets (also of an equal

length) will be used to hold the weight of the center panel. Use

appropriate mounting hardware for the wall type and to

accommodate for the screen’s total hanging weight.

1. Secure the two center panel wall brackets to wall studs at the

desired height. The outside edge of each wall bracket must be

no greater than 5” away from the left or right panel seams. You

will need at least 1” clearance above the drilled holes to hang the

screen.

2. Secure the two side panel wall brackets to wall studs at the height

selected in Step 1. Each side panel wall bracket should be

centered between the seam brace and left or right outside edge

of the frame when mounted to the wall (Figure 3).

NOTE: Do not proceed if all four brackets are not level with each

other or a gap may appear between each of the panels when

mounted.

3. To install the (2) center panel L-brackets, you must measure the

overall height of the screen frame and subtract 1 1/8”. Using that

dimension, measure down from the top edge of each of the

center wall brackets and mark the wall for two screw holes. The

outside edge of each center panel L-bracket must be no greater

than 5” away from the left or right panel seams (Figure 3).

4. Secure the two center panel L-brackets to the wall at the marked

locations. The longest side of the two center panel L-brackets

should be pointing upwards when secured in order to hide the

L-brackets behind the screen frame once the screen is installed

(Figure 3).

Wall Brackets

LBracket

No More

than 5”

No More

than 5”

No More

than 5”

Screws (Not Supplied)

Tray Installed in Step 8

Figure 3

Wall Mounting Instructions for Screens with 24” Marker Tray (continued)

5. Repeat Steps 34 to install the (4) remaining L-brackets for the side

panels.

NOTE: At this point, all six L-brackets will be mounted on the wall;

two L-brackets for each panel. Do not proceed if all six-L brackets

are not level with each other on the wall.

Steps 67 require at least four people. Place one person on the

far left end of the screen, one person at the left panel seam,

one person at the right panel seam and one person on the far

right end of the screen. More people can be utilized as

needed. When lifting the screen of of the clean work area to

the wall and then onto the wall, it is crucial that the screen

remain coplanar and does not bend at the seams.

CAUTION: Any bend between the three panels at the seams

may damage the screen or result in a permanent gap

between the seams.

6. Using all four people, carefully lift the fully assembled three panel

screen to an upright position and place underneath the mounted

wall and L-brackets. The screen will be parallel to the wall at the

end of this step.

7. Using all four people, carefully and in a smooth motion lift the

screen to hang it on the four installed wall brackets. There is a lip

on the back of the frame that wedges itself into the four wall

brackets once full installed. Ensure that the screen clears the six

L-brackets and that the screen weight is on the four wall brackets,

not the six L-brackets.

8. Center the aluminum tray to the bottom of the center panel

frame and attach with (3) of the provided #8 x ½” screws. Insert

screws through the tray into the groove (Figure 4).

9. Tap the bottom of the six L-brackets with the rubber mallet until

they make contact with the frame. Secure the six L-brackets to the

frame with the remaining (12) #8 x 1/2” screws (Figure 4).

Figure 4

#8 X ½" Screws

Assembly Instructions for Panoramics with Full Length Marker Tray

1. Carefully unpack unit and place all panels on top of the clean

work area. The viewing surface of each panel must face down.

2. Slide all three panels together, aligning the both the top and

bottom frames (Figure 5).

3. Find (1) seam brace and remove the release liner from both strips

of adhesive tape.

4. Ensuring that the panels are still in alignment, line up the seam

brace with one of the panel seams with adhesive side facing

down. Do not press adhesive into panels yet. Maintain at least a

small gap between the adhesive and the panel.

5. Use ⅜” open wrench or socket driver and (4) 1032 nuts to attach

seam brace onto the studs on the top and bottom of screen

frame at the panel seam. Tighten all four nuts once attached to

the frame (Figure 6).

NOTE: For optimal seam alignment, hold the panels together

tightly while the seam brace is being adhered and the lock nuts

are being tightened.

6. Press adhesive into panels. Apply steady pressure along the

length of the seam brace to attach irmly.

7. Repeat Steps 36 to attach the other seam brace.

Figure 5

Figure 6

1032 Nuts

Seam Braces

Figure 7

Wall Mounting for Panoramics with Full Length Marker Tray

NOTE: The screen is shipped with four wall brackets and lengths

shipped vary by screen size. Two brackets will be used on the

center panel and one bracket on each of the side panels.

Measure gap on each side panel to determine which two

brackets will be used with these panels. These brackets will be of

an equal length. The remaining two brackets (also of an equal

length) will be used to hold the weight of the center panel. Use

appropriate mounting hardware for the wall type and to

accommodate for the screen’s total hanging weight.

1. Secure the two center panel wall brackets to wall studs at the

desired height. The outside edge of each wall bracket must be no

greater than 5” away from the left or right panel seams. You will

need at least 1” clearance above the drilled holes to hang the

screen.

2. Secure the two side panel wall brackets to wall studs at the height

selected in Step 1. Each side panel wall bracket should be

centered between the seam brace and left or right outside edge

of the frame when mounted to the wall (Figure 7).

NOTE: Do not proceed if all four brackets are not level with each

other or a gap may appear between each of the panels when

mounted.

Wall Brackets

No More

than 5”

No More

than 5”

Screws (Not Supplied)

Steps 38 require at least four people. Place one person on the

far left end of the screen, one person at the left panel seam,

one person at the right panel seam and one person on the far

right end of the screen. More people can be utilized as

needed. When lifting the screen of of the clean work area to

the wall and then onto the wall, it is crucial that the screen

remain coplanar and does not bend at the seams.

CAUTION: Any bend between the three panels at the seams

may damage the screen or result in a permanent gap

between the seams.

3. Using all four people, carefully lift the fully assembled three panel

screen to an upright position and then place back on the clean

work area with the viewing surface of each panel facing up.

4. Align the center panel tray section with the center panel ensuring

the tray edges align with the panel seams.

5. Secure the center panel tray section to the center panel with the

provided #8 x ½” screws (Figure 8).

6. Repeat Steps 45 to attach the left and right tray sections to the

left and right panels.

NOTE: Straight and even alignment of the tray sections will

maintain rigidity of the screen assembly when installed on the

wall.

Wall Mounting for Panoramics with Full Length Marker Tray (continued)

Viewing Surface

Aluminum Tray #8 X ½" Screws

Figure 8

Wall Mounting for Panoramics with Full Length Marker Tray (continued)

7. Using all four people, carefully lift the fully assembled three panel

screen with the marker trays to an upright position and briely

place underneath the mounted wall brackets. The screen will be

parallel to the wall at the end of this step.

8. Using all four people, carefully and in a smooth motion lift the

screen to hang it on the four installed wall brackets. There is a lip

on the back of the frame that wedges itself into the four wall

brackets once full installed. Ensure that the screen weight is on

the four wall brackets.

9. To complete your installation, secure the screen to the wall

through the holes in the marker trays (Figure 9).

Figure 9

Screws

(Not Supplied)

This manual suits for next models

Table of contents

Other Da-Lite Projection Screen manuals

Da-Lite

Da-Lite Designer Electrol User manual

Da-Lite

Da-Lite Versatol User manual

Da-Lite

Da-Lite DESIGNER DA-TAB ELECTROL User manual

Da-Lite

Da-Lite Advantage User manual

Da-Lite

Da-Lite Ascender Electrol User manual

Da-Lite

Da-Lite Fast-Fold truss Frame User manual

Da-Lite

Da-Lite ViewShare Tensioned Advantage Electrol... User manual

Da-Lite

Da-Lite Cosmopolitan Electrol User manual

Da-Lite

Da-Lite Viewshare tensioned Advantage Electrol User manual

Da-Lite

Da-Lite Tensioned Contour Electrol 38798LC User manual

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol User manual

Da-Lite

Da-Lite Da-Glas User manual

Da-Lite

Da-Lite Polacoat Flex Plex User manual

Da-Lite

Da-Lite ExecutiveElectrol User manual

Da-Lite

Da-Lite IDEA Panoramic User manual

Da-Lite

Da-Lite TENSIONED EXECUTIVE ELECTROL User manual

Da-Lite

Da-Lite TENSIONED ADVANTAGE ELECTROL User manual

Da-Lite

Da-Lite Deluxe Insta-theater User manual

Da-Lite

Da-Lite B User manual

Da-Lite

Da-Lite Large advantage electrol User manual

Da-Lite

Da-Lite EXECUTIVE ELECTROL User manual

Da-Lite

Da-Lite EXECUTIVE ELECTROL User manual

Da-Lite

Da-Lite Cosmopolitan Electrol User manual

Da-Lite

Da-Lite Boardroom ElEctrol User manual

Popular Projection Screen manuals by other brands

FART PRODUKT

FART PRODUKT Standard SCREEN Installation instruction

Draper

Draper E Series Installation & operating instructions

Elite Screens

Elite Screens Elite Tripod Series user guide

Laarhoven

Laarhoven Companion II General assembly instructions

Renogy

Renogy RMS-LFPS-US manual

Samsung

Samsung S*H65* user manual

FONESTAR

FONESTAR PPTR-43100-FA quick start guide

Slide Clear

Slide Clear Varro XL installation instructions

Elite Screens

Elite Screens M85XWS1-SRM manual

OS РХ-090Н user manual

Niko

Niko 10-845 Product information

Speaka Professional

Speaka Professional 2357532 Important information

Sima

Sima XL-72 instruction manual

Jasic

Jasic EVO 2.0 ET-200P Fitting instructions

Elite Screens

Elite Screens Starling 2 Series user guide

InFocus

InFocus SC-WALL GRY-92H Instruction guide

Barco

Barco OverView MVL-615 Brochure & specs

Draper

Draper Envoy Installation & operating instructions
