D-Link DAP-2660 User manual

Documentation also available on

the D-Link Website

This document will guide you through the basic installation

process for your new D-Link Wireless AC Access Point.

DAP-2660

Quick Installation Guide

Nuclias Connect AC1200 Dual Band PoE Access Point

D-Link DAP-2660 Quick Install Guide 1

ENGLISH

DAP-2660 Quick Install Guide

This installation guide provides basic instructions for installing the DAP-2660 Wireless Access

Point on your network. For additional information about how to use the Access Point, please

see the User’s Manual which is available on the CD included in this package or from the

D-Link support website.

System Requirements

Minimum System Requirements:

• CD-ROM Drive

• an Ethernet port, or an installed Ethernet adapter

• Internet Explorer 7.0, Safari 5.0, Firefox 3.5, Chrome 20 or later versions of these

browsers

1. Package Contents

DAP-2660 802.11ac Power over Ethernet (PoE) Access Point

Mounting Brackets

Quick Start Guide

If any of the above items are missing, please contact your reseller.

NOTE no PSU supplied. To power the units use an D-Link PoE switch or the D-Link

DPE-101GI PoE injector.

D-Link DAP-2660 Quick Install Guide

ENGLISH

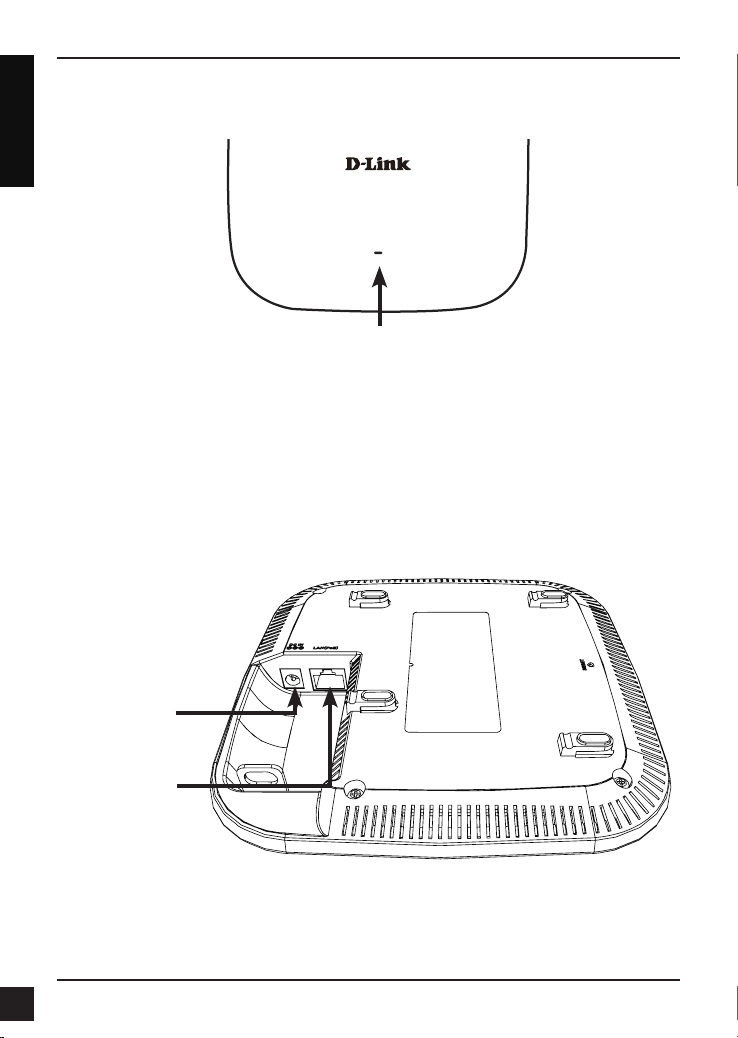

2. Hardware Overview

LED

Power/Status LED - Dual color (Red/green)

. Flash Red during booting up or malfunction

. Static Green while it’s ready/working

. Solid Red while boot up fail

. Flash Green while traffic is passing through.

Interfaces

Power Receptor

(*Note no longer used,

replaced by PoE)

LAN Port (PoE)

* PoE kit (injector and adapter) is NOT include in the package and it can be purchased

with the model name "DPE-101GI".

D-Link DAP-2660 Quick Install Guide 3

ENGLISH

2. Connect the access point and your computer to the same switch. Manage the

access point from the computer.

Enter http://dap2660.local/ in the address field of your browser, which is the default

IP address of the access point.

Username: admin

Password: admin

Power on the access point

To power on the DAP-2660, you can use ONE of the following methods:

1. Plug one end of your Ethernet cable into the LAN port of the DAP-2660, and the

other end into a port on a PoE switch.

2. Purchase separately a DPE-101GI PoE injector if you need to connect the Access

Point without a PoE Switch.

Congure the access point

To set up and manage the DAP-2660, use one of the following methods:

1. Connect the access point and your computer via DPE-101GI. Manage the access

point from the computer.

Ensure your computer is congured with a static IP address in http://dap2660.local/

subnet.

Launch a web browser, type the default IP address of the access point ( http://

dap2660.local/ ) and then press Enter.

Username: admin

Password: admin

3. Installation

Computer

PoE Switch

DAP-2660

Computer

PoE Injector

Power

Adapter

D-Link DAP-2660 Quick Install Guide

ENGLISH

Solid wall or ceiling

Installation

1. Place the mounting bracket on a wall or

ceiling.

5. Plug the Ethernet cable into the LAN

port on the access point.

6. To attach the access point to the

mounting bracket.

2. Mark the points where you will insert the

screws. Take out the mounting ring.

3. Drill holes in the marked points and

insert the plastic wall anchors.

4. Use the supplied screws to attach the

mounting ring to the wall.

D-Link DAP-2660 Quick Install Guide 5

ENGLISH

1. Clip two ceiling brackets onto the ceiling

panels. Make sure both brackets are in

line with each other.

2. Use the provided screws to attach the

mounting ring to the ceiling bracket.

3. Plug the Ethernet cable into the LAN

port on the access point.

4. Place the DAP-2660’s male bracket

in the mounting bracket’s female

bracket. Click DAP-2660 and the

mounting bracket to lock in position.

Ceiling bracket

Ceiling crossbar

Mounting with a ceiling bracket

Installation

TECHNICAL SUPPORT dlink.com/support

GPL Code Statement

This D-Link product includes software code developed by third parties,

including software code subject to the GNU General Public License (“GPL”)

or GNU Lesser General Public License (“LGPL”). As applicable, the terms of

the GPL and LGPL, and information on obtaining access to the GPL code

and LGPL code used in this product, are available to view the full GPL Code

Statement at:

https://tsd.dlink.com.tw/GPL

The GPL code and LGPL code used in this product is distributed WITHOUT

ANY WARRANTY and is subject to the copyrights of one or more authors. For

details, see the GPL code and the LGPL code for this product and the terms of

the GPL and LGPL.

Written Oer for GPL and LGPL Source Code

Where such specific license terms entitle you to the source code of such

software, D-Link will provide upon written request via email and/or

traditional paper mail the applicable GPL and LGPLsource code files via

CD-ROM for a nominal cost to cover shipping and media charges as allowed

under the GPL and LGPL.

Please direct all inquiries to:

Email:

GPL[email protected]

Snail Mail:

Attn: GPLSOURCE REQUEST

D-Link Systems, Inc.

17595 Mt. Herrmann Street

Fountain Valley, CA 92708

Written Oer for GPL and LGPL Source Code
