D-Link DWL-1000AP User manual

DWL-1000AP

Wireless Access Point

Quick Install GuideQuick Install Guide

11 Connecting the DWL-1000APConnecting the DWL-1000AP

Just plug your DWL-1000AP into the hub, switch or residential gateway

within your network, and you are up and running!

When you are networking your DWL-1000AP with other D-Link Air products,

NO CONFIGURATION IS NEEDED! Your DWL-1000AP has default set-

tings that will work with other D-Link Air products, right out of the box.

If there is a need, you may configure your system using the D-Link AP

Manager. You can manage your DWL-1000AP from a wired or a wireless con-

nection. Note: When using WEP encryption, it is strongly recommended that

you run the AP Manager on a wired connection.

If you wish to run the AP Manager, please complete the following steps.

22 Installing the AP ManagerInstalling the AP Manager

Insert the CD for the DWL-1000AP

Manager, this screen will appear.

Click on “Install Software.”

This screen will appear briefly.

At the “Welcome” screen,

Click Next to continue the installa-

tion.

At this screen,

Click Yes to continue.

22 Installing the AP ManagerInstalling the AP Manager continuedcontinued

To install the DWL 1000AP Manager into

this location,

Click Next.

(Otherwise, click on “Browse” to select an

alternate destination.)

At the next screen,

Click Next to select the default

Program Folder.

(Otherwise choose a file from the

“Existing Folders” list.)

Windows will begin copying files.

To accept the settings,

Click Next to continue.

(If you wish to change the settings,

press the “Back” button.)

This window will appear briefly.

Windows is copying the files.

22 Installing the AP ManagerInstalling the AP Manager continuedcontinued

Go to START>PROGRAM>

D-LINK WIRELESS LAN>

D-LINK AP MANAGER

When this screen is displayed, select the

icon to start the Installation Wizard, as

shown.

Running the AP ManagerRunning the AP Manager

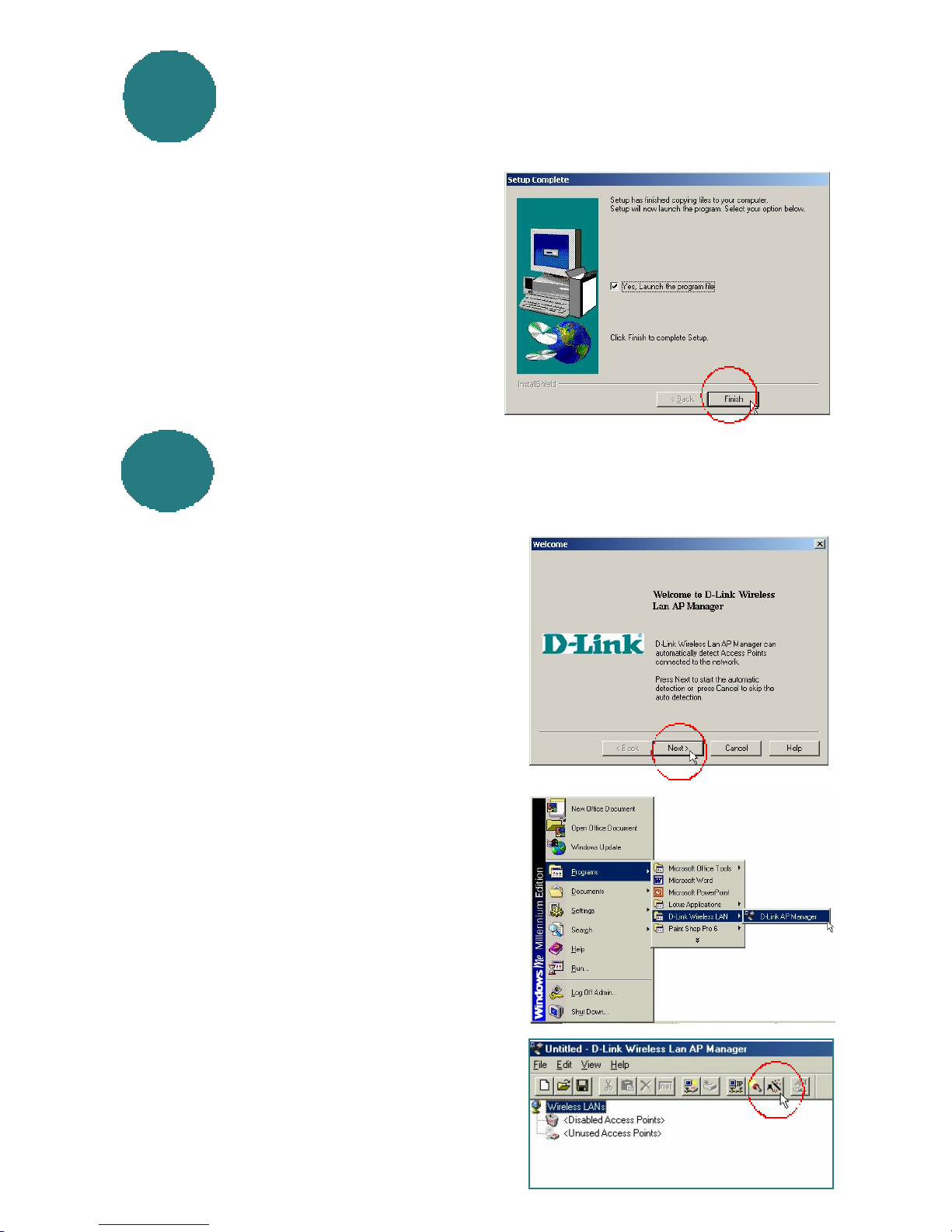

At this screen, select “Yes, launch the

program file.”

Click “Finish” to complete the setup

of your DWL-1000AP Manager.

At the “Welcome” screen,

Click Next to begin using the

DWL-1000AP Manager.

33 Running the AP ManagerRunning the AP Manager continuedcontinued

The Network Wizard will find the network

settings.

(Select “Change” to choose alternate set-

tings.)

Click Next to accept the settings.

The next screen will display the

available access point.

Click Next.

(If the Access Point is not discovered,

please refer to Appendix A to manually

assign an IP address.)

At the following screen,

Click Next

At the next window,

Click Finish.

For help in saving your configuration,

please see Appendix B.

33 Running the AP ManagerRunning the AP Manager continuedcontinued

When this screen appears,

Click Close.

The following screen will appear briefly.

The AP Manager has completed configuring

your system.

Your AP Manager is now ready to use.

At the next dialogue box, enter the MAC address

that is shown on the back of the Access Point unit

and a valid IP address for the Access Point that

you would like to add.

Click OK to complete the addressing process.

When a DHCP server is not available in the

local network, manually assign the IP address to

the Access Point.

Click on “Add Manually.”

To save the AP Manager configuration,

go to FILE>SAVE AS in your

AP Manager window.

In the next dialogue box, name the file and save

it to the folder of your choice. Your AP

Manager configuration is now saved.

APPENDIXAPPENDIX

To reset your DWL-1000AP to its

original settings, please insert a paper

clip into the small opening under the

RJ-45 cable port

as shown in the photo.

Press gently down on the clip until

the ACT LED lights up. Hold down

the clip until the light goes out.

Remove the clip.

The unit is now reset.

Resetting the DWL-1000AP

CCAPPENDIXAPPENDIX
