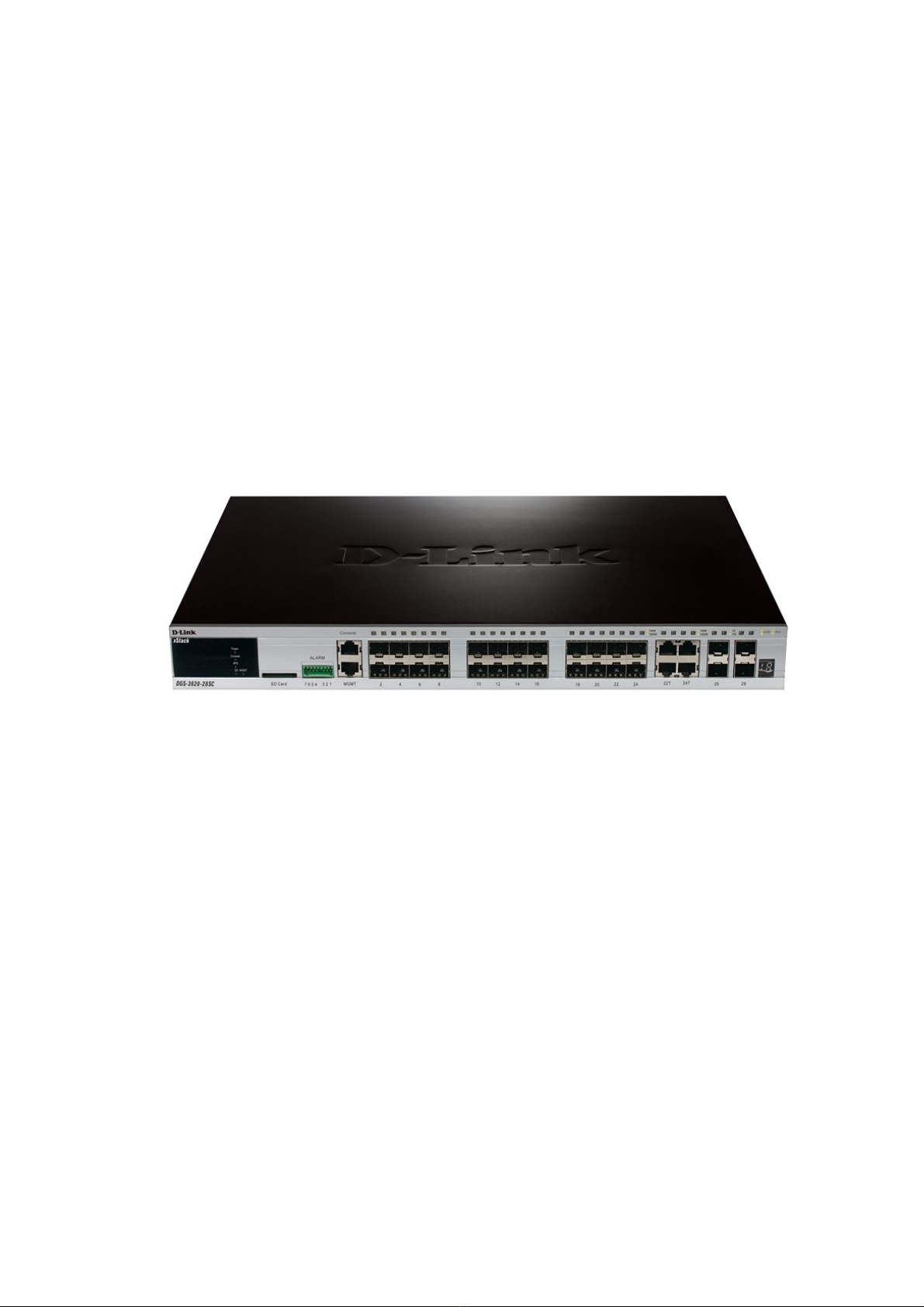

D-Link xStack DGS-3620-28SC User manual
D-Link
DGS-3620-28SC
20 SFP ports + 4 Combo SFP/10/100/1000Base-T ports + 4 10GE SFP+ ports
L3 Stackable Managed Switch/
Управляемый L3 стекируемый коммутатор с 20 портами SFP,
4 комбо-портами 100/1000Base-T/SFP и 4 портами 10GBase-X SFP+
Quick Installation Guide
Краткое руководство по установке
Package Contents
Open the shipping carton of the Switch and carefully unpack its contents. The carton
should contain the following items:
One DGS-3620-28SC switch
One AC power cord
One console cable (RJ-45 to RS-232)
Mounting kit
Four rubber feet with adhesive backing
One Quick Installation Guide
2
Introduction
This Quick Installation Guide gives instructions for setting up the D-Link DGS-3620-28SC
switch. The model you have purchased may appear slightly different from those shown in
the illustrations. For more detailed information about the device, its components, making
network connections and technical specifications, please refer to the D-Link website
http://www.dlink.com/
.
.
If any of the above items are damaged or missing, please contact your local reseller for
replacement.
.
Two rack mounting brackets
Hardware Overview

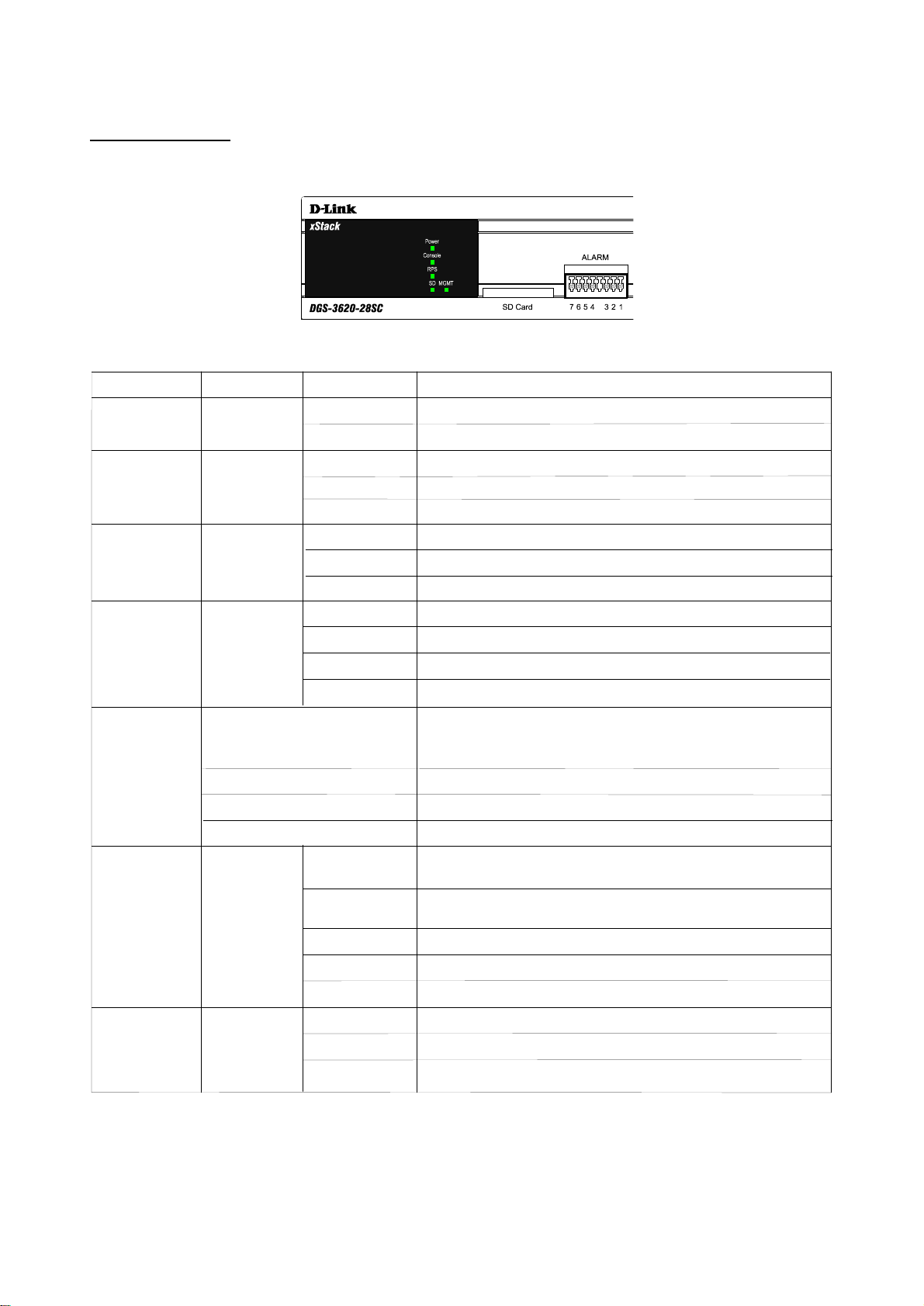

LED Indicators
LED Indicative Colour Status Description
Power Green Solid Green Power on.
Light off Power off.
RPS Green Solid Green Redundant Power Supply is in use.
Light off RPS is not in use.
Blinking Green RPS is connected.
SD Green / Red Solid Green If a Secure Digital (SD) card is plugged in.
Blinking Green The Switch is reading or writing data to and from the SD card.
Light off No SD card is plugged into the SD port.
An SD card failure has been detected.
Link/Act Green /
Orange
Solid Green
Solid Orange When there is a secure connection to a 10/100Mbps Ethernet
device at any of the ports.
Blinking Green When a 1000Mbps port is active.
Blinking Orange When a 10/100Mbps port is active.
No link or activity.Light off
Console Green Blinking Green
Solid Green When a user is logged in through the console port.
Solid Red
When there is a secure connection to a 1000Mbps Ethernet
device at any of the ports.
Light off When the POST is finished.
During the Power-On Self Test (POST).
1 – 12
H The device was assigned as the stacking Master.
The device was selected to be the Backup Master.
The Safeguard Engine feature enters the exhausted mode.
h
G
Stack ID The box ID is assigned either by the user (static mode) or by
the system (automatic mode). For standalone Switches, this
will display number “1”.
MGM Green Solid Green
Blinking Green Secure connection established.
Light off Console off.
Console on.
3
Installation Guidelines

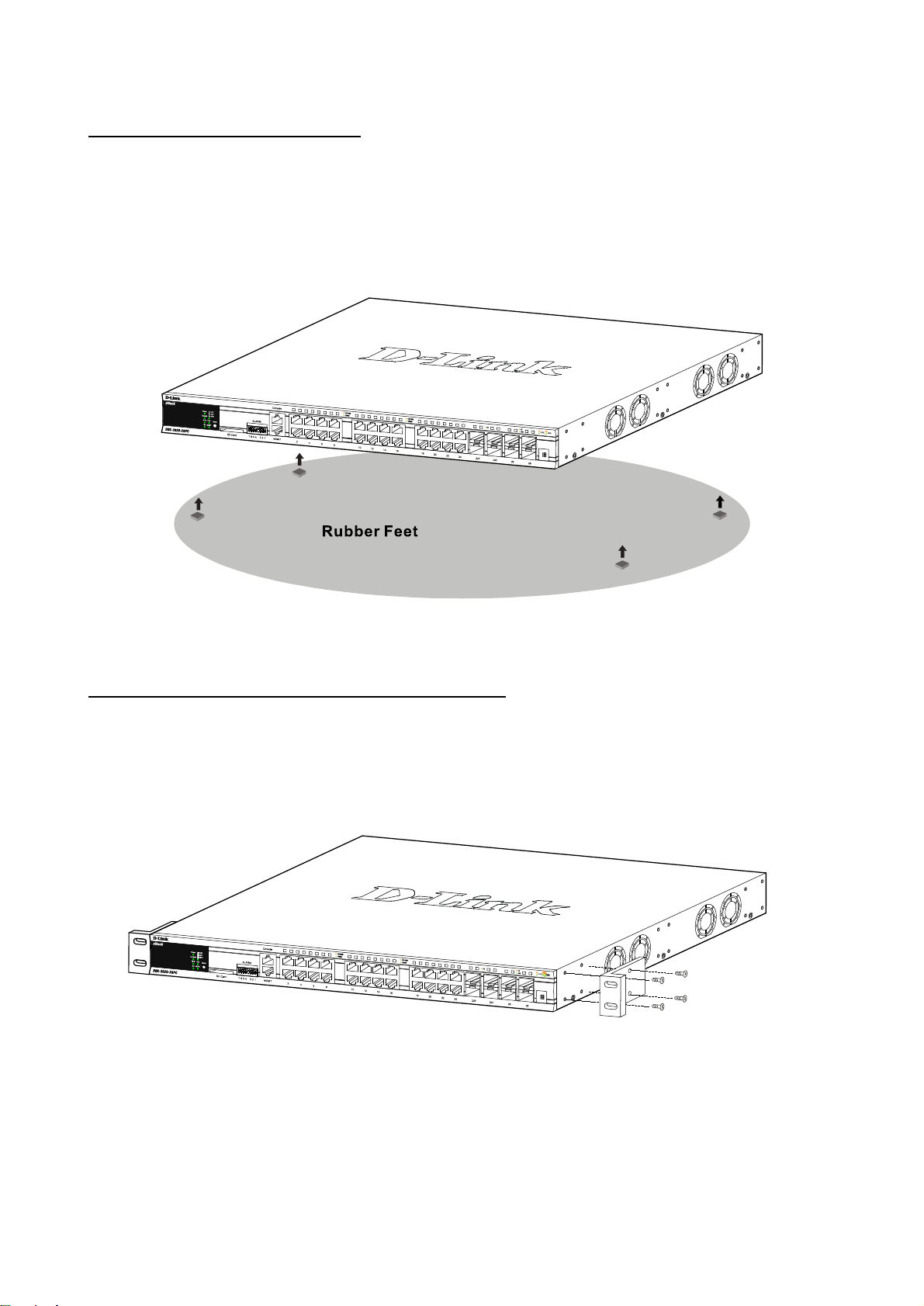

Desktop or Shelf Installation
When installing the switch on a desktop or shelf, the rubber feet included with the device
must be attached on the bottom at each corner of the device’s base. Allow enough
ventilation space between the device and the objects around it.
Installing the Switch in a Standard 19'' Rack
The Switch can be mounted in a standard 19"(1U) rack using the provided mounting
brackets. Fasten the mounting brackets to the sides of the Switch using the screws
provided.
4
Fasten the mounting brackets in any available open space in the rack using the screws
provided.

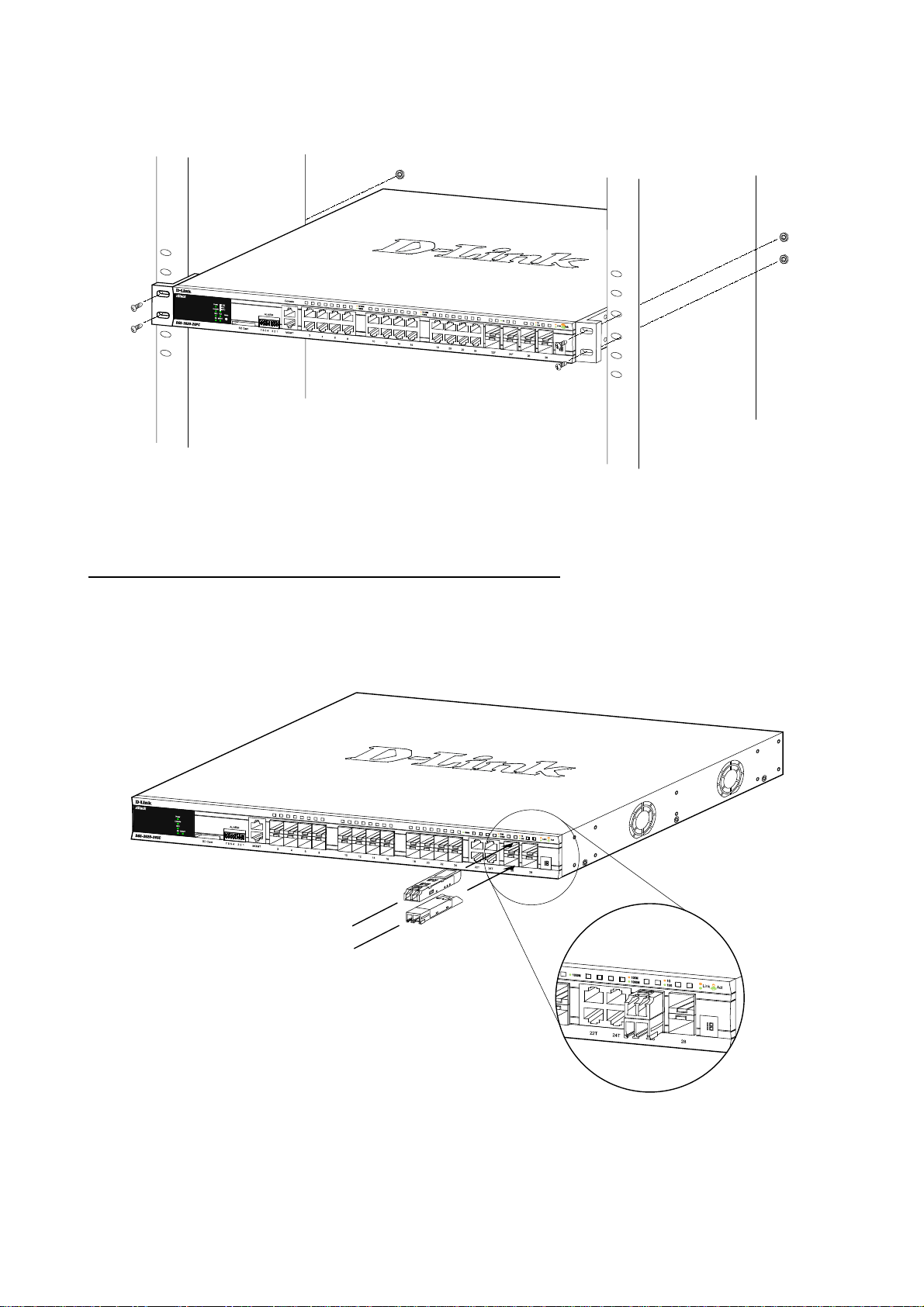

Installing Transceivers into the Transceiver Ports
The Switch is equipped with Small Form-factor Pluggable (SFP) and SFP+ ports, which
supply connecting SFP, WDM SFP and SFP+ transceivers.
5
Power On (AC Power)
Plug one end of the AC power cord into the power socket of the Switch and the other end
into the local power source outlet.
Power Failure (AC Power)
In the event of a power failure, just as a precaution, unplug the power cord from the
Switch. After the power returns, plug the power cord back into the power socket of the
Switch.
6
Connecting to Power
Connecting to a Redundant Power Supply

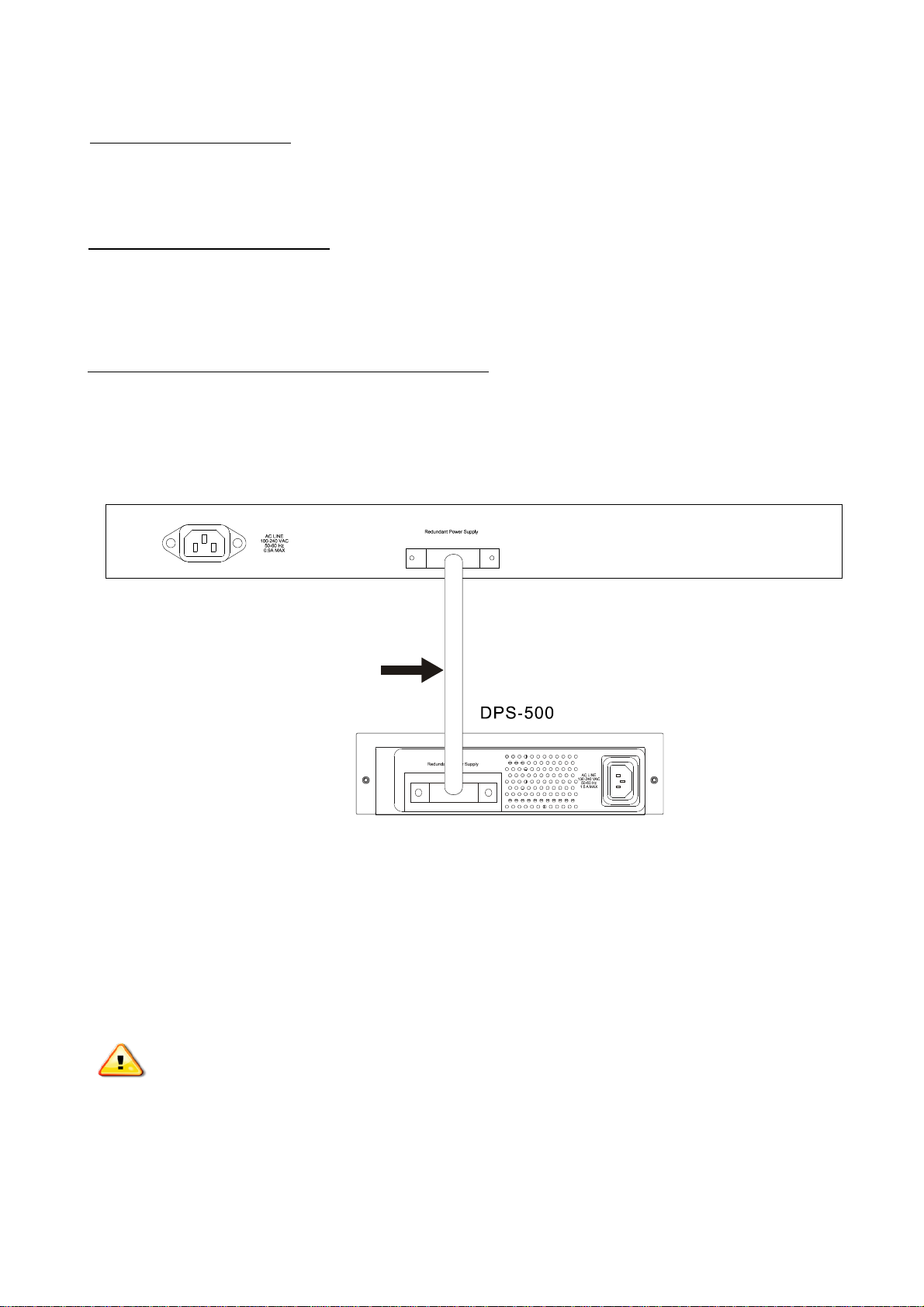

The DPS-500 connects to the Switch using a 14-pin DC power cable. A standard,
three-pronged AC power cable connects the redundant power supply to the main power
source.
1. Insert one end of the 14-pin DC power cable into the port on the switch and the other
end into the redundant power supply.
2. Using a standard AC power cable, connect the redundant power supply to the main AC
power source. A green LED on the front of the DPS-500 will glow to indicate a successful
connection.
3. Re-connect the switch to the AC power source. The LED indicator will show that a
redundant power supply is now in operation.
4. Do not make any changes on the switch.
CAUTION:
do not connect the RPS to AC power before the DC power cable is
connected. This might damage the internal power supply.
7
Switch Connections
Switch to End Node
End node is a generic name for edge networking devices that will be connected to
this switch. Typical examples of end nodes are Personal Computers (PCs), Notebooks,
Access Points, Print Servers, VoIP Phones and more. An end node connects to the
Switch via a twisted-pair UTP/STP cable. Connect the end node to any of the 1000Base-T
ports of the Switch. The Link/Act LEDs for each Ethernet port turns green or orange when
the link is active. A blinking LED indicates packet activity on that port.
NO E: all high-performance N-Way Ethernet ports can support both MDI-II and

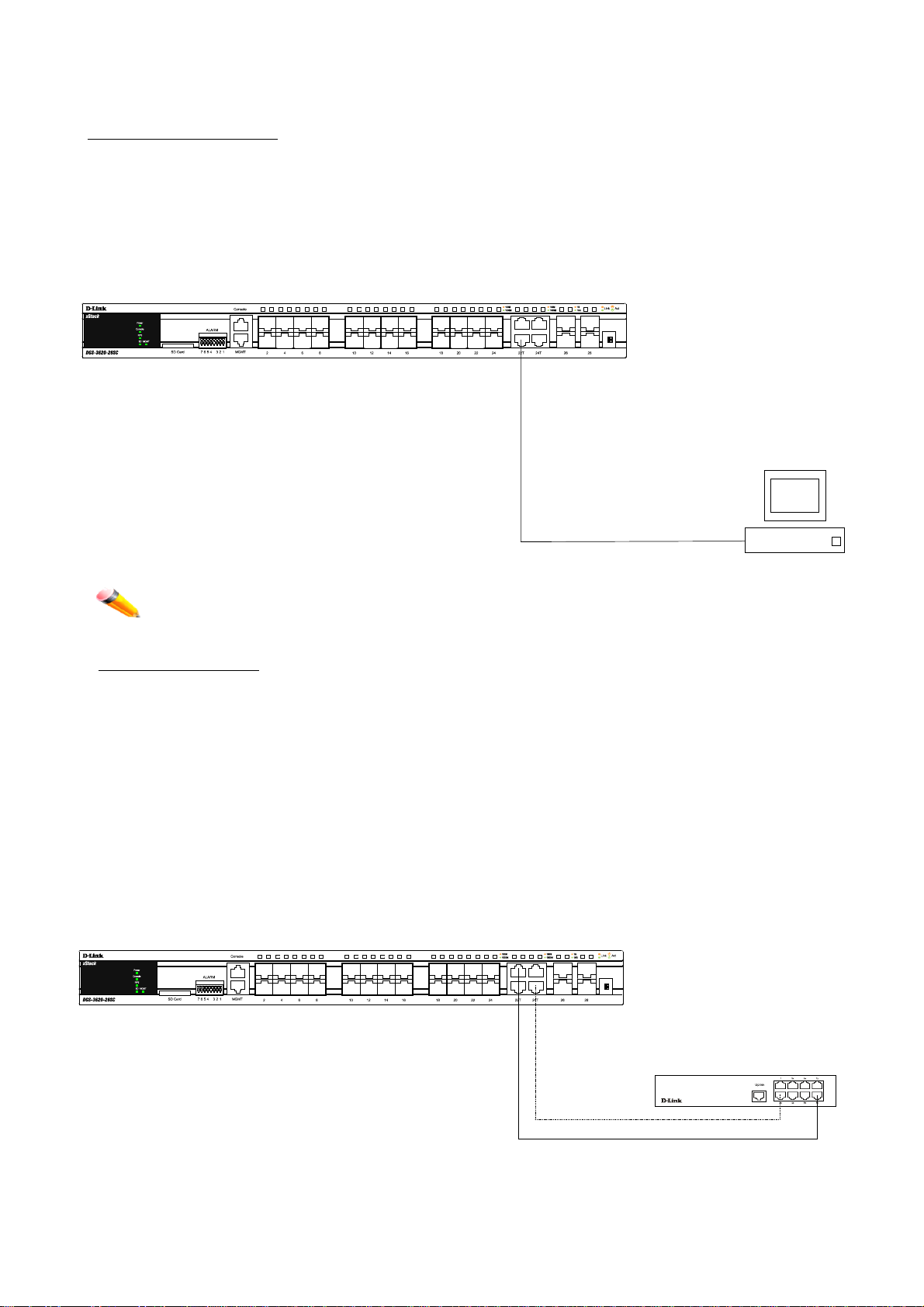

Switch to Switch
There is a great deal of flexibility on how connections are made using the appropriate
cabling.
• Connect a 10Base-T switch port to the Switch via a twisted-pair Category 3, 4 or 5 UTP/
STP cable.
• Connect a 100Base-TX switch port to the Switch via a twisted-pair Category 5 UTP/STP
cable.
• Connect 1000Base-T switch port to the Switch via a twisted pair Category 5e UTP/STP
cable.
• Connect switch supporting a fiber-optic uplink to the Switch’s SFP ports via fiber-optic
cabling.
MDI-X connections.

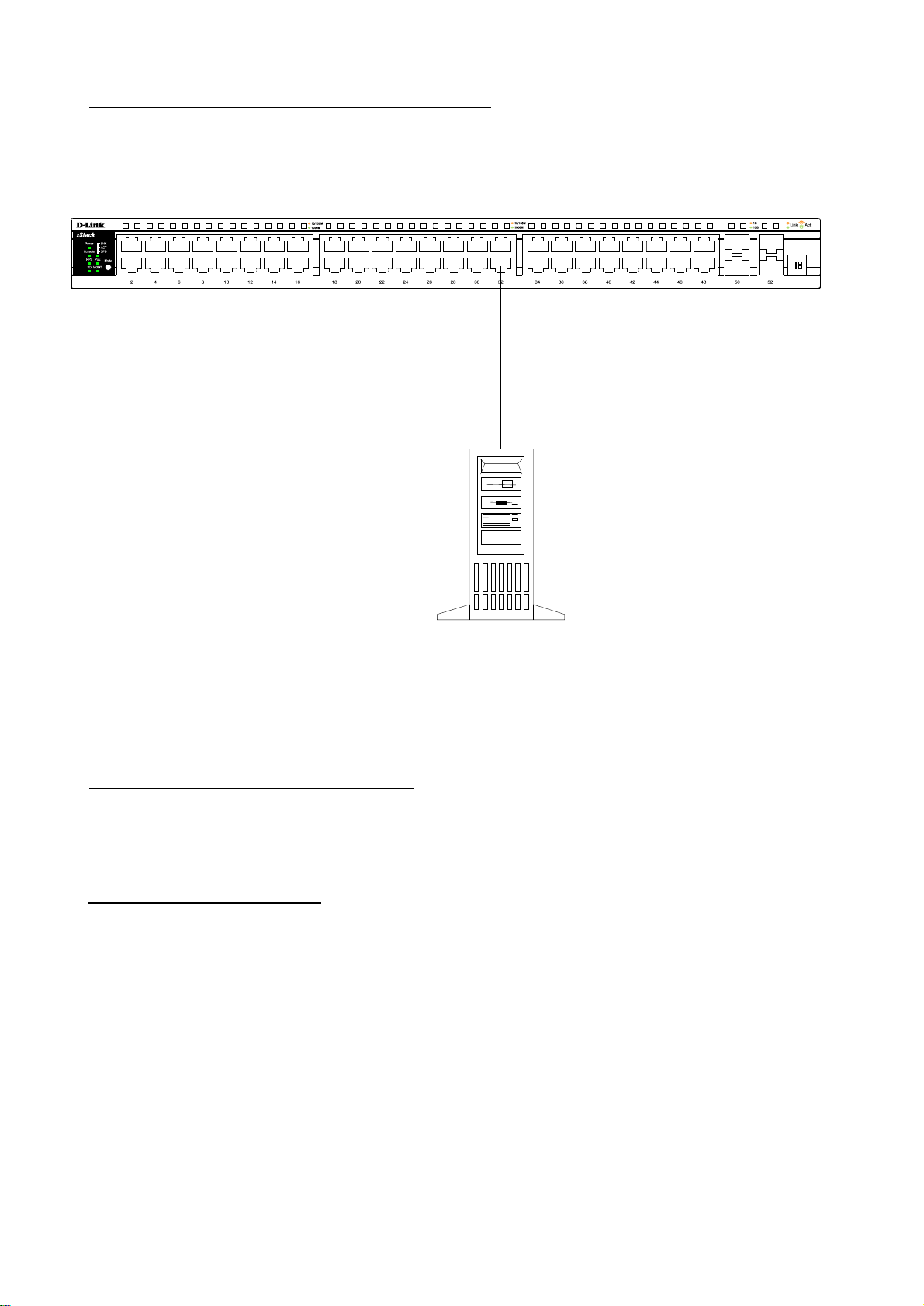

Connect to a Network Backbone or Server
The 1000Base-T SFP ports are ideal for uplinking to a network backbone, server or server
farm.
Management Options
Web-based Management Interface
After successfully installing the Switch, the user can configure the Switch, monitor the LED
panel, and display statistics graphically using a web browser, such as FireFox (version 3.0
and higher) or Microsoft® Internet Explorer (version 5.0 and higher).
SNMP-based Manage ent
The Switch can be managed with an SNMP-compatible console program. The Switch
supports SNMP version 1.0, version 2.0 and version 3.0.
Co and Line Interface (CLI)
The user can also connect a computer to the serial console port to access the Switch. The
command line interface provides complete access to all Switch management features.
Alternatively, the Switch can also be managed, in-band, by using a Telnet connection.
8
Connecting the Console Port
To use the console port, the following equipment is needed:
A terminal or a computer with both an RS-232 serial port the ability to emulate a
terminal.
A console cable with a male DB-9 connector on one end and an RJ-45 connection on
the other. This cable should be included with the Switch.
To configure the terminal emulation software as follows:
Select the appropriate serial port (COM port 1 or COM port 2).
Set the data rate to 1152 baud.
Set the data format to 8 data bits, 1 stop bit, and no parity.
Set flow control to none.
Then, under Properties, select VT100 for Emulation mode. Select Terminal keys for Function,
Arrow and Ctrl keys. Make sure to use Terminal keys (not Windows keys) are selected. After
you have correctly set up the terminal, plug the power cord into the power receptacle on the
back of the Switch. The boot sequence appears in the terminal. After the boot sequence
completes, the console login screen displays.
Connecting to the Switch for the First Time
Upon initial connection to the Switch, the login screen appears (see example below).
DGS-3620-28SC Gigabit Ethernet Switch
Command Line Interface
Firmware: Build 2.60.016
Copyright(C) 2013 D-Link Corporation. All rights reserved.
UserName:
NOTE: the first user automatically gets Administrator level privileges. At least one
Administrator-level user account must be created for the Switch.
Press Enter in both the Username and Password fields. Then access will be given to enter
commands after the command prompt: DGS-3620-28SC:admin#
There is no initial username or password. Leave the Username and Password fields blank.
9
The front panel of the Switch features a Management portwhich can be used to connect to
a computer using a standard Ethernet cable. A web browser or Telnet client can be used to
connect to the Switch using the MGMT port.
The default IP address of the Management port is 192.168.0.1, and a subnet mask of
255.255.255.0. Make sure that the computer being used for Switch management has a
nonconflicting IP address in the 192.168.0.x subnet.
The IP settings or enabled status of the Management port can be changed through the
console port. To change the configuration of the Management port, use the command:
To view the status or IP settings, use the command:
To change settings for the out-of-band Management port in the web interface, use the
following path:
10
Connecting to the Management Port
config out_band_ipif {ipaddress <network_address> | state [enable | disable] | gateway <ipaddr>}
show out_band_ipif
Management > Out of Band Management Settings

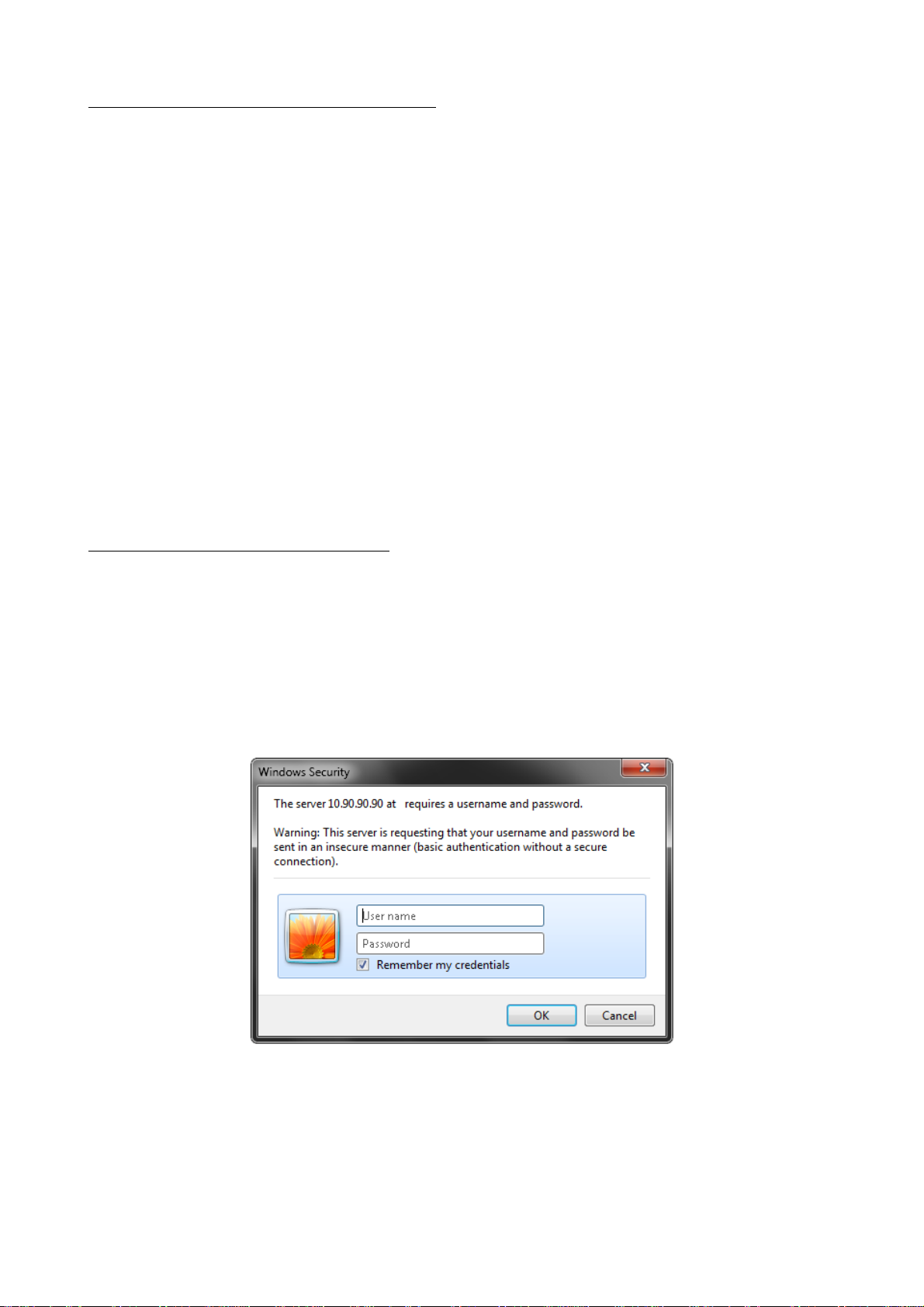

Logging onto the Web Manager
To access the Web User Interface the user simply runs the standard web browser and enter
the Switch’s IP address into the address bar of the browser and press the Enter key. To
access the Web UI from normal LAN ports, the user needs to configure an IP address for
this interface first before it can be accessed via the Web User Interface.
The PC must have an IP address in the same subnet as the switch. For example, if the switch
has an IP address of 10.90.90.90, the PC should have an IP-address of 10.x.y.z (where
x/y is a number between 0 ~ 254 and z is a number between 1 ~ 254), and a subnet mask
of 255.0.0.0. Open the web browser and enter 10.90.90.90 (the factory-default IP address
in the address bar. Then press
Enter.
Additional Information
For more detailed information on how to set up and configure the DGS-3620-28SC,
please refer to the D-Link Website .
http://www.dlink.com/
This manual suits for next models
1
