D-Link AirPlus DWL-810+ User manual

specifications subject to change without notice. DWL-810+ 01032003

If any of the above items are missing, please contact your reseller.

CD-ROM (Manual and Warranty)

Before You Begin

DWL-810+ Ethernet-to-Wireless Bridge

Check Your Package Contents

DWL-810+

D-Link AirPlus™

Ethernet-to-Wireless Bridge

You must have at least the following:

• An Ethernet-enabled device, such as a game console, laptop or desktop computer,

network printer or set-top box that will connect to the DWL-810+

Ethernet (CAT5 UTP) Cable

5V DC 2.5A Power Adapter

Using a power

supply with a

different voltage rating

will damage this

product and void its

warranty.

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3.

Connecting the DWL-810+ to your

Ethernet-enabled device

A. First, connect the power adapter to the receptor at the back panel of the

DWL-810+ and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn ON to indicate proper operation.

B. Insert one end of an Ethernet cable (included) to the Ethernet port on the back

panel of the DWL-810+ and connect the other end to the Ethernet port located

on the device (e.g., a Set Top Box, Gaming Console, laptop or desktop com-

puter, or network printer.) The LED light will blink when there is data tranfer

through the wireless connection. (Note: The Ethernet port on the DWL-810+

is Auto-MDI/MDIX. Meaning you can use a straight-through or crossover-

cable to the Ethernet Port.)

C. The antenna is used by the DWL-810+ to connect to other 802.11b wireless

devices.

A.Receptor for

Power Adapter

C.Antenna

Used to wirelessly

connect to 802.11b

networks.

B.LAN Port

This is the connection for

Ethernet cables to your

Ethernet-enabled device.

Connecting the DWL-810+

in Infrastructure Mode

Setup #1

Connect an Ethernet cable from the DWL-810+ to your Ethernet enabled:

Desktop PC, Laptop PC, Set-Top-Box, or Gaming Console.

Connecting the DWL-810+ in Ad-Hoc

Mode

Setup #2

Web-based Configuration

Before You Begin the Configuration

• It’s best to use a computer (with an Ethernet adapter) that is connected to a switch for

configuring the DWL-810+. (Note: You also have the option of connecting the DWL-

810+ directly to the computer that will be used for configuration). The default IP

address for the DWL-810+ is 192.168.0.30 with a Subnet Mask of 255.255.255.0. You

will need to assign your computer a Static IP address within the same range as the

DWL-810+’s IP address for the purpose of configuring the DWL-810+. See the Manual

on the CD-ROM if you need assistance in assigning a Static IP address for your network

adapter.

Open your Web browser and

type “http://192.168.0.30” into

the URL address box. Then

press the Enter or Return key.

or or

Continued...

The logon pop-up

screen will appear.

Type “admin” for the

username and leave the

password field blank.

Click OK

Once you have

logged in, the Home

screen will appear.

Click Run Wizard

You will see the

following screens.

Click Next

Continued...

Step 1 - Set up your new

password. You have the option

to establish a password.

Step 2 - Wireless Setup

The default wireless settings are:

SSID = default

Channel = 6

Operating Mode = Infrastructure

Click Site Survey to select a wireless

network or you can change the settings

manually to match an existing wireless

network.

Step 3 - Encryption

The DWL-810+ is capable of three

levels of wireless encryption - 64-bit,

128-bit, and 256-bit. By default the

encryption is disabled. You can

change the encryption settings for more

secure wireless communication.

Click Next

For Set Up #2 select Ad-hoc

as the operating mode.

You have completed the Configuration of the DWL-810+!

Click Close

Click Restart

Appendix

To assign a Static IP Address to the laptop or computer that you are using to configure

the DWL-810+, please do the following:

Assigning a Static IP Address in Windows

Go to Start > Double- click on Control

Panel > Double-click on Network

Connections > Right-click on Local

Area Connections > Click Properties

Highlight Internet Protocol (TCP/IP)

Click Properties

Select Use the following IP address in

the Internet Protocol (TCP/IP) Properties

window

Click OK

Note: The following screens are taken using

Windows XP. Your screens may look similar.

Input your IP address and subnet mask.

(The IP Address must be within the same

range as the DWL-810+. The IPAddress of

the DWL-810+ is 192.168.0.30. You can

assign 192.168.0.51 for your computer. No

two computers can have the same IP

Address. Assign a subnet mask of

255.255.255.0.)

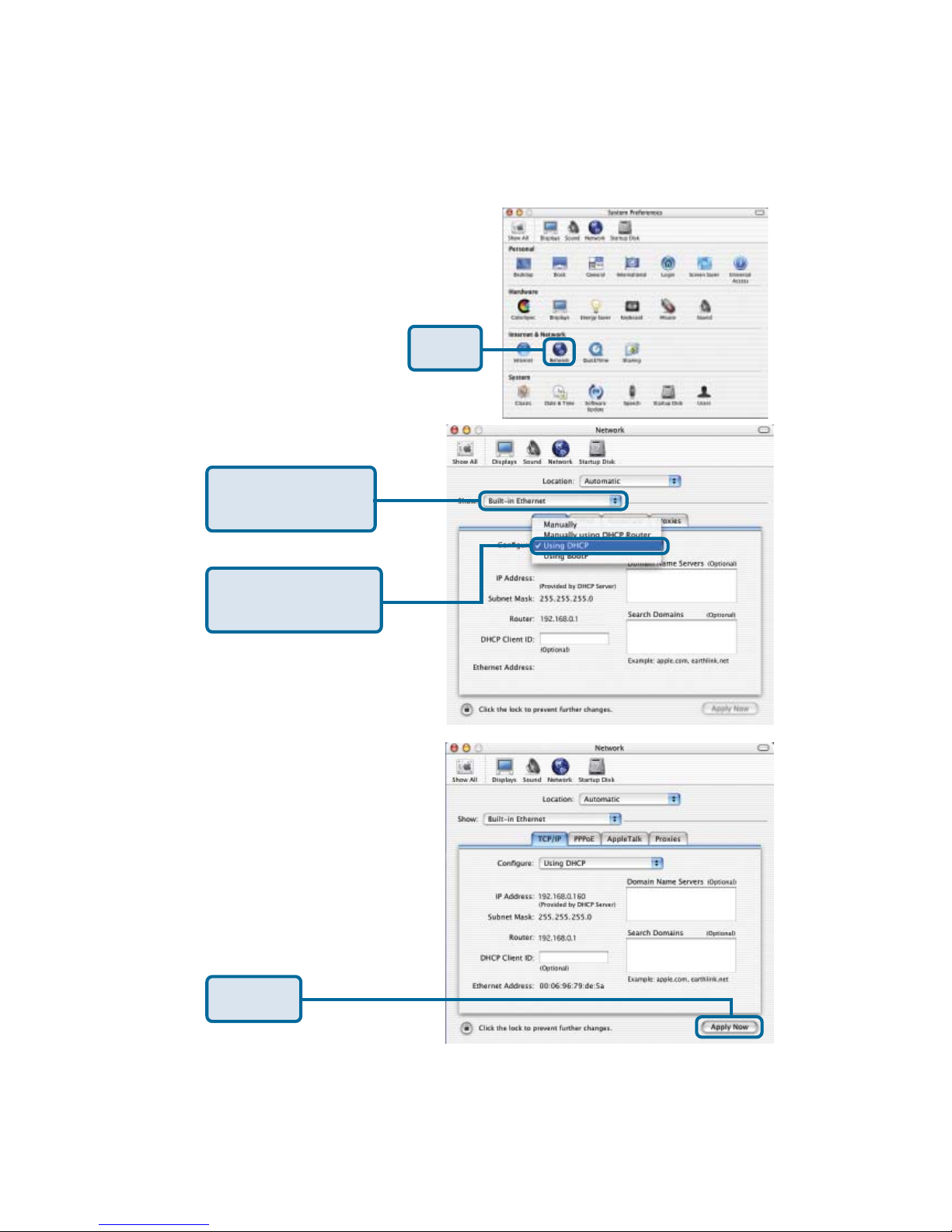

For Apple Macintosh OS X:

Go to the Apple Menu Click

on Network and Select

System Preferences

The IP address information,

the Subnet Mask, the Router’s

IP address and the Ethernet

adapter address will appear

Click on

Network

Select Built in

Ethernet in the Show

pull-down menu

Select Using DHCP in

the Configuration pull-

down menu

Click on

Apply Now

Notes
