D-Link DIR Series User manual

www.dlink.co.in

CONFIGURATION GUIDE

For DIR Series Routers

www. d l i n k.co.in

HOW TO ACCESS THE DEVICE

HOW TO CONFIGURE INTERNET

WIRELESS SETUP

Conﬁguration Guide

for DIR series routers

Overview

HOW TO ACCESS THE DEVICE:-

Connect the power adapter to the

power socket and other end to the

device and power on the device.

Once the device is powered on,

power LED and the Wi-Fi LED on the

device will be green.

Unbox the device.

Connect one end of the Ethernet

cable provided in to the box into any

of the 4 LAN port of the device at the

back side and connect other end to

the LAN port of your Desktop/Laptop.

Or you can connect to the device

wirelessly. Go to wireless utility of

your laptop. You will be able to view

the available wireless networks. By

Default wireless network name of

the device i.e. SSID is “dlink” and

there is no password in default

settings. Select the “dlink” SSID and

say “connect”, Kindly see the below

screenshot. After this you will be get

connected to the router.

HOW TO ACCESS THE DEVICE:-

Then go to the web browser and type

http://192.168.0.1 in the address bar.

You will get the login page of the

router, the default username is

admin and there is no password in

default settings, leave the password

ﬁeld blank.

You will get the current network

settings page of the device, which

will show you the status of internet,

wireless and mydlink.

HOW TO CONFIGURE THE INTERNET:-

• Set the device password

• Select time zone

• Select the type of internet

connection

• Save settings and connect.

Once you login into the device click

on the manual setup.

Click next to start the setup.

Go to Setup -> Internet connection

-> Internet connection setup Wizard

You will get the below screen and

there will be 4 steps

Setup Wizard

HOW TO CONFIGURE THE INTERNET:-

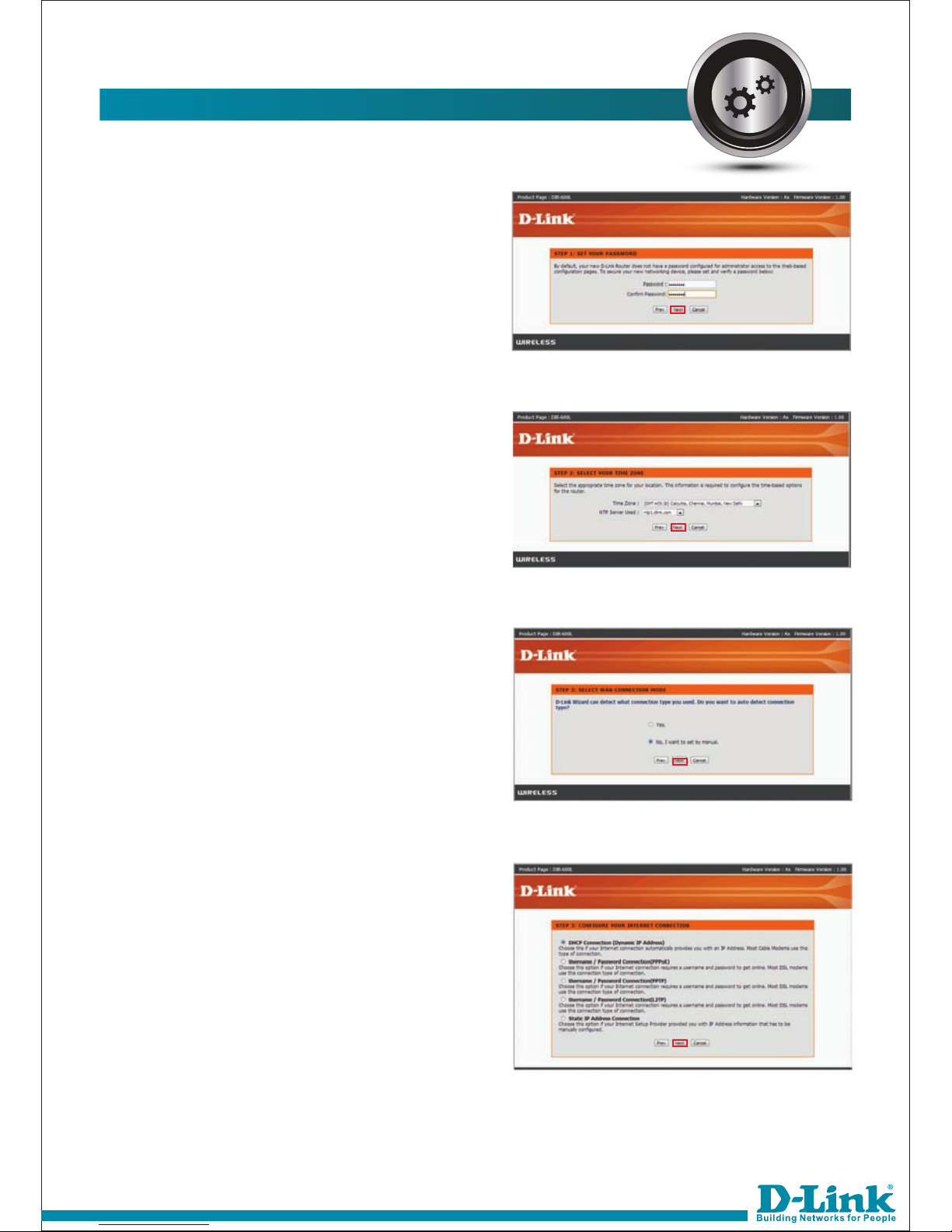

2) Assign the password for the device

as shown below, click next.

3) Select the Indian Time zone and the

NTP server as shown below, click next.

4) It will prompt to select the WAN

connection mode, Auto and manual.

If you select auto it will automatically

detect the WAN connection type, we

will show you the manual. Click Next.

5) Select the type of connection

provided by ISP and click next. We

have selected the DHCP connection

(Dynamic IP address).

6) If there is a MAC clone policy from your

ISP then clone the MAC address of your

Router or the PC and click next.

7) Click on Connect.

8) Router will reboot and the settings

will get applied. Again Login into

the device and go to Status and

check the status of internet. You can

see Internet connection status,

DHCP client established and got the

IP address from the ISP.

HOW TO CONFIGURE THE INTERNET:-

1) Login into the router as shown earlier.

2) Current network setting page will

open, click on Manual Setup

3) Go to Setup -> Internet connection ->

Manual internet connection setup.

4) From the dropdown option of My

Internet connection select the type of

connection provided by your ISP. If there

is a MAC cloning policy from your ISP

then clone the MAC address of your

router or PC. Click on save settings.

HOW TO CONFIGURE THE INTERNET:-

Manual Internet Connection Setup:-

1) Login into the router with its default

IP address - http://192.168.0.1

username - admin

password - blank.

2) Go to Setup -> Wireless connection

-> Wireless Connection Setup Wizard.

3) It will ask you to set your wireless

network and wireless security

password. Click Next.

4) Give name to your wireless network

name also called as “SSID”, select

manually assign a network key and

check box Use WPA encryption

instead of WEP as shown below and

click next.

WIRELESS SETTINGS:-

Setup Wizard
