D-Link DAP-3711 User manual

Additional documentation is also available on the D-Link website

DAP-3711

Quick Installation Guide

5km Long Range 802.11ac Wireless Bridge

Contents

English 1

Quick Installation Guide 1

ENGLISH

Hardware Overview

LED Indicators

Figure 1: DAP-3711 LEDs

# LED Description

1Power Power indicator. Green light indicates

the power is on.

2 LAN

Network connection light. A steady

green light indicates the LAN port of

the PoE power supply is connected

to a network device. A flashing

green light indicates data is being

transmitted.

3 WLAN

Wireless indicator. Lights up to

indicate wireless activation. Flashes

when data is being transmitted.

4Signal

Strength

Signal strength indicator. A red light

indicates a weak signal. Red and

yellow together indicates a medium

signal.Yellow, red and green together

indicates a strong signal.

Table 1: LED Descriptions

Before You Begin

This installation guide provides basic instructions

for installing the DAP-3711 on your network. For

additional information about how to use the

access point, please see the User Manual from

the D-Link support website.

Package Contents

This DAP-3711 should include the following

items:

• 5km Long Range 802.11ac Wireless Bridge

• PoE injector

• Power cord

• Mounting ties

• Quick Start Guide

If any of the above items are damaged or

missing, please contact your local D-Link reseller.

Note: Using a power supply with a diﬀerent

voltage than the one recommended for the

device will cause damage and void the warranty

for this product.

System Requirements

• Microsoft Windows®, or a Linux-based

operating system

• An available Ethernet port

• Microsoft Edge, Firefox 60.0, or Chrome

68.0.3440.106

1 2 3 4

2Quick Installation Guide

ENGLISH

Cable Requirements

Use a CAT 5 cable with an even sheath. The

Ethernet ports on the DAP-3711 access point

cannot accept a CAT 5 cable that has an uneven

sheath; the RJ-45 connector on the cable will

not fit properly into the receptacle on the

access point.

Conguring the Access Point

To set up and manage the DAP-3711, use one

of the following methods.

Connecting Through a Computer

1. Use an Ethernet cable to connect the

DAP-3711 to the management computer.

2. Ensure the computer is conﬁgured with a

static IP address in the 192.168.0.2/255

subnet.

3. Launchawebbrowser.Enter192.168.0.50

in the address ﬁeld of your browser.

4. Log in to the administration user interface.

The default login information is:

Username: admin

Password: admin

Figure 3: Direct Connection

Interface Connectors

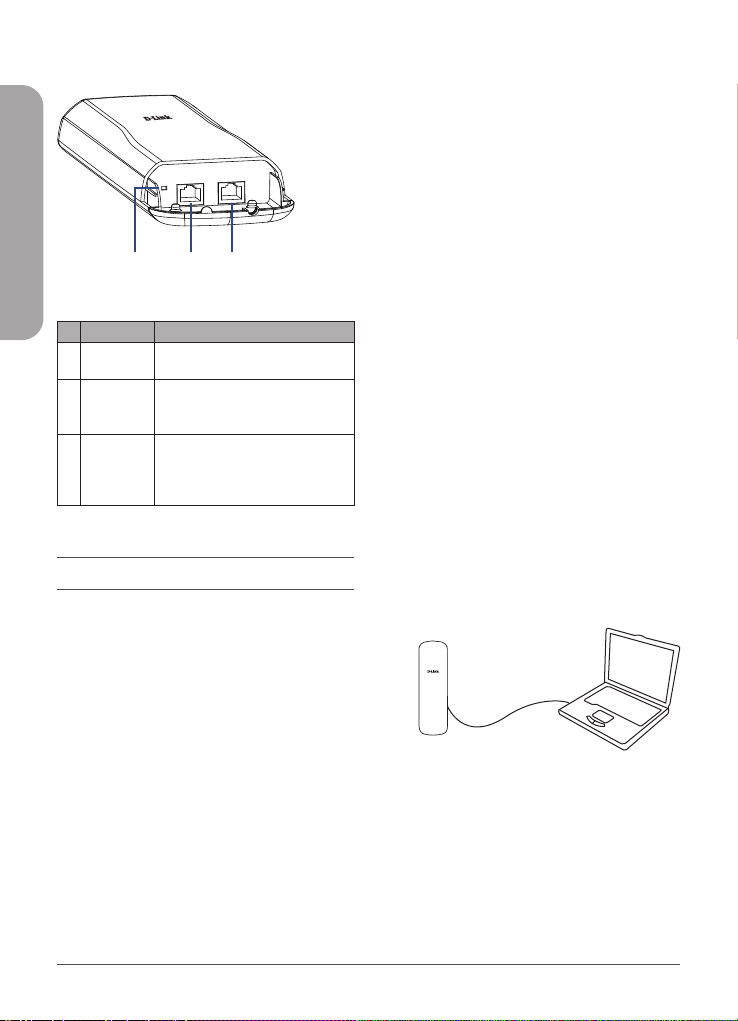

Figure 2: DAP-3711 Interface

# Feature Description

1Reset

Button

Resets the device to its factory

settings.

2 LAN Port

Uses a standard Ethernet cable

to connect to devices such as

computers and switches.

3 PoE Port

Uses a standard Ethernet cable to

connect the device to a PoE power

source such as a PoE switch or PoE

injector.

Table 2: Interface Descriptions

Hardware Installation

Powering the Access Point

To power the DAP-3711, use a standard Ethernet

cable to connect the PoE port on the DAP-3711

to a PoE power source device such as a PoE

switch or the included PoE injector.

DAP-3711 Computer

123

Quick Installation Guide 3

ENGLISH

Connecting Through a Switch or Router:

1. Use an Ethernet cable to connect the

DAP-3711 to the switch or router the

management computer is connected to.

2. If the access point did not acquire an

IP address from a DHCP server on the

network, enter the default IP address of

the access point (http://192.168.0.50)

in the address ﬁeld of your browser. If the

access point is automatically assigned

an IP address by a DHCP server on your

network, enter the IP address assigned

to the access point into the web browser.

3. Log in to the administration user interface.

The default login information is:

Username: admin

Password: admin

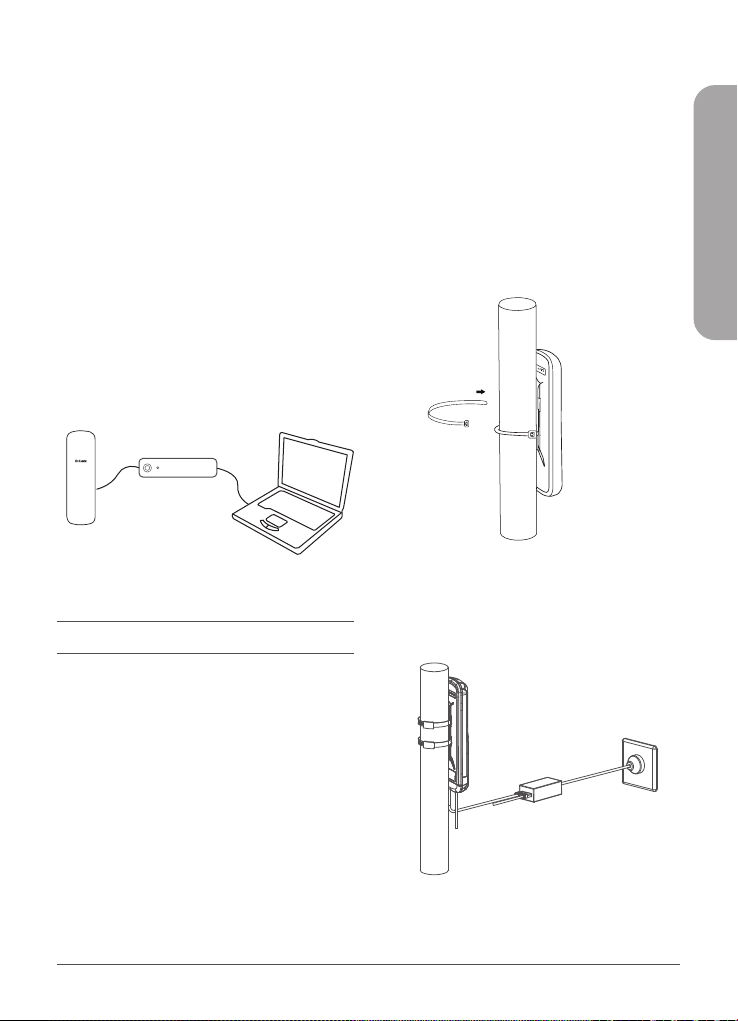

Figure 4: Indirect Connection

Mounting the Device

Installation Recommendations

If you plan to install the DAP-3711 on a pole,

orient the front of the access point (the side

without the LEDs) toward the intended coverage

area. The radio antennas transmit through the

front of the access point but not through the

reverse side (where the bracket is).

Be sure to install the device at a height that

ensures that the alignment between the

devices is visible and there is no obstruction

in the middle.

Warning: The DAP-3711 is designed to receive

PoE power only from an 802.3at compliant

source. Connecting an access point to a PoE

device that is not approved by D-Link can

damage the equipment.

Mounting on a Pole

1. Connect an Ethernet cable to the LAN port

on the DAP-3711.

2. Place the DAP-3711 against the pole

where you want it to be positioned.

Figure 5: Mounting the Device

3. Wrap the metal mounting ties around the

pole and thread them through the holes

on the DAP-3711.

Figure 6: Completed Installation

DAP-3711

Switch or

router

Computer

4Quick Installation Guide

ENGLISH

RF Frequency Requirements

This device is for outdoor use only. High power

radars are allocated as primary users of the 5150

~ 5250 MHz, 5725 ~ 5850 MHz bands. These

radar stations can cause interference with and/

or damage PoE Adapter this device. This is ﬁxed

point-to-point device.

TECHNICAL SUPPORT dlink.com/support

FCC Statement

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

FCC Radiation Exposure Statement

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and

it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in

accordance with provided instructions and the antenna(s) used for this transmitter must be installed to

provide a separation distance of at least 20 cm from all persons and must not be co-located or operating

in conjunction with any other antenna or transmitter. End-users and installers must be provided with

antenna installation instructions and consider removing the no-collocation statement.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Caution!

Any changes or modications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

Appendix - Statements

Ver. 1.00(WW)_130x183

2020/07/01
