CYP CMPRO-4H4H User manual
CMPRO-4H4H
4 by 4 HDMI Matrix
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
Version VR1.0 September 2012
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 10/02/14 Preliminary Release
CONTENTS
1. Introduction............................................1
2. Applications...........................................1
3. Package Contents ................................1
4. System Requirements............................1
5. Features..................................................1
6. Operation Controls and Functions.......2
6.1 Front Panel........................................2
6.2 Rear Panel.........................................3
6.3 Remote Control................................4
6.4 D-Sub 9-Pin Denitions .....................5
6.5 IR Cable Pin Assignment..................5
6.6 RS-232 Protocols ...............................6
6.7 Web GUI Control..............................7
7. Connection Diagram ............................9
8. Specications ......................................10
9. Acronyms.............................................11
1
1. INTRODUCTION
The 4 by 4 HDMI matrix with 4Kx2K supported which allows HDMI signal
from any of its four sources to be routed to and displayed on any
of its four connected HDMI displays simultaneously. It supports 3D,
Deep Color, Hi-Def lossless audio and other features dened by HDMI
specications. The management of source/ sink scenarios can be
operated easily through on-panel buttons, IR remote control, RS-232 or
Web GUI controls.
2. APPLICATIONS
• Showroom display control
• Educational demo
• Installation usage
• Advertising display
3. PACKAGE CONTENTS
• 4x4 HDMI Matrix
• Remote Control (CR-33)
• 1 x IR Extender
• Power Adaptor
• Operational Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as Blu-ray/DVD players with 3D/4Kx2K
contents, output display HD TV/monitor with 3D/4Kx2K functions and
HDMI high standard cables.
5. FEATURES
• Support HDTV resolutions up to 4Kx2K@30Hz
• Supports 7.1CH of LPCM, Dolby TrueHD, and DTS-HD Master Audio
• Supports 1080p@60Hz, Deep Color 36/30/24 bits
• Supports Internal/External EDID
• Supports IR, RS-232 and Web GUI controls
Note: This device does not support HDMI to DVI conversion.
In order to ensure proper 4Kx2K's display both source and display
mustsupport4Kx2K'sspecication.
2
6. OPERATION CONTROLS AND FUNCTIONS

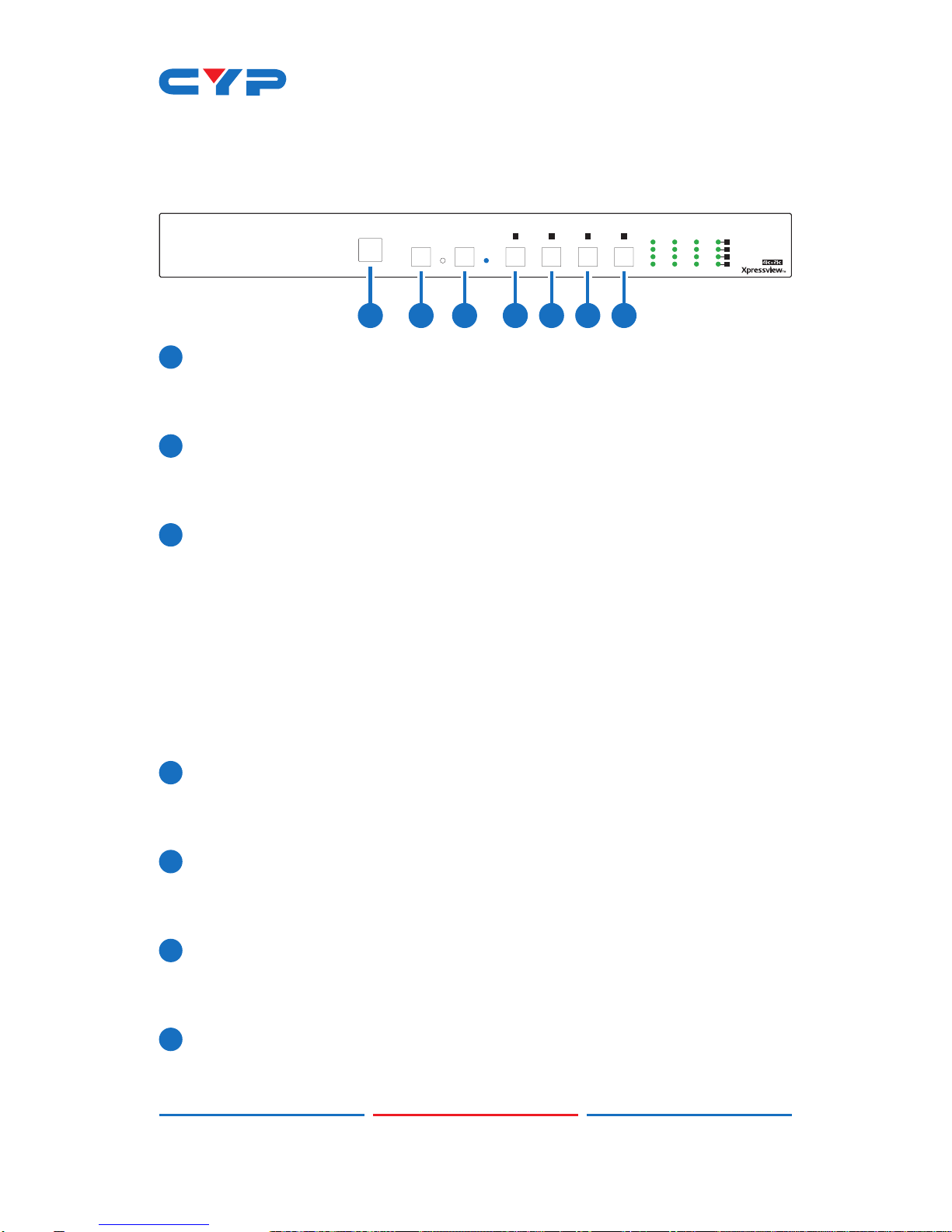

6.1 Front Panel
POWER EDID A B C D 1234
A
B
C
D
CMPRO-4H4H 4X4 HDMI MATRIX
1 2 3 4 5 6 7
1IR
IR receiver window accepts the remote control signal of this
device.
2POWER & LED
Press this button to power the device ON/OFF. The LED will
illuminate when the power is ON.
3EDID & LED
Press this button to use the internal/STD or external/TV EDID. The
LED will illuminate when STD EDID is selected. STD EDID video up to
1080p@24/50/60 and audio up to LPCM 2CH at 192KHz & 24 bits.
TV EDID mode will bypass output A's EDID to all inputs, when output
A obtain a 4Kx2K EDID the device will send out a 4Kx2K's timing
to all outputs, if output A's EDID does not obtain a 4Kx2K's EDID
the device will detect all outputs EDID and send a timing that all
outputs can accept.
4OUTPUT A
Press this button to select input source for output A, the LED will
illuminate accordingly to the selection.
5OUTPUT B
Press this button to select input source for output B, the LED will
illuminate accordingly to the selection.
6OUTPUT C
Press this button to select input source for output C, the LED will
illuminate accordingly to the selection.
7OUTPUT D
Press this button to select input source for output D, the LED will
illuminate accordingly to the selection.
3
6.2 Rear Panel
1234
INPUT OUTPUT
A B C D RS232IR IN CONTROL
SERVICE
DC 5V
POWER
1 2 3 4 5 6 7
1INPUT 1~4
Connect input source equipments such as DVD/Blu-ray players
with HDMI cables.
2OUTPUT A~D
Connect to HDMI 3D TV/display or monitor for both audio and
video or moving/static graphic play.
3IR IN
Connect the supplied IR Extender (included in the package) for IR
signal reception from the remote control included in the package.
Ensure that remote being used is within the direct line-of-sight of
the IR Extender.
4RS-232
Connect to a PC or laptop with D-Sub 9-pin male cable for the
transmission of RS-232 commands.
5CONTROL
Connect to an internet or network activate device. The green LED
will illuminate up on connecting to the network and the yellow LED
will blink during data transmission.
6SERVICE
Reserved for factory using only.
7POWER DC 5V
Connect the 5V DC power supply included in the package to an
AC wall outlet.
4

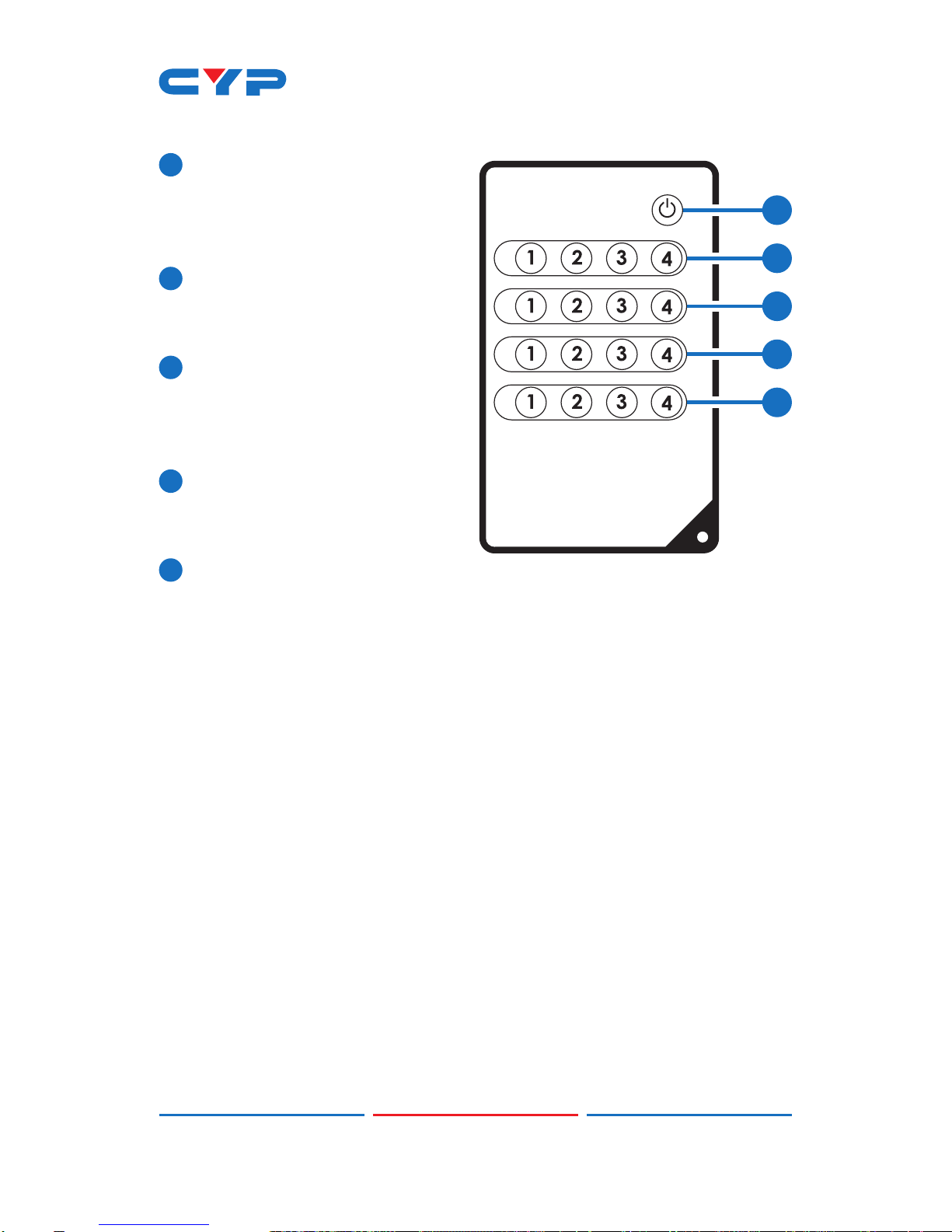

6.3 Remote Control
1POWER
Press this button to switch ON
or set to standby mode of the
device.
2OUTPUT A 1~4
Press buttons 1~4 to select the
nominated input for output A.
3OUTPUT B 1~4
Press buttons 1~4 to selection
the nominated input for output
B.
4OUTPUT C 1~4
Press buttons 1~4 to select the
nominated input for output C.
5OUTPUT D 1~4
Press buttons 1~4 to select the nominated input for output D.
OUTPUT
A
OUTPUT
D
OUTPUT
C
OUTPUT
B
POWER
CR-33
1
2
3
4
5
5

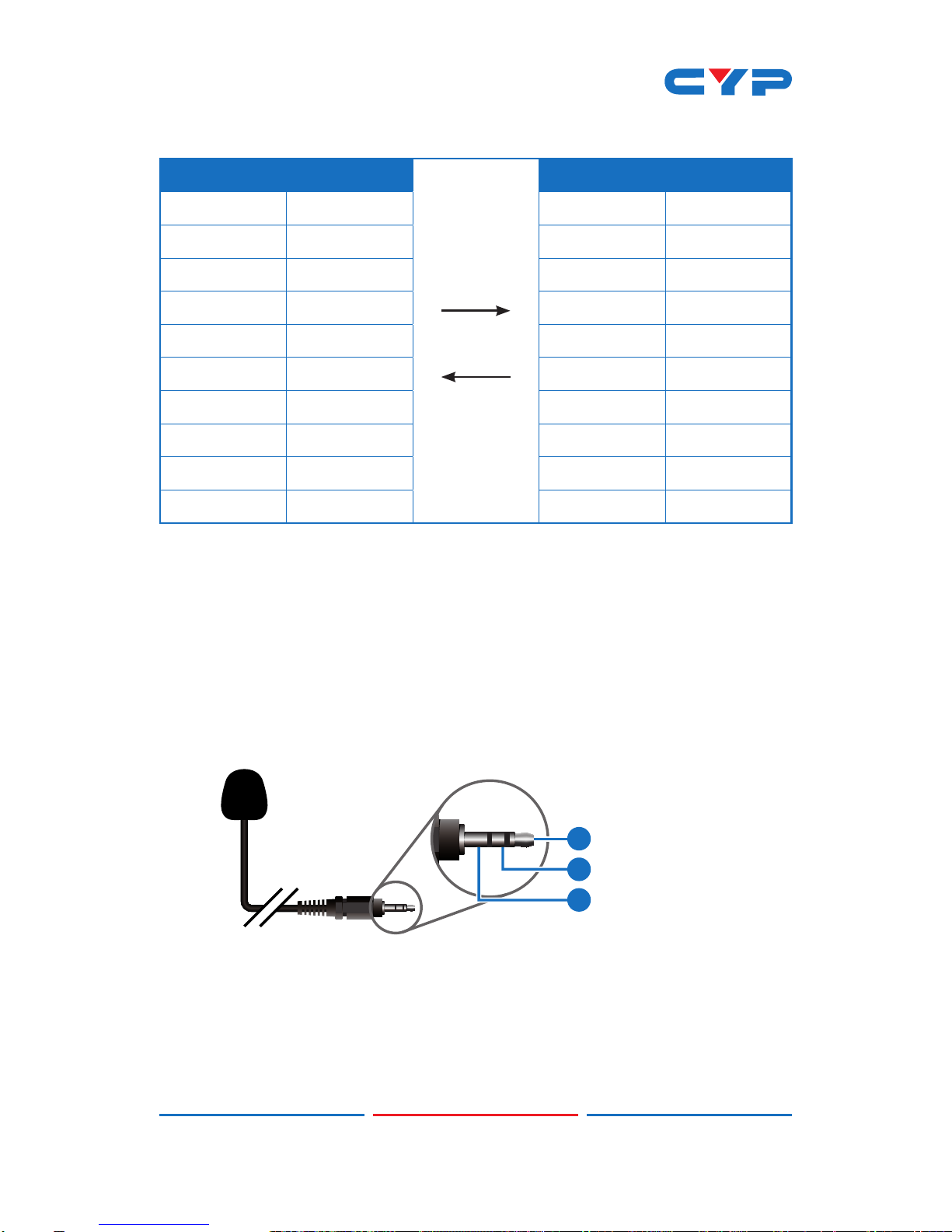

6.4 D-Sub 9-Pin Denitions
CMPRO-4H4H Remote Control
PIN Assignment PIN Assignment
1 NC 1 NC
2 TX 2 RX
3 RX 3 TX
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200bps
Data Bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
6.5 IR Cable Pin Assignment
IR Signal
Power 3.3V
Grounding
IR Extender
3
1
3
1
2
2
6
6.6 RS-232 Protocols
Command Description
A1~A4 Switch Output A to 1~4
B1~B4 Switch Output B to 1~4
C1~C4 Switch Output C to 1~4
D1~D4 Switch Output D to 1~4
ABC...1~ABC...4 Switch Output A B C... to 1~4 at
the same time
SETIP Setting IP
SETNETMASK Setting Net Mask
SETGATEWAY Setting Gateway
RSTIP IP conguration was reset to
factory default<DHCP>
IPCONFIG Display the current IP cong
P0 Power Off
P1 Power On
I1~I4 Switch all the output to 1~4
ST Display the current matrix state
and F/W version
RS System Reset to A1, B2, C3, D4
EM1~EM2 Setting EDID MODE. 1-STD 2-TV
?Display all available commands
Note: All the RS-232 command will be not executed unless followed
with a carriage return and all command are case-insensitive.
