Cuisinart SMK1021ASO User manual

Bristol 21” Pellet Grill

Model SMK1021ASO

ASSEMBLY INSTRUCTIONS

WARNING

READ ALL INSTRUCTIONS BEFORE INSTALLATING AND USING

APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD

RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN

DEATH. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT

RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS

IN YOUR AREA. SAVE THESE INSTRUCTIONS.

NOTICE TO INSTALLER:

LEAVE THESE INSTRUCTIONS

WITH THE GRILL OWNER

FOR FUTURE REFERENCE.

ASSEMBLY INSTRUCTIONS:

READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY

BEFORE ASSEMBLING OR OPERATING YOUR GRILL.

WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT.

The following tools are required to assemble this Cuisinart 21” Pellet Grill:

• Phillips Screwdriver

• Pliers or Wrench

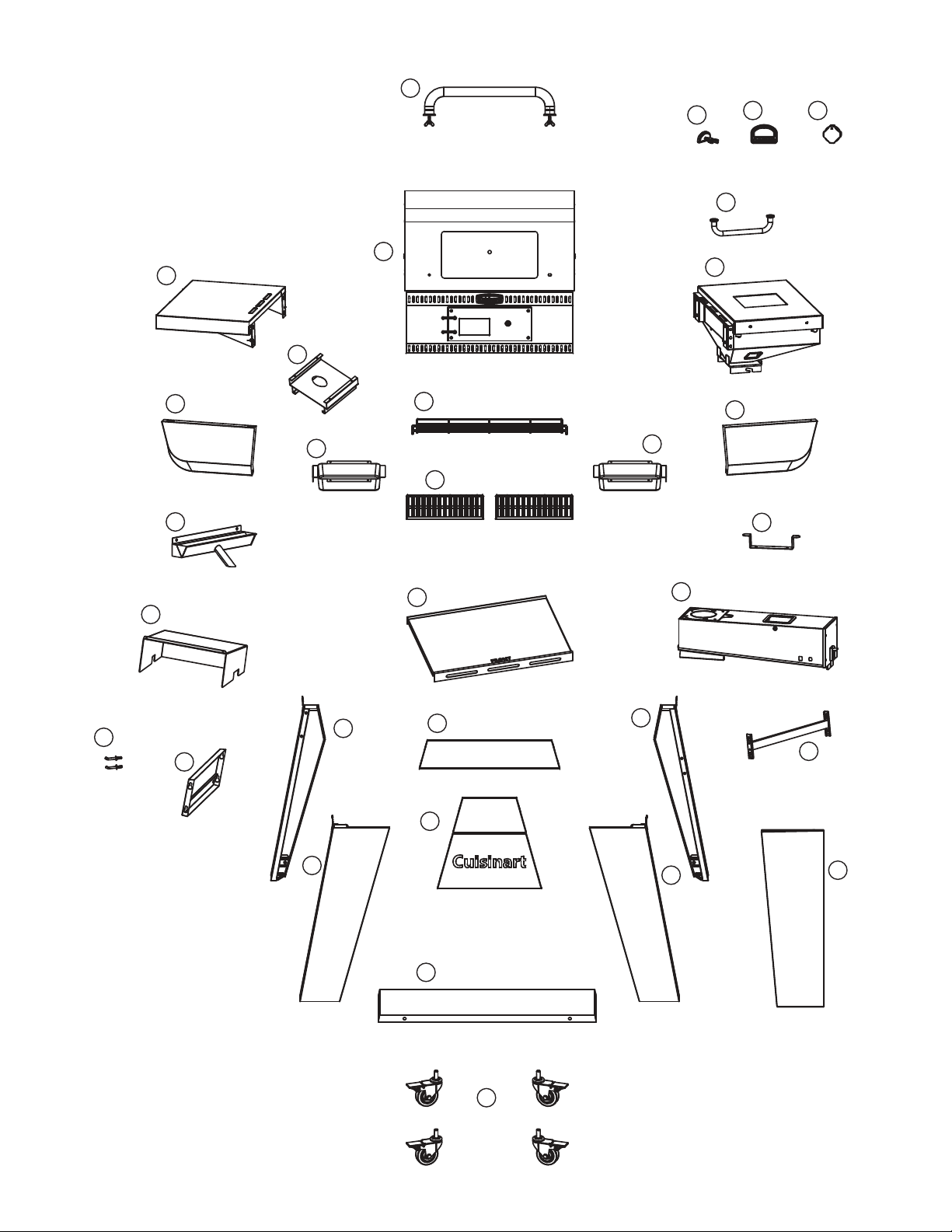

PARTS LIST:

1 Front Panel

1 Right Front Leg

1 Left Front Leg

1 Right Side Panel

1 Left Side Panel

1 Cart Brace

1 Cart Base

1 Left Rear Leg

1 Back Panel

1 Right Rear Leg

1 Grill Body

1 Hood Handle

1 Temperature Gauge

1 Temperature Gauge Bezel

1 Control Knob

1 Pellet Hopper Lid Handle

1 Pellet Hopper

1 Left Side Table

1 Right Side Control Panel

1 Left Side Control Panel

1 Grease Cup Bracket

1 Grease Cup

1 Warming Rack

1 Ash Catcher

1 Grease Channel

2 Cooking Grates

1 Cord Wrap

1 Heat Baffle

1 Heat Plate

1 Auger Housing

2 Accessory Hooks

4 Casters

Note: Most hardware is pre-attached to the grill. You may need to loosen some screws

partially while others may need to be removed in order to assemble parts. The screws that

you remove will be re-used so don’t misplace this hardware.

Extra screws are included in a small bag with the owners manual.

324

• Loosen 6 screws 3-4

turns on FRONT LEGS

2and 3

• Do not remove screws

• Attach FRONT PANEL

1using keyholes

• Tighten 6 screws

NOTE: Before tightening keyhole

screws, make sure panels are aligned.

• Loosen 3 screws

• Attach RIGHT SIDE

PANEL 4

• Tighten 3 screws on

RIGHT SIDE PANEL 4

Step 2

Step 1

Step 3

Step 4

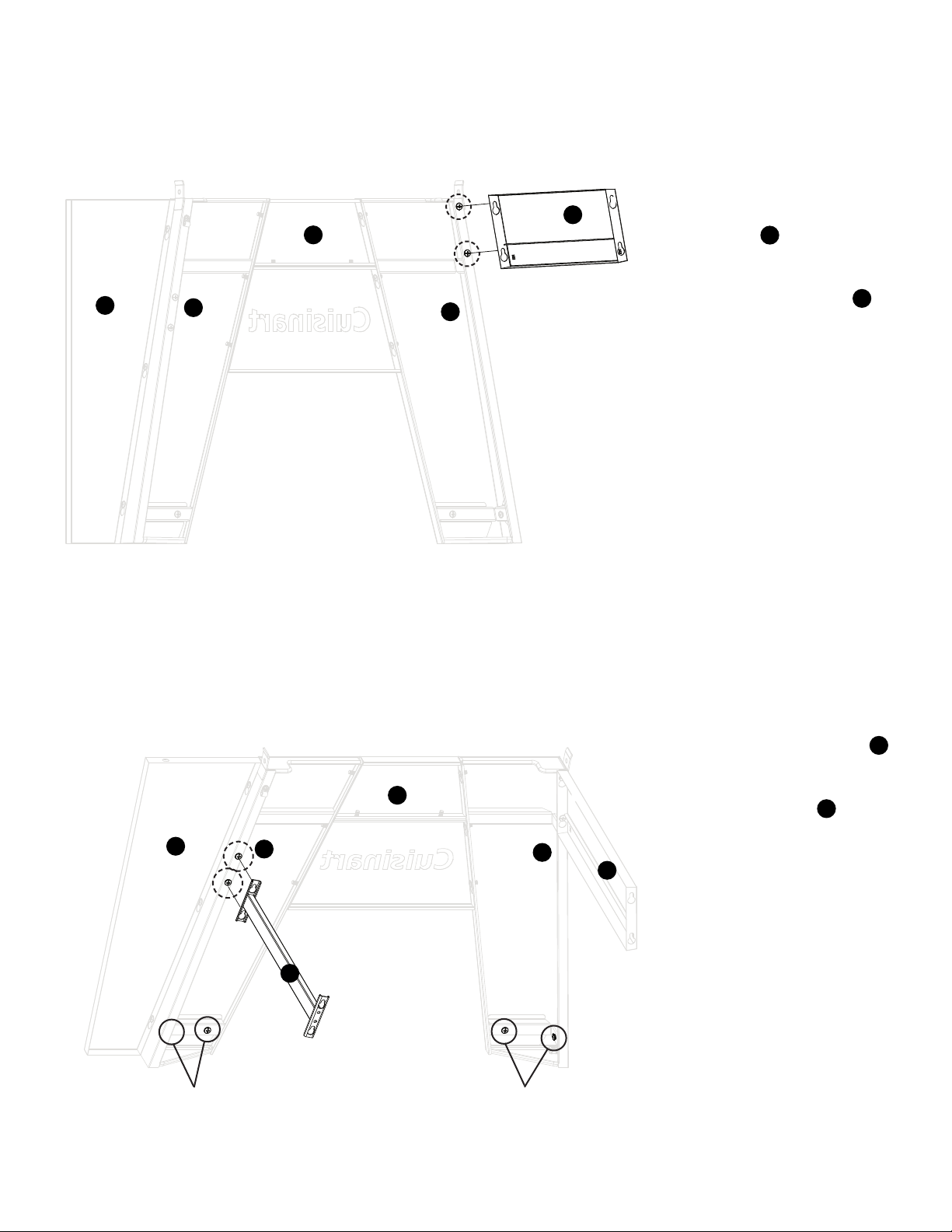

• Loosen 2 screws

• Attach LEFT SIDE

PANEL 5

• Tighten 2 screws on

LEFT SIDE PANEL 5

• Loosen 2 screws

• Attach CART BRACE 6

• Tighten 2 screws on

CART BRACE 6

• Remove 4 screws

Remove 2 screws Remove 2 screws

• Attach CART BASE 7

• Tighten 4 screws

(Removed from

Step 4)

• Loosen 8 screws on

REAR LEGS 8and 10

• Attach BACK PANEL 9

to REAR LEGS 8and

• Tighten 4 screws

• Remove 4 screws

Remove 2 screws

Step 6

810

Step 5

Step 7

Step 8

• Attach CART BASE 7to

rear legs

• Tighten 4 screws

(Removed from Step 6)

• Attach LEFT SIDE

PANEL 5and CART

BRACE 6

• Tighten 4 screws

Tighten

4 screws

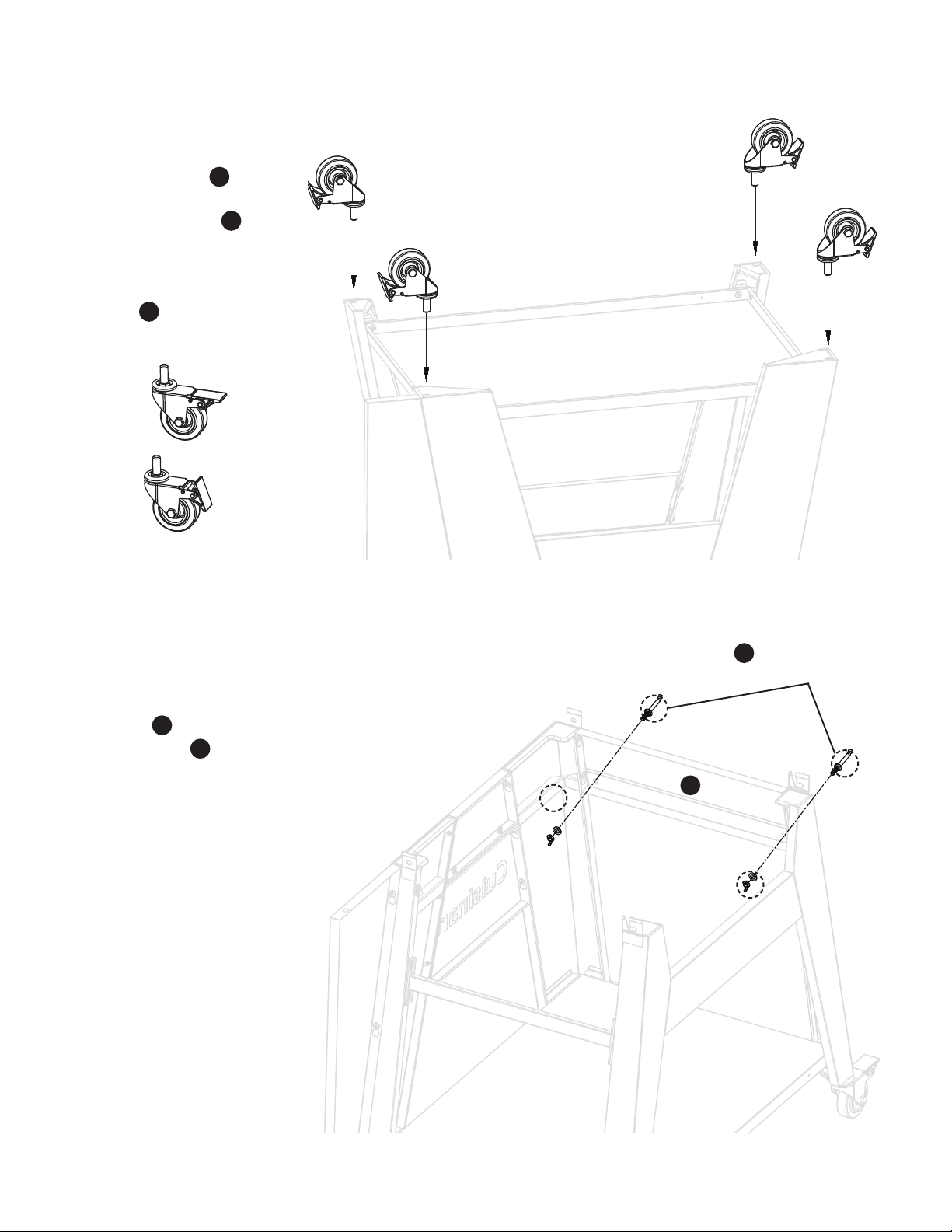

ACCESSORY

HOOKS

• Lock CASTERS 32

• Attach CASTERS 32 to

legs

• Attach ACCESSORY

HOOKS 31 to LEFT

SIDE PANEL 5with

wing nuts and washers

CASTERS

locked

unlocked

Step 10

Step 9

Remove 4 screws

Loosen 1 screw

Step 11

Step 12

• Loosen 1 screw

• Remove 4 screws

• Remove protective plate

from right side of grill

body assembly

• Loosen 5 screws

• Remove 3 screws

• Remove two protective

plates from left side of

grill body assembly

Loosen 5 screws

Remove 3 screws

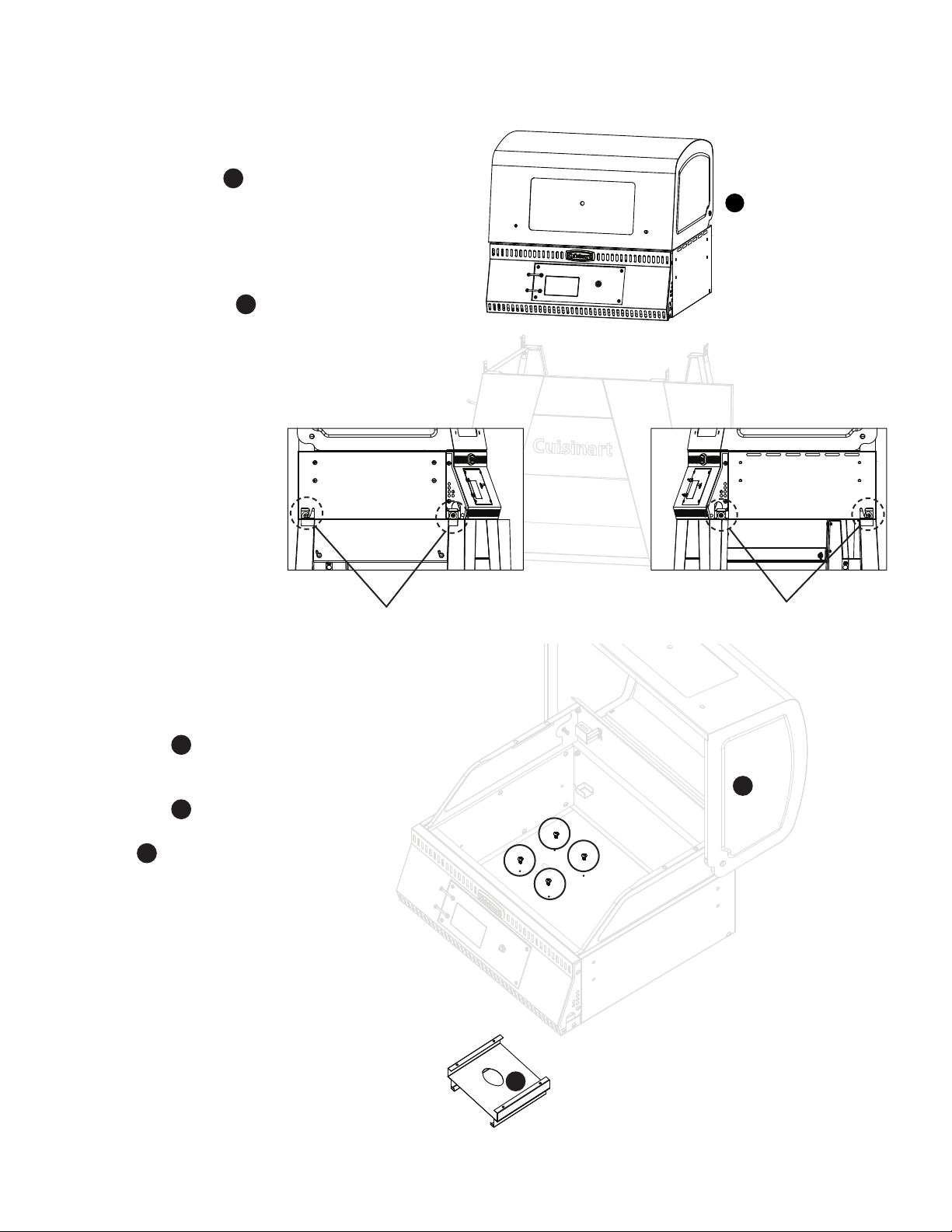

Step 14

CART BRACKETS

• Set GRILL BODY 11 on

cart

• Make sure screw drops

into rear cart brackets

• Push GRILL BODY 11 to

back of cart

• Install 2 screws in

FRONT BRACKETS

(Removed from Step 11

and Step 12)

• Tighten 4 screws on cart

brackets (2 screws left

over will be used in future

steps)

CART BRACKETS

• Remove 4 screws

from GREASE CUP

BRACKET 21

• Install GREASE CUP

BRACKET 21 to the

bottom of the GRILL

BODY 11 using 4 screws

Step 13
