Cuckooland AVIARY User manual
www.cuckooland.com | +44 (0)1305 231231
AVIARY
BUNK BED
Assembly Instructions
IMPORTANT: Please Read Carefully
and Retain for Future Reference
High beds and the upper bed of a bunk bed is not suitable for children under six
years due to the risk of injury from falling.
High beds and Bunk beds can present a serious risk of injury from strangulation if
not used correctly. Never attach or hang items to any part of the bunk bed that are
not designed to be used with the bed, for example but not limited to: ropes, strings,
cords, hooks, belts and bags.
Children can become trapped between the bed and the wall, a roof pitch, the ceiling,
adjoining pieces of furniture and the like. To avoid risk of serious injury the distance
between the top safety barrier and any adjoining structure should not exceed 75mm
or be more than 230mm.
Do not use the bed if any structural part is broken or missing.
Always use the tools indicated on the assembly leaflet and follow the manufacturer's
instructions.
Please regularly check that all assembly fastenings are properly tightened.
The recommended size of the mattress (es) is 190 x 90cm.
Please pay attention to the maximum mattress thickness which is 16cm for high
beds and upper bunks but may be less for trundle drawers.
The use of water or sleep flotation mattresses is prohibited.
Ventilation of the room is necessary to keep the humidity low and to prevent mould
in and around the bed.
Do not place the bed near a heat source such as electrical heating, gas heating etc.
to avoid any fire hazard.
Never clean your bed with abrasive cleaners or strong detergents. Clean ONLY by
wiping with a damp cloth and drying with a soft cloth.
Conforms to the European Standard EN 747-1:2012 + A1:2015
•
•
•
•
•
•
•
•
•
•
•
•
•
www.cuckooland.com | +44 (0)1305 231231
Advice and Tips:
Before you start, please read instructions carefully and retain for future use.
Please dispose of packing materials carefully and respectfully. Keep plastic bags
away from small children. Ensure small children are kept clear during assembly as
this pack contains small parts.
Build the item on a protected surface and avoid contact with hard flooring to limit
damages which may occur during installation.
Bouncing on or using this bed in a manner other than its intended purpose could
damage the frame or cause serious injury to your child.
Use of a night light may provide added safety precaution for a child using the
upper bunk.
If it is necessary to move the bed once installed, we advise that you avoid pushing
the bed into place as this may weaken the bed and result in damage and breakages.
The bed should be carefully lifted by 2 or more strong people into its final position.
•
•
•
•
•
•
www.cuckooland.com | +44 (0)1305 231231
Page : 1 of 28

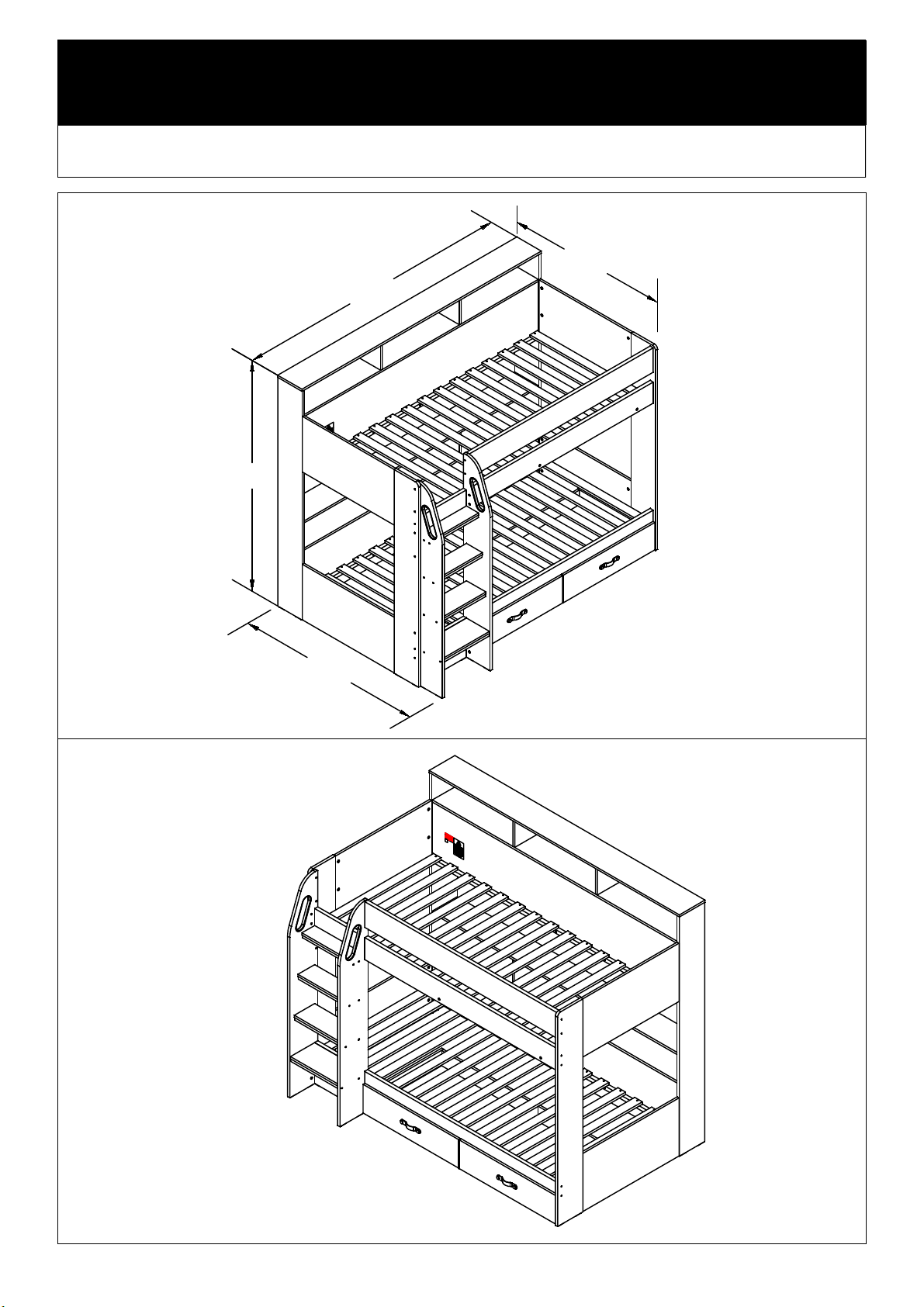

Model : AVIARY BUNK BED
Product Size : 920mm x 1930mm (Base Int Size)
Thank you for purchasing this product. Before starting assembly we suggest you spend a short time reading
through this leaftlet, then follow the simple step by step guide.Two people are needed to assemble this product.
1645mm
[64.76"]
1968mm
[77.48"]
1158mm
[45.60"]
1335mm
[52.56"]
Product Size : 920mm x 1930mm (Base Int Size)
Page : 2 of 28
TOP TIPS BEFORE YOU START !
1. Please check that all parts & hardware are present before you start the assembly of your furniture.
2. For ease and speed of assembly, we recommend that before you commence each step of the assembly,
3. We recommend that where possible, all items are assembled near to the area in which they will be placed in use,

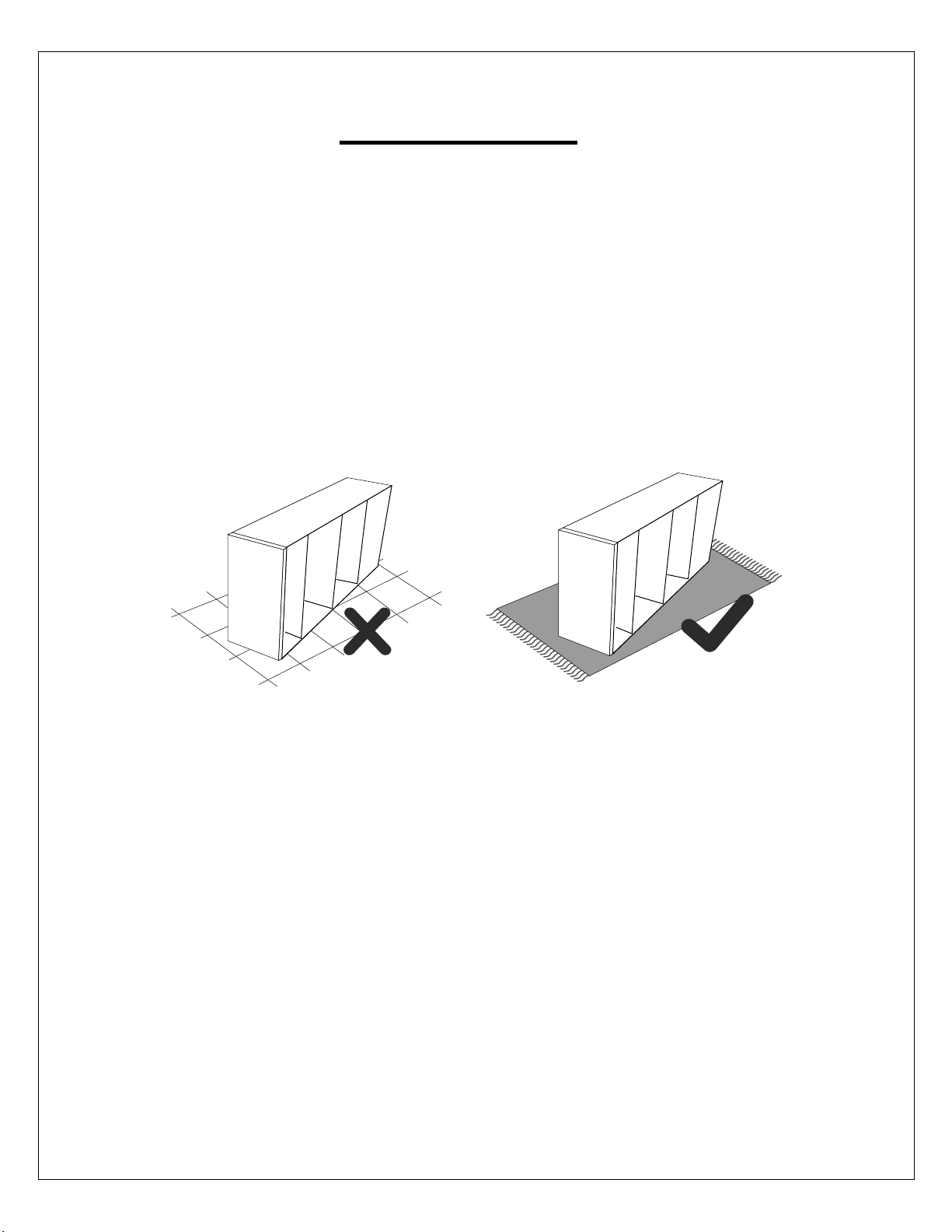

4. For the protection of your furniture, particularly items of high gloss finish, we recommend that the product is placed on a
5. During assembly please take care not to over-tighten any fittings, as this may damage the product.
CARE AND MAINTENANCE OF YOUR FURNITURE
Please periodically check all fittings and re-tighten as necessary.
To clean your item, please use a damp cloth and wipe clean.
Never allow any kind of liquid to remain on your furniture. Absorption can cause wood to warp or finishes to de-laminate.
Please do not place hot items (e.g hot drinks) directly on the wood surface.
Please do not drag or pull your furniture.
IMPORTANT INFORMATION
1. Thickness of mattress should not exceed 186mm.
2. Children should be discouraged from playing on top of this bunk bed.
3. The bunk bed should be checked periodically by the owner to ensure that the guardrail, ladder, and other components
4. A bunk bed is not to be placed near a ceiling fan unless the distance between the closest points on the ceiling fan bunk
5. Use guardrails on both sides of upper bunk.
6. Prohibit horseplay on or under bed(s).
7. Prohibit more than one person on upper bunk.
8. Use Ladder for entering and leaving upper bunk.
9. If the bunk bed will be placed next to the wall, the guardrail that runs the full length of the bed should be placed against
STRANGULATION HAZARD:
19. Never attach or hang items to any part of the bunk bed that are not designed for use with the bed for example, but not
Bed is at lest 2 metres.
are maintained in the correct position and state of repair and that all connectors are tight.
The wall to prevent entrapment between the bed and the wall.
Please identify all the parts required for that step.
to avoid moving the product unnecessarily once assembled.
Protected surface during assembly to prevent any damage.
limited to hook, belt and jump ropes.
IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE
10. WARNING Do not use the bunk bed/high bed if any struclural part is broken or missing.
11. Ventilation of the room is necessary in order to keep the humidity low and to prevent mould in and around the bed.
12. WARNING "high beds & the upper bed of bunk beds are not suitable for children under six years due to risk of injury from falls";
13. WARNING "children can become trapped between the bed & the wall, a roof pitch, the ceiling, adjoining pieces of furniture (e.g.cupboard)
and the like. To avoid risk of serious injury the distance between the top safety barrier and the adjoining structure shall not exceed 75mm
nor shall be more than 230mm"
14. always follow the manufacturer's instruction;
15. Recommended Mattress Size : 90cm x 190cm (UK Single) with Maximum Depth of 18.6cm
16. This item conforms to European Safety Standards - BS EN 747-1 : 2012 + A1 : 2015 & BS EN 747-2 : 2012 + A1 : 2015
17. WARNING "Bunk beds and high beds can present a serious risk of injury from strangulation if not used correctly. Never attach or hang
items to any part of the bunk bed that are not designed to be used with the bed, for example, but not limited to ropes, strings, cords,
hooks, belts and bags"
18. High beds and the upper bed of bunk beds is suitable for a maximum mattress thickness of 184mm. The top of mattress must not come
above the line marked on the bed.
Model : AVIARY BUNK BED

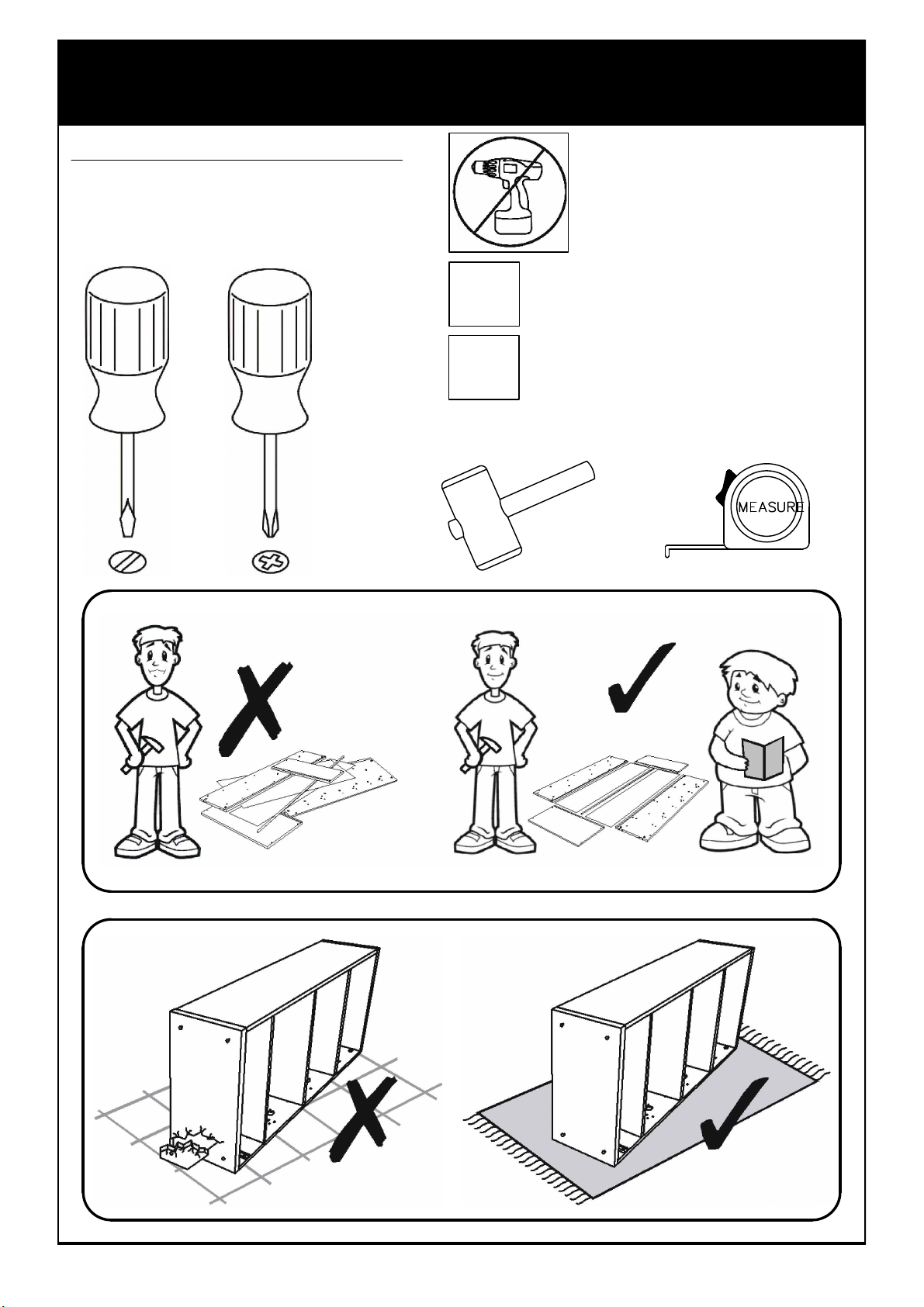

Guide To Assembly
Tools Required For Assembly
Rubber Hammer
DO NOT USE POWER TOOLS TO
ASSEMBLE THIS PRODUCT. USE
OF POWER TOOLS WILL INVALIDATE
ANY CLAIM AND MAY DAMAGE THIS
PRODUCT MAKING IT UNSAFE.
Phillips Screw Driver
Tape Measure
¸
€2 People Required
Approximately 3 hour
Page : 3 of 28
€
Model : AVIARY BUNK BED

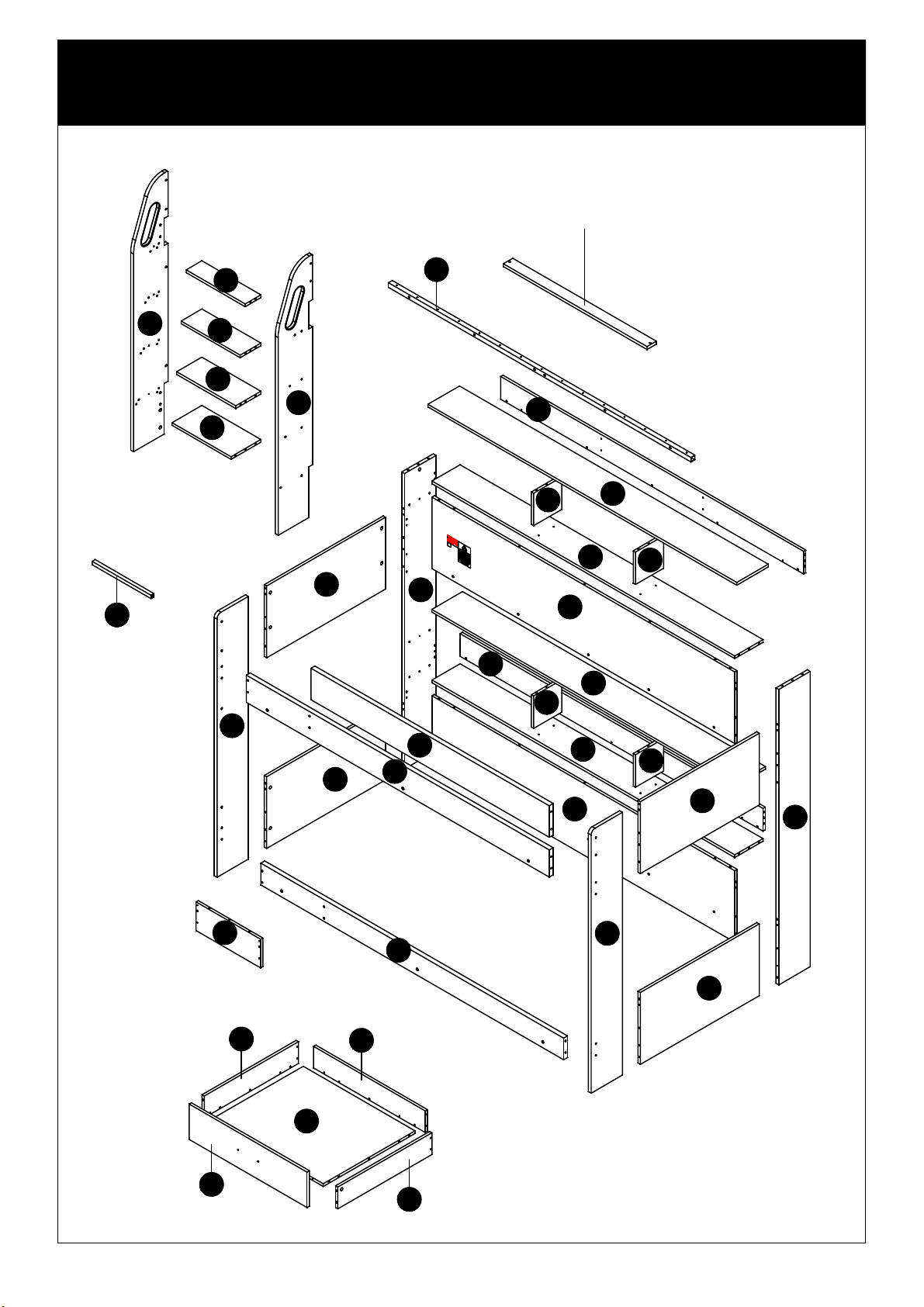

Part List
Page : 4 of 28
No. Pcs No. Part Name
Carton 4 of 4
Pcs
Part Name
Carton 1 of 4
Assembly Instructions + Fitting List
Carton 2 of 4
Carton 3 of 4
1
02
04
2
24
28
26
27
10
25
Right & Left End Panel (Upper)
Bottom Panel (Shelf)
2
2
2
2
2
2
15
16
14
06
03
01
1
1
1
1
4
1Back Side Panel (Upper)
Center Support Panel
Front Side Panel (Upper)
Bottom Panel (Drawer)
Left Panel (Drawer)
Right Panel (Drawer)
4
07
29
2
Metal Side Rail
30 8
11 2
Ladder Support Rail
Front Side Panel (Bottom)
Front Panel (Upper)
19
20
12
08
09
1
1
1
1
1Left Panel (Shelf)
1st Ladder Step
17
18
13
1
1
1
Ladder Left Panel
Ladder Right Panel
30LVL Slats
Top Panel (Upper)
Back Panel (Shelf)
Back Side Panel (Bottom)
Right Panel (Shelf)
2nd Ladder Step
Left End Panel (Front)
Right End Panel (Front)
Front Panel (Drawer)
Back Panel (Drawer)
Right & Left End Panel (Lower)
105 Top Panel (Bottom)
Support Panel
23 1
4th Ladder Step
3rd Ladder Step
1
1
22
21
Model : AVIARY BUNK BED
Part List
Page : 5 of 28
29 x4
02
04
01
03
08
09
19
20
17
18
23
14
15
10
13
27 x2
25 x2
10
07
03
02
06
03
05
03
21
22
26 x2
28 x2
24 x2
12
11
30 x8
LVL Slats x30
11
07
16
Model : AVIARY BUNK BED
Carton 1 of 4

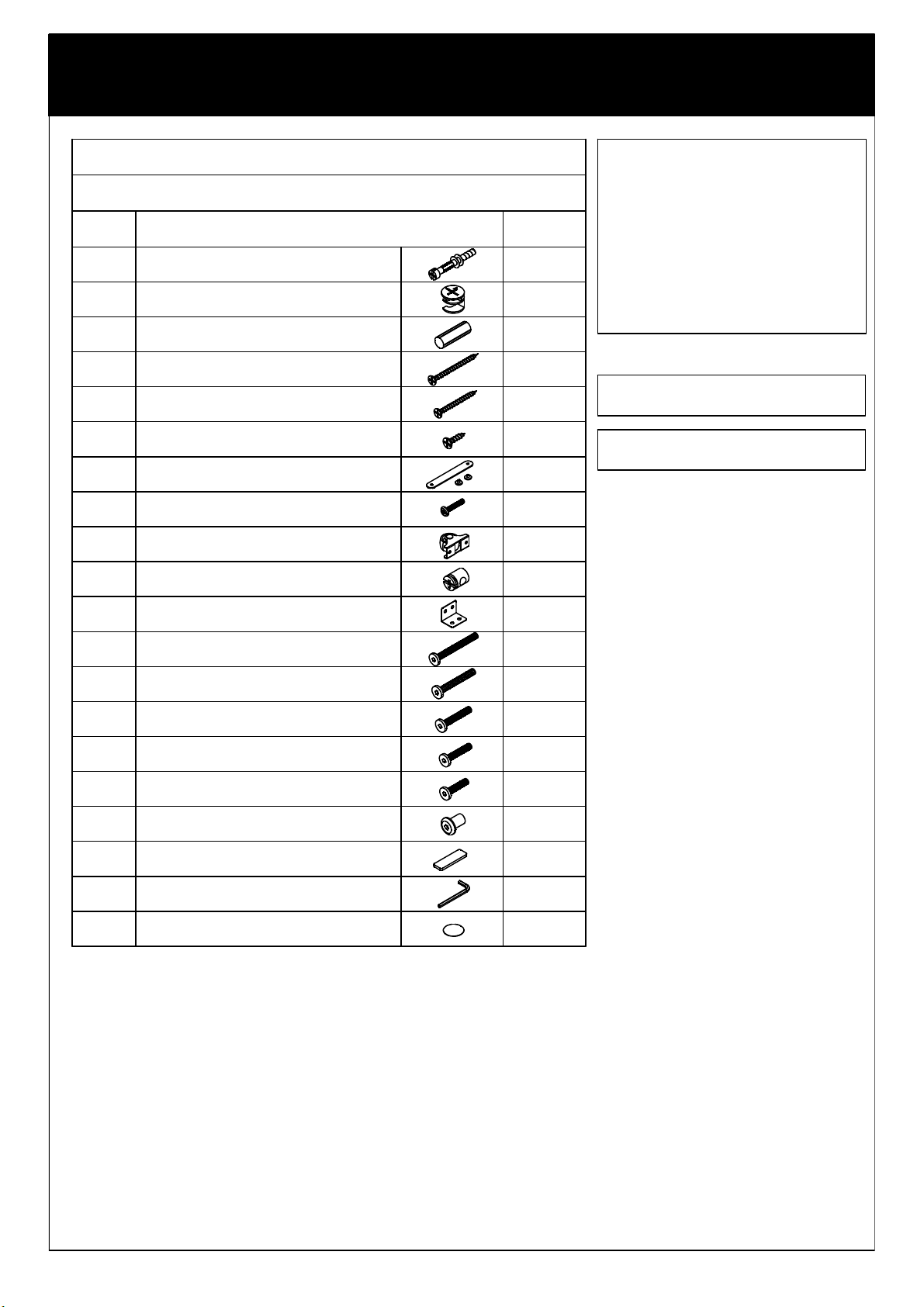

Fitting List
No. Part Name Pcs
ACam Stud (small)75
Cam 75
M6 Allen Wrench
M8 x 25mm Wood Dowel
Fitting List
B
D
F
C
H
J
K
L
M
N
P
Q
M6 JCN Nut
126
2
R
M6 x 35mm Allen Bolt
M6 x 30mm Allen Bolt 64
E
Page : 6 of 28
48
14mm Chipboard Screw
M6 x 50mm Allen Bolt
M6 x 40mm Allen Bolt
S
T
U
V
10
26
G
22
45mm Chipboard Screw
M6 x 13mm Baller
16
20
12
M6 x 60mm Allen Bolt 8
8
12
38mm Chipboard Screw
6/8 L Braket 8
G-390 Small Caster
14
Felt Pads (45 x 14mm)
28
Round Sticker
128mm Leather Handle
18mm Handle Screw 4
2
Caution
There are many small components
used in the construction of this
unit.These loose items should be
kept away from young children
whilst assembling your unit. As
an extra precaution, screw cover
caps should be permanently
fixed in position.(Where applicable)
USEFUL HINTS & TIPS
Two people will be required to
assemble this unit
Please keep this assembly
instruction for future reference
Model : AVIARY BUNK BED

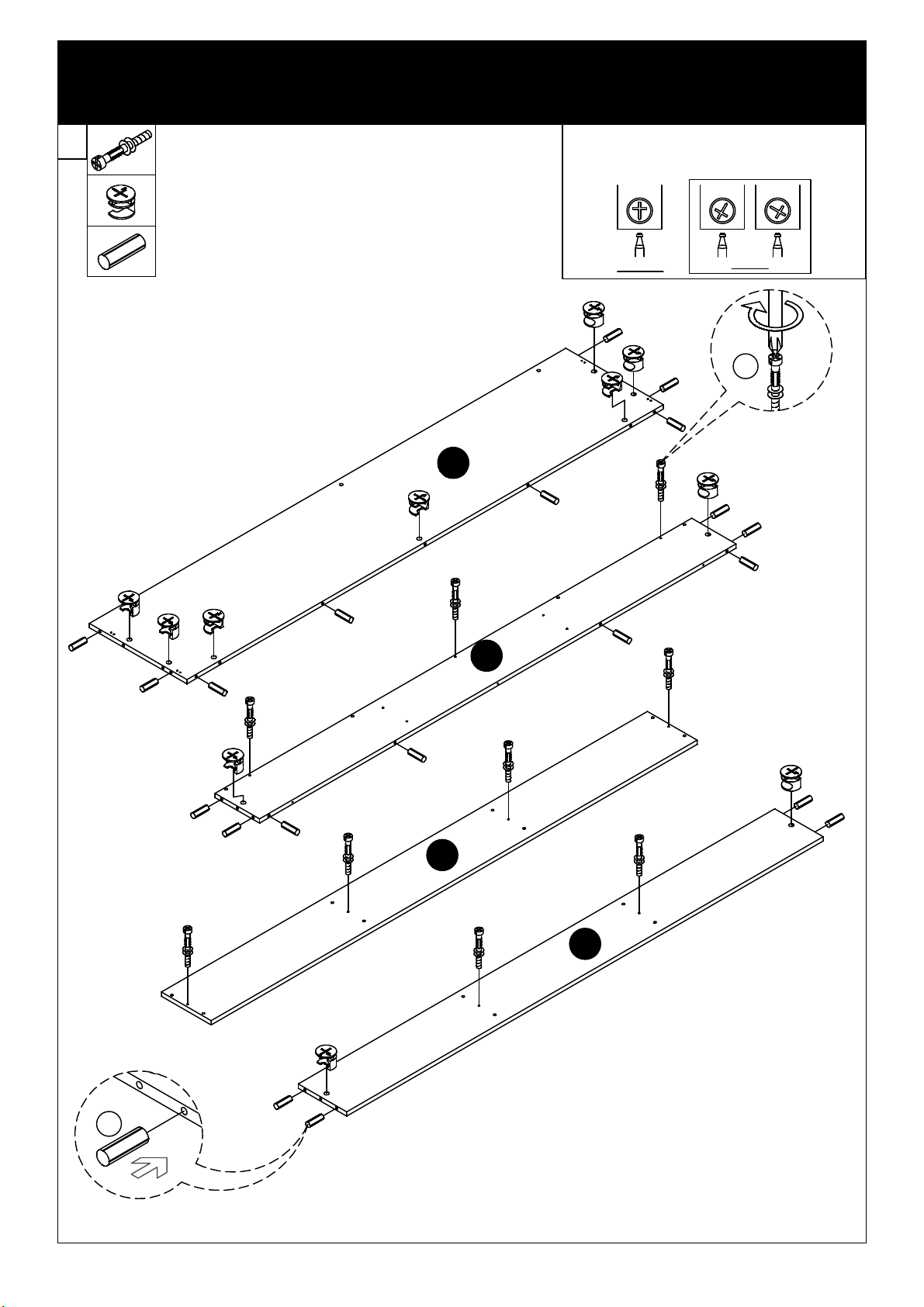

1
¤
WHEN FITTING CAMS
ENSURE STARTING POSITION IS CORRECT
BEFORE YOU INSERT CONNECTING BOLT
TURN CLOCKWISE UNTIL SECURE
WRONG
CORRECT
üû
Page : 7 of 28
A
B x 13
C x 28
A x 12
C
01
02 x2
04
05
Guide To Assembly
Model : AVIARY BUNK BED
