Crestron TSW-RMB User manual
Crestron TSW-RMB
Retrofit Mounting Brackets
for TSW-750 & TSW-1050
Installation Guide
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries.
Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or
their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or
photography.
This document was written by the Technical Publications department at Crestron.
©2013 Crestron Electronics, Inc.
Crestron TSW-RMB Retrofit Mounting Brackets for TSW-750 & TSW-1050
Installation Guide – DOC. 7609A Contents •i
Contents
Retrofit Mounting Brackets for TSW-750 & TSW-1050: TSW-RMB 1
Introduction ............................................................................................................................... 1
Physical Description....................................................................................................2
Setup .......................................................................................................................................... 7
Supplied Hardware ......................................................................................................7
Installation ................................................................................................................... 8
Resources................................................................................................................................. 10
Further Inquiries ........................................................................................................ 10
Future Updates .......................................................................................................... 10
Return and Warranty Policies .................................................................................................. 11
Merchandise Returns / Repair Service ...................................................................... 11
Crestron Limited Warranty........................................................................................ 11
Crestron TSW-RMB Retrofit Mounting Brackets for TSW-750 & TSW-1050
Installation Guide – DOC. 7609A Retrofit Mounting Brackets for TSW-750 & TSW-1050: TSW-RMB •1
Retrofit Mounting Brackets for
TSW-750 & TSW-1050: TSW-RMB
Introduction
Replacing an existing wall-mounted Crestron®touch screen with a new TSW-750 or
TSW-1050 touch screen is simplified using a TSW-RMB Retrofit Mounting Bracket.
A complete set of brackets is available to streamline the process without having to
tear up or patch the wall surface. The TSW-RMB simply mounts over the existing
back box, mounting kit, or cutout to accommodate the new touch screen.
TSW-RMB brackets are composed of metal and coated with a white, paintable
surface treatment.
NOTE: When mounting a TSW-750 using a TSW-RMB bracket, the top and
bottom edges of the bracket will be slightly visible.
Available Models
MODEL NUMBER DESCRIPTION
TSW-750-RMB-1
Retrofit Mounting Bracket – APAD, CT/LC-1000, or TPS-2000L to TSW-750
TSW-750-RMB-2
Retrofit Mounting Bracket – TPS-4L to TSW-750
TSW-1050-RMB-3
Retrofit Mounting Bracket – APAD, CT/LC-1000, TPS-2000L, or TPS-4L to TSW-1050
TSW-1050-RMB-4
Retrofit Mounting Bracket – TPS-6L to TSW-1050
TSW-1050-RMB-5
Retrofit Mounting Bracket – TPS-3100L to TSW-1050
The TSW-750-RMB-1, TSW-750-RMB-2, TSW-1050-RMB-3, TSW-1050-RMB-4,
and TSW-1050-RMB-5 are functionally identical. For simplicity within this guide,
the term “TSW-RMB” is used except where noted.
Retrofit Mounting Brackets for TSW-750 & TSW-1050 Crestron TSW-RMB
2•Retrofit Mounting Brackets for TSW-750 & TSW-1050: TSW-RMB Installation Guide – DOC. 7609A
Choose the appropriate retrofit mounting bracket by using the following table.
EXISTING TOUCH SCREEN NEW TOUCH SCREEN RETROFIT MOUNTING BRACKET
APAD
TSW-750
TSW-750-RMB-1
TSW-1050
TSW-1050-RMB-3
CT-1000 or LC-1000
TSW-750
TSW-750-RMB-1
TSW-1050
TSW-1050-RMB-3
TPS-2000L
TSW-750
TSW-750-RMB-1
TSW-1050
TSW-1050-RMB-3
TPS-3100L
TSW-1050
TSW-1050-RMB-5
TPS-4L
TSW-750
TSW-750-RMB-2
TSW-1050
TSW-1050-RMB-3
TPS-6L
TSW-1050
TSW-1050-RMB-4
Physical Description
TSW-750-RMB-1 Overall Dimensions (Top, Front and Side Views)
1.36 in
(35 mm)
6.73 in
(171 mm)
3.74 in
(95 mm)
5.65 in
(144 mm)
4.80 in
(122 mm)
3.95 in
(101 mm)
TPS-2000L Mounting Hole
CT/LC-1000, APAD Mounting Hole
Crestron TSW-RMB Retrofit Mounting Brackets for TSW-750 & TSW-1050
Installation Guide – DOC. 7609A Retrofit Mounting Brackets for TSW-750 & TSW-1050: TSW-RMB •3
TSW-750-RMB-2 Overall Dimensions (Top, Front and Side Views)
6.10 in
(155 mm)
5.00 in
(127 mm)
3.90 in
(99 mm)
4.50 in
(115 mm)
1.36 in
(35 mm)
Retrofit Mounting Brackets for TSW-750 & TSW-1050 Crestron TSW-RMB
4•Retrofit Mounting Brackets for TSW-750 & TSW-1050: TSW-RMB Installation Guide – DOC. 7609A
TSW-1050-RMB-3 Overall Dimensions (Top, Front and Side Views)
1.42 in
(36 mm)
6.95 in
(177 mm)
CT/LC-1000, APAD Mounting Hole
(Use 17517 Bracket)
TPS-4L Mounting Hole
(Use 170070 Bracket)
TPS-2000L Mounting Hole
(Use 17517 Bracket)
3.74 in
(95 mm)
5.00 in
(127 mm)
5.65 in
(144 mm)
4.95 in
(126 mm)
3.95 in
(101 mm)
3.90 in
(99 mm)
Crestron TSW-RMB Retrofit Mounting Brackets for TSW-750 & TSW-1050
Installation Guide – DOC. 7609A Retrofit Mounting Brackets for TSW-750 & TSW-1050: TSW-RMB •5
TSW-1050-RMB-4 Overall Dimensions (Top, Front and Side Views)
1.35 in
(35 mm)
For 170071 Bracket
Mount to Back Box
4.60 in
(117 mm)
5.10 in
(130 mm)
5.80 in
(148 mm)
8.00 in
(204 mm)
6.50 in
(166 mm)
4.50 in
(115 mm)
Retrofit Mounting Brackets for TSW-750 & TSW-1050 Crestron TSW-RMB
6•Retrofit Mounting Brackets for TSW-750 & TSW-1050: TSW-RMB Installation Guide – DOC. 7609A

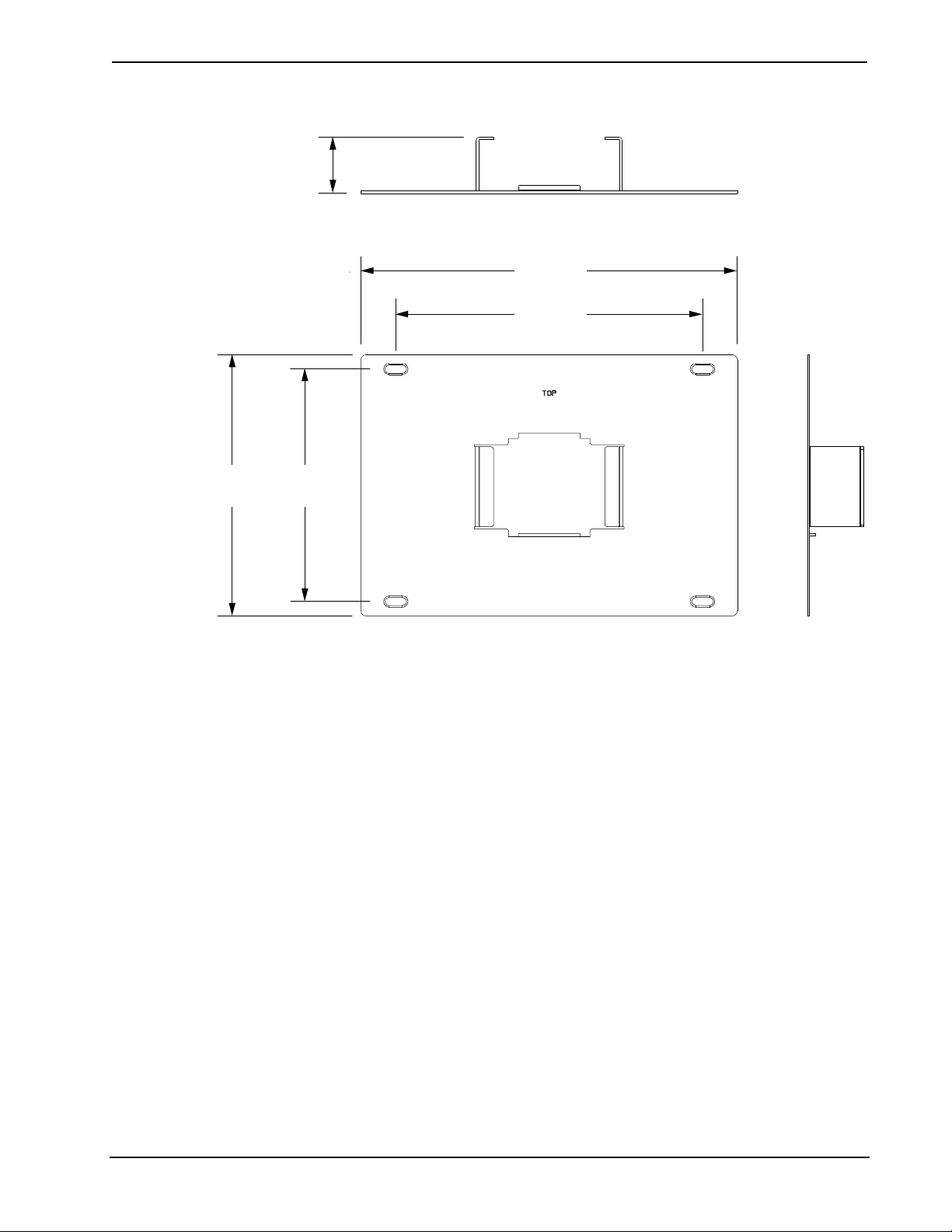

TSW-1050-RMB-5 Overall Dimensions (Top, Front and Side Views)
1.35 in
(35 mm)
6.28 in
(160 mm)
5.59 in
(142 mm)
9.05 in
(230 mm)
7.37 in
(188 mm)
