Crestron FTI-PWR-D How to use

Crestron FTI-PWR-D

FlipTop Power Center -

International Version

Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Regulatory Compliance

Federal Communications Commission (FCC) Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Industry Canada (IC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference and (2) this device must accept any interference received,

including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance

could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

Consult the dealer or an experienced radio/TV technician for help

As of the date of manufacture, the FTI-PWR-D-B and FTI-PWR-D-BALUM have been tested and found to

comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance

Labelling.

All brand names, product names and trademarks are the property of their respective owners.

Crestron FTI-PWR-D FlipTop Power Center - International Version

Contents

FlipTop Power Center - International Version: FTI-PWR-D 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................1

Applications.................................................................................................................2

Specifications ..............................................................................................................2

Physical Description.................................................................................................... 3

Setup ..........................................................................................................................................6

Installation................................................................................................................... 6

Hardware Hookup ..................................................................................................... 11

Operation .................................................................................................................................12

Problem Solving ......................................................................................................................13

Troubleshooting......................................................................................................... 13

Further Inquiries ........................................................................................................ 13

Future Updates .......................................................................................................... 13

Appendix: International Power Receptacles ........................................................................... 14

Return and Warranty Policies ..................................................................................................15

Merchandise Returns / Repair Service ...................................................................... 15

CRESTRON Limited Warranty.................................................................................15

Operations & Installation Guide – DOC. 6797B Contents •i

Crestron FTI-PWR-D FlipTop Power Center - International Version

FlipTop Power Center -

International Version: FTI-PWR-D

Introduction

The FTI-PWR-D provides an elegant connectivity solution in a stylish flush mount

tabletop package. Beneath the "FlipTop" lid, the cable storage compartment keeps

interface cables at the ready for plugging in computers, AV sources, and a host of

other devices.

Features and Functions

• Stylish flush-mount FlipTop housing

• Easy pull-out universal cable management

• Dual International AC power outlets

• Available in black anodized (FTI-PWR-D-B) or brushed aluminum

(FTI-PWR-D-BALUM)*

* For simplicity within this guide the FlipTop Power Center will be referred to as the

FTI-PWR-D unless otherwise noted.

FlipTop Housing

Handsomely finished in either black anodized or brushed aluminum, the FTI-PWR-D

mounts flush in any tabletop surface for a clean, discreet appearance.

Cable Storage Compartment

The FTI-PWR-D provides for extensive connectivity through an easy pull-out cable

storage mechanism to support a wide range of applications and signal types. Eight

grommeted holes are provided in the bottom plate, allowing for smooth pass-through

of virtually any type of AV, communication, control, or data cable (cables not

included). When not in use, the user end of each cable stows neatly within the

FlipTop compartment while excess cable simply drops out-of-sight below the box.

Dual International AC Power Outlets

For complete connectivity, the FTI-PWR-D includes two AC power receptacles

within the FlipTop compartment. A choice of outlet types is available to

accommodate virtually any country or region including UK, Europe (Schuko), Italy,

France, Australia, and China.

Operations & Installation Guide – DOC. 6797B FlipTop Power Center – International Version: FTI-PWR-D •1

FlipTop Power Center – International Version Crestron FTI-PWR-D

Applications

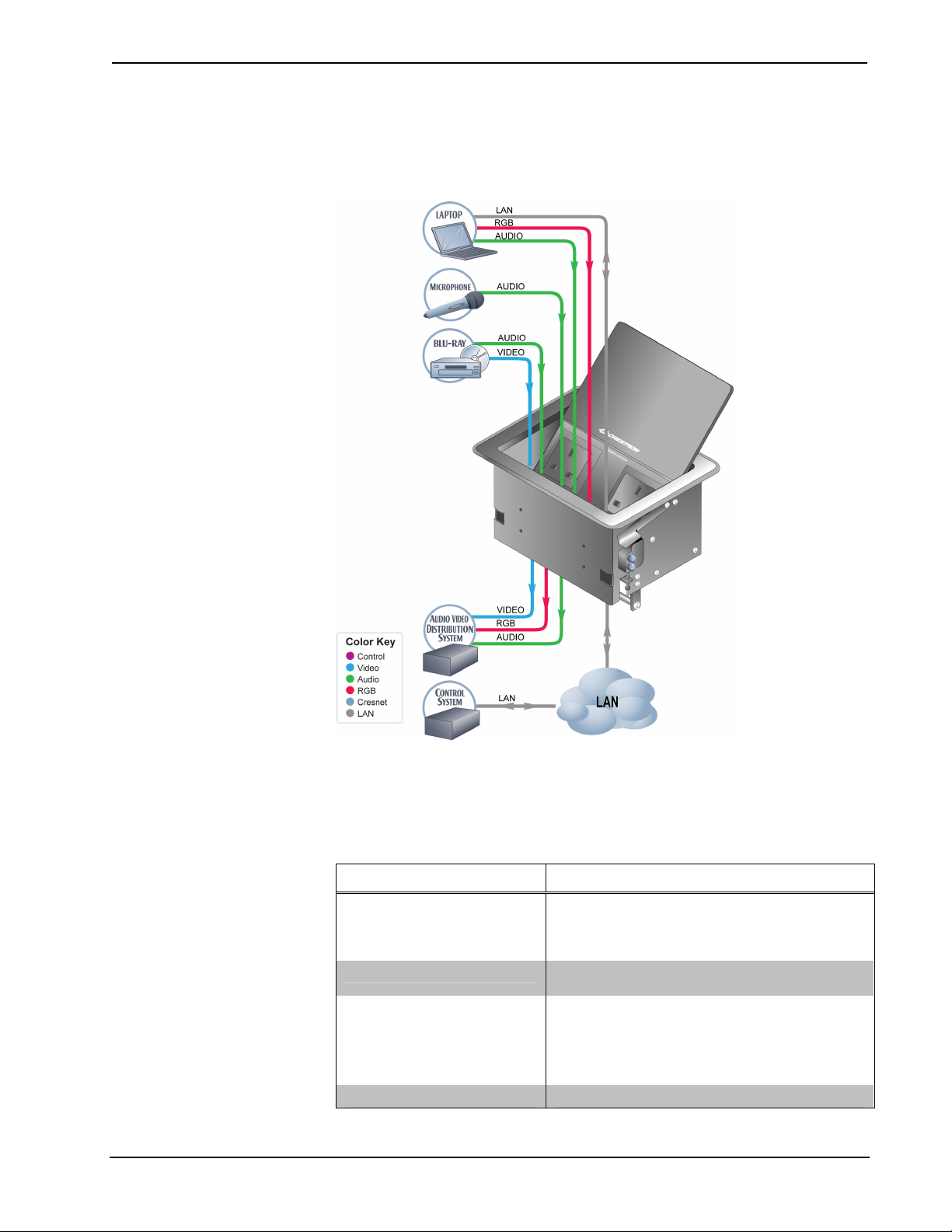

The following diagram shows an FTI-PWR-D in a lecture hall application.

FTI-PWR-D in a Lecture Hall Application

Specifications

Specifications for the FTI-PWR-D are listed in the following table.

FTI-PWR-D Specifications

SPECIFICATION DETAILS

Environmental

Temperature 5º to 40º C (41º to 104º F)

Humidity 10% to 90% RH (non-condensing)

Enclosure Black metal with black anodized or brushed

aluminum cover; flush tabletop mountable

Dimensions

Height

Width

Depth

142 mm (5.58 in) with lid closed

216 mm (8.50 in)

170 mm (6.67 in) without mounting brackets

Weight 2.5 kg (5.5 lbs)

2 •FlipTop Power Center – International Version: FTI-PWR-D Operations & Installation Guide – DOC. 6797B

Crestron FTI-PWR-D FlipTop Power Center - International Version

Physical Description

This section provides information on the connections, controls, and indicators

available on your FTI-PWR-D.

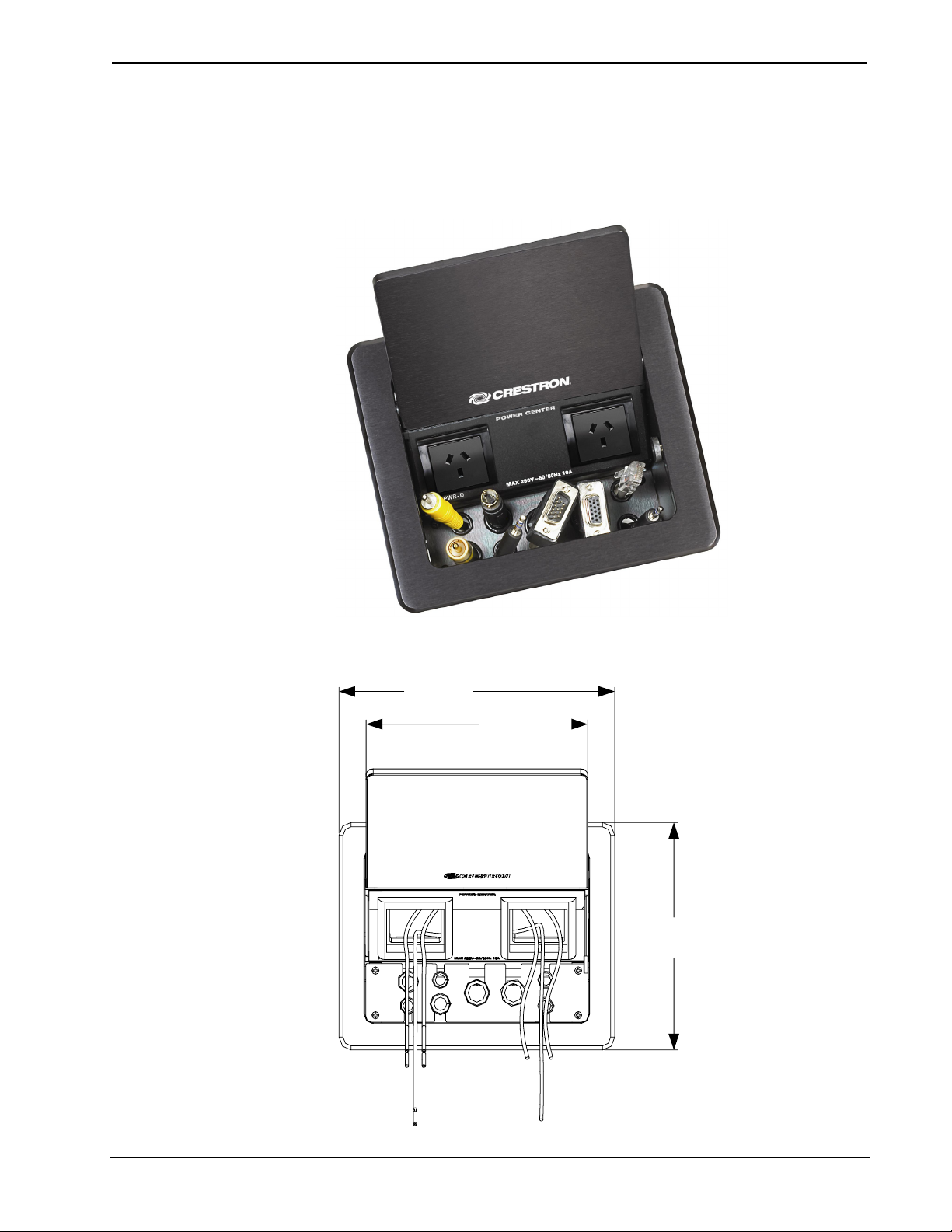

FTI-PWR-D Physical View

FTI-PWR-D Overall Dimensions (Top View)

216 mm

(8.50 in 173 mm

(6.83 in)

169 mm

(6.67 in)

Operations & Installation Guide – DOC. 6797B FlipTop Power Center – International Version: FTI-PWR-D •3

FlipTop Power Center – International Version Crestron FTI-PWR-D

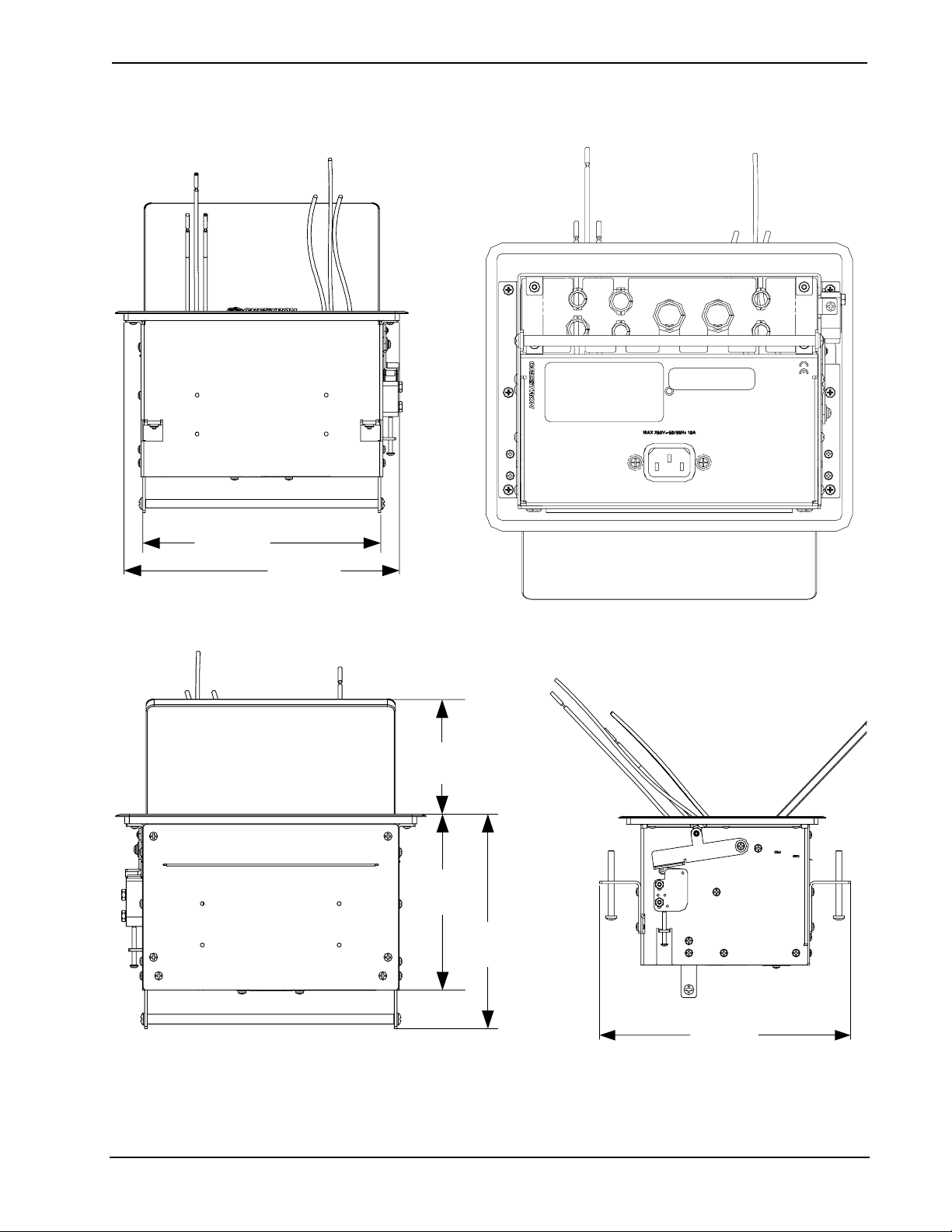

FTI-PWR-D Overall Dimensions (Front View) FTI-PWR-D (Bottom View)

176 mm

(6.91 in) 203 mm

(8.00 in)

FTI-PWR-D Overall Dimensions (Rear View) FTI-PWR-D Overall Dimensions (Side View)

76 mm

(2.98 in)

116 mm

(4.57 in)

142 mm

(5.58 in)

205 mm

(8.09 in)

4 •FlipTop Power Center – International Version: FTI-PWR-D Operations & Installation Guide – DOC. 6797B

Crestron FTI-PWR-D FlipTop Power Center - International Version

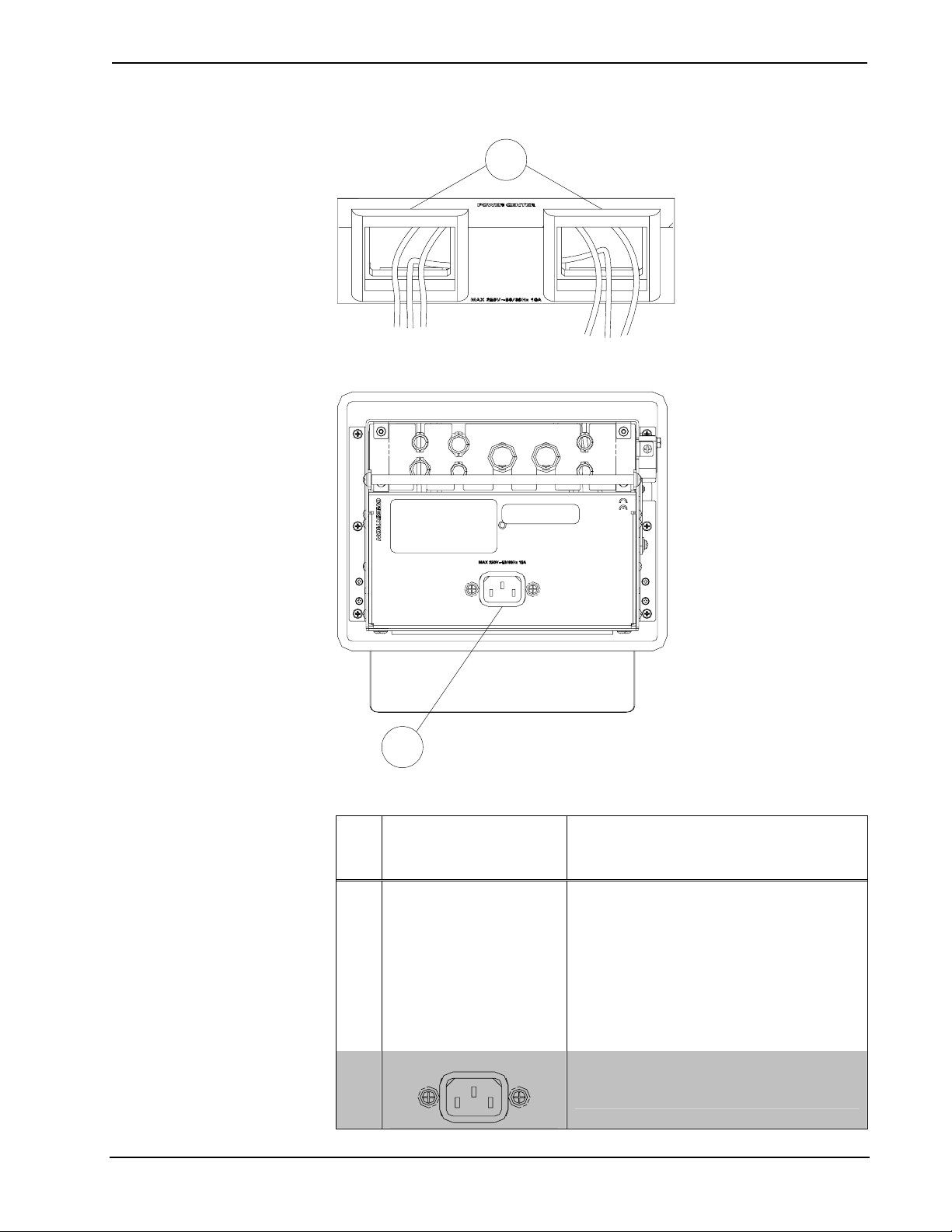

FTI-PWR-D (Front Face View)

FTI-PWR-D (Bottom View)

Connectors, Controls, & Indicators

# CONNECTORS,

CONTROLS, &

INDICATORS

DESCRIPTION

1 MAX 250V~50/60Hz 10A (2) Grounded AC sockets,

AC power pass-through outlets

Specify Socket Type:

PWR-AU-B (Australia/China),

PWR-EU-B (Europe "Schuko"),

PWR-FR-B (France),

PWR-IT-B (Italy),

PWR-UK-B (UK);

Maximum Load:

10 Amps @ 250 Volts AC, 50/60 Hz

2 MAX 250V~50/60Hz 10A

(1) IEC socket

Passes through to front panel AC power

outlet

Operations & Installation Guide – DOC. 6797B FlipTop Power Center – International Version: FTI-PWR-D •5

FlipTop Power Center – International Version Crestron FTI-PWR-D

Setup

Installation

NOTE: To prevent overheating, do not operate this product in an area that exceeds

the environmental temperature range listed in the specifications table. Consideration

must be given if installed inside a closed desk or in a closed podium since the

operating ambient temperature of these environments may be greater than the room

ambient temperature. Contact with thermal insulating materials should be avoided on

all sides of the unit.

Use the following steps to install the FTI-PWR-D.

Tools required:

• Phillips screwdriver (not included)

• Appropriate carpentry tools for cutout

Cable Management Kit The FTI-PWR-D is shipped with a separate cable management kit for organizing

cables fed into the power center.

Parts Supplied for Cable Management Kit

DESCRIPTION PART NUMBER QUANTITY

Cable Support Plate 2023519 1

Bushings, 14 mm (0.55 in) ID,

20 mm (0.80 in) OD

2010496 2

Bushings, 10 mm (0.39 in) ID,

17 mm (0.64 in) OD

2011070 2

Bushings, 8 mm (0.31 in) ID,

13 mm (0.50 in) OD

2009522 4

Screws, #04-40 x 1/4" (~7 mm) 2007158 4

The cable support plate should be installed before mounting the FTI-PWR-D to a

surface. The cables are threaded through the cable support plate.

1. Place bushings on the cables you wish to install in the power center (eight

bushings supplied). Use bushings appropriate for the diameter of each

cable.

2. Thread the cables through the cable support plate slots appropriate for the

size of the cable and the bushing you attached in the previous step.

3. Snap the bushings into the slots on the cable support plate.

4. Feed all excess cable through the opening.

5. Attach the cable support plate using the four #04-40 x 1/4" (~7 mm) screws.

6. If desired, any installed cables can be secured to the bottom bar with tie

wraps (not supplied).

6 •FlipTop Power Center – International Version: FTI-PWR-D Operations & Installation Guide – DOC. 6797B
