Crestron CNWMBG2-34A User manual

CRESTRON CNWMBG2-34A Wall-Mount Wired Panel

REMOTE CONTROL SYSTEMS

1 DOC. 8002B

Specifications subject to change without notice.

1 2 3

UP1 UP2

DOWN1 DOWN2

BAR 2BAR 1

100

CRESTRON

4.63 in

11.76 cm

4.63 in

11.76 cm

Panel installs in 4-gang electrical box (1.60 in (4.06 cm) minimum depth).

SYNTAX:

NET.ID <10 to FE>: CNWP

i1,o1 = <signal name> \ button and LED combined

i2 = <signal name> \ independent button

o2 = <signal name> \ independent LED

" = " "

i30 = <signal name>

o30 = <signal name>

BAR1 = <signal name> \ left bargraph

UP1 = <signal name> \ left volume up button

DOWN1 = <signal name> \ left volume down button

BAR2 = <signal name> \ right bargraph

UP2 = <signal name> \ right volume up button

DOWN2 = <signal name> \ right volume down button

DESCRIPTION:

The CNWMBG2-34A wired panel interfaces to a CRESNET II control system over the CRESNET II network. The panel uses

30miniature pushbuttonswith self-containedfeedback LEDs.Two bargraphindicatorsare included.Each bargraphhas two

miniature pushbuttons. The CNWMBG2-34A is designed for wall-mounting using a standard four-gang electrical box.

Custompanel finishes,engraving,colored buttoncaps, andtheomission ofunusedbuttons areall standard.

CRESTRON CNWMBG2-34A Wall-Mount Wired Panel

REMOTE CONTROL SYSTEMS

2 DOC. 8002B

Specifications subject to change without notice.

Eachunique panel or component on the CRESNET II network requires the setting of an identity code (ID CODE).ID CODES are

two-digithexadecimal numbers, from 10 toFE. The ID CODE ofthe panel should be set tomatch the ID CODE specifiedin the

NET.IDstatement of the CRESNET II SIMPL-C program referencing the panel (refer to syntax section). To set an ID CODE,

removethe panel fromthe electrical box anddisconnect power.

Accessible through the back plate are two miniature circuit-mounted rotary switches, identified as H and L. These 16-

position hexadecimal switches can be set to 0 through F. Using a small screwdriver, rotate the arrow in the center of the

switch marked H to point to the first (or most-significant) digit or letter of the specified ID CODE. Set the switch marked L to

the second (least-significant) digit or letter of the specified ID CODE.

The 4-pin connector marked NET should be wired to the CRESNET II network. Network termination points are available at

the control system power supply. Network units may also be daisy-chained together. Refer to the latest revision of the

CRESNET II reference manual section on CNPWS power supplies (Doc 8017 or Doc. 8091) for wire gauge specifications and

connectiondetails.

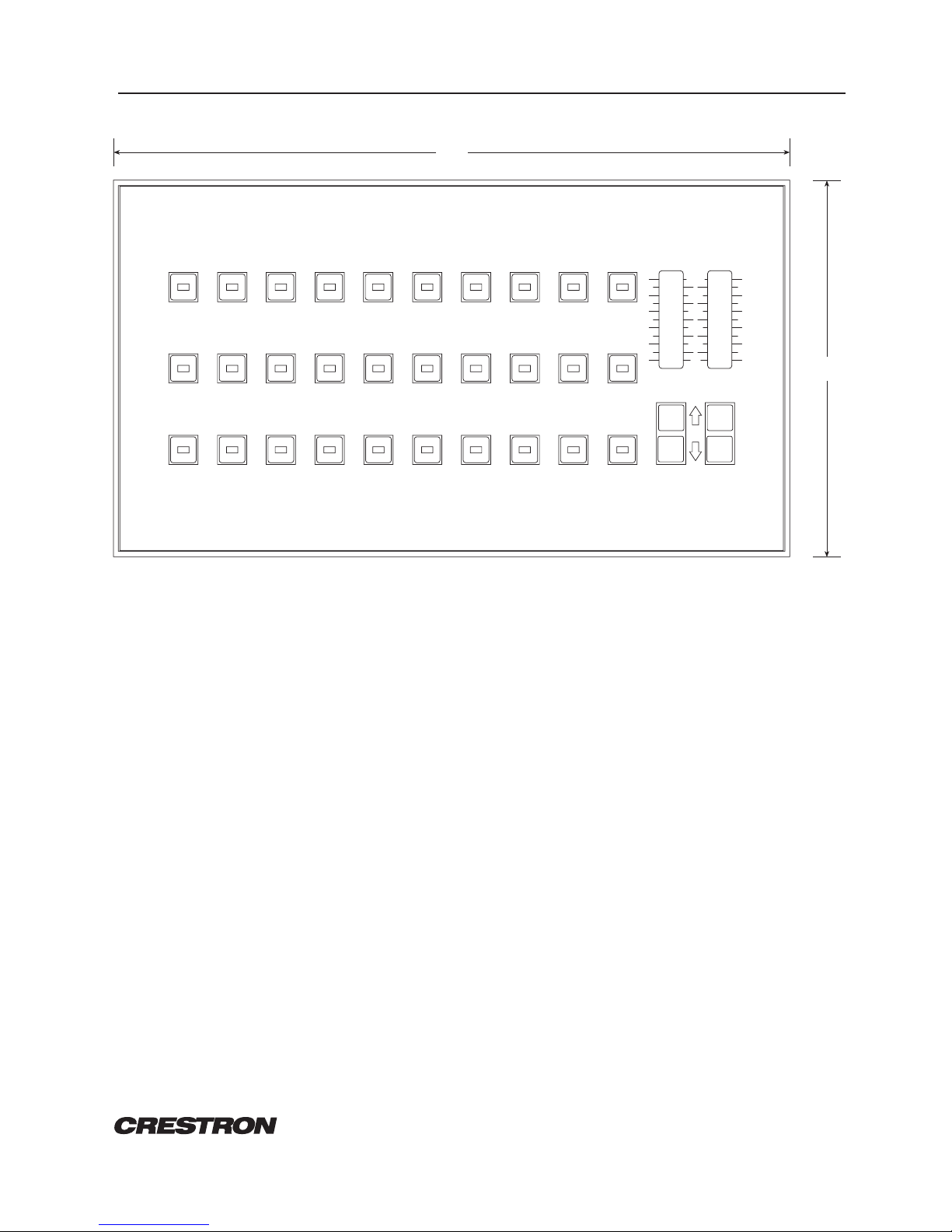

Thepanel drawing on the previous page showsthe location of the SIMPL-C button numbersand their corresponding button

positions.Buttons or bargraphs which arenot used need not beassigned a signal name.

REQUIRES:

CRESNET II Workshop Version 4.00 or later.

CRESNET II Operating System SR30160.OPS or later.

FURTHER INQUIRIES:

If after reviewing this information you still have additional questions, please contact a CRESTRON technical support

representative by dialing (888) CRESTRON [(888) 273-7876] or (201) 894-0660.
