Crestron C2N-SSC-2 ILT Shade Controller

Operations & Installation Guide - DOC. 6318 Contents •i

Contents

ILT Shade Controller: C2N-SSC-2 1

Introduction......................................................................................1

Features and Functions ..........................................................1

Specifications.........................................................................2

Physical Description ..............................................................3

Industry Compliance..............................................................6

Setup.................................................................................................6

Network Wiring.....................................................................6

Identity Code .........................................................................8

Installation ...........................................................................12

Programming Software ..................................................................16

Programming with Crestron SystemBuilder or D3 Pro...........18

Programming with SIMPL Windows..................................18

Uploading and Upgrading..............................................................27

Communication Settings......................................................27

Uploading a SIMPL Windows Program..............................31

Firmware Upgrade...............................................................32

Serial Number Assignment..................................................34

Problem Solving.............................................................................35

Troubleshooting...................................................................35

Further Inquiries ..................................................................36

Future Updates.....................................................................36

Return and Warranty Policies ........................................................37

Merchandise Returns / Repair Service ................................37

CRESTRON Limited Warranty ..........................................37

Crestron C2N-SSC-2 ILT Shade Controller

Operations & Installation Guide - DOC. 6318 ILT Shade Controller: C2N-SSC-2 •1

ILT Shade Controller:

C2N-SSC-2

Introduction

Features and Functions

The Crestron®ILT Shade Controller, C2N-SSC-2, communicates with up

to two Somfy ILT Intelligent Shade Motors via a serial interface. In a

Crestron control system network (Cresnet®), the C2N-SSC-2 (herein

called Shade Controller) sets the position and the direction of motion of

each shade individually, with programmable settings for the upper and

lower limits of travel for each shade. Commands to move to a specific

location will position the shades relative to the full range of travel

between these upper and lower limits. Subsequent commands to move a

shade in the open or close direction activate shade movement until a limit

of travel is reached, until the command is de-activated, or until a stop

command is sent.

The Shade Controller can store and recall up to 20 shade presets.

Functional Summary

• Control up to two shades per Shade Controller

• Control position and direction of each shade individually

• Store and recall up to 20 presets per shade

• Connect via one 4-pin RJ-11 interface connector per shade

• Control shades in multi-unit installations individually, in

groups, all together, or any desired combination.

ILT Shade Controller Crestron C2N-SSC-2

2 •ILT Shade Controller: C2N-SSC-2 Operations & Installation Guide - DOC. 6318

The upper and lower limits of travel for each shade are set up at the time

of installation via the six pushbuttons on the face of the Shade Controller,

or via a touchpanel, and are stored internally to each ILT motor. Shade

presets, stored as values relative to the limits of travel, can be stored and

recalled locally in the Shade Controller.

Specifications

The following table provides specifications for the Shade Controller.

Specifications for the Shade Controller

SPECIFICATION DETAILS

Cresnet power usage 1 Watt (42 mAmp @ 24 VDC)

Default Net ID 0C

Control System Update Files1

2-Series Control System

CEN/CN-TVAV

CNMSX-AV/Pro

CNRACKX/-DP

CNMS, CNRACK, CNLCOMP

ST-CP

Version C2-2004.CUZ or later2

Version 5.13.12V.UPZ or later3

Version 5.12.63X.UPZ or later3

Version 5.10.11W.UPZ or later3

Version 3.18.09m, l, c or later

Version 4.02.04S.UPZ or later3

Operating Temperature 41° to 122°F (5° to 50°C)

Humidity 10% to 90% RH (non-condensing)

Overall Dimensions Width: 2.14 in (5.44 cm)

Height: 0.94 in (2.39 cm)

Depth: 3.83 in (9.73 cm)

Weight 0.25 lb (0.11 kg)

1. The latest software versions can be obtained from the Downloads | Software

Updates section of the Crestron website (www.crestron.com). Refer to the NOTE

following these footnotes.

2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest

Crestron Product Catalog for a complete list of 2-Series control systems.

3. Filenames for CNX and ST-CP update files have a UPZ extension. Files on the

website may be .zip or self-extracting .exe files containing the .cuz or .upz file. To

avoid program problems, make sure you are using the update file with the correct

suffix letter (e.g., S, V, W, X).

NOTE: Crestron software and any files on the website are for Authorized

Crestron dealers and Crestron Authorized Independent Programmers

Crestron C2N-SSC-2 ILT Shade Controller

Operations & Installation Guide - DOC. 6318 ILT Shade Controller: C2N-SSC-2 •3

(CAIP) only. New users may be required to register to obtain access to

certain areas of the site (including the FTP site).

Physical Description

Refer to the figures below and on the following page. The unit is housed

in a black metal enclosure with labeling and controls on the front surface.

The bottom edges of the cover/faceplate extend to form two flanges with

screw slots for convenient mounting on any flat surface. Interface

connectors are mounted on opposite ends of the unit. The two 4-pin

RJ-11 connectors on the “top” end, labeled 1 and 2, provide connection

to two shade motor controller circuits. A 4-pin male Cresnet network port

on the “bottom” end, labeled 24 Y Z G, provides operating power and

communications to/from the unit.

NOTE: Power for the shade motor is independent of the Cresnet system.

Physical Views

ILT Shade Controller Crestron C2N-SSC-2

4 •ILT Shade Controller: C2N-SSC-2 Operations & Installation Guide - DOC. 6318

Physical Views (continued)

Crestron C2N-SSC-2 ILT Shade Controller

Operations & Installation Guide - DOC. 6318 ILT Shade Controller: C2N-SSC-2 •5

Controls

The Shade Controller has six pushbuttons that are used to set the upper

and lower limits of travel for each shade. These limits are set at time of

installation and the values are stored in the ILT motor.

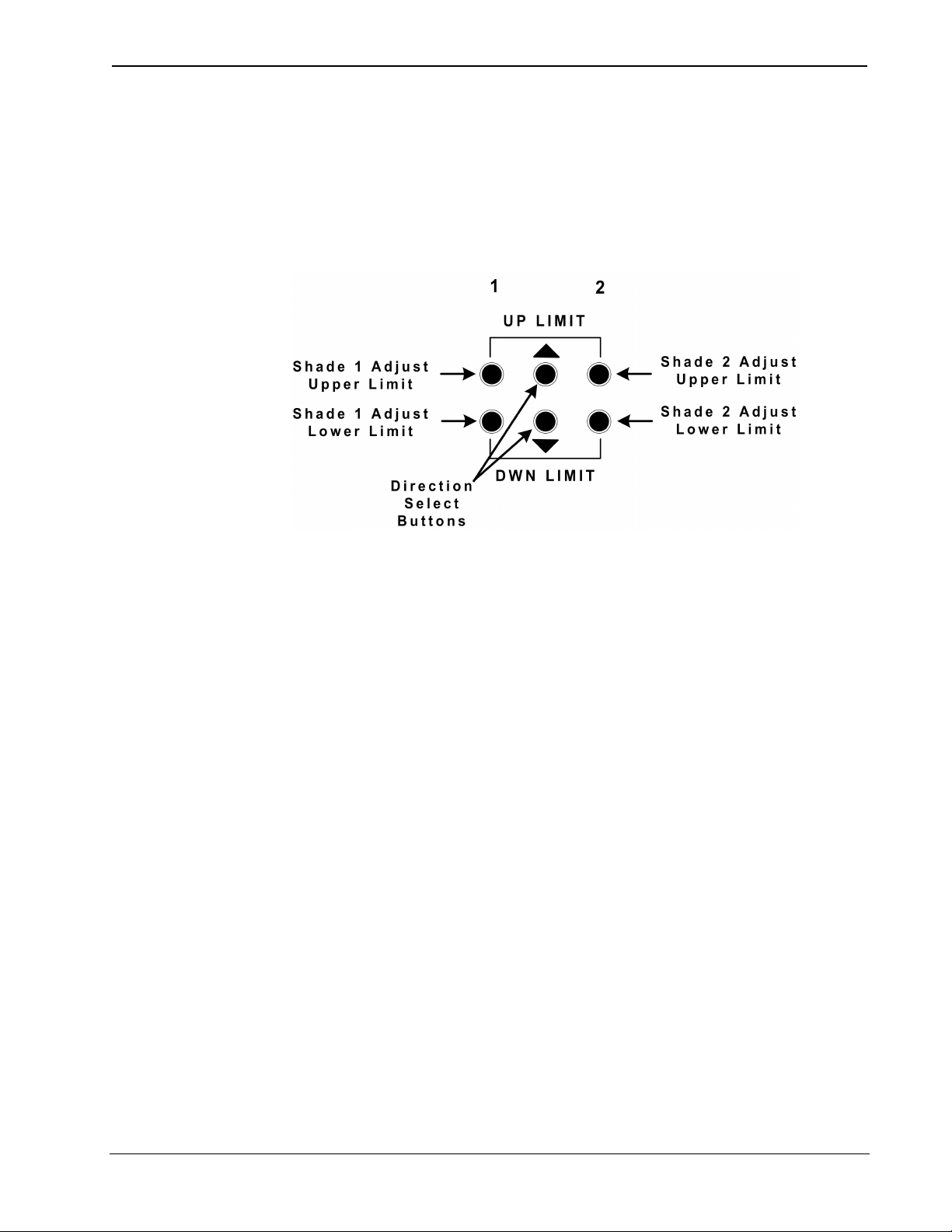

Shade Limit Control Pushbuttons

Pressing any one of the four outer pushbuttons puts the Shade Controller

into the limit-setting mode for the selected shade and upper or lower

limit. (Refer to “Setting Shade Limits and Direction of Travel” on page

13.)

Indicators

The only indicators on the Shade Controller are the three LEDs on the

face of the unit.

• The PWR LED (green) indicates the presence of +24V Cresnet

power.

• The NET LED (yellow) indicates an active Cresnet network

connection.

• The SETUP LED (red) indicates firmware upgrade, limit

setting, shade reversal, or the unit’s network ID setup activity.

− Flashes during firmware downloads

− On solid if in firmware loader mode (still needs application

firmware). Turns off after application firmware is loaded.

− On solid for twenty seconds if a shade 1/2 adjust

upper/lower limit button is pushed, putting the unit into

limit-setting mode.

ILT Shade Controller Crestron C2N-SSC-2

6 •ILT Shade Controller: C2N-SSC-2 Operations & Installation Guide - DOC. 6318

− On for one second, then off when shade reversal is executed

from buttons on the unit.

SETUP LED and Pushbutton

The SETUP pushbutton and its associated LED are used for setup of the

unit’s network ID during the initial configuration of a Cresnet system or

when the device is being added/replaced. Refer to “Method B (Touch

Settable IDs)” on page 10 for detailed information.

Industry Compliance

As of the date of manufacture, the Shade Controllers have been tested

and found to comply with specifications for CE marking and standards

per EMC and Radiocommunications Compliance Labelling.

NOTE: This device complies with part 15 of the FCC rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Setup

Network Wiring

CAUTION: Use only Crestron power supplies for Crestron equipment.

Failure to do so could cause equipment damage or void the Crestron

warranty.

CAUTION: Provide sufficient power to the system. Insufficient power

can lead to unpredictable results or damage to the equipment. Please use

the Crestron Power Calculator to help calculate how much power is

needed for the system.

<http://www.crestron.com/dealer-tech_resources/power_calculator.asp>

NOTE: When installing network wiring, refer to the latest revision of the

wiring diagram(s) appropriate for your specific system configuration,
