Portable Air Conditioner

FP10123US

USER’S MANUAL

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

US office: Fontana UK office: Ipswich AU office: Truganina

DE office: Hamburg

FR office: Saint Vigor d'Ymonville

PL office: Gdańsk

US:cs.us@costway.com

UK:cs.uk@costway.com

AU:[email protected]

Before You Start

Please read all instructions carefully.

Retain instructions for future reference.

Separate and count all parts and hardware.

Read through each step carefully and follow the proper order.

We recommend that, where possible, all items are assembled

near to the area in which they will be placed in use, to avoid

moving the product unnecessarily once assembled.

Always place the product on a flat, steady and stable surface.

Keep all small parts and packaging materials for this product

away from babies and children as they potentially pose a serious

choking hazard.

1. BEFORE YOU BEGIN

1.1 PRODUCT DESCRIPTION

Our powerful portable air conditioners are great cooling solutions for

single rooms, creating a comfortable atmosphere in your space. It

also has ventilation and dehumidifying function for circulating air and

removal of moisture. They're self-contained systems that do not

require any permanent installation allowing you to move to the space

in which it is most needed. They're commonly used in kitchen,

temporary residence, computer rooms, garages, and many other

places where installation of Air-conditioner Outdoor Unit is limited.

2. FOR YOUR SAFETY

Your safety is the most important thing we are concerned!

2.1 OPERATIONAL PRECAUTIONS

WARNING- to reduce the risk of fire, electric shock or injury to

persons or property:

■ Please let the portable air conditioner stand upright for at least 24

hours before plugging in.

■ If the supply cord is damaged, it must be replaced by the

manufacturer, or similarly qualified persons in order to avoid a

hazard.

Please read this manual carefully and fully

understand before operating your appliance.

WARNING

02 03

■The appliance shall be disconnected from its power source during

service.

■Always operate the unit from a power source of equal voltage,

frequency and rating as indicated on the product identification plate.

■Always use a power outlet that is grounded.

■Unplug the power cord when cleaning or when not in use.

■Do not operate with wet hands. Prevent water from spilling onto

the unit.

■Do not immerse or expose the unit to rain, moisture or any other

liquid.

■Do not leave the unit running unattended. Do not tilt or turn

over the unit.

■Do not unplug while the unit is operating.

■Do not unplug by pulling on the power cord.

■Do not use an extension cord or an adapter plug.

■Do not put objects on the unit.

■Do not climb or sit on the unit.

■Do not insert fingers or other objects into the air outlet.

■Do not touch the air inlet or the aluminum fins of the unit.

■Do not operate the unit if it is dropped, damaged or showing

signs of product malfunction.

■Do not clean the appliance with any chemicals.

■Ensure the unit is far away from fire, inflammable, or explosive

objects.

■The unit shall be installed in accordance with national wiring

regulations.

■Do not use means to accelerate the defrosting process or to

clean, other than those recommended by the manufacturer.

■The appliance shall be stored in a room without continuously

operation sources (for example: open flames, an operating gas

appliance or an operating electric heater).

■The appliance shall be stored so as to prevent from mechanical

damage occurring.

■Do not piece or burn, even after use.

■Be aware that refrigerants may not contain an odour.

■Compliance with national gas regulations shall be observed.

■Keep any required ventilation openings clear of obstruction.

■The appliance shall be stored in a well-ventilated area where the

room size corresponds to the room area as specified for operation.

If you don't understand something or need help, please

contact the customer services.

04 05

3.2 FEATURES

√ High Capacity in a compact size with cooling, dehumidifying and

fan function.

√ Temperature setting and display

√ LED Digital display

√ Electronic control with built-in timer, sleep mode

√ Self-evaporating system for better efficient

√ Auto shut off when tank full

√ Automatic restart in the event of power outage

√ Auto defrosting function at low ambient temperatures

√ Remote control

√ 2-speed fan

√ Casters for easy mobility

4.1 UNPACKING

● Unpack the carton and take the appliance and accessories out.

● Check the device after unpacking for any damage or scratches on it.

● Accessories:

Note: The appearance is only for reference. Please see the real

product for detailed information.

4. INSTALLATION

Control panel

Air outlet with adjustable louver

Handle

Air inlet with air filter

Caster

Drainage Hole

Air Exhaust

■1. Exhaust hose

■2. Hose connector

■ 3. Window kit adapter

■4. Remote control

■ 5. Window kit

123

06 07

3. PRODUCT OVERVIEW

3.1 PRODUCT DIAGRAM

4.2 Choose your location

4.3 ATTACH THE EXHAUST HOSE

The air conditioner requires being vented outside so that the exhaust

air can escape the room which coming from the appliance contains

waste heat and moisture.

Do not replace or extend exhaust hose which will result in decreased

efficiency, even worse shut down the unit due to low backpressure.

● If tipped more than 45°, allow the unit to

set upright for at least 24 hours before start

up.

● Place the unit on a firm, level surface in an

area with at least 50cm (20’’) of free space

around it to allow for proper air circulation.

● Do not operate in close proximity to walls,

curtains, or other objects that may block air

inlet and outlet. Keep the air inlet and

outlet free of obstacles.

● Never install the unit where it could be

subject to:

★ Heat sources such as radiators, heat registers, stoves or other

products that produce heat.

★ Direct sunlight

★ Mechanical vibration or shock

★ Excessive dust

★ Lack of ventilation, such as cabinet or bookcase

★ Uneven surface

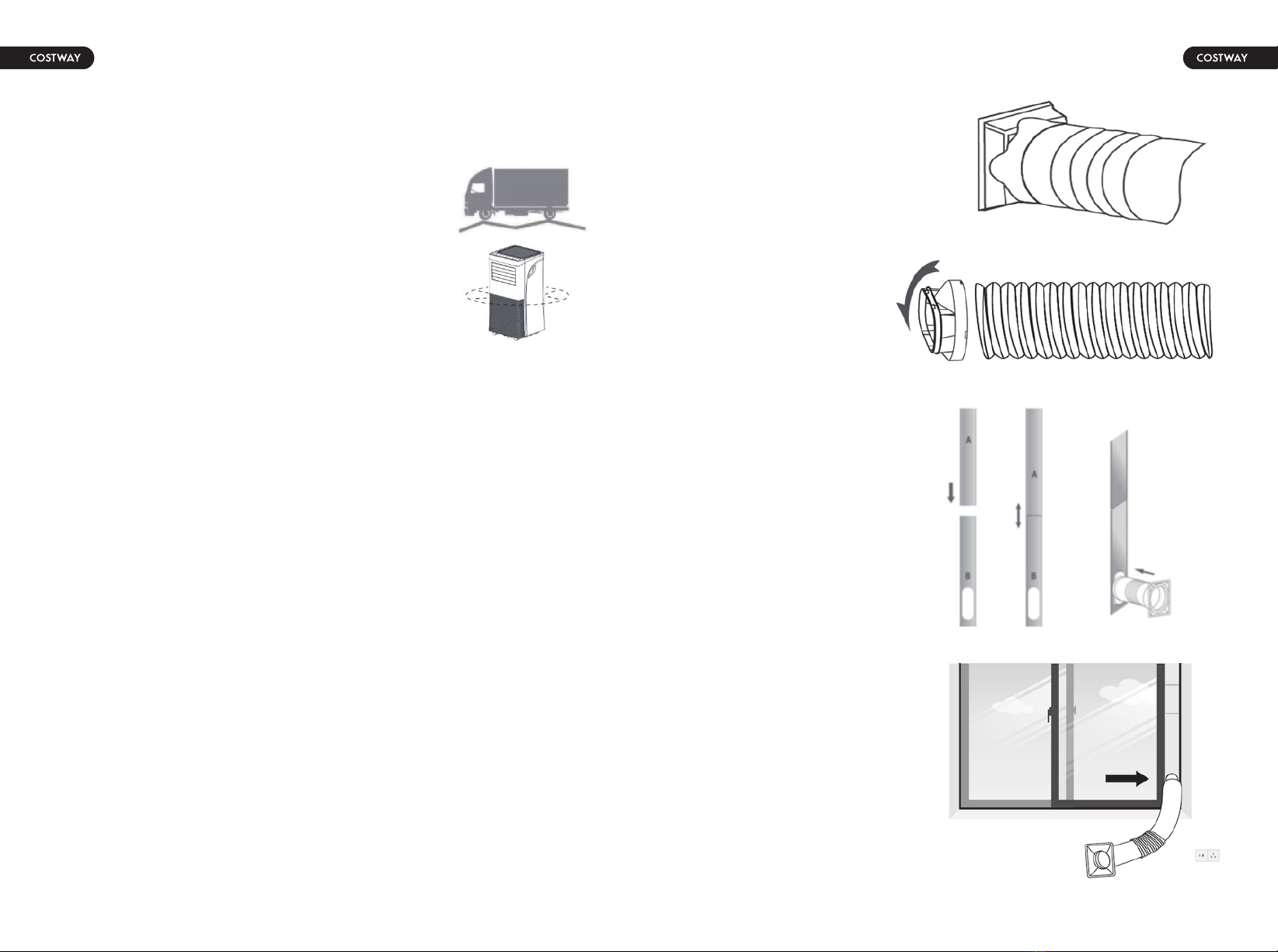

Step 1:

Connect the hose connector to one

end of the exhaust hose.

Step 2:

Connect the windows kit

adapter to the other end

of the exhaust hose.

Step 3:

Extend the adjustable window

kit to the length of your

window. Connect the exhaust

hose to the window kit.

Step 4:

Close your window to secure the

kit in place. It needs to hold the

windows kit firmly in place,

secure the window kit with duct

tape if required. It is

recommended that the gap

between the adapter and the

sides of the window should be

sealed off for maximum

efficiency.

08 09

r=20 inch

Step 7:

Adjust the louver at the air outlet, and then switch on the unit.

Step 5:

Attach the hose connector to the exhaust air

outlet of unit.

Step 6:

Adjust the length of the flexible

exhaust hose, and avoid bends in the

hose. Then place AC near an electrical

outlet.

5. OPERATION

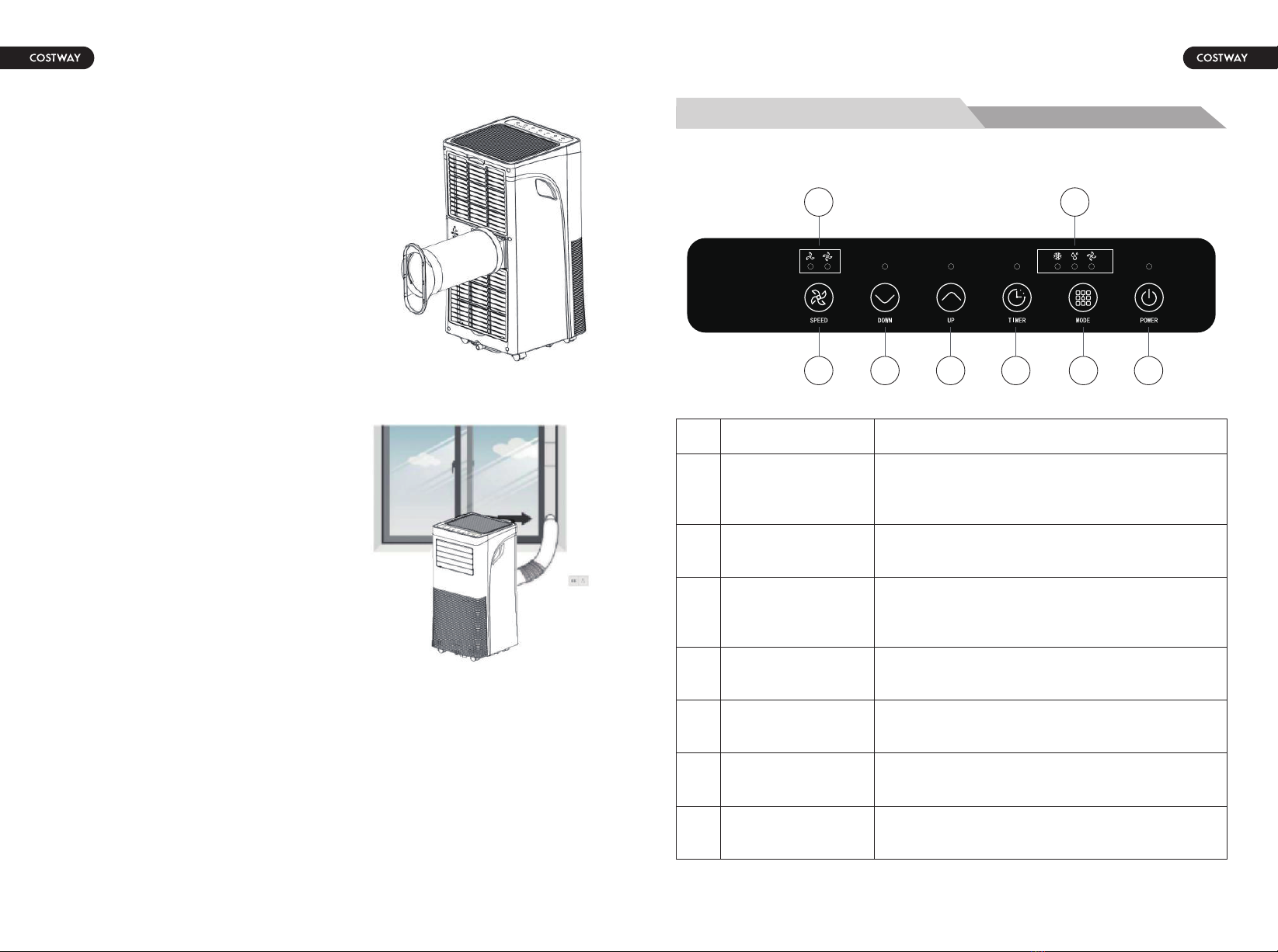

5.1 CONTROL PANEL AND DISPLAY

SPEED Press to switch the fan speed between

HIGH and LOW

FAN SPEED

Indicator Display high fan speed & low fan speed7

MODE

Indicator

The Mode Display between Cooling,

Dehumidifying and fan.

POWER Press to switch the machine on or off.1

MODE

Press Mode button to switch the operation

mode between fan, cooling, and

dehumidifier.

TIMER Set a time for the unit to automatically

start or stop.

Increase the desired temperature

(60.8℉-89.6℉/16℃～32℃) or timer

setting.

DOWN Decrease the desired temperature or

timer setting.

10 11

635 4

5.2 REMOTE CONTROL 5.3.2 Operation mode

The unit has four operation modes: Cool, dry, fan, sleep.

A. Cooling your room

Select the cool mode to lower the temperature in your room.

Press MODE button repeatedly until the LED of COOL operation

lights up.

Press Up/Down button to adjust the temperature which is

displayed on the screen. The temperature can be set between 60.8℉

(16℃) and 89.6℉(32℃).

Press SPEED button repeatedly until the desired fan speed

indicator lights up.

To control the direction of the air flow horizontally, please adjust the

inner louver by hand.

Note: The air conditioner stops if the room temperature is lower than

selected temperature.

B. Ventilating your room

Press MODE button repeatedly until the LED of FAN operation

lights up.

In ventilation mode the room air is circulated, but not cooled.

Press SPEED button repeatedly to select the fan speed as

desired.

C. Drying your room

Press MODE button on the control panel or remote control, the

LED of DRY operation lights up. The fan speed is unable to select.

User should connect the hose to the drain outlet at the bottom of the

unit.

Note: In this mode, the fan speed switches over to low speed and

cannot be selected.

5.3 SETTINGS

5.3.1 Start-up and Shutdown

Press POWER to turn the unit on.

The unit runs in in FAN as default.

Press MODE button to select the desired operation mode.

Press POWER again to turn off the power.

12 13

High Up Cool

Low Fan

Timer Power

Down Dry

Sleep ℃/℉

5.4 DRAINAGE

Self- evaporating system

The self-evaporating system uses the collected water to cool the

condenser coils for better efficient performance. It is no need to

empty the drainage tank in cooling operation except in drying

operation and high humidity conditions. The condensate water

evaporates at the condenser and evacuated through the exhaust

hose.

For continuous operation or unattended operating in drying operation,

please connect the attached drain hose to the unit. Condensate water

can be automatically flow into a bucket or drain by gravity.

5.3.4 Automatic Defrost

At low room temperatures, frost may build up at the evaporator

during operation. The unit will automatically start defrosting and the

POWER LED blinking. The defrost control sequence is as follows:

A. When the unit operates in the cooling operation, drying operation,

the ambient temperature sensor senses the evaporator coil

temperature is below 30.2℉(-1℃), after the compressor will stop

operating for 10 minutes or the coil temperature up to 44.6℉(7℃),

the unit restart to cool operating mode.

5.3.5 Overload Protection

In the event of a power loss, to protect the compressor there is a

3-minute delay until the compressor restarting.

The timer has two ways of operation:

To turn off

(When power

on)

D. Sleep mode (this function can only be used with a remote

control)

The sleep mode can be activated when in cool mode.

After 1 hour the preset temperature is increased by 33.8℉(1℃), after

another hour the preset temperature will again be increased by

33.8℉(1℃).

Press Timer key

to turn on the

timer function.

Press Up /Down

repeatedly to set

the delay OFF time.

To turn on

(When power

off)

Press Timer key

to turn on the

timer function.

Press Up /Down

repeatedly to set

the delay OFF time.

Cancel timer

Press Up/Down repeatedly until the LED

shows ‘00’.

Note: Pressing POWER will also exit the timer

setting.

5.3.3 TIMER SETTING (1hour-24hours) :

14 15

● Switch off the unit before

operating.

● Remove the plug of the water

outlet opening, and keep it in safe

area.

● Securely and properly connect the

drain hose and make sure it is not

kinked and clear of obstruction.

● Place the outlet of hose over a

drain or bucket and ensure that water

could freely flow out of the unit.

● Do not submerge the end of hose

into water; otherwise it can cause "Air

Lock" in the hose.

To avoid water spillage:

● As the negative pressure of condensate drain pan is large, tilt the

drain hose downward toward the floor. It is appropriate that the

degree of inclination should exceed 20 degrees.

● Straighten the hose to avoid a trap existing in the hose.

The air filter requires regular cleaning. The air filter is removable for

easy cleaning. Do not operate the unit without an air filter, or the

evaporator may be contaminated.

1. Press POWER button to switch off the unit and unplug the power

cord.

2. Remove the filter mesh from the unit.

3. Use a vacuum cleaner to suck dust from the filter.

4. Turn the filter over and rinse the air filter under running water. Let

the water run through the filter in the opposite direction of air flow.

Set aside and allow the filter to air dry completely before reinstalling.

6. CLEANING AND CARE

6.1 CLEANING THE AIR FILTER (every two weeks)

Dust collects on the filter and restricts the airflow. The restricted

airflow reduces the efficiency of the system and if it becomes blocked

it can cause damage to the unit.

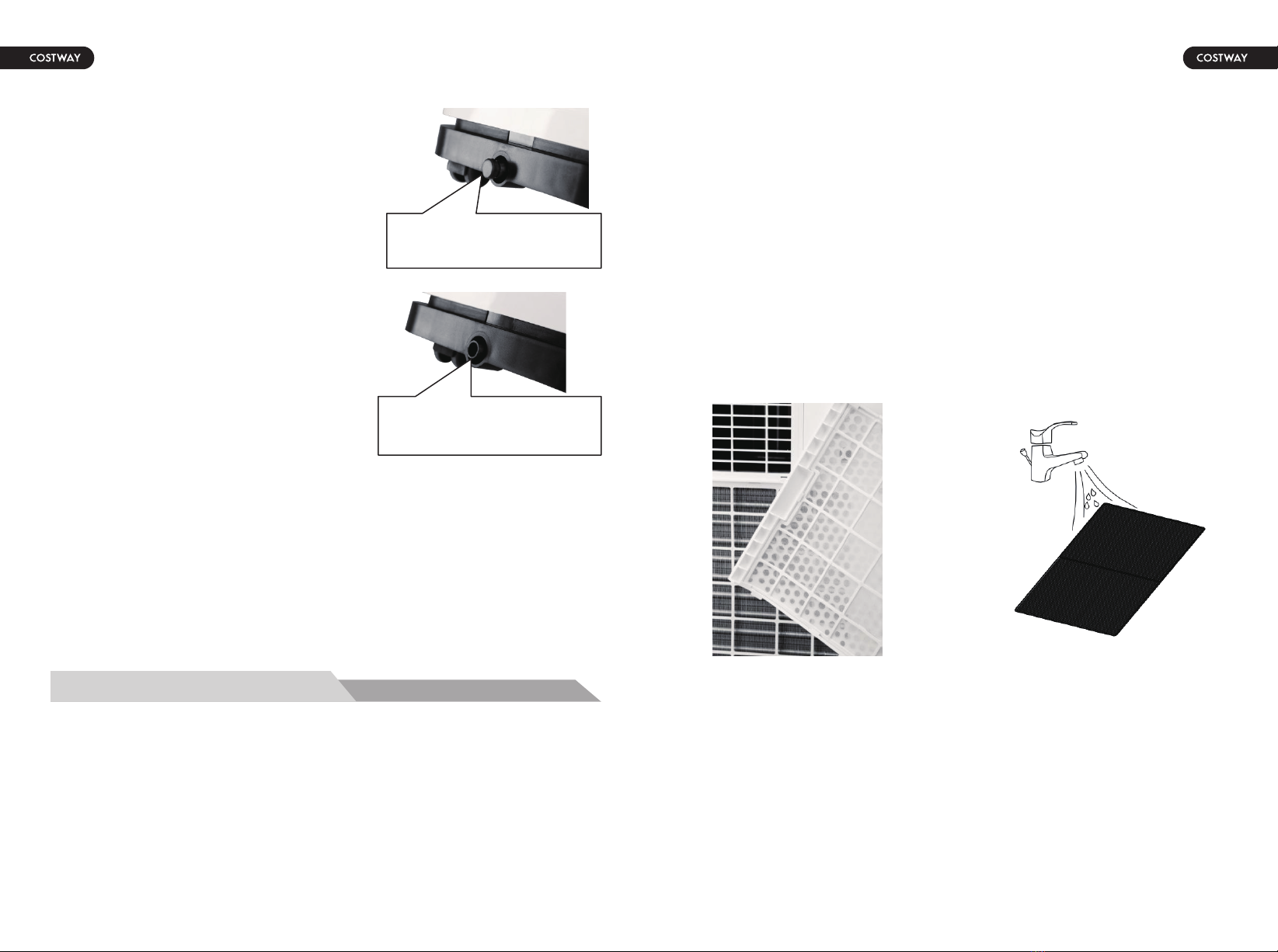

Pic 1. Switch off the unit and

remove the two air filters.

Pic 2. Rinse the air filter under

running water.

Warning!!!

Do not touch the evaporator surface with bare hands, or it could

cause injury of your fingers.

16 17

Remove the rubber

sealing plug.

Continuous drain hose

6.2 CLEANING UP OF REFRIGERANT

General Measures:

1. Gas/vapor heavier than air. It may be accumulated in confined

spaces, particularly at or below ground level.

2. Eliminate every possible source of ignition.

3. Use appropriate personal protection equipment (PPE).

4. Evacuate unnecessary personnel, isolate, and ventilate area.

5. Do not get in eyes, on skin, or on clothing. Do not breathe vapors

or gas.

6. Prevent entry to sewers and public waters.

7. Stop the source of the release, if safe to do so. Consider the use of

water spray to disperse vapors.

8. Isolate the area until gas has dispersed. Ventilate and gas test

area before entering. Contact competent authorities after a spill.

Water

Leakage

√ Overflow while

moving the unit.

■ Empty the water tank

before transport.

Excessive

Noise

√ Check if there are

any loose or vibrating

parts.

■Secure and tighten

the parts.

√ Check if there are

any loose or vibrating

parts.

■Secure and tighten

the parts.

√ Noise sounds like

water flowing.

■Noise comes from

flowing refrigerant. This

is normal.

√ Check if the drain

hose is kinked or bent.

■Straighten the hose

to avoid a trap existing.

The unit

works with

reduced

capacity.

√ Check the air filter

for dirt.

■Clean the air filter

as necessary.

√ Check if the air duct

is blocked.

■To clear the obstacle.

√ Check if the room

door or window is open.

■Keep the door and

windows closed.

√ Check if the desired

operating mode is

selected and the

temperature is properly

set.

■Set the mode and

temperature at proper

set-point according

the manual.

√ The exhaust hose is

detached.

■ Make sure the

exhaust hose is securely

attached.

7. TROUBLESHOOTING

Symptom Inspection Solution

The unit is

not

operating.

√ Check the power

connection in securely.

■Insert the power

cord securely into the

wall outlet.

√ Check if the water

level indicator lights up?

■Empty the drain pan

by removing the rubber

plug.

√ Check the room

temperature.

■The range of

operating temperature is

41℉-95℉(5℃-35℃).

18 19

Table of contents

Other Costway Air Conditioner manuals

Costway

Costway FP10233 User manual

Costway

Costway ES10114US-WH User manual

Costway

Costway EP23048 User manual

Costway

Costway EP23049DE User manual

Costway

Costway EP24555US-WH User manual

Costway

Costway EP23475 User manual

Costway

Costway ES10125US-WH User manual

Costway

Costway EP24618US User manual

Costway

Costway ES10122US User manual

Costway

Costway FP10118DE User manual

Costway

Costway ES10115US-WH User manual

Costway

Costway ES10043 User manual

Costway

Costway FP10269US User manual

Costway

Costway EP23995DE User manual

Costway

Costway FP10140UC-WH User manual

Costway

Costway EP24829 User manual

Costway

Costway EP24581US-WH User manual

Costway

Costway FP10264US User manual

Costway

Costway EP25102 User manual

Costway

Costway EP24041 User manual

Costway

Costway FP10267US User manual

Costway

Costway EP22783 User manual

Costway

Costway EP24619US User manual

Costway

Costway ES10284US User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
