Cornelius NORDIC CHD22 User manual

FEATURES:

NoRdic cHd22 SERiES

Hotel Ice DIspenser

CG5068-1111 Ice DIspenser

• Stores 120 lbs. (55 Kgs.) of ice

• Constructed from corrosion-resistant 300 series stainless steel

• Only 22 inches (558 mm) wide

• Only 76.25 inches (1936 mm) tall with compatible CCM series

ice machine

• Oversized bucket ﬁll area

For more information or to place an order, contact your sales representative or authorized distributor.

OUTSIDE THE U.S.A.

Ph: 763.488.8200

Email: [email protected]

IN THE U.S.A.

Ph: 800.238.3600

Fax: 800.258.0255

101 Broadway Street West

Osseo, MN 55369

www.cornelius.com

ARI BIn StoRAge CApACIty . . . 120 (55)

numBeR of WIReS . . . . . . . . . . . 2

mIn. CIRCuIt AmpACIty. . . . . . . 2.1

mAx. fuSe SIze . . . . . . . . . . . . . . 15

ShIppIng WeIght LBS (KgS.) . . 199 (91)

AgenCy LIStIngS . . . . . . . . . . . .

MoDel nUMBer Voltage ratIng DIspenser operateD By: electrIcal ratIngs

cHD22p1 60 Hz Push 115/60/1

cHD22p5 50 Hz Push 230/50/1

Note #1: Model CHD22 Series dispensers accept all 22” CCM Series Ice Makers

Note #2: CHD22 Series dispensers do not require an Adaptor and Bin Level Kit

22"

558.8

152.4

53 1/4"

1351.3

ICE FILL STATION

8 3/4 [221.5] HIEGHT

13 1/2 [342.9] WIDTH

8 1/2 [215.9] DEPTH

33 1/2"

850.1

25 5/8"

650.6

16"

406.4

24.1

3 1/2"

88.9

179.1

POWER

CORD

3/4 FPT

DRAIN

(2) 5/16-18 UNC

ICE HEAD

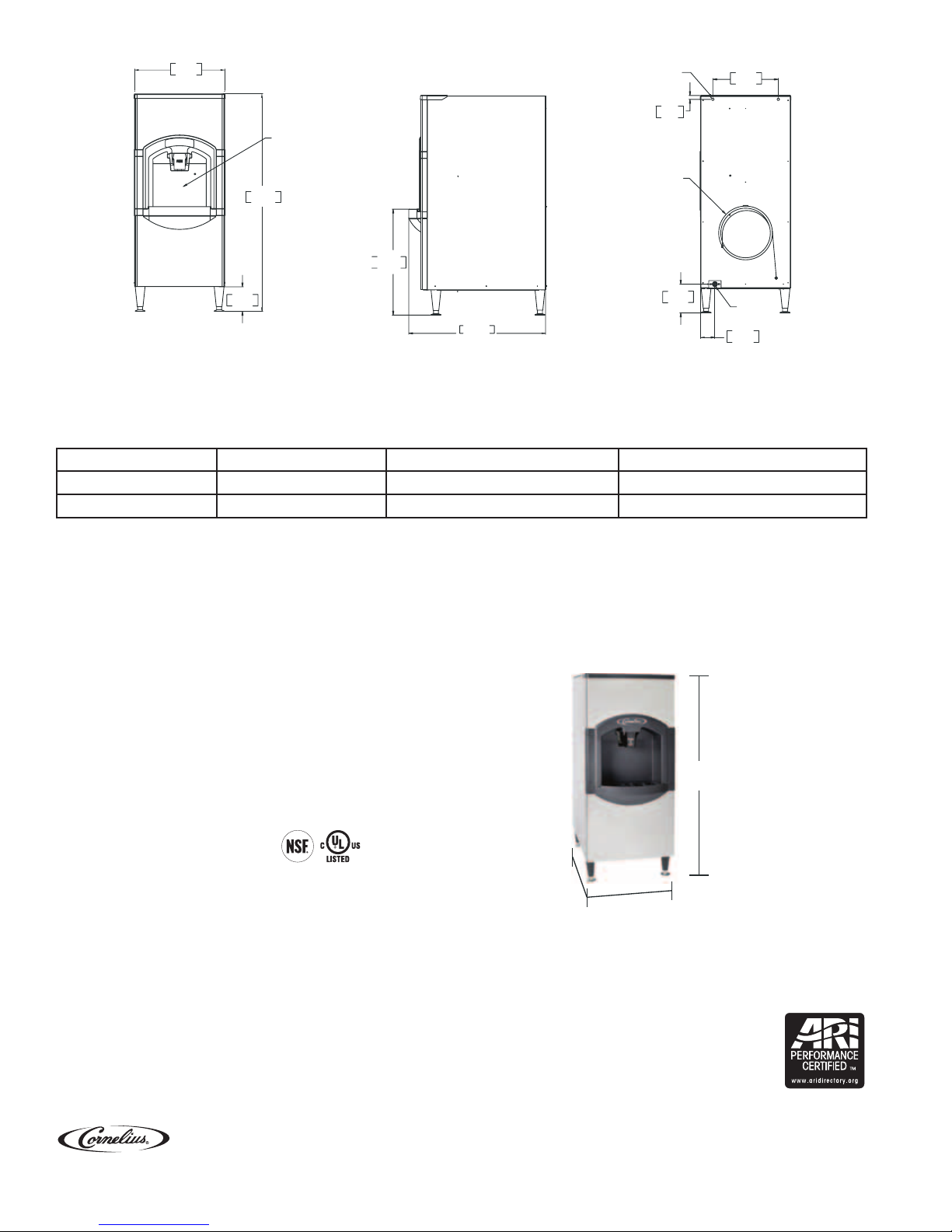

Dimensions

53.25"

(1553 mm)

22"

(559 mm)

33.5"

(851 mm)
