Cornelius Adapter Lid User manual

Adapter Lid For 255/215 - Installation Instructions

- 1-

ADAPTER LID FOR 255/215

Installation Instructions for Adapter Lid For 255/215

SAFETY OVERVIEW

• Read and follow ALL SAFETY INSTRUCTIONS in this manual and any warning/caution labels on the unit

(decals, labels or laminated cards).

• Read and understand ALL applicable OSHA (Occupational Safety and Health Administration) safety regula-

tions before operating this unit.

SAFETY ALERT SYMBOL

This is the safety alert symbol. When you see this in the manual or on the unit, be alert to the

potential of personal injury or damage to the unit.

Types of Alerts

Indicates an immediate hazardous situation which if not avoided WILL result in serious

injury, death or equipment damage.

Indicates a potentially hazardous situation which, if not avoided, COULD result in serious

injury, death, or equipment damage.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or

moderate injury or equipment damage.

SAFETY TIPS

• Carefully read and follow all safety messages in this manual and safety signs on the unit.

• Keep safety signs in good condition and replace missing or damaged items.

• Learn how to operate the unit and how to use the controls.

• Do not let anyone operate the unit without proper training. This appliance is not intended for use by very

young children or infirm persons without supervision. Young children should be supervised to ensure that

they do not play with the appliance.

• Keep your unit in proper working condition and do not allow unauthorized modifications to the unit.

DANGER:

WARNING:

CAUTION:

Revision Date: October 26, 2021

www.cornelius.com Revision: B

Publication Number: 548000078INS

Adapter Lid For 255/215 - Installation Instructions

SAFETY INSTRUCTIONS

WARNING:

Before starting installation, read and understand all safety label and warnings on the machine. Also review and

understand all safety instructions in the owners, installation and service manuals.

Failure to comply could result in serious injury, death or damage to the equipment.

QUALIFIED SERVICE PERSONNEL

WARNING:

Only trained and certified electrical, plumbing and refrigeration technicians should service this unit.

All wiring and plumbing must conform to national and local codes. Failure to comply could result in serious injury,

death or equipment damage.

SAFETY PRECAUTIONS

WARNING:

Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all

power is off to the unit before performing any work. Failure to comply could result in serious injury, death or damage to

the equipment.

CAUTION:

Always be sure to keep the area around the unit clean and free of clutter. Failure to keep this area clean may result in

injury or equipment damage.

CAUTION:

Note the following: This unit is not designed for use in outdoor locations. The appliance must be placed in a horizontal

position. The appliance is not suitable for installation in an area where a water jet would be used.

Adapter Lid For 255/215 - Installation Instructions

FUNCTION:

• The lid functions as a manual fill lid normally and then can be cut to appropriate score and be an ice

adapter.

CAUTION:

Before Installing the Lid, remove the existing cover if present, you will have two paths for the installation, with and

without ice maker on top of the unit.

LID INSTALLATION (WITHOUT ICEMAKER)

Table 1: Lid Installation (Without Icemaker)

Step Action Figures

1. Hold the cover with the lid folded on the back

cover and facing down.

Figure 1.

2. Position the front and the back of the lid, as

shown.

Figure 2.

3. Place the lid on top of the unit.

Figure 3.

Publication Number: 548000078INS

-3-

4.Close the lid and cover the rest of the bin.

Figure 4.

Adapter Lid For 255/215 - Installation Instructions

LID INSTALLATION (WITH ICEMAKER)

Table 2: Lid Installation (With Icemaker)

Step Action Figures

You will have to cut the lid according to the cut-out

schematic (Figure 13) based on the ice maker to be

installed.

Figure 5.

2. Use a box knife or a hand tool to cut the

corresponding lines.

Figure 6.

After cutting the lid, use your finger and a flat

screwdriver to remove the unwanted part of the lid.

Figure 7.

4. Remove the lid and clean any remaining part on the

opening.

Figure 8.

Place the 28" bar from the kit in the front pocket as

shown in Figure 9.

For the 30" ice maker turn the spacers on the end of

the bar to face down. Apply RTV on each end of the

bar to fill gap between bar and hopper as shown in

Figure 10.

For a 22" ice maker turn the spacers on the end of

the bar to face upwards and use (2) front to rear bar.

Apply RTV on each end of the bar to fill gap

between bar and hopper as shown in Figure 11.

Figure 9.

Figure 10.

Figure 11.

Add some RTV (Silicon), all around the exterior

line, as shown. Place the cut lid on top of the ice bin.

Figure 12.

Adapter Lid For 255/215 - Installation Instructions

Publication Number: 548000078INS

-5-

SPACER

7. Hold the cover with the lid folded on the back cover

and facing down.

Figure 13.

Put the front and back of the lid back into position,

as shown.

Figure 14.

Place the lid back on top of the unit and close front

lid.

Figure 15.

Adapter Lid For 255/215 - Installation Instructions

CUT-OUT SCHEMATIC

Figure 13-1

-7-

Figure 13-2

Figure 13-3

Adapter Lid For 255/215 - Installation Instructions

Publication Number: 548000078INS

14" WIDE ICEMAKER

OPENING

(MOUNTED SIDEWAYS)

MANUAL/AUTO ICE FILL OPENING

MANUAL/AUTO ICE FILL OPENING MANUAL/AUTO ICE FILL OPENING

14" WIDE ICEMAKER

OPENING

30" WIDE ICEMAKER

OPENING

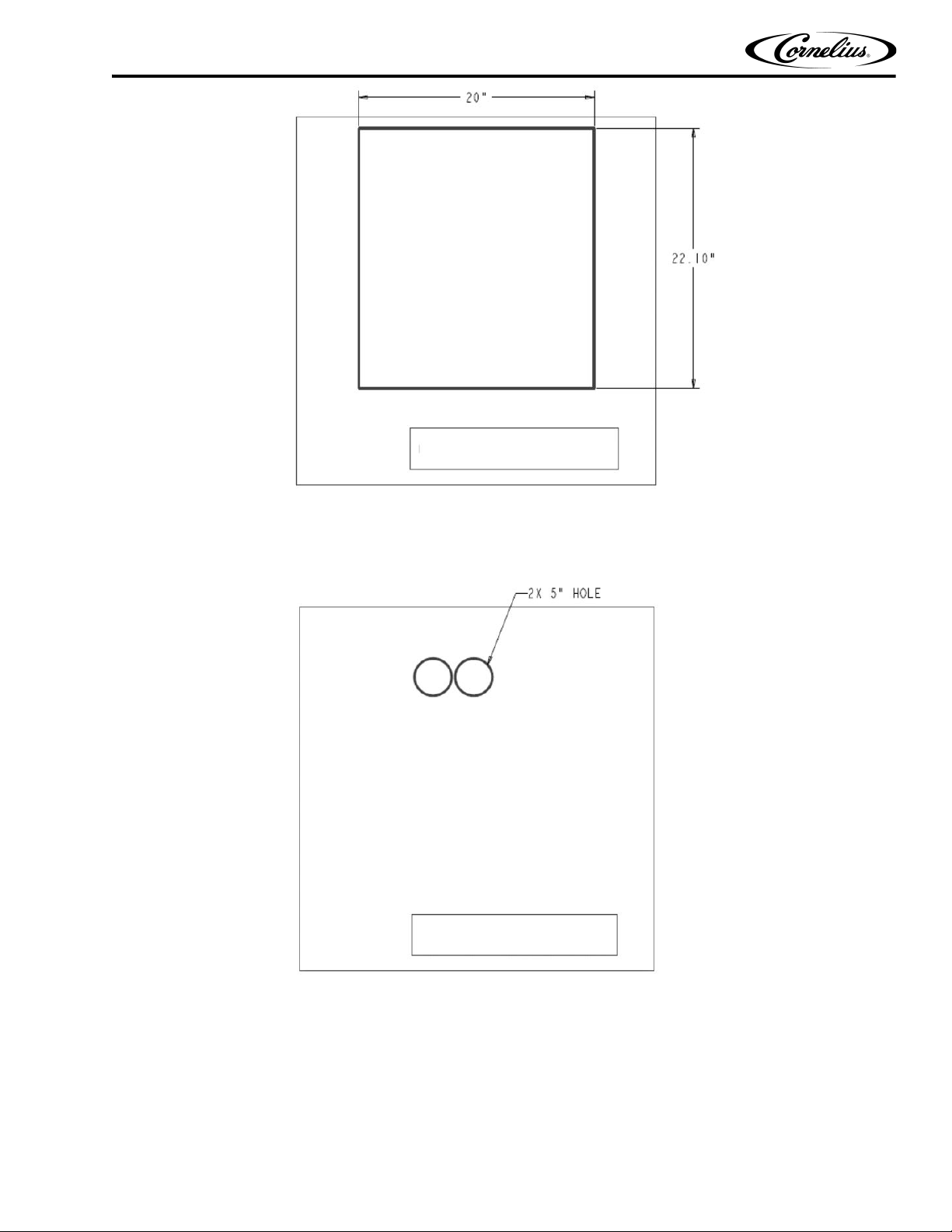

(Measure the outside width of your ice maker to determine the appropriate cutout on the following pages.)

Figure 13-4

Figure 13-5

Adapter Lid For 255/215 - Installation Instructions

MANUAL/AUTO ICE FILL OPENING

FOLLET ICEMAKER

OPENING

(NON TOP MOUNTED ICE MAKER)

MANUAL/AUTO ICE FILL OPENING

22" WIDE ICEMAKER

OPENING
