Cooper Lighting Cyber Series CCC User manual

Integral Electronic 

Transformers on 

Low Voltage models.

0.19" (Coverplate)

Cable Suspension Length up to 72"

Lamp Group 1

5.00"

Lamp Group 2

5.00"

Lamp Group 3

10.13"

Catalog #

Type

Project

Lamp Group 1

9.08"

Lamp Group 2

12.50"

Lamp Group 3

13.51"

Lamp Group 1

4.41"

Lamp Group 2

6.15"

Lamp Group 3

6.25"

SPECIFY -

Optional Accessories - Details on Other Side

Baffle Snoots Louvers Lenses

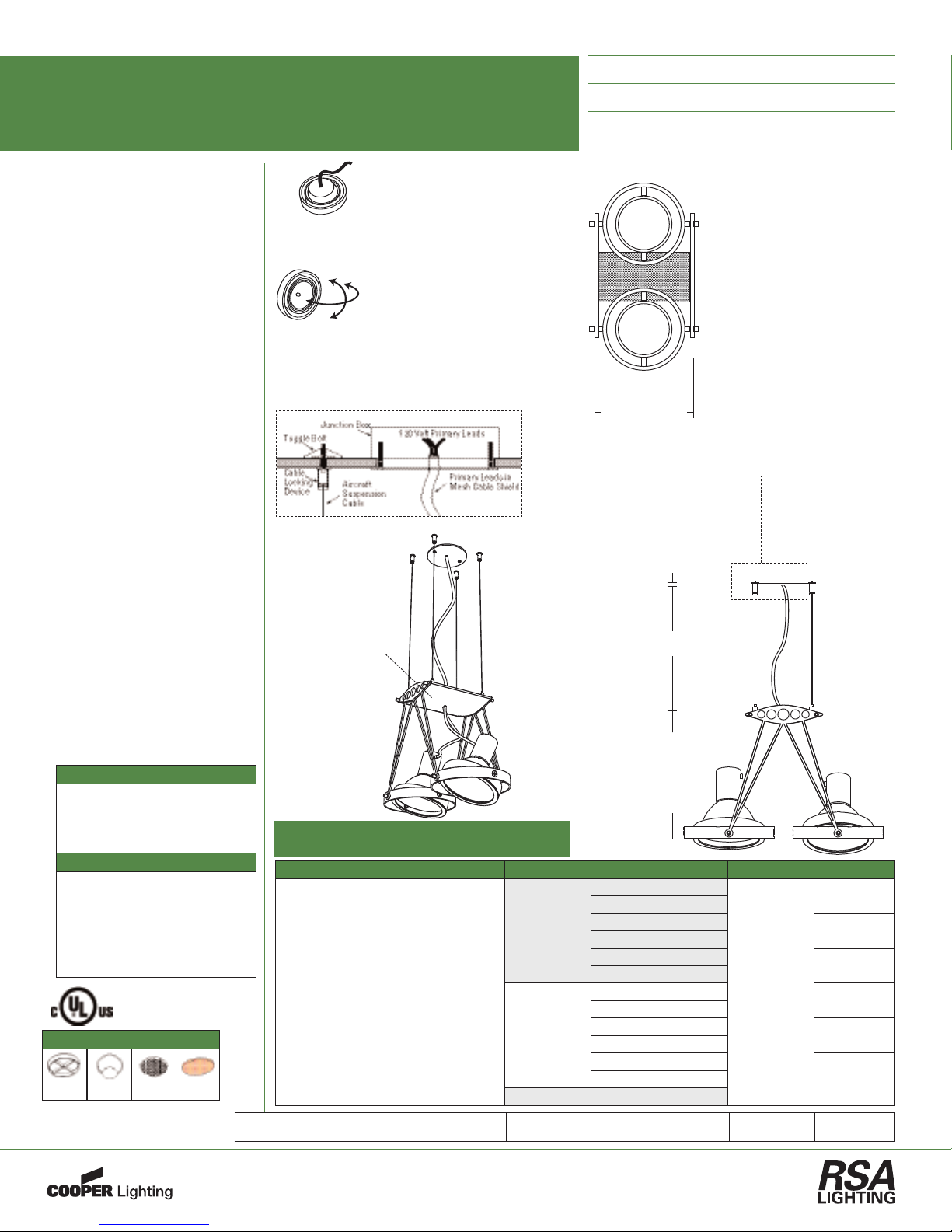

COMBOLIGHT®CYBER Series • CCC

TWO (2) Light Adjustable Suspended Multi-Lamp Luminaire

Fixture Configuration “A” • Lamp Groups 1, 2 & 3

Low Voltage or Line Voltage

DESCRIPTION:

Asuspended multi-lamp luminaire.

Fixture is suspended from the ceil-

ing with 1/16” steel cable.

CONSTRUCTION:

All aluminum construction with

durable powder coat finish.

Perforated metal enclosure for

transformers and/or electrical

wiring provides cooler operation.

LAMP ASSEMBLY:

Two lamps mounted in adjustable

double gimbal lamp holders. Dual

axis 90º x 90º locking adjustability.

ELECTRICAL:

Low voltage models are wired for

use with integral electronic trans-

formers with fuse and short circuit

protection. Custom configurations

areavailable for remote or canopy

mounted transformers - consult

RSA factoryfor details. Low volt-

age and Line Voltage models are

dimmable.

ALL RSA COMBOLIGHT PRODUCTS

ARE MADE IN THE U.S.A.

Label: UL, CSA and New York

Calendar

Cat. # / Description Lamp Type Grid Configuration Finish

CCC - Adjustable Suspended

Multi-Lamp Luminaire Lamp Group 1 11 - MR16 12V 50W A - Two Light BK - Black

12 - MR16 12V 75W

13 - AR70 12V 20W WH - White

14 - AR70 12V 50W

15 - PAR16 120V S - Silver

16 - PAR20 120V

Lamp Group 2 21 - PAR30 120V PC - Polished

Chrome

22 - AR111 12V 35W

23 - AR111 12V 50W PT - Custom

24 - AR111 12V 75W

25 - AR111 12V 100W

26 - PAR36 12V 50W

Lamp Group 3 31 - PAR38 120V

GRID CONFIGURATION “A”

This sheet is for Grid Configuration

“A”. To see other grid configura-

tions, consult other ComboLight

Cyber Series spec sheets.

USING THIS SPEC SHEET

This fixtureis dimensioned

according to lamp type. Please

select lamp from either Lamp

Group 1, 2 or 3 - and then refer to

the appropriate dimensions of fix-

tureas shown above.

Custom configurations areavailable for remote

transformers - consult RSA factory for details.

Cable Mounting Detail

x 4

Adjustable double gimbal 

lamp holder accepts up to 

two optical accessories

90º

Standard lamp back cover for

AR111 models hides lamp

terminals and connections.

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
