Cooper Lighting IRIS E3AA User manual
IRIS®
3" ELEMENTS
926 COOPER LIGHTING
E3MR 50° Cutoff Reflector
Add Cone Color and Flange style
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3MRBB 50° Cutoff Baffle
Add Baffle Finish
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3DNPIN 1 1/4" Downlight Pinhole
Add Flange Style
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 1 1/4" (32mm)
E3AA Angle Cut Reflector - Adjusts To 45°
Add Cone Color and Flange style
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3AA20 Angle Cut Reflector - Adjusts To 20°
Add Cone Color and Flange style
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3MRAABB Angle Cut Baffle - Adjusts To 45°
Add Baffle Finish
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3SLOT Slot Cut Reflector - Adjusts To 45°
Add Cone Color and Flange style
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3PIN 1 1/4" Adjustable Pinhole - Adjusts To 45°
Add Flange Style
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 1 1/4" (32mm)
E3PINLARGE 1 3/4" Adjustable Pinhole - Adjusts To 45°
Add Flange Style
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 1 3/4" (32mm)
E3PINCLOSET 1 1/4" Adjustable Pinhole w/Lens - Adjusts To 45°
Add Flange Style
Lamp: P3MR REMOTE, P3MR, RPN3MR: 50W MR16
PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 1 3/4" (32mm)
Shown with white oculus
3" DOWNLIGHT ELEMENTS
3" ADJUSTABLE ACCENT ELEMENTS
3" ELEMENTS
927
COOPER LIGHTING
IRIS®
COOPER LIGHTING
E3OVAL 2" Oval - Adjusts To 45°
Add Flange style
Lamp: P3MR, RPN3MR, P3MR REMOTE: 50W MR16
PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm)
E3PINRD 1 3/4" Adjustable Pinhole with Radius Edges -
Adjusts To 45°
Add Flange Style
Lamp: P3MR, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 2" (51mm)
E3SA Super Adjustable 15° - 75° Tilt
(Includes Hex cell Louver)
Lamp: P3MR, RPN3MRSA: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm)
E3LWW Lensed Wall Wash
Add Cone Color and Flange style
Lamp: P3MR, RPN3MR, P3MR REMOTE: 50W MR16
PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3AASR Wet Location Angle Cut Reflector - Adjusts To 45°
Add Cone Color and Flange style
Lamp: P3MR, P3MR REMOTE, RPN3MR: 50W MR16
PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3AASRPIN Wet Location 2" Adjustable Pinhole - Adjusts To 45°
Add Flange Style
Lamp: P3MR, P3MR REMOTE, RPN3MR: 42W MR16
PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 2 (51mm)
E3SR Wet Location 50° Cutoff Reflector
Add Cone Color and Flange style
Lamp: P3MR, P3MR REMOTE, RPN3MR: 50W MR16
P3MR REMOTE, PN3MR, PN3MR REMOTE: 71W MR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
Cone Finishes:
C=Clear Specular Alzak
H=Haze Clear Semi-Specular Alzak
G=Champagne Gold Specular Alzak
B= Specular Black Alzak
WMH =Warm Haze Semi-specular Alzak with a
hint of gold to add visual warmth
GP = Graphite Gunmetal grey, specular Alzak
GPH = Graphite Haze Graphite, semi-specular Alzak
W= Gloss White Paint
MW = Matte White
K= Cognac Warm copper color, specular Alzak
KH = Cognac Haze, semi-specular Alzak
Baffle Options
BB=Black Baffle
WB = White Baffle
Flanges
Blank = Matte white die-cast flange ring, removable
for field painting
RAW = Die cast trim ring, mill finish
SF = Self Flange (4 7/8" OD) (flange color matches
reflector cone) Not recommended for use with
RPN3MR.
SFWF = Self Flange painted Matte White (4 7/8" OD)
E3PIN and E3OVAL
Blank = Matte White painted die-cast trim ring with
black oculus (when present)
W= Matte White painted die-cast trim ring with white
oculus (when present)
POL = Polished Aluminum with Black Oculus
SAL = Satin Aluminum with Black Oculus
ELEMENT OPTIONS
Example:
E3MR
Cone
Finish
Flange
Type and
Finish
Example:
E3MR
Baffle
Finish
Flange Type and
Finish (self flange
not available)
Example:
E3PIN
Flange Type and
Finish (self flange
not available)
3" WALL WASH ELEMENTS
IRIS®
3" ELEMENTS - Line Voltage
930 COOPER LIGHTING

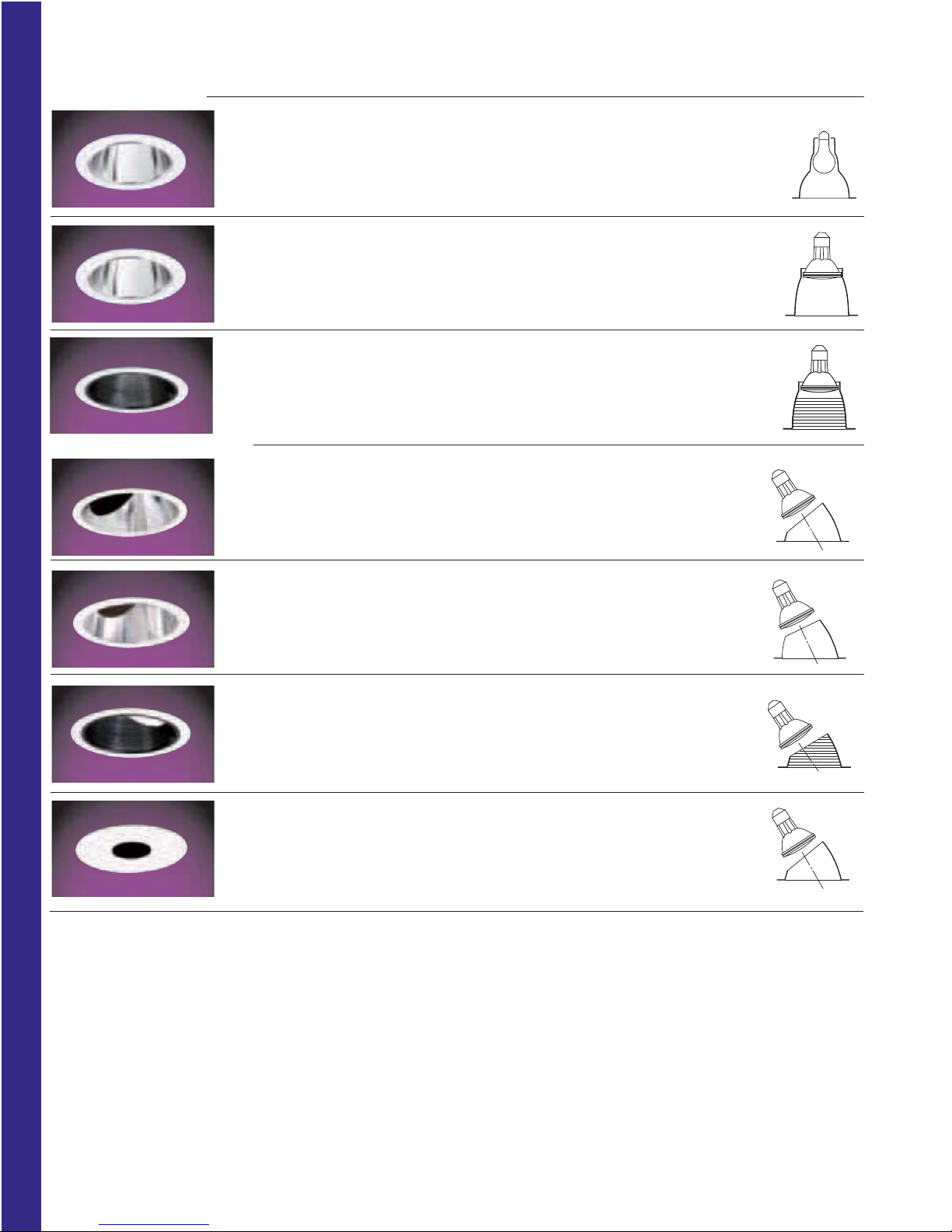

E3A19 50° Cutoff Reflector
Add Cone Color and Flange style
Lamp: P3120: 60W A19, 60W MB19, 60W BT15, 60W BT19
PN3120: 100W A19, 100W MB19, 100W BT15, 90W BT19
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3P20 50° Cutoff Reflector
Add Cone Color and Flange style
Lamp: P3120: 50W PAR20, 50W R20, 60W PAR16
PN3120: 50W PAR20, 75W PAR16, 50W R20, 50W BR19
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3P20BB 50° Cutoff Baffle
Add Baffle Finish
Lamp: P3120: 50W R20, 50W PAR20, 60W PAR16
PN3120: 50W PAR20, 75W PAR16, 50W R20, 50W BR19
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3AA Angle Cut Reflector
Add Cone Color and Flange style
Lamp: P3120: 50W PAR20, 50W R20, 60W PAR16
PN3120: 50W PAR20, 50W R20, 75W PAR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3AA20 Angle Cut Reflector - Adjusts to 20°
Add Cone Color and Flange style
Lamp: P3120: 50W PAR20, 50W R20, 60W PAR16
PN3120: 50W PAR20, 75W PAR16, 50W R20, 50W BR19
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3P20AABB Angle Cut Baffle - Adjusts to 35°
Add Baffle Finish
Lamp: P3120: 50W PAR20, 60W PAR16, 50W R20
PN3120: 50W PAR20, 75W PAR16, 50W R20
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3PINLARGE 1 3/4" Adjustable Pinhole - Adjusts to 35°
Add Flange Style
Lamp: P3120: 50W PAR20
PN3120: 75W PAR20
Dimensions: OD: 5 1/8" (130mm) Aperture: 1 3/4" (44mm)
3" DOWNLIGHT ELEMENTS
3" ADJUSTABLE ACCENT ELEMENTS
3" ELEMENTS - Line Voltage
931
COOPER LIGHTING
IRIS®
E3PINRD 1 3/4" Adjustable Pinhole with Radius Edges -
Adjusts to 35°
Add Flange Style
Lamp: P3120: 50W PAR20
PN3120: 75W PAR16
Dimensions: OD: 5 1/8" (130mm) Aperture 1 3/4" (44mm)
E3LWW Lensed Wall Wash
Add Cone Color and Flange style
Lamp: P3120: 50W PAR20, 50W R20
PN3120: 50W PAR20, 75W PAR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3AASR Wet Location Angle Cut Reflector - Adjusts to 35°
Add Cone Color and Flange style
Lamp: P3120: 50W PAR20, 50W R20
PN3120: 50W PAR20, 75W PAR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3SR Wet Location 50° Cutoff Reflector
Add Cone Color and Flange style
Lamp: P3120: 50W PAR20, 50W R20
PN3120: 50W PAR20, 50W R20, 60W PAR16
Dimensions: OD: 5 1/8" (130mm) Aperture: 3 1/2" (89mm)
E3A19LUNA Wet Location Blown Veined Glass
Lamp: P3120: 60W A19, 60W MB19, 60W BT15, 50W TB19
PN3120: 100W A19, 100W MB19, 100W BT15, 90W TB19
Dimensions: OD: 5 1/2" (138mm)
Cone Finishes:
C= Clear Specular Alzak
H= Haze Clear Semi-Specular Alzak
G= Champagne Gold Specular Alzak
B= Specular Black Alzak
WMH = Warm Haze Semi-specular Alzak with a
hint of gold to add visual warmth
W= Gloss White Paint
MW = Matte White
K(Cognac) = Warm copper color, specular Alzak
KH (Cognac Haze) = Cognac, semi-specular Alzak
GP Graphite = Gunmetal grey, specular Alzak
GPH Graphite Haze = Graphite, semi-specular Alzak
Baffle Options
BB = Black Baffle
WB = White Baffle
Flanges
Blank = Matte white die-cast flange ring, removable
for field painting
RAW = Die cast trim ring, mill finish
SF = Self Flange (flange color matches reflector cone)
SFWF = Self Flange painted Matte White
E3PIN and E3OVAL
Blank = Matte White painted die-cast trim ring with
black oculus (when present)
W= Matte White painted die-cast trim ring with white
oculus (when present)
POL = Polished Aluminum with Black Oculus
SAL = Satin Aluminum with Black Oculus
ELEMENT OPTIONS
Example:
E3P20
Cone
Finish
Flange
Type and
Finish
Example:
E3P20
Baffle
Finish
Flange Type and
Finish (self flange
not available)
Example:
E3PIN
Flange Type and
Finish (self flange
not available)
