ENGLISH
Table of contents
1. Objectives, eld of application and conditions for use 3
1.1. Limitation of usage 4
1.2. Usage 5
2. Installing the Contracor CCT Air Conditioner 5
2.1 By using of Contracor blast helmet 5
2.2 By using of North Safety blast helmets 6
3. Prior to use 8
4. During use 8
5. After use 9
6. Cleaning and disinfections 9
7. Maintenance and inspection 9
7.1 Maintenance 9
7.2 Functional check 9
7.3 Maintenance schedule 10
8. Storage 10
9. Faults / Troubleshooting 10
10. Technical specications 11
11. Performance data 11
12. Spare parts 11
13. General 12
14. Guarantee 12
CONTRACOR®CCT Art. 30305 3
ENGLISH
1. Objectives, eld of application and conditions for use
The air ow regulator in the selected blast helmet needs to be replaced by the Contracor
CCT Air Conditioner.
The CCT Air Conditioner is used in a working environment where protection of the
respiratory organs, face and head is required against ricocheting medium, particles, mists,
vapors and gasses.
When the CCT Air Conditioner is connected to the compressed air system via the breathing
air supply hose and the BAF airline lter, the breathing air according to EN 12021
simultaneously passes via the red and blue outlets out of the device.
One outlet can be used to channel the treated breathing air via the helmet hose into the
blast helmet.
The required air ow can be adjusted by the regulator. The air ow indicator, which is
integrated in the blast helmet, displays whether sufcient air is passing into the blast
helmet
The Contracor CCT Air Conditioner is a device that can increase or decrease the tempera-
ture of the supplied air by approx. 20 °C, so improving the working conditions of the user.
CCT Air Conditioner can be used with Contracor blast helmet Comfort and North Safety
blast helmets Commander and Panorama.

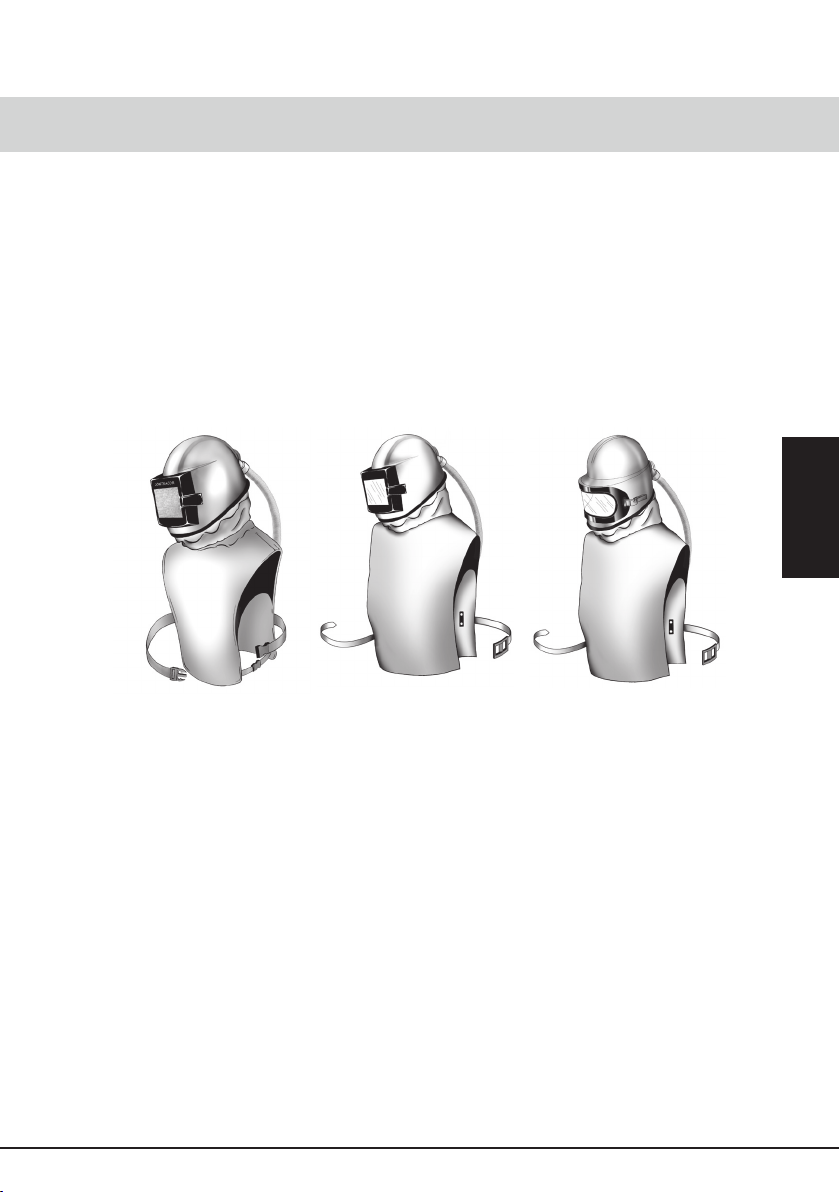

Contracor
COMFORT
North Safety
COMMANDER
North Safety
PANORAMA
CONTRACOR®Version 1.0
4
ENGLISH
1.1 Limitation of usage
The Contracor CCT Air Conditioner should at all times be used in combination with a blast
helmet with integrated air ow indicator.
Before the rst use of the equipment, the rapid removal of the gear needs to be practiced.
The system may be used solely by trained personnel, who are also fully aware of the haz-
ards applicable to the work being carried out.
The system is not suitable for working in areas with intense heat radiation, open re, risk of
explosion, or when extremely high concentrations of hazardous matter causing immediate
health risk are present.
It is not allowed to use oxygen or oxygen enriched air.
The maximum permissible length of the high pressure supply hose is 40 meters, the maxi-
mum permissible pressure is 7 bar.
The minimum permissible working pressure is 4.5 bar.
The ambient usage temperature should be within - 10 °C and + 60 °C.
When combined use is made of the compressed air, for both the Contracor CCT Air
Conditioner and the pneumatic tools (e.g. blast pot) it is necessary to ensure that, at the
maximum air consumption of the pneumatic tools, sufcient air is allowed to ow into the
air hood. If necessary, the working pressure can be adjusted.
When the ambient temperature is below freezing point, the humidity in the compressed
air circuit can result in icing-up of coupling or regulator, blocking the further supply of air.
In such cases it is necessary to determine prior to use that the humidity content in the
compressed air (at atmospheric pressure) is less then 50 mg/m3, and is in accordance
with EN 12021.
Generally available compressed air circuits do not usually comply with this requirement.
Exceptionally warm or cold compressed air, a long supply hose and an extreme ambient
temperature could affect the performance of the Contracor CCT Air Conditioner.
If the free outlet is blocked, the ow of breathing air will increase, reducing the degree of
cooling or heating of the supplied air.
Couplings and hose connections must be kept clean during connecting and disconnecting.
All user limitations regarding the chosen blast helmet remain applicable.
CONTRACOR®CCT Art. 30305 5
ENGLISH
1.2 Usage
Safe use of the Contracor CCT Air Conditioner is solely guaranteed when used in combina-
tio n with Contracor or North Safety blast helmets.
Always comply with the instructions contained in this users manual for the chosen blast
helmet. This ensures the safety of the user, and the optimum operation of the Contracor
CCT Air Conditioner.
2. Installing the Contracor CCT Air Conditioner
Unbuckle the belt and remove air ow regulator from the belt.
2.1 By using of Contracor Comfort blast helmet
Connect with Contracor CCT Air Conditioner supplied screw connection nipple to the hel-
met air hose.
Screw the connection nipple hand tight only.
Unscrew air ow regulator from the helmet air hose. Store removed air regulator in a cool,
dry and dark location
CONTRACOR®Version 1.0
6
ENGLISH
Put Contracor CCT Air Conditioner on the belt with desired air outlet nipple on the top.
The red nipple supplies warmed breathing air, and cooled breathing air ows through the
blue hose nipple.
Place the hose piece, supplied with Contracor CCT Air Conditioner, over the connection
nipple one side and over the desired air outlet nipple other side.
Keeping the opening towards the body, slide two supplied hose clamps over the hose,
halfway on the hose nipples.
Firmly close the hose clamps, pressing with the thumb and the index nger.
BLUE
RED
2.2 By using of North Safety Commander or Panorama blast
helmets:
Unbuckle the belt and remove air ow regulator from the belt.
CONTRACOR®CCT Art. 30305 7
ENGLISH
Fully release the original hose clamp.
Draw the hose piece from the original regulator.
Remove the original hose clamp, slide the buckle from the belt and store these together
with the original regulator.
Place the hose piece over the connection nipple one side and over the desired air outlet
nipple other side.
Keeping the opening towards the body, slide two supplied hose clamps over the hose,
halfway on the hose nipples.
Firmly close the hose clamps, pressing with the thumb and the index nger.
Put Contracor CCT Air Conditioner on the belt with desired air outlet nipple on the top.
The red nipple supplies warmed breathing air, and cooled breathing air ows through the
blue hose nipple.
BLUE
RED
CONTRACOR®Version 1.0
8
ENGLISH
3. Prior to use
Ensure that the compressor is switched on and that it has been set to the correct operat-
ing pressure. Check that the compressor is regularly inspected and maintained.
A worn and/or dirty compressor supplies polluted air that will not be cleaned by the lter
system! Make sure that the compressor cannot suck in any dangerous matter via the air
inlet.
Adjust the operating pressure on the BAF airline lter to a minimum of 4.5 bar. Connect
the Contracor CCT Air Conditioner via the brathing air supply hose to the BAF airline lter
system.
Make sure that the Contracor CCT Air Conditioner is correctly secured to the belt, that the
helmet connection of the hose for the breathing air is not leaking, and that the hose is
sufciently secured against inadvertent release. Refer to paragraph “Maintenance and
inspection”. Continue with a test run of at least 3 minutes when using the equipment for
the rst time.
4. During use
During use
Adjust the air volume according to requirements.
Contracor COMFORT
The desired temperature of the breathing air is reached within a short time.
The air ow indicator in the blast helmet will warn the user if insufcient air is supplied.
Immediately leave the working area if there is an interruption in the air supply.
Ensure that the breathing air supply hose cannot be trapped, causing interference with
the air supply or preventing a rapid departure from the work area. The Contracor CCT Air
Conditioner does not reduce the environmental noises. The use of supplementary audio
protection is mandatory. It is quite normal that a certain amount of air escapes from the
unused air outlet. Comply with the instructions relevant to the chosen blast helmet.
CONTRACOR®CCT Art. 30305 9
ENGLISH
After leaving the working environment, disconnect the breathing air supply hose, release
the belt and remove the blast helmet. Clean and inspect the components according to
the instructions given in paragraphs «Cleaning and disinfecting» and «Maintenance and
inspection». When connecting and disconnecting, ensure that no pollution is allowed to
enter the open hose connections. Comply with the instructions relevant to the chosen blast
helmet.Clean and inspect the Contracor CCT Air Conditioner, as described in paragraph
«Cleaning and disinfecting» and «Maintenance and inspection». Check the hose system
for leakage. Check the functioning of the system. Refer to paragraph «Maintenance and
inspection».
6. Cleaning and disinfecting
After each use, clean the outside of the Contracor CCT Air Conditioner, using water and
a mild detergent (e.g. EW 80 from Tremonia Chemie, Dortmund). Then, wipe thoroughly
clean with a cloth soaked in clean water. Do not use any solvents. Using compressed air to
blow clean the coupling and the regulator. Finally, dry all the metal components with a dry
cloth to avoid corrosion. When cleaning, take care not to inhale hazardous matter that may
be released during the cleaning. Comply with the instructions relevant to the chosen blast
helmet.
7. Maintenance and inspection
7.1 Maintenance
As a result of intensive use and pollution of the compressed air system, it is possible that
after some time, the sound absorbers get blocked with oil or dirt. These can be replaced.
See chapter Spare Parts. To remove the lters, unscrew them by hands. After replacing the
components, carry out a functional check.
7.2 Functional check
After each cleaning, disinfecting or exchanging components, check the functioning of
the system. When the air ow is correctly adjusted and the air ow indicator shows that
insufcient air is owing into the blast helmet, it is essential that the defect has to be
corrected rst. During this check, hold the blast helmet in the vertical (normal working)
position. Inspect all essential components for damage or pollution and, if required, replace
these by original spare parts.
5. After use
CONTRACOR®Version 1.0
10
ENGLISH
Checking hose system for leakage: Adjust the supply pressure to 0.5 bar and then connect
the blast helmet to the BAF airline lter system, via the Contracor CCT Air Conditioner
and the breathing air supply hose. Using a suitable device, pinch the black air hose,
interrupting the supply to the blast helmet. Then, apply soapy water with a brush to the
possible areas causing the leakage. Soap bubbles clearly indicate any leakage. Comply
with the instructions relevant to the chosen blast helmet.
7.3 Maintenance schedule
Prior to initial use: Functional test and leakage inspection.
Prior to use: Performance check by the user, check of regulator valve.
After use: Cleaning and disinfecting of the complete system.
Every 6 months: Cleaning and disinfecting of the complete system.
Functional check and leakage inspection of the complete system.
Cleaning and disinfecting of the breathing air connections
Comply with the instructions relevant to the chosen blast helmet.
8. Storage
After use and cleaning, store the entire system in a cool, dry and dark location. Take
measures to ensure that no component parts of the system come into contact with oils,
grease, solvents, acids or other chemicals.
9. Faults / Troubleshooting
There is no air supply to the helmet:
The compressor is not switched on.
The condensation water in the compressed air system is frozen.
The breathing air supply hose is trapped.
The connections are incorrectly made.
Leakage from the compressed air system.
There is insuf cient air ow to the helmet:
The supply pressure is too low.
The condensation water in the compressed air system is frozen.
There is a blockage in the lter system.
The breathing air supply hose is blocked or trapped.
The connections are blocked.
The sound absorbers for the Contracor CCT Air Conditioner are blocked.
The breathing air supply for the blast helmet is blocked.
The air ow indicator in the blast helmet is defective.
Insufcient temperature difference:
The supply pressure is too low.
Extremely hot or cold air from the compressor.
The effect of a high or low outdoor temperature on a long supply hose.
The sound absorbers are blocked by dirt or frozen condensation water.
The unused outlet is blocked.
The inside of the Contracor CCT Air Conditioner has been ruined by foreign matter in
the compressed air supply system.
Table of contents
Languages:
Other Contracor Air Conditioner manuals
Popular Air Conditioner manuals by other brands
Fujitsu
Fujitsu Inverter ASBA30JFC operating manual
Toshiba
Toshiba RAS-M10SMUV-E installation manual
Daikin
Daikin FXLQ20MAVE Operation manual
Hitachi
Hitachi RAS-E24CAK instruction manual
CIAT
CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance
Bestron
Bestron AAC6000 instruction manual
