Powered Fiber Cable Transition Box

1. General product information

This document provides the installation procedure for the Powered Fiber Cable (PFC) Transition Box (TB). The

TB is designed to facilitate the transition from indoor rated PFC to outdoor rated PFC in a neat and orderly

fashion that maintains physical separation of the different media types.See the CommScope Product

Catalog for available configurations.

2. Tools and additional items required

•Round Cable Stripper

•Electrical Wire Stripper

•Large Flat Screwdriver

•Small Flat Screwdriver

•Power Drill/Driver (as needed)

•Fiber optic termination and cleaning supplies

•*CommScope 6 Port Fiber Adaptor in appropriate fiber mode (See Table 1)

•*CommScope QWIK-FUSE Fiber Field Installable LC Connector Kits in appropriate fiber mode

•*CommScope Furcation Tubing as required

Material ID

Description

Fiber Mode

Color

760230938

360DPis-12LC-LS

AQUA

760230946

360DPis-12LC-SM

BLUE

760230953

360DPis-12LC-MM

GRAY

760230961

360DPis-12LCA-SM

GREEN

760236043

360DPis-12LC-WB

LIME GRN

760242975

360DPiP-12LC-LS

AQUA

760242976

360DPiP-12LC-SM

BLUE

760242977

360DPiP-12LC-WB

LIME GRN

760242978

360DPiP-12LCA-SM

GREEN

Table 1 – Recommended CommScope 6 Port Fiber Adaptors

*Can be ordered from www.commscope.com

860660202 Rev. B www.commscope.com

Instruction Sheet

3. Components

*CommScope 6 Port Fiber Adaptor must be ordered separately. See Table 1 for recommended MIDs.

4. Description

The TB kit contains the plenum rated transition box and cover, plenum rated cable ties, and connectivity

label. The G2 6 port fiber adapter can be ordered separately from www.commscope.com. The TB is

designed to accommodate up to six (6) PFC channels, with each channel consisting of two power

conductors (+ and -) and one duplex fiber connection (TX/TR).

The TB is designed for indoor use, and may be located in the plenum space. Cable can enter the box

through fire foam lined cable slots or through standard ¾ inch electrical conduit. Excess fiber can be

safely managed and stored on the built-in fiber spool.

860660202 Rev. B www.commscope.com

Instruction Sheet

Mounting Knockouts

Ground

Screw

5. Installation steps

Step 1 – Mounting and Grounding the Transition Box (TB)

1. Mount the TB to a flat surface using the four mounting knockouts as shown in Figure 1.

Note: Customer provided installation hardware must match the intended application with a

minimum pull-out requirement of 20 lbs-f (88 N) per hardware location.

2. Attach 12 AWG (or larger) ground wire to the TB using the green ground screw as shown in Figure

1. Attach wire to Earth ground.

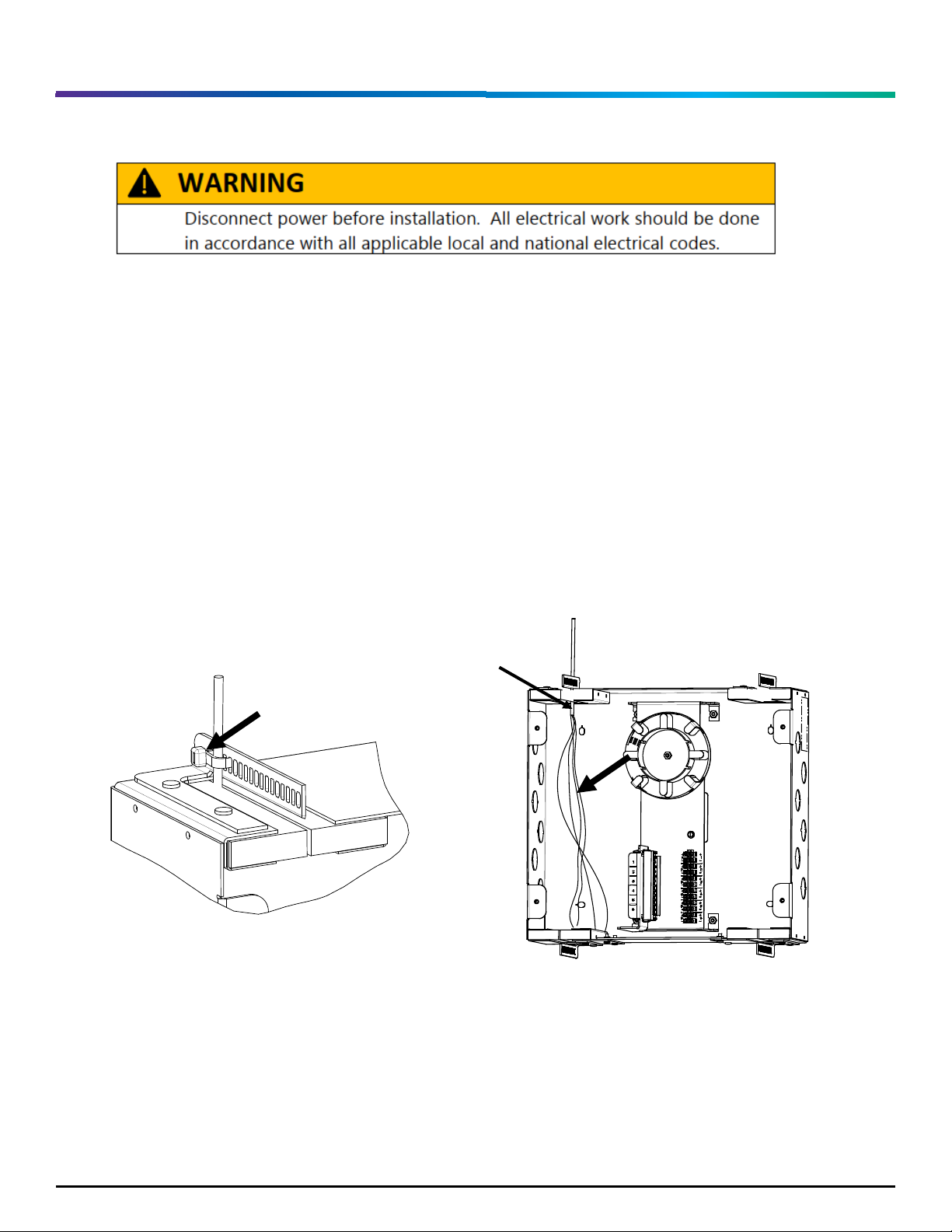

3. Secure the ground wire to the strain relief bar with a supplied cable tie as shown in Figure 2.

4. Insert the 6 port fiber adapter into the G2 opening with the shutters facing in the direction of the

terminal strip, as shown in Figure 3.

Figure 1 Figure 2 Figure 3

Terminal Strip

6 Port Fiber Adapter

860660202 Rev. B www.commscope.com

Instruction Sheet

6. Powered Fiber Cable (PFC) Termination and Closeout

Step 1 – Route and terminate incoming/indoor Powered Fiber Cable (PFC)

1. Route the incoming PFC into the TB and secure to the strain relief bar with a supplied cable

tie, as shown in Figure 4. Ensure adequate length for fiber slack (1-1.5 meters).

2. Strip the outer jacket of the PFC using a round cable stripper so that there is approximately

25mm of jacket extending inside the box, as shown in Figure 5. Trim any strength members

or other cable components except for power conductors and fibers.

Figure 4 Figure 5

APPROX. 25mm OF

CABLE JACKET

860660202 Rev. B www.commscope.com

Instruction Sheet

3. Cut the insulated power conductors to length. Strip off 5mm of insulation from the

conductors using an electrical wire stripper (12 AWG – 2.0mm; 14 AWG –1.6mm; 16 AWG –

1.3mm; 18 AWG -1.0 mm; 20 AWG– 0.8mm; 22 AWG – 0.65mm; 24 AWG – 0.5mm).

4. Match the wire polarity from the cable plant with the terminal strip polarity, as shown in

Figure 6.

5. Using a small flat screwdriver open the screw terminals until the wires insert into the

terminal ports. Push each wire into its port. Screw each terminal down hand tight to make

contact between the terminal and the wire conductor. Verify the wires are secure in the

terminals with no exposed wire conductor, as shown in Figure 7.

6. Terminate the LC Fiber Optic plugs (see section 2) per the product specifications instructions. Visit

www.commscope.com for LC Connector application, instructions, and tool kit information.

7. Clean and install the LC terminations into the adapter; see installation and cleaning instructions:

TECP-96-194. Store excess fiber on the spool, as shown in Figure 8.

8. Repeat steps 1 – 5 for all incoming PFCs.

Figure 7

Figure 6

860660202 Rev. B www.commscope.com

Instruction Sheet

Step 2 – Route and terminate outgoing/outdoor Powered Fiber Cable (PFC)

1. Route the outgoing PFC into the TB and secure to the strain relief bar with a supplied cable

tie, as shown in Figure 9.Ensure adequate length for fiber slack (1-1.5 meters).

2. Separate the cable into three sections along the tear lines, as shown in Figure 9.

3. For the outgoing power termination repeat steps 3 – 5 from Section 6 Step 1, verifying any

end device powered equipment wiring polarity with polarity connections on terminal strip,

as shown in Figure 10.

Note: Polarization indentation along one side of the cable for polarity identification

Figure 8

860660202 Rev. B www.commscope.com

Instruction Sheet

4. Terminate the LC Fiber Optic plugs per product specifications instructions. Visit

www.commscope.com for LC Connector application, instructions, and tool kit information.

Note: Furcation tubing can be used to protect coated fiber.

Visit www.commscope.com for a variety of colors.

5. Clean and install the LC terminations into the adapter; see installation and cleaning

instructions: TECP-96-194. Store excess fiber slack on the spool, as shown in Figure 11.

6. Repeat steps 1 – 5 for all outgoing PFCs.

Figure 9

Figure 10

Figure 11

860660202 Rev. B www.commscope.com

Instruction Sheet

Step 3 – Install Transition Box (TB) cover

1. Fix the connectivity label to the inside or outside of cover and record the channel

information as needed.

2. Place the cover over the loose screw heads with the warning label facing outward and slide

into place, tighten the cover screws to secure, as shown in Figure 12.
