CommScope FDH1204-24SE2 User manual

www.commscope.com Bulletin # 7689527 Rev. L 1

Technical Publication

Related Support and Learning Opportunities Offered by the CommScope Infrastructure Academy

The insights and expertise contained in this manual represent just one small part of CommScope's

global learning initiative. Few industries are evolving as quickly as wireless communications. Every

technological innovation impacts what happens in the field. Our customers look to the CommScope

Infrastructure Academy to make sure their technicians and installers are well trained, well-prepared,

and well-educated to take advantage of opportunities as they evolve. To access a course, go to

www.commscopetraining.com/coursecatalog.php, course #6107

Section 1: Direct Breakout Components / Accessories ……………………………………………………….…02

Section 2: General Specifications / Color Coding………………………………….....……………………….…03

Section 3: HELIAX®Trunk Cable Hoisting ......................................………………………………………..………04

Section 4: HELIAX®Tails ...............................……............……………………..…….…………………………….....06

Section 5: Supporting Fiber Tails .......................................................................……………………..……...…07

Section 6: FullAXS Installation ...............……............……………………….…….………...…………………….....09

Section 7: Breakout Procedure / Connection Considerations ......…....……………………………..……...…11

Section 8: All-in-One Cleaner / Inspecting .....…...........................................................…………………....…12

Section 9: Excess Cable Management .................................................……………….…….……………..……13

Section 10: Jacketing Removal Procedure / Check List .......................……………….…….……………..……14

Installation Guidelines – HELIAX®

Solution: Hybrid Direct Fiber

www.commscope.com Bulletin # 7689527 Rev. L 2

Technical Publication

Section 1: HELIAX®Direct Components

Accessories

PART NUMBER DESCRIPTION

UG12158-15B4-T Universal grounding kit

FCCT-L LC interface cleaner

FCCT-ODC ODC compatible interface cleaner

WARNING:

CommScope

cables require the

use of approved

installation

accessories.

CABLE SERIES HOISTING GRIP SnapStak®PLUS STANDAR HANGER

FDH1210-24SE2 19256B-C SSH-L 42396A-1 (add grommet HG-24-114)

FDH1206-24SE2 19256B-C SSH-XL 42396A-1 (add grommet HG-33-114)

FDH1204-24SE2 29961-C SSH-XL 42396A-2 (add grommet HG-44-158)

FDH1204-48SE2 29961-C SSH-XL 42396A-2 (add grommet HG-44-158)

Power breakout tail NA SSH-1014 43211A (add grommet HG-10MM-12)

Fiber breakout tail NA SSH-47 43211A (add grommet HG-5MM-12)

Breakout

Fiber tail

with ODC

compatible

connector

Equipment

cabinet / shelter

Hybrid

FiberFeed

Cable

Separate fiber and

power conductors

Maximum hanger spacing

0.9 m (3 ft) - 1.2 m (4 ft)

Mounting Kit Included

Part Number: DCM-U

(additional components

maybe required

based on installation

configuration)

Minimum Distance

0.5 m (1.6 ft)

3 RRU configuration utilizing

one 3 x 6 solution shown

RRU RRU RRU

www.commscope.com Bulletin # 7689527 Rev. L 3

Technical Publication

FDH1206-24SE2-XXX

UL Type TC-OF-ER

6 AWG

Single mode fiber

2370 kg/km | 1590 lb/kft

36.0 mm | 1.40 in

1000 mm | 39 in

5000 mm | 196 in

1700 mm | 67 in

444.5 mm | 17.5 in

FDH1210-24SE2-XXX

UL Type TC-OF-ER

10 AWG

Single mode fiber

1050.0 kg/km | 705.5 lb/kft

25.14 mm | 0.99 in

1000 mm | 39 in

5000 mm | 196 in

1700 mm | 67 in

251.5 mm | 9.9 in

FDH1204-24SE2-XXX

UL Type TC-OF-ER

4 AWG

Single mode fiber

3400 kg/m | 2285 lb/ft

44.8 mm | 1.76 in

1000 mm | 39 in

5000 mm | 196 in

1700 mm | 67 in

523.2 mm | 20.6 in

FDH1204-48SE2-XXX

UL Type TC-OF-ER

4 AWG

Single mode fiber

3576 kg/km | 2403 lb/kft

44.70 mm | 1.76 in

1000 mm | 39 in

5000 mm | 196 in

1110 mm | 44 in

1700 mm | 67 in

523.2 mm | 20.6 in

Color Coding Power: 24 and 48 bers

End 1 Label Color End 2 Label Color

1RED 1RED

1RED

2BLUE 2BLUE

2BLUE

3GREEN 3 GREEN

3 GREEN

4YELLOW 4YELLOW

4YELLOW

5WHITE 5WHITE

5WHITE

6BLACK 6BLACK

6BLACK

End 1 Color End 2 Color

1RED 1RED

2GREEN 2GREEN

3BLUE 3BLUE

4YELLOW 4YELLOW

5WHITE 5WHITE

6BLACK 6BLACK

7RED (X2) 7RED (X2)

8GREEN (X2) 8GREEN (X2)

9BLUE (X2) 9BLUE (X2)

10 YELLOW (X2) 10 YELLOW (X2)

11 WHITE (X2) 11 WHITE (X2)

12 BLACK (X2) 12 BLACK (X2)

Cable Type

Center Conductor Gauge

Conductors, quantity

Total Fiber Quantity

Fiber Type

Dimensions

Cable Weight

Diameter Over Jacket

Breakout Length, Fiber end 1

Breakout Length, Power end 1

Breakout Length, Fiber end 2

Breakout Length, Power end 2

Physical Specifications

Minimum Bend Radius

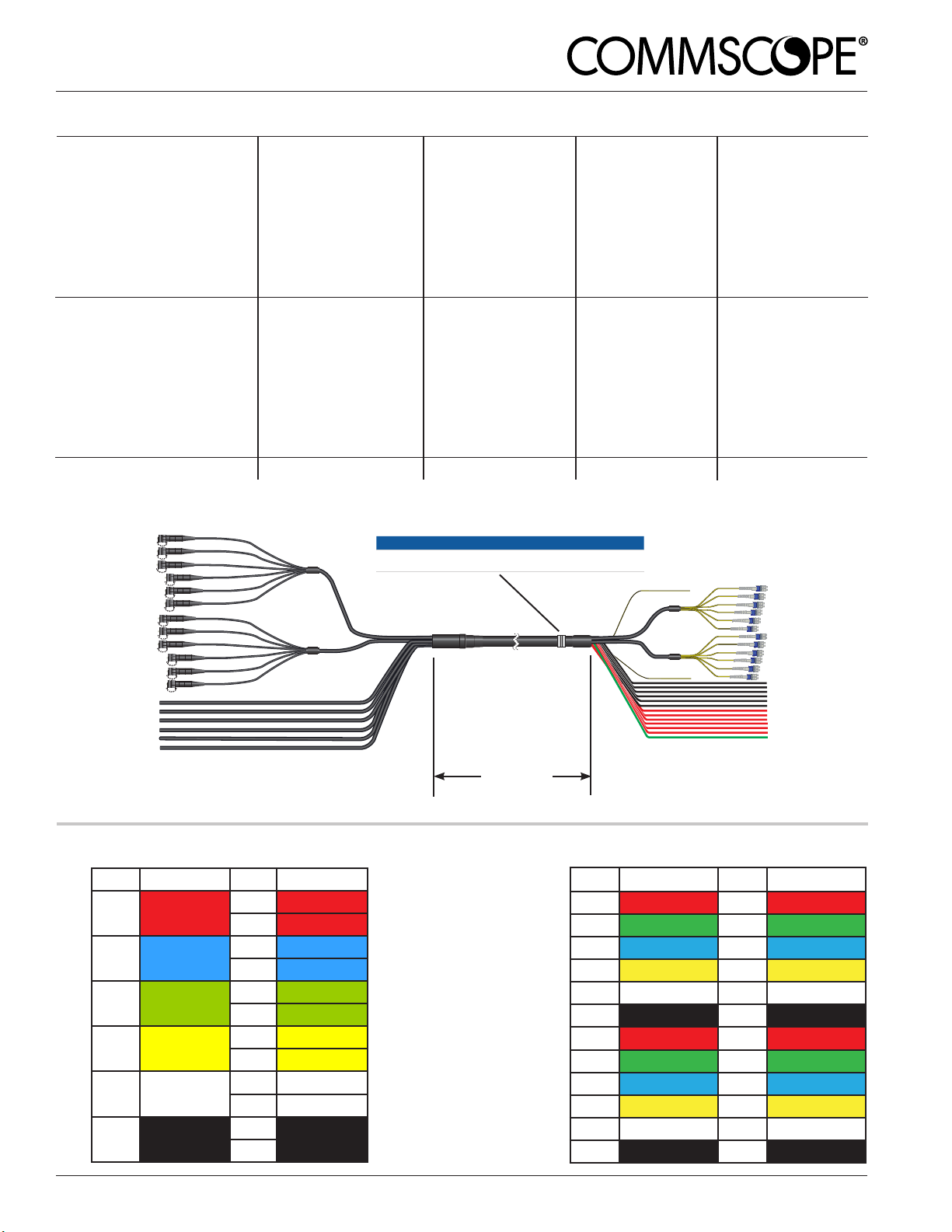

Section 2: General Specifications 6x12 Conguration

ODC

compatible

connector

DLC

connector

End 1

RRU

End 2

BBU

Cable

Assembly

Length

Power

cords

Power

conductors

Color Coding Fiber: 24 bers

Torque Specications

Description Tightening Torque, N●m, (in-lb)

M63 cable gland 18 (13.3)

www.commscope.com Bulletin # 7689527 Rev. L 4

Technical Publication

Section 3: Hoisting Considerations

Hoisting Recommendations

Reminder:

Plan grip location by

measuring distance (D)

from ODC compatible

connector to tower

support member.

(D)

Direct

Breakout

Grip

Location

• Be sure that the Direct breakout is not damaged by attachment of a hoisting grip or during the hoisting process.

Attach a hoisting grip on the jacketed cable no less than .3 m (1 ft) below the fibre breakout point. Prevent the

fibre tails and power conductors from undue movement during hoisting by securing with tie ropes every 1 m (3 ft)

to the hoisting line.

• Installation temperature range is -20°C to +60°C (-4°F to +140°F).

• Minimum cable bend radii and tensile load can be found on-line in our eCatalog section at commscope.com.

• CommScope Lace-Up Hoisting Grip 19256B-C required for 1210 and 1206 series. Hoisting Grip 29961-C required for

1204 series.

• Hoisting Grips are the primary support for the cable weight and must be anchored to the support structure with

tension applied, then the cable hangers are fastened to the support structure in 0.9 m (3 ft) intervals.

• During final connections to RRU, do not bend the fibre ends tighter than 30 mm (1.2 in) bend radius or you take

the risk of breaking the glass fibres.

Hybrid Fiber Cables weigh more than traditional coaxial cables. Be sure to follow proper hoisting and

attachment procedures.

ODC

compatible

Connectors

Color Coding Fiber: 48 bers

End 1 Color End 2 Color

13 RED GREEN 13 GREEN RED

14 GREEN GREEN 14 GREEN GREEN

15 BLUE GREEN 15 GREEN BLUE

16 YELLOW GREEN 16 GREEN YELLOW

17 WHITE GREEN 17 GREEN WHITE

18 BLACK GREEN 18 GREEN BLACK

19 RED BLUE 19 BLUE RED

20 GREEN BLUE 20 BLUE GREEN

21 BLUE BLUE 21 BLUE BLUE

22 YELLOW BLUE 22 BLUE YELLOW

23 WHITE BLUE 23 BLUE WHITE

24 BLACK BLUE 24 BLUE BLACK

End 1 Color End 2 Color

1RED - 1- RED

2GREEN - 2- GREEN

3BLUE -3-BLUE

4YELLOW - 4- YELLOW

5WHITE - 5- WHITE

6BLACK -6-BLACK

7RED WHITE 7WHITE RED

8GREEN WHITE 8WHITE GREEN

9BLUE WHITE 9WHITE BLUE

10 YELLOW WHITE 10 WHITE YELLOW

11 WHITE WHITE 11 WHITE WHITE

12 BLACK WHITE 12 WHITE BLACK

www.commscope.com Bulletin # 7689527 Rev. L 5

Technical Publication

Required

Apply provided Tie

Wrap to the base of

the hoisting grip before

applying tension to

the line.

Clevis

Steel cable

or rope

hoist line

Hoisting

grip

Minimum

leader

5.3 M

(17 ft)

Maximum between hoisting grips

1210 and 1206 series 60 M (200 ft),

1204 series 45.7 M (150 ft)

Protective

sock

Hoisting Considerations

Tie back ropes

1 M (3 ft)

www.commscope.com Bulletin # 7689527 Rev. L 6

Technical Publication

General Specifications

Cable Type DFJ-2S109N-xxM

Brand HELIAX®

Total Fiber Quantity 2

Fiber Type Bend insensitive single mode

fiber (G.657.A2)

Jacket Color Black

Dimensions

Cable Weight 48.0 kg/km | 105.8 lb/kft

Diameter Over Jacket 6 mm | .24 in

Physical Specifications

Minimum Bend Radius, unloaded 6 cm | 2.4 in

Tensile Load, short term, maximum 1110 N | 250 lbf

• The terminated fiber ends however are fragile and must be protected during installation. Leave the packaging

around the fiber ends in place until ready to make final connect of the jumper at the RRU or BBU.

• DO NOT BEND THE FIBER ENDS TIGHTER THAN 30 mm (1.2 in) BEND RADIUS ELSE THERE IS A RISK OF BREAKING THE GLASS

FIBERS.

• Attach the main cable securely to the structure or equipment using hangers to prevent strain on connections from

movement in wind or snow/ice conditions.

• Ensure the fiber and power connections and seated firmly in the RRU.

• Installation temperature range is -20°C to +60°C (-4°F to +140°F).

Section 4: General Specifications Tails

ODC

compatible

connector

DLC

connector

End 1

RRU

End 2

Direct

Breakout

Cable

Assembly

Length

Torque Specications

Interface Type Tightening Torque, N●m, (in-lb)

ODC compatible connector 1 (8.8)

Lengths Available 1 2 3 5 10 30

Weather

shroud

installed

Weather

shroud not

shown

www.commscope.com Bulletin # 7689527 Rev. L 7

Technical Publication

Section 5: Supporting Fiber Tails

Open grommet and place

it over the fiber tail.

Place the hanger over the grommet

and place in support structure.

Stack hangers as required. Repeat

with tails being routed to the RRU

and spare fibers.

Connectors are fully weather sealed and do not

require additional weatherizing. Unused power

conductors should be left with the protective cap

in place.

Option 2

123

www.commscope.com Bulletin # 7689527 Rev. L 8

Technical Publication

If additional hangers are not available

slide the protection sleeve from the BBU

end over any spare fibers to protect

them.

Place tape over fiber tails and

protective sleeve end to hold in

place. Support protection sleeve

using tie wraps.

Spare Fiber Handling

www.commscope.com Bulletin # 7689527 Rev. L 9

Technical Publication

Section 6: FA-FWS-E-1 Weatherproong Shroud Installation

Carefully feed compression nut over DLC connector and slide onto jacketing.

Do not twist or bend the DLC connector or ber. Excessive force or bending may break the ber.

Carefully feed weather shroud body over DLC connector.

Wrap the rubber split grommet around the jacketing with the stepped end towards shroud body. Push gasket

into the clamping tynes. Approximately 0.9 mm will protrude from the tynes when fully installed.

Engage the compression nut one full revolution to keep the grommet in place but do not tighten fully to allow

for adjustment during RRU connection.

Slide weather shroud down jacketing to allow full access to the DLC connector during the RRU connection.

If a Weather Shroud is pre-installed care-

fully remove the end cap by holding it

stationary and turning the top nut coun-

ter-clock wise. Skip to step #6.

Scan to view installation video

www.commscope.com Bulletin # 7689527 Rev. L 10

Technical Publication

Slide the weather shroud up to the RRU. Turn top nut clockwise to secure to RRU bulkhead connector.

Finish hand tightening the compression nut onto jacketing to complete instal-

lation. The compression nut must be tightened until it is completely against the

cable gland body. The grommet will protrude slightly from the compression nut.

Reverse steps 7 and 8 to remove sleeve for maintenance.

Correct support

clamp locations

WARNING

Remove the dust caps from DLC connector and seat

into the RRU. Listen for a distinct click. Do not twist

DLC connector or kink the ber during installation.

This manual suits for next models

Table of contents

Other CommScope Cables And Connectors manuals

CommScope

CommScope FOSC-400BG User manual

CommScope

CommScope FOSC-OC-3 User manual

CommScope

CommScope HELIAX FiberFeed HTC1006 Series Instruction sheet

CommScope

CommScope M2400 Series User manual

CommScope

CommScope PICABOND 60944-6 User manual

CommScope

CommScope LC User manual

CommScope

CommScope SYSTIMAX 360 760150144 User manual

CommScope

CommScope LightCrimp Plus SC Simplex User manual

CommScope

CommScope AMP NETCONNECT SL Series User manual

CommScope

CommScope BUDI-S User manual

CommScope

CommScope FIBER INDEXING TERMINAL User manual

CommScope

CommScope NOVUX SEC 100 User manual

CommScope

CommScope NOVUX SXT User manual

CommScope

CommScope FOSC 450 A User manual

CommScope

CommScope SYSTIMAX 360 iPatch... User manual

CommScope

CommScope FACT User manual

CommScope

CommScope SYSTIMAX 360 iPatch 360-iP-G2-1U-LC-FX User manual

CommScope

CommScope SYSTIMAX VisiPatch CPC5562 User manual

CommScope

CommScope AMP NETCONNECT 1711357-1 User manual

CommScope

CommScope FD21206-48SRC Series Instruction sheet

CommScope

CommScope HELIAX FiberFeed HFE810 Series Instruction sheet

CommScope

CommScope OmniReach FTTX User manual

CommScope

CommScope LightCrimp Plus ST User manual

CommScope

CommScope HELIAX MFJS6UDHNA00 User manual

Popular Cables And Connectors manuals by other brands

Philips

Philips SWA6310 Specifications

StarTech.com

StarTech.com CRJ4550PK quick start guide

Nohau

Nohau EMUL-IP2K-PC user guide

Foxun

Foxun SX-SP144E-HD4K2K operating instructions

Philips

Philips SWA3305W Specifications

opticis

opticis Stretch DVIM1-1P0x user manual

Volkswagen

Volkswagen VAS 6558A operating manual

NEXIBO

NEXIBO N-13 user manual

CYP

CYP PU-1H3HBTL Operation manual

Allen-Bradley

Allen-Bradley 1784-u2dhp installation instructions

Global Caché

Global Caché Flex Link Blaster quick start

Hauppauge

Hauppauge USB-Live2 Quick installation guide

Fenix

Fenix MPSV 15 installation manual

BEGA

BEGA 71 085 manual

Tesla

Tesla HPWC installation manual

GAMERON

GAMERON LUXURY TV CABLE instruction manual

molex

molex Milli-Grid Dual row 87568 Series operating instructions

Burndy

Burndy Continental Industries thermOweld CRE-7 instructions
