Commax DR-2PN User manual
DOOR STATION DR-2PN
User Manual
•Thank you for purchasing COMMAX products.
•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
•The company is not responsible for any safety accidents caused by abnormal operation of the product.
All manuals and user guides at all-guides.com
all-guides.com
1. Overview 2.
4.
Specification
Printed In Korea / 2016.06.105
513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
MODEL
Wiring system
DR-2PN
Door Phone 2-Wire System(Nonpolar)
Rated voltage
Communication method
Operating Temperature
Full Duplex
9V (Supplied from the door phone)
50.2(W)X118(H)X52(D)mm
-10°C ~ +40°C
Dimensions(mm)
300g
Weight(g)
Installation & Wiring
Microphone
Speaker
Call Button
Connect
Mounting Hole
with the
Phone
2. Connect the wire to the door
shown on the figure
(#1:RED/ #2:BLUE )
3. Fix by using bolts and a wrench
Screw cover
Screw
PHM M4X8
Screw Gasket
Low Head
Screw T4X18
Screw cover
Screw
PHM M4X8
and put in a rubber cap
phone by adjusting polariry as
1. Fix product by adjusting the holes
on the wall and hanging[FIG-1]
3. Package
DR-2PN
WALL
BRACKET WATER
PROOF
RUBBER
SCREW
COVER SCREW
GASKET
SCREW SCREW
PHM M4X8 Screw T4X18
All manuals and user guides at all-guides.com
Other manuals for DR-2PN
2
Table of contents
Other Commax Intercom System manuals
Commax
Commax CDV-1020AE User manual
Commax
Commax CDV-40N User manual
Commax
Commax DRC-4LN User manual
Commax

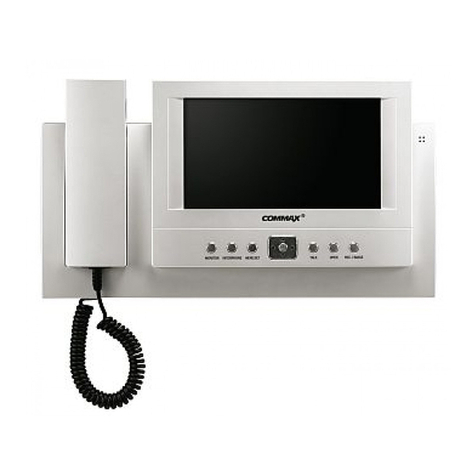

Commax CDV-72BE User manual
