Comelit AHCAM722A User manual

FULL-HD

DOME CAMERA

ART. AHCAM722A

Please read this guide thoroughly before use and keep it handy for future reference.

All manuals and user guides at all-guides.com

all-guides.com

FCC COMPLIANCE STATEMENT

CE COMPLIANCE STATEMENT

CAUTION : Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

WARNING : This is a Class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate measures.

FCC INFORMATION : This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

All manuals and user guides at all-guides.com

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5.. Do not block any ventilat ion openings. Install in accord ance with the manufacturer`s

instructions.

6. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

7. Only use attachments/accessories specified by the manufacturer.

8. Use only with the ca rt, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

9. CAUTION - THESE SERVICING IN STRUCTIONS ARE FOR USE BY

QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF

ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN

THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU

ARE QUALIFIED TO DO SO.

10. Use satisfy clause 2.5 of IEC60950-1/UL 60950-1 or Certified/Listed Class 2

power source only.

11. Indoor use only.

EXPLANATION OF GRAPHICAL SYMBOLS

IMPORTANT SAFETY INSTRUCTIONS

All manuals and user guides at all-guides.com

VIDEO OUT CHECK

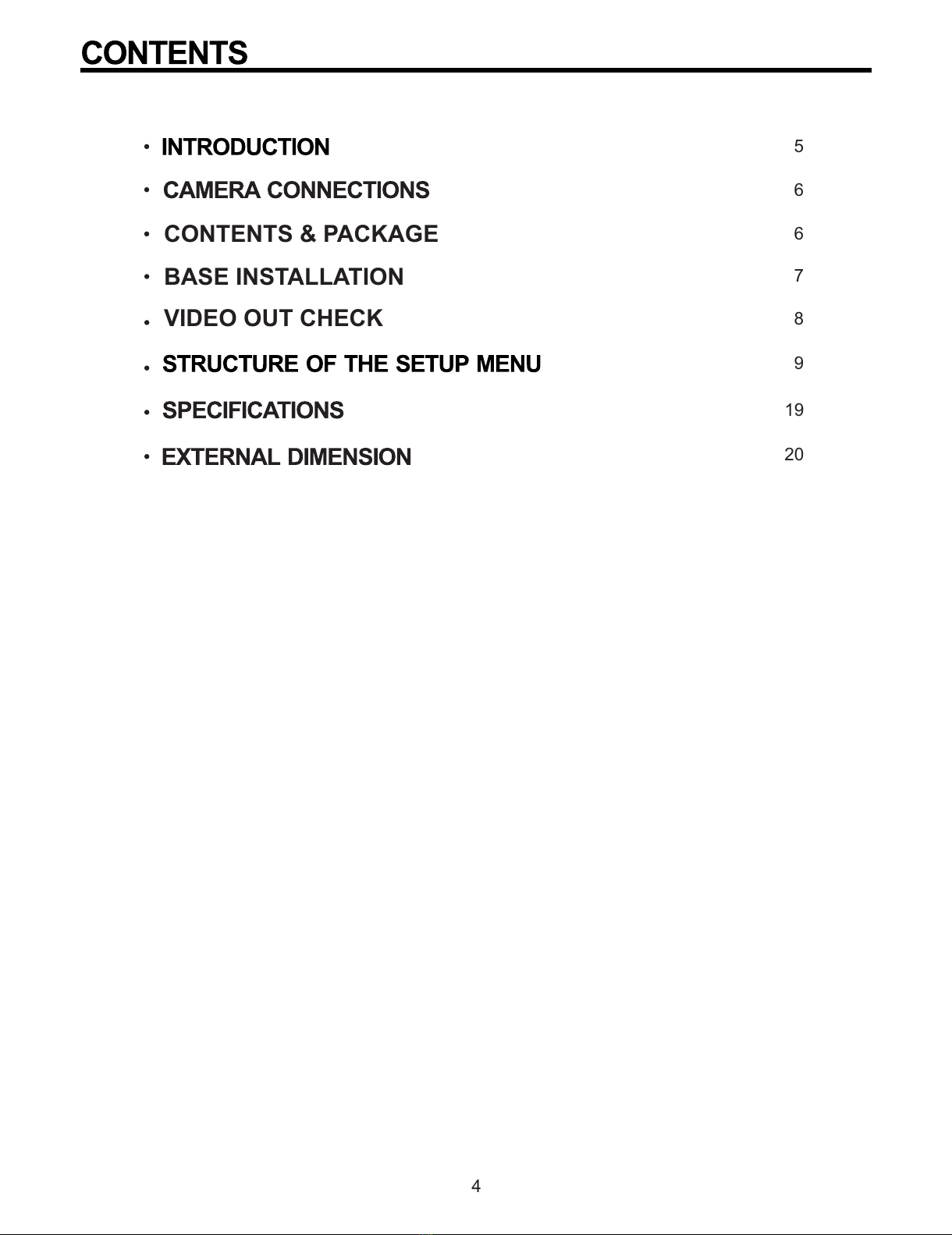

CONTENTS & PACKAGE 6

BASE INSTALLATION

All manuals and user guides at all-guides.com

The 1/2.8" 2.4M HD CMOS camera, especially for closed circuit television

CCTV and

security surveillance application.

1/2.8"

24 EA, 850nm IR LED

Auto and manual white balance modes (ATW/AWC/Manual/AWB)

HSBLC

DWDR

BLC (Back-light compensation)

25/30 fps @ 1080p

All manuals and user guides at all-guides.com

(IR Model 5 Watts)

Switch Cable : -Green & Black : open -> AHD signal BNC output

-Green & Black : short -> CVBS signal BNC output

BNC connector used to connect the camera to a DVR, etc.

All manuals and user guides at all-guides.com

all-guides.com

1. Make mounting holes and cable hole in

the place (ceiling or wall) to which this

dome camera is installed using the

Drilling guide label.

2. Drill the mounting location, using the Drillng guide.

3. Attach the housing to the ceiling using

suitable fasteners, PTS1 5x30 screws

are supplied only use if they are suitable.

4. Tighten a mounting screws.

Press here to adjust the angle.

PTS1 5x30 <4X>

PT-Plug

All manuals and user guides at all-guides.com

WHITE BAL

BACKLIGHT

SENS-UP

D-WDR

OFF

BLC

HSBLC

ATW

AWC->SET

INDOOR

OUTDOOR

MANUAL

AWB

<DAY&NIGHT>

SHARPNESS

LSC

D-EFFECT

RETURN

CAM TITLE

MONITOR

VIDEO OUT

LANGUAGE

COMET

RETURN

<EXIT>

SAVE& END

RESET

DEFECT DET NOT SAVE

All manuals and user guides at all-guides.com

MAIN MANU

LENS

EXPOSURE

BACK LIGHT

WHITE BAL

DAY&NIGHT


FUNCTION

SYSTEM

EXIT

MANUAL

OFF

ATW

AUTO

SAVE&END

< EXPOSURE > MODE

1/50000, x2 ~ x30

Adjust the Auto Gain Control level. ▶ 0 - 15

AGC

3) SENS-UP Select the Digital Slow Shutter level. ▶ OFF, AUTO (x2 ~ x30)

BRIGHTNESS Adjust the BRIGHTNESS level. ▶ 0 - 100

D-WDR

DEFOG

Select the Digital WDR.▶ AUTO, ON(level 0~8), OFF

AUTO, OFF

POS/SIZE

GRADATION

DEFAULT

Adjust the window position & size

▶ 0~2

Initialize the setting values

SHUTTER

AGC

SENS-UP

BRIGHTNESS

D-WDR

DEFOG

RETURN

AUTO

|▪▪▪l▪| 11

AUTO

|▪▪l▪▪| 48

OFF

RET

MAIN MANU

LENS

EXPOSURE

BACK LIGHT

WHITE BAL

DAY&NIGHT


FUNCTION

SYSTEM

EXIT

OFF

ATW

AUTO

SAVE&END

The EXPOSURE menu is used to set the automatic light control method for the camera.

It provides the ability to adjust the SHUTTER speed, AGC, SENS-UP, BRIGHTNESS, D-WDR,

and DEFOG functions of the camera.

All manuals and user guides at all-guides.com

BACKLIGHT

The BACKLIGHT menu is used to the ability to prevent back lighting from the image.

1)BLC Prevents such a back light effect to secure a clear image under All illumination

environments.

Adjust the size of Back Light Compensation area.

2)HSBLC Mask the high light zone with specific color & level.

Adjust the window position & sizeAREA

Initialize the setting valuesDEFAULT

Select the HSBLC area ▶ AREA1 - AREA4SELECT

Adjust the HSBLC area window position & sizeDISPLAY

Select the HSBLC level ▶ 0 ~ 100LEVEL

All Day, NightMODE

Initialize the setting values.DEFAULT

HLBLC

SELECT

DISPLAY

BLACK MASK

LEVEL

MODE

DEFAULT

RETURN

AREA

|▪▪l▪▪| 30

ALL DAY

RET

< BACKLIGHT >

BLC

LEVEL

AREA

DEFAULT

RETURN

MIDDLE

RET

Select the BLC gain ▶ Low, Middle, HighLEVEL

Select the BLACK MASK ▶ ON, OFFBLACK MASK

MAIN MANU

LENS

EXPOSURE

BACK LIGHT

WHITE BAL

DAY&NIGHT


FUNCTION

SYSTEM

EXIT

OFF

ATW

AUTO

SAVE&END

All manuals and user guides at all-guides.com
