REV. FEBRUARY 19th 2014
CLIMA-FLEX S.A. DE C.V.
1. GENERAL DESCRIPTION
GENERAL DESCRIPTION
CLIMAFLEX chiller units are built with control and design in
mind, assembled with technically specialized control
software. Some of our features are in house production of all
piping and wiring, scroll type compressors, new generation
evaporators, air cooled condensers, optional hydraulic
components, and several safety and security protections.
Our units are ecofriendly and operate with R-410A
refrigerant.

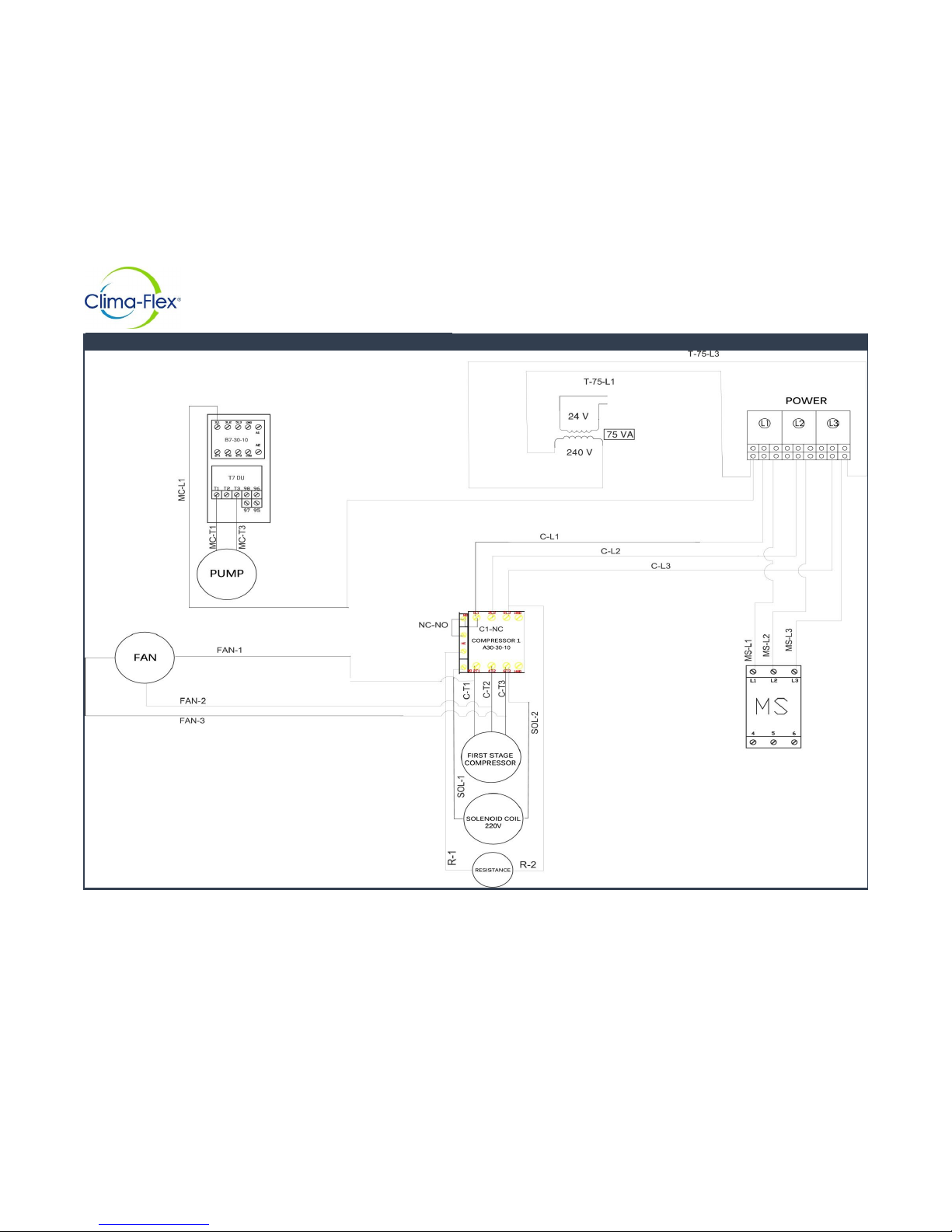

ELECTRICAL COMPONENTS
All units are equipped with a control panel, security anti-
theft devices, internal and external overheating protection,
compressor drive protection, flow protection, freezing
protection and electrical failure protection. The control
panel has LED operation indicating lights.
EQUIPMENT
Fully Factory assembled, and individually run tested with all
required piping, wiring, and controls for operation.
HYDRAULIC COMPONENTS (OPTIONAL)
Water Pump
The drive in the water pump is TEFC (Totally Enclosed
Fan Cooled) and has anti-corrosive coating on the
housing.
MODULE
Steel base, anti-corrosive painted steel panels. Easy Access
for maintenance without compromising the unit´s stability.
The control unit allows the connection of the unit to the
INTERNET, and allows the user to visualize all the unit’s
operating information, such as variable graphics, tendencies
cycle time, diagnosis of components, alarms, etc. Access to
this information renders a more efficient operation and
system control.
COMPRESSORS
Two stage Scroll type hermetic compressors.
CONDENSERS
High efficiency microchannel with optional anti-corrosive
coating.
EVAPORATORS
Compact Plate Heat exchangers with thermally isolated
hydraulic refrigerant pipes and connections.
FANS
Low vibration and noise Axial Fans.
REFRIGERATION CONTROLS
The units are equipped with solenoid valves, expansion
valves, dehydrator, and service valves.
