Citizen FS03 User manual

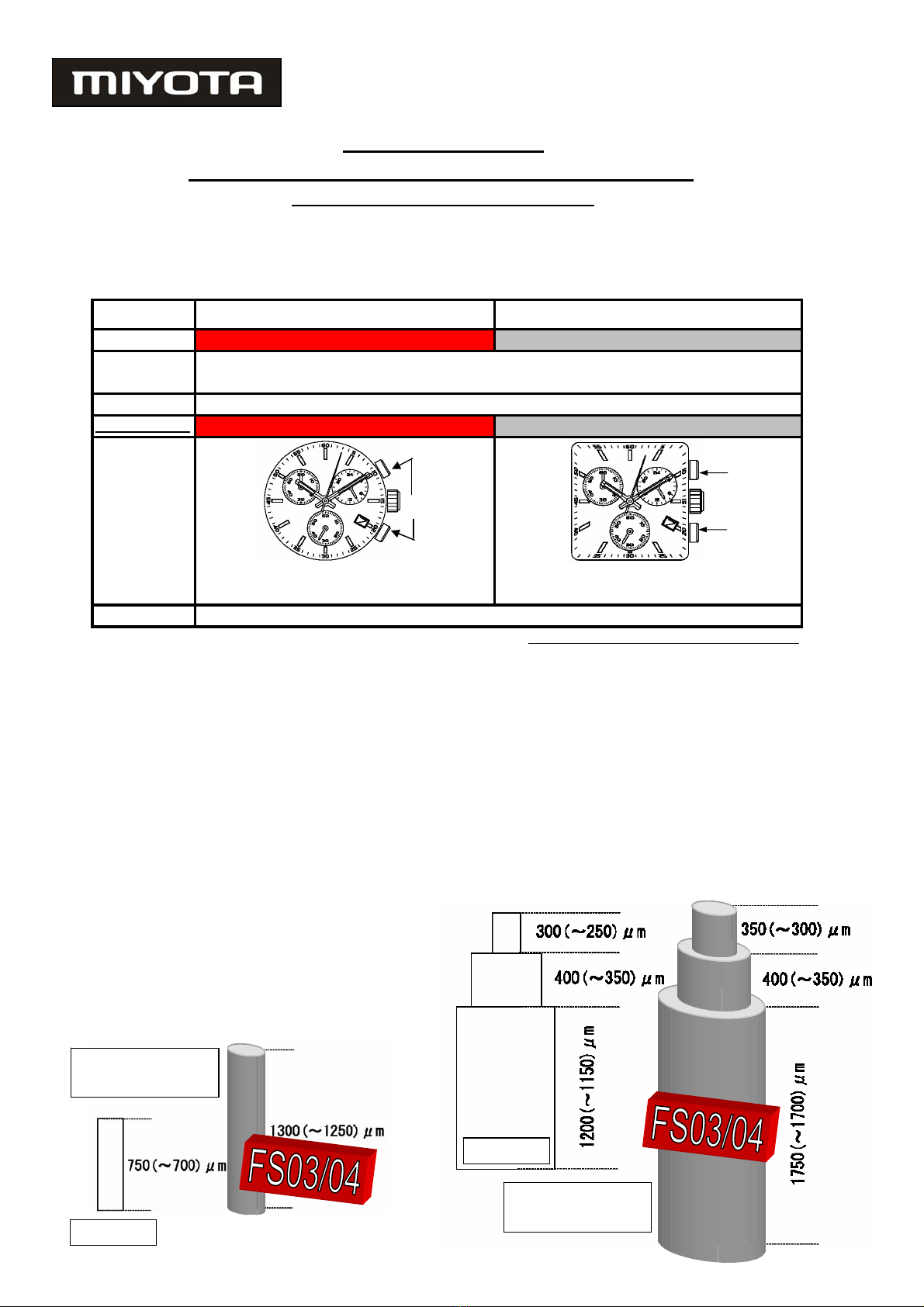

MOVEMENT SPECIFICATIONS

CAL.FS03/04

10-1/2 LIGNE, 3 EYES CHRONOGRAPH WITH HIGH HAN

ANALOGUE QUARTZ, 0 JEWEL

MANUFACTURED IN JAPAN

1.BASIC SPECIFICATION

(1) CaL. No. *TO CONFIRM WITH MOV'T DRAWING ATTACHED

CALIBRE

PUSHER

Ligne

Size*mm

Date

Total height

Figure

(push button

placed angle)

Battery & Life SR626SW 2YEARS

* based on 1 hour/day chronograph us

(2) Time standard

Type of quartz : Tuning fork type quartz crysta

Frequency : 32,768H

ccuracy : +/-20 s/month worn under normal circumstances

(3) Balanceable weight of hand

Minute hand Max. 0.4 μN.m

Second hand Max. 0.035 μN.m

Other small hands Max. 0.02 μN.m

(4) Function

Chronograph 1/1 sec. Basis (Up to 59 min. 59 sec.)

Powercell Saving Reset Mechanism(PSRM)

Over-loading Compensation Device(OLCD)

Digital Frequency Control(DFC) for time adjustment

Φ23.7X22mm (3H-9H)

10-1/2

*Eye position is the same as FS00 *Eye position is the same as FS01

4.15mm 4.28mm

FS03 FS04

SLANTED PARALLE

Parallel

Slanted

FS00/01

Center Hands

Height

Small Hands

Height

2.SEPARATED PART

Setting stem x1

Code 065-549

Length from movement center to far end 20.00mm

of setting stem

Thread................................. Ф0.9mm x 9.06mm

3.OTHERS

* Measurement of time rate

The unit(gate) time of measurement must be set at "10 sec." or integer fold

value of 10 sec. owing to the DFC system, and the measurement must be

performed in the form of complete watch.

* Marking on movement

JAPAN

MIYOTA CO.

FS03/04

NO JEWELS

* Typical clearance

Mov't - Caseback minimum 200 microns

Top of hands - Glass 300 - 400 microns *

* subject to the glass, case structure, and the length of hand

* Note

Please use aluminum material hand for Chrono second hand

* TACHYMETER

The tachymeter is the device which measures the speed of an automobile. Knowing is how

many seconds the car covers a distance of 1km, the meter can measure the approximate

average speed per hour during a journey (up to the maxinum measurable range of

tachymeter is 60 seconds.)

If the chronograph is started at the same time as measurement, and stopped after 1 km,

the average speed per hour can be determined according to the position of the second

hand. If the car covers the distance of 1km in 45 seconds, the average hourly speed during

the journey will be about 80 km.

4 INSTRUCTION MANUAL

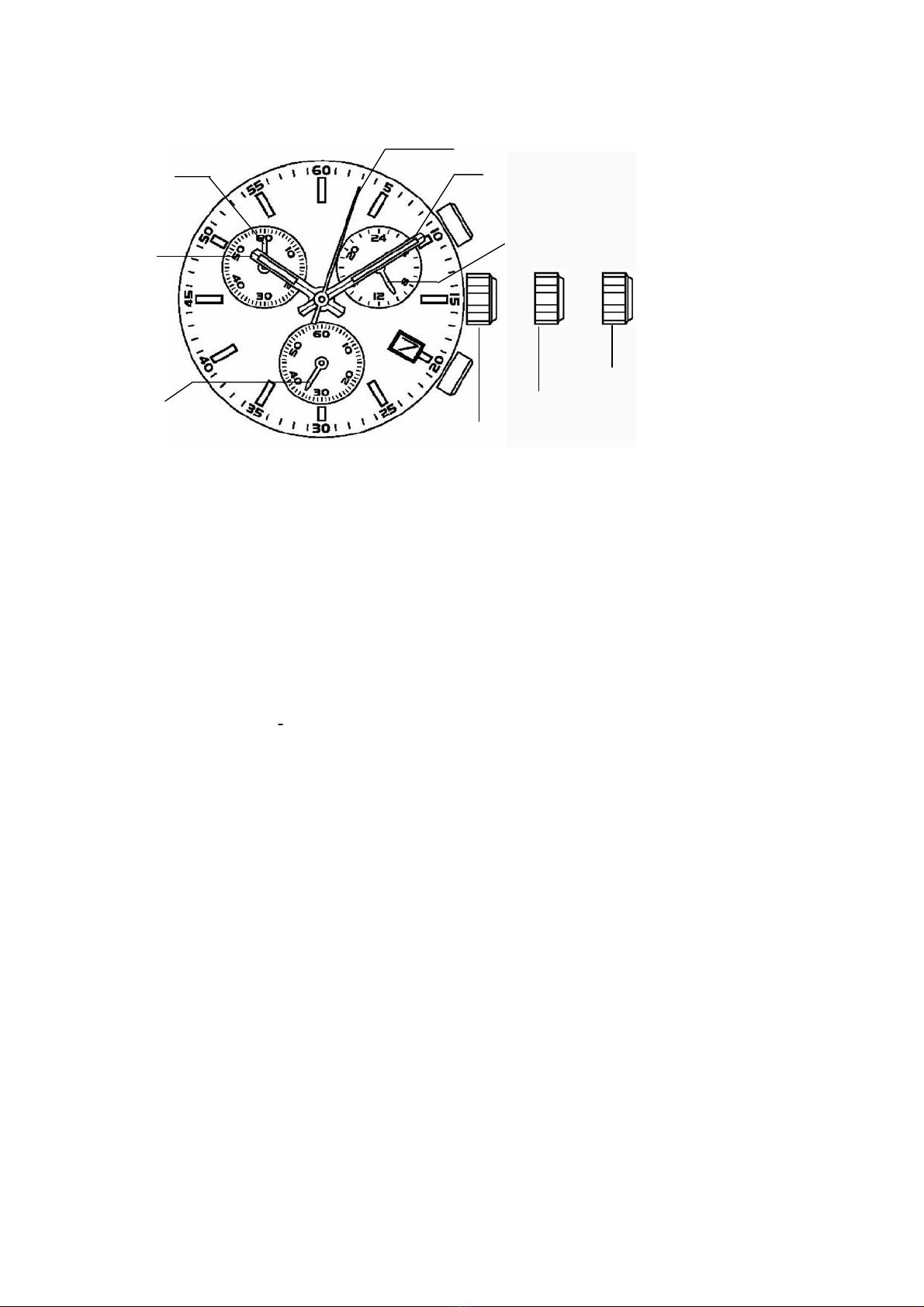

) DISPLAYS AND BUTTONS

B) SETTING THE TIME

1. Pull the crown to the 2nd Click Position.

2. Turn the crown to set the hour and minute hands.

C) SETTING THE DATE

* If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may

not change on the following day.

1. Pull the crown to the 1st Click Position.

2. Turn the crown by clockwise to set the date.

3. After the date has been set, push the crown back to the normanl position.

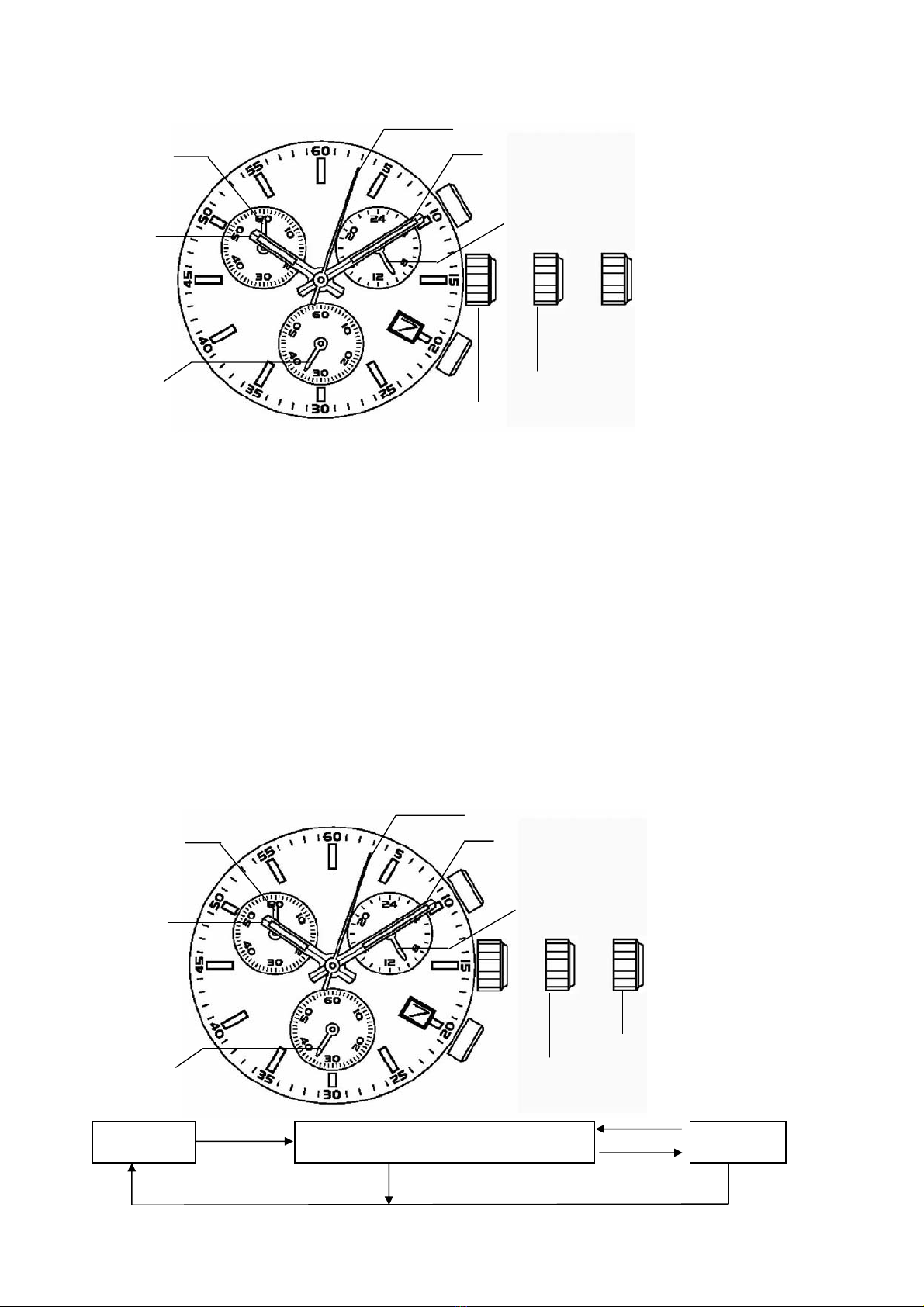

D) USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to

maxinum of 1 hour.

Measuring time with the chronograph

1. The chronograph can be started and stopped each time button "PB1" is pressed.

2. To reset, press button "PB2" and the chronograph second & minute hands return to the 0 positions.

RESET "PB1" TIME MEASUREMENT STOP

"PB2" "PB1"

"PB2"

Chronograph

Minute

Hand

Hour Hand

Small

second

Chronograph Second

Minute Hand

PB1

24Hour

Normal Position

1st Click Position

2nd Click Position

Chronograph

Minute

Hand

Hour Hand

Small

second

Chronograph Second

Minute Hand

PB1

24Hour

Normal Position

1st Click Position

2nd Click Position

E) CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure shoud be performed when the chronograph second hand

do not return to the 0 second position after the chronograph has been reset,

and including after the battery has been replaced.

1. Pull the crown to the 2nd Click Position.

2. Press the button "PB1" once to set the chronograph second hand ahead one scale,

or keep pushing to set the chronograph second hands quickly.

3. Once the chronograph second hand has been zeroed, reset the time and return the crown to its

normal position.

* Do not return crown to normal position while chronograph second hand

return to 12:00 (ZERO) position.

Hand stops on the way when crown are returned to normal position and these

positions are recognized as 12:00 (ZERO) position.

These specifications might be changed without prior notice.

Chronograph

Minute

Hand

Hour Hand

Small

second

Chronograph Second

Minute Hand

PB1

24Hour

Normal Position

1st Click Position

2nd Click Position

This manual suits for next models
