Quick Start Guide

Cisco Small Business

WRV210 Wireless-G VPN Router with

RangeBooster

Package Contents

•WRV210 Router

•Ethernet Cable

•Power Adapter

•Product CD-ROM

•Quick Start Guide

Cisco Small Business WRV210 Quick Start Guide 1

Welcome

Thank you for choosing the Cisco WRV210, a Wireless-G VPN Router with

RangeBooster. The WRV210 router is a secure wireless networking device

for your small business.

This guide describes how to physically install your WRV210 and how to

install and launch the WRV210 Configuration Utility.

Before You Begin

Before you begin the installation, make sure that you have the following

equipment and services:

•Broadband Internet access account

•PC with Ethernet interface (RJ-45)

Getting to Know the WRV210

Front Panel

POWER—(Green) Shines steady when the router is powered on.

DMZ—(Green) Shines steady when the router has an available DMZ port. If

the LED is flashing, the router is sending or receiving data over the DMZ

port. A DMZ can be configured to allow Internet traffic to access a

specified computer on your network, while protecting the rest of your LAN

from exposure.

2 Cisco Small Business WRV210 Quick Start Guide

INTERNET—(Green) Shines steady when the router is connected to your

broadband network device (cable, DSL modem, or other). Flashes when

the router is sending or receiving data over the Internet port.

WIRELESS—(Green) Shines steady when there is a successful wireless

connection. Flashes when the router is actively sending or receiving data

over the wireless network.

1-4 (ETHERNET)—(Green) Shines steady when a device is connected to

the specified port. Flashes when the router is actively sending or receiving

data over the specified port.

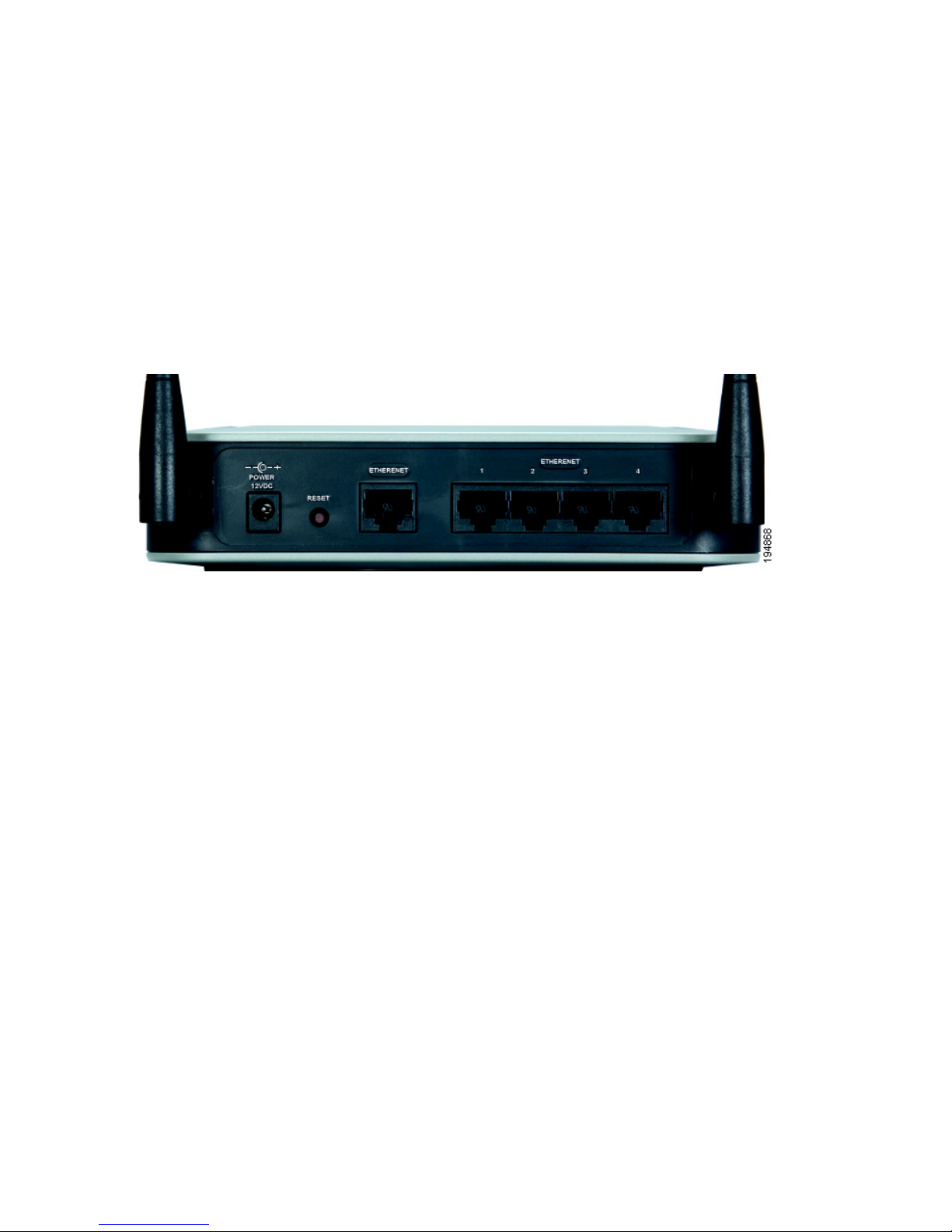

Back Panel

POWER—Connects the router to power, using the AC power cable.

RESET—Performs the following functions:

•Warm reboot—Press the button for one second to restart the router

without losing any of the current configuration settings.

•Factory reset—Press the button for approximately 15 seconds to reset

the router to the factory default settings. You can also restore the

factory default settings from the Administration > Factory Defaults page

in the web-based Configuration Utility.

INTERNET—Connects the router to your broadband network device

(cable, DSL modem, or other).

1-4 (ETHERNET)—Connects the router to your PCs and network devices.

Cisco Small Business WRV210 Quick Start Guide 3

Default Settings

Installing the WRV210

Placement Options

You can place the router horizontally on a desktop or mount it on the wall.

Desktop Option

For desktop placement, place the router horizontally on a surface so it sits

on its four rubber feet.

Wall Option

To mount the router on the wall, follow these steps.

STEP 1Determine where you want to mount the router.

STEP 2Install two screws (not supplied) 2-9/16 in. apart (approximately

6.45 cm.) Leave about 1/8 in. (about 3 mm) of the head exposed.

STEP 3With the back panel pointing up (if installing vertically), position the

router so that the wall-mount crisscross slots on the bottom panel

line up with the two screws.

STEP 4Place the wall-mount slots over the screws and slide the router

down until the screws fit snugly into the wall-mount slots.

Parameter Value

Username admin

Password admin

LAN IP 192.168.1.1

DHCP Range 192.168.1.100 to 192.168.1.253

193817

Wall

mount

slots

2-9/16

4 Cisco Small Business WRV210 Quick Start Guide

Connecting the Equipment

STEP 1Make sure that all of your network hardware is powered off,

including the router, PCs, and broadband network device.

STEP 2Connect one end of an Ethernet cable to one of the LAN ports

(labeled 1-4) on the back of the router, and the other end to an

Ethernet port on a PC.

NOTE You must connect one computer with an Ethernet cable for the

purpose of the initial configuration. After you complete the initial

configuration, administrative tasks can be performed from a

wireless connection.

STEP 3Repeat the previous step to connect more PCs, a switch, or other

network devices to the router.

Cisco Small Business WRV210 Quick Start Guide 5

STEP 4Connect an Ethernet cable from the Broadband network device to

the Internet port on the router’s back panel.

STEP 5Connect the power adapter to the router’s Power port, and then

insert the other end into an electrical outlet.

NOTE Use only the power adapter that is supplied with the router.

Using a different power adapter could damage the router.

The Power and Internet LEDs on the front panel will shine green as

soon as the power adapter is connected properly.

STEP 6Power on the connected devices and the broadband network

device.

The hardware installation is now complete.

6 Cisco Small Business WRV210 Quick Start Guide

Verifying the Hardware

Installation

To verify the hardware installation, complete the following tasks:

•Check the LED states, as described in Getting to Know the WRV210,

page 1.

•If the LED does not show the expected status, check the cable

connections.

NOTE If you need help resolving a problem, visit the Cisco Small

Business Support Community at www.cisco.com/go/

smallbizsupport. For technical documentation and other links, see

Where to Go From Here, page 14.

Getting Started with the

Configuration

The following instructions explain how to set up the Internet connection,

configure the wireless network, and secure the wireless network.

Setting Up the Internet Connection

Before you begin, make sure that you have the setup information for the

specific type of Internet connection for your Internet Service Provider

(ISP). The installation technician from the ISP should have provided this

information when installing the broadband connection. If not, contact your

ISP to request the settings.

STEP 1Using one of the PCs that you previously connected to the router,

start your web browser.

NOTE You must complete the initial installation from a PC that is

physically connected to the router. You cannot configure the

router from a PC that is connected wirelessly.

Cisco Small Business WRV210 Quick Start Guide 7

STEP 2To connect to the web-based Configuration Utility, enter the

router’s default LAN IP address in the browser’s Address bar:

http://192.168.1.1

A password request prompt appears.

STEP 3Enter the following user name and password, and then click OK.

•User name: admin

•Password: admin

NOTE For added security, you should later set a new administrator

password by using the Administration > Management page in

the web-based Configuration Utility.

The web-based Configuration Utility appears, displaying the Basic

Setup page.

STEP 4In the Internet Setup section, choose the Internet Connection

Type that was specified by your ISP:

• Automatic Configuration - DHCP: This type of connection

allows your router to obtain an IP address dynamically from

your ISP’s network.

•StaticIP:This type of connection requires that your ISP

assigned a fixed IP address to your account.

• PPPoE: This type of connection requires a login for each

Internet connection.

• PPTP: This type of connection is used in Europe only.

•L2TP:This type of connection is used mostly in Europe.

•HeartBeatSignal:This type of connection is used in Australia.

STEP 5Enter the information that your ISP provided. The fields vary,

depending on the selected connection type.

• IP Address, Subnet Mask, and Default Gateway: Enter the

information that the ISP provided for your fixed IP address.

• Primary DNS and Secondary DNS: Enter the IP address of at

least one Domain Name System (DNS) server for your ISP.

8 Cisco Small Business WRV210 Quick Start Guide

• Username and Password: Enter the login information for your

ISP account.

• PPTP Server or Authentication Server: Enter the server IP

address or name, as provided by your ISP.

• Host Name and Domain Name: Complete these fields only if

required by your ISP (often required by cable ISPs).

• Connect on Demand and Max Idle Time: Choose this option to

automatically disconnect from the Internet if the connection is

idle for the specified number of seconds. This option is helpful

if you are billed based on the amount of connection time.

• Keep Alive: Choose this option to remain connected to the

Internet regardless of the level of activity.

STEP 6When you are finished entering the Internet connection settings,

click Save to save the changes.

STEP 7To test the Internet connection, start a web browser on any

connected computer and enter a valid website address, such as

www.cisco.com.

Configuring the Wireless Network

STEP 1To configure the router for the wireless network, click Wireless >

Basic Wireless Settings in the navigation tree.

STEP 2From the Wireless Network Mode drop-down list, choose the

appropriate mode for your network devices:

•Mixed:Supports Wireless-G and Wireless-B devices

•G-Only:Supports only Wireless-G devices

•B-Only:Supports only Wireless-B devices

• Disable: Disables wireless networking

STEP 3Enter the following information in the SSID table to configure up to

four wireless networks:

• Wireless Network Name (SSID): Enter a name for your

network to identify it to the wireless devices that connect to the

router.

•TXRateLimitation:Keep the default value for the transmission

rate.

Cisco Small Business WRV210 Quick Start Guide 9

• SSID Broadcast: Click Enabled to allow all wireless devices in

range to see the SSID for this wireless network. Click Disabled

for increased privacy. With this feature disabled, your users will

need to know the SSID in order to configure their wireless

connections, since the SSID will not appear automatically when

they scan the area for available networks.

•WMM:Check this box to enable Wi-Fi Multimedia. This feature

provides basic prioritization of data packets to support voice

and video applications.

STEP 4From the drop-down list, choose the Wireless Channel to be used

by the wireless network devices. In most cases, the default

selection should be sufficient, but you may need to change this

setting if there is interference from other wireless networks in the

area.

NOTE During the initial configuration, ignore the Wireless LAN

Schedule section of this page. Later, if needed, you can

configure a schedule to enable or disable each wireless

network during specified days and times.

STEP 5When you are finished entering the wireless network settings, click

Save to apply the changes.

Securing the Wireless Network

STEP 1To choose the security options for your network, click Wireless >

Wireless Security in the navigation tree.

STEP 2From the Select SSID drop-down list, choose the SSID that you

want to configure. You will need to repeat this procedure for each

SSID that you enabled on the Basic Wireless Settings page.

STEP 3Choose the Security Mode. Cisco recommends using the highest

level of security that is supported by your network devices.

Choose from the following options:

•WEP:Weak security with a basic encryption method that is not

as secure as WPA. WEP may be required if your network

devices do not support WPA.

This manual suits for next models

Table of contents

Other Cisco Wireless Router manuals

Cisco

Cisco 1812W - Integrated Services Router Wireless User manual

Cisco

Cisco 3825 Series User manual

Cisco

Cisco Linksys WRT120N User manual

Cisco

Cisco Valet Plus Owner's manual

Cisco

Cisco RV340W User manual

Cisco

Cisco Universal Broadband Router uBR7200 Original instructions

Cisco

Cisco Linksys WRT610N User manual

Cisco

Cisco ASR 920 series User manual

Cisco

Cisco Linksys EA2700 User manual

Cisco

Cisco WRT610N - Simultaneous Dual-N Band Wireless... User manual

Cisco

Cisco WRT610N - Simultaneous Dual-N Band Wireless... User manual

Cisco

Cisco Valet User manual

Cisco

Cisco Linksys WRV54G User manual

Cisco

Cisco Catalyst IR1800 Rugged Series Quick start guide

Cisco

Cisco RB-WRT54GS2 - Wireless-G Broadband Router User manual

Cisco

Cisco WRT54G2 Linksys User manual

Cisco

Cisco EPC3925 User manual

Cisco

Cisco 876W - Integrated Services Router Wireless User manual

Cisco

Cisco Catalyst IR1800 Rugged Series User manual

Cisco

Cisco 4402 - Wireless LAN Controller Guide

Cisco

Cisco WRT54G2 Linksys User manual

Cisco

Cisco WRV210 - Wireless-G VPN Router Instruction Manual

Cisco

Cisco RV134W User manual

Cisco

Cisco C3201FESMIC-TP= - 3201 Fast EN Switch Mobile Interface Card Expansion... User manual

Popular Wireless Router manuals by other brands

Milesight

Milesight UG67 user guide

Airlogic

Airlogic AirSync Class 1 Features

Samsung

Samsung WCH730B user manual

TELEFONICA

TELEFONICA USB Adapter quick start guide

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series quick start

Askey

Askey RAC2V1K user manual

Alloy

Alloy WLF2454AP-S user guide

TP-Link

TP-Link TL-WR542G user guide

NETGEAR

NETGEAR WNR2000v4 user manual

Hama

Hama 53120 Operating instruction

Intellinet

Intellinet 524582 user manual

Asus

Asus RT-N10P user guide

D-Link

D-Link DIR-506L Quick installation guide

Sapido

Sapido GR297n user manual

Asus

Asus DSL-N55U user guide

AMTC

AMTC WR7502 user guide

Compaq

Compaq CP-2W - iPAQ Connection Point manual

SMC Networks

SMC Networks WBR14-N2 FICHE user guide
