Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Cisco 850 Series and Cisco 870 Series

Access Routers Cabling and Setup

Quick Start Guide

Contents

•Cisco One-Year Limited Hardware Warranty Terms, page 1-2

•Locate the Product Serial Number, page 1-3

•Before Installation, page 1-3

•Connect the Antenna to the Wireless Router (Optional), page 1-7

•Connect the Power-over-Ethernet Module to the Cisco 870 Series Router

(Optional), page 1-9

•Typical Installations of the Cisco 850 Series and Cisco 870 Series Routers,

page 1-11

•Connect the Router, page 1-16

•Install SDM and Configure the Router, page 1-18

•Related Documentation, page 1-19

•Obtaining Documentation and Submitting a Service Request, page 1-20

English

Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

Cisco One-Year Limited Hardware Warranty Terms

1-2

Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Cisco One-Year Limited Hardware Warranty Terms

The following are special terms applicable to your hardware warranty. Your

formal Warranty Statement, including the warranty applicable to Cisco software,

appears in the Cisco Information Packet that accompanies your Cisco product.

Duration of Hardware Warranty: One (1) Year

Replacement, Repair or Refund Procedure for Hardware: Cisco or its service

center will use commercially reasonable efforts to ship a replacement part within

ten (10) working days after receipt of the RMA request. Actual delivery times may

vary depending on Customer location.

Cisco reserves the right to refund the purchase price as its exclusive warranty

remedy.

To Receive a Return Materials Authorization (RMA) Number: Please contact

the party from whom you purchased the product. If you purchased the product

directly from Cisco, contact your Cisco Sales and Service Representative.

Complete the form below and keep for ready reference.

Product warranty terms and other information applicable to Cisco products are

available at the following URL:

http://www.cisco.com/go/warranty

Product purchased from:

Their telephone number:

Product Model and Serial number:

Maintenance Contract number:

1-3

Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

Locate the Product Serial Number

The serial number label for the router is located on the rear of the chassis, above

the Ethernet LAN ports. (See Figure 1-1.)

Figure 1-1 Product Serial Number Location

Before Installation

•Check Items Shipped with the Router

•Nonwireless Routers

•Read the Safety Warnings and Guidelines

•Remove the Caution Sticker

Check Items Shipped with the Router

Table 1-1 lists the quantity of the items that are shipped with each router model in

the Cisco 850 series and the Cisco 870 series routers. Figure 1-2 depicts the

items.

Verify that the items listed in Table 1-1 were shipped with the router. If any of the

items is missing or damaged, contact your customer service representative.

120729, 78-16262-01 Rev A0

G.SHDSL

ISDN S/T

LAN

FE0 FE1 FE2 FE3

Cisco 878

CONSOLE

AUX

RESET

+5,+9 VDC

SN: AAANNNNXXXX

Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

Before Installation

1-4

Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Table 1-1 Items Shipped with Cisco 850 Series and Cisco 870 Series Routers

Item

Cisco 851 and

Cisco 871

Cisco 857 and

Cisco 877 Cisco 876 Cisco 878

Ethernetcable(straight-through)1111

DSL1cable

1. DSL = digital subscriber line. Used for an asynchronous digital subscriber line (ADSL) or multirate symmetrical

high-data-rate digital subscriber line (G.SHDSL).

Not applicable 12

2. An RJ-11-to-RJ-11 straight-through cable is shipped, unless an RJ-11-to-RJ-11 crossover cable is specified.

3. An RJ-11-to-RJ-11 straight-through cable is shipped, unless an RJ-11-to-RJ-11 crossover cable or an RJ-11-to-RJ-45 cable

is specified.

ISDN4S/T cable

4. ISDN = Integrated Services Digital Network.

Not applicable Not applicable Optional Optional

Consolecable 1111

Console-auxiliary5cable

5. Console-auxiliary cable is used to connect the router console port to an asynchronous modem for dial backup or remote

management.

Optional Optional Optional Optional

Poweradapter 1111

Power cord6

6. Power cords are ordered as applicable to country or geographic region.

1111

Cisco documentation7

7. Includes the Regulatory Compliance and Safety Information for Cisco 800 Series Routers document and the Cisco 850 Series

and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide (this document). Also includes the Declarations

of Conformity and Regulatory Information for Cisco Access Products with 802.11a/b/g and 802.11b/g Radios document for

wireless models.

1 1 1 1

Cisco Router and Security

Device Manager (SDM)

software CD

1111

Swivel-mount dipole antenna

(wireless router models only)

Cisco 851:

1 antenna

Cisco 871:

2 antennas

Cisco 857:

1antenna

Cisco 877:

2 antennas

1-5

Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

Before Installation

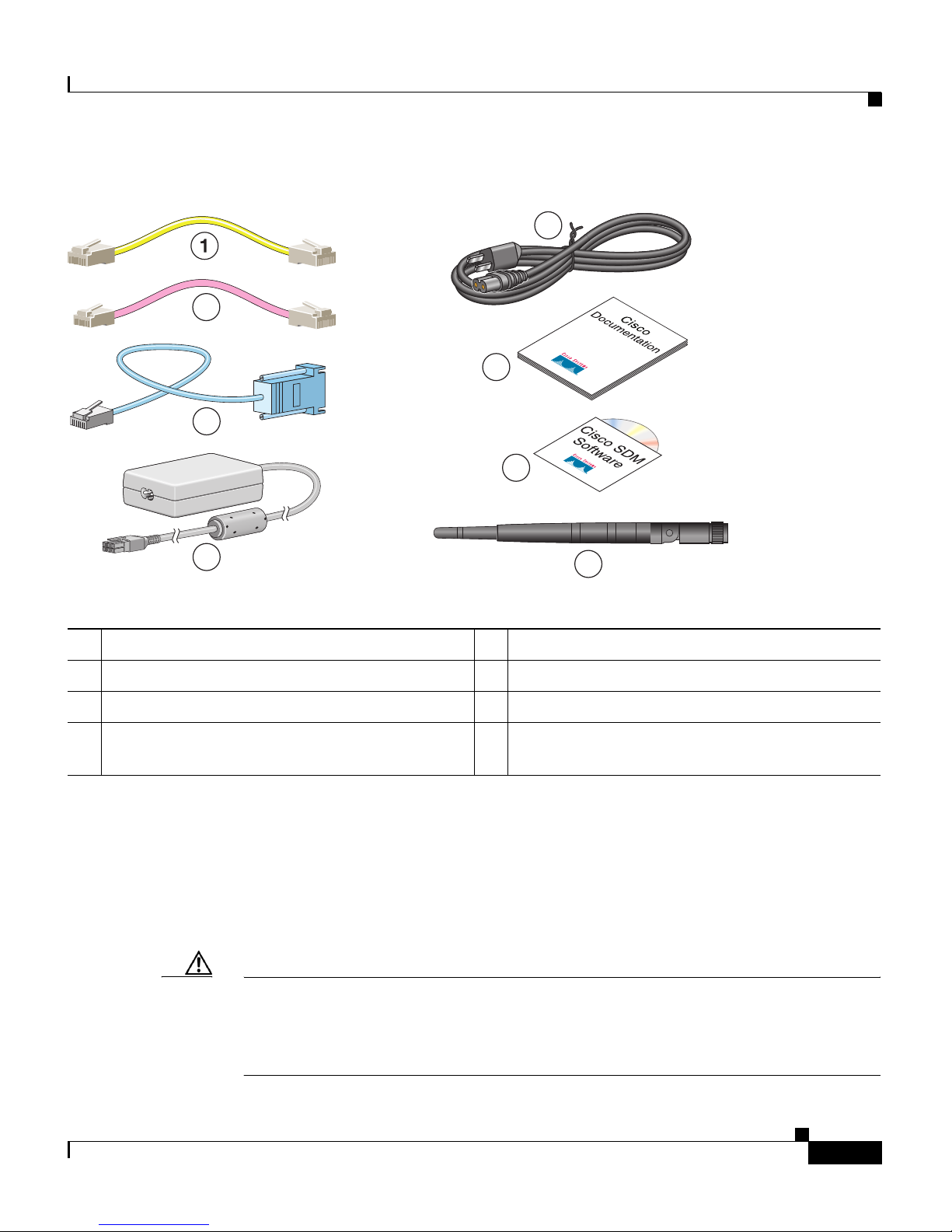

Figure 1-2 Items Included with the Cisco 850 Series and Cisco 870 Series Routers

The following cables are not included with the router. You need to order them

separately.

•Modem cable—For connecting the router console port to an asynchronous

modem for dial backup and remote management.

•Orange ISDN S/T cable—For connecting devices to the ISDN S/T port.

Caution Both LAN and WAN ports can use RJ-45 connectors. Use caution when

connecting cables to these connectors. To avoid damage to the router, do not

connect telephone-network voltage (TNV) circuits (such as ISDN or DSL

circuits) to safety extra-low voltage (SELV) circuits (such as LAN circuits).

1Yellow Ethernet cable 5Black power cord for adapter

2Lavender DSL cable (optional) 6Product documentation

3Light blue console cable 7Cisco SDM software CD

4Router power adapter 8Swivel-mount dipole antenna (wireless router

models only)

120730

Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

Before Installation

1-6

Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Nonwireless Routers

Portions of this guide do not apply to nonwireless models of the Cisco 850 series

and Cisco 870 series routers. Some illustrations show the router with antennas

attached, whereas the nonwireless routers do not have antennas or antenna

connectors on the back panel. However, except for the “Connect the Antenna to

the Wireless Router (Optional)” section, the connection procedures are the same

for wireless and nonwireless router models.

Read the Safety Warnings and Guidelines

Before you begin to connect your router, read the Regulatory Compliance and

Safety Information for Cisco 800 Series Routers document that is shipped with the

router. This document provides important safety warnings and guidelines.

Remove the Caution Sticker

Locate the yellow caution label that covers the LAN ports. Simply peel off the

label and the LAN ports are ready for use. Be sure that you do not connect ISDN

telephone lines to these LAN ports.

1-7

Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

Connect the Antenna to the Wireless Router (Optional)

Connect the Antenna to the Wireless Router

(Optional)

The Cisco 850 series wireless routers support the use of a single 2.4-GHz antenna.

(See Figure 1-3.) The Cisco 870 series wireless routers support the use of two

2.4-GHz antennas. (See Figure 1-4.)

Figure 1-3 Cisco 857 Wireless Router with Single Antenna

ADSLoPOTS

LAN

FE0 FE1 FE2 FE3

Cisco 857W

CONSOLE

AUX

RESET

+5,+12 VDC

122242

SN: XXXNNNNXXXX

Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

Connect the Antenna to the Wireless Router (Optional)

1-8

Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Figure 1-4 Cisco 871 Wireless Router with Two Antennas

To connect the antenna or antennas to a wireless router, follow these steps:

Step 1 Attach each antenna to a reverse-polarity threaded Neill-Concelman (RP-TNC)

connector on the back of the router and tighten the connector hand-tight.

Step 2 After you connect the antenna to the back of the router, orient the antenna so that

it is straight up.

LAN

FE0 FE1 FE2 FE3

Cisco 871W

CONSOLE

AUX

RESET

+5,+12 VDC

LEFT

RIGHT / PRIMARY

WAN

FE4

122241

SN: XXXNNNNXXXX

1-9

Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

Connect the Power-over-Ethernet Module to the Cisco 870 Series Router (Optional)

Connect the Power-over-Ethernet Module to the

Cisco 870 Series Router (Optional)

Power-over-Ethernet (PoE) is supported on the Cisco 870 Series routers only. If

you purchased a PoE module, connect all four Ethernet cables on the PoE module

to the four LAN Ethernet ports on the Cisco 870 Series router. (See Figure 1-5.)

Make sure that you connect all four Ethernet cables.

If the cables are too close together for easy insertion, move the plastic cable guard

away from the connector end of the cables.

Caution To ensure proper PoE module operation, do not connect the PoE module power

supply to the PoE module before you connect the PoE module to the router.

Although Figure 1-5 shows the Cisco 871 router connected to a PoE module, this

connection works for all router models in the Cisco 870 series.

Note When you connect a device (such as a PC or IP phone) to the PoE module, you

may notice a 1- to 2-second delay before the LED indicator for the port comes on.

Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

Connect the Power-over-Ethernet Module to the Cisco 870 Series Router (Optional)

1-10

Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide

78-16262-04

Figure 1-5 Connecting the PoE Module to the Router

1Cisco 870 series router 5Router power adapter

2Ethernet cables on the PoE module (four

RJ-45 connectors in series)

6PoE power plug

3PoE module 7Router power plug

4PoE power adapter

122351

+5,+12 VDC

LEFT

RIGHT/ PRIMARY

LAN

FE0F

E1F

E2FE3

Cisco 871W

CONSOLE

AUX

RESET

WAN

FE4

To LAN

3210

PWR

SN: XXXNNNNXXXX

This manual suits for next models

Table of contents

Other Cisco Wireless Router manuals

Cisco

Cisco UBR7225VXR Manual

Cisco

Cisco cBR 8 User manual

Cisco

Cisco WRT320N - Wireless-N Gigabit Router Wireless User manual

Cisco

Cisco ASR 9000 Series User manual

Cisco

Cisco Small Business WRP400 User manual

Cisco

Cisco LINKSYS WRT54GX4 User manual

Cisco

Cisco WRT54G2 Linksys User manual

Cisco

Cisco Firepower 8140 Instruction Manual

Cisco

Cisco Linksys E1000 User manual

Cisco

Cisco Small Business RV315W Instruction Manual

Cisco

Cisco Catalyst IR8140 Heavy Duty Series Manual

Cisco

Cisco Valet User manual

Cisco

Cisco Linksys X-Series User manual

Cisco

Cisco Catalyst IR1800 Rugged Series User manual

Cisco

Cisco Linksys E3000 User manual

Cisco

Cisco UBR7246VXR User manual

Cisco

Cisco Linksys X1000 User manual

Cisco

Cisco WRT610N - Simultaneous Dual-N Band Wireless... User manual

Cisco

Cisco Universal Broadband Router uBR7200 Original instructions

Cisco

Cisco ASR 9010 Instruction Manual

Cisco

Cisco Linksys EA2700 User manual

Cisco

Cisco Valet M10 User manual

Cisco

Cisco WRVS4400N - Small Business Wireless-N Gigabit Security... Instruction Manual

Cisco

Cisco Linksys E900 User manual

Popular Wireless Router manuals by other brands

Milesight

Milesight UG67 user guide

Airlogic

Airlogic AirSync Class 1 Features

Samsung

Samsung WCH730B user manual

TELEFONICA

TELEFONICA USB Adapter quick start guide

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series quick start

Askey

Askey RAC2V1K user manual

Alloy

Alloy WLF2454AP-S user guide

TP-Link

TP-Link TL-WR542G user guide

NETGEAR

NETGEAR WNR2000v4 user manual

Hama

Hama 53120 Operating instruction

Intellinet

Intellinet 524582 user manual

Asus

Asus RT-N10P user guide

D-Link

D-Link DIR-506L Quick installation guide

Sapido

Sapido GR297n user manual

Asus

Asus DSL-N55U user guide

AMTC

AMTC WR7502 user guide

Compaq

Compaq CP-2W - iPAQ Connection Point manual

SMC Networks

SMC Networks WBR14-N2 FICHE user guide
