CHIEF STS1 User manual

INSTALLATION INSTRUCTIONS

Small Swivel Table Stand

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

STS1

STS1 Installation Instructions

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademarkof Milestone AV Technologies.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weightof all equipment.

Reinforce the structure as required before installing the

component.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components attached to the STS1 up to (and including)

the display does not exceed 30 lbs (13.6 kg). Use with

products heavier than the maximum weight indicated may

result in collapse of the mount and its accessories causing

possible injury.

--SAVE THESE INSTRUCTIONS--

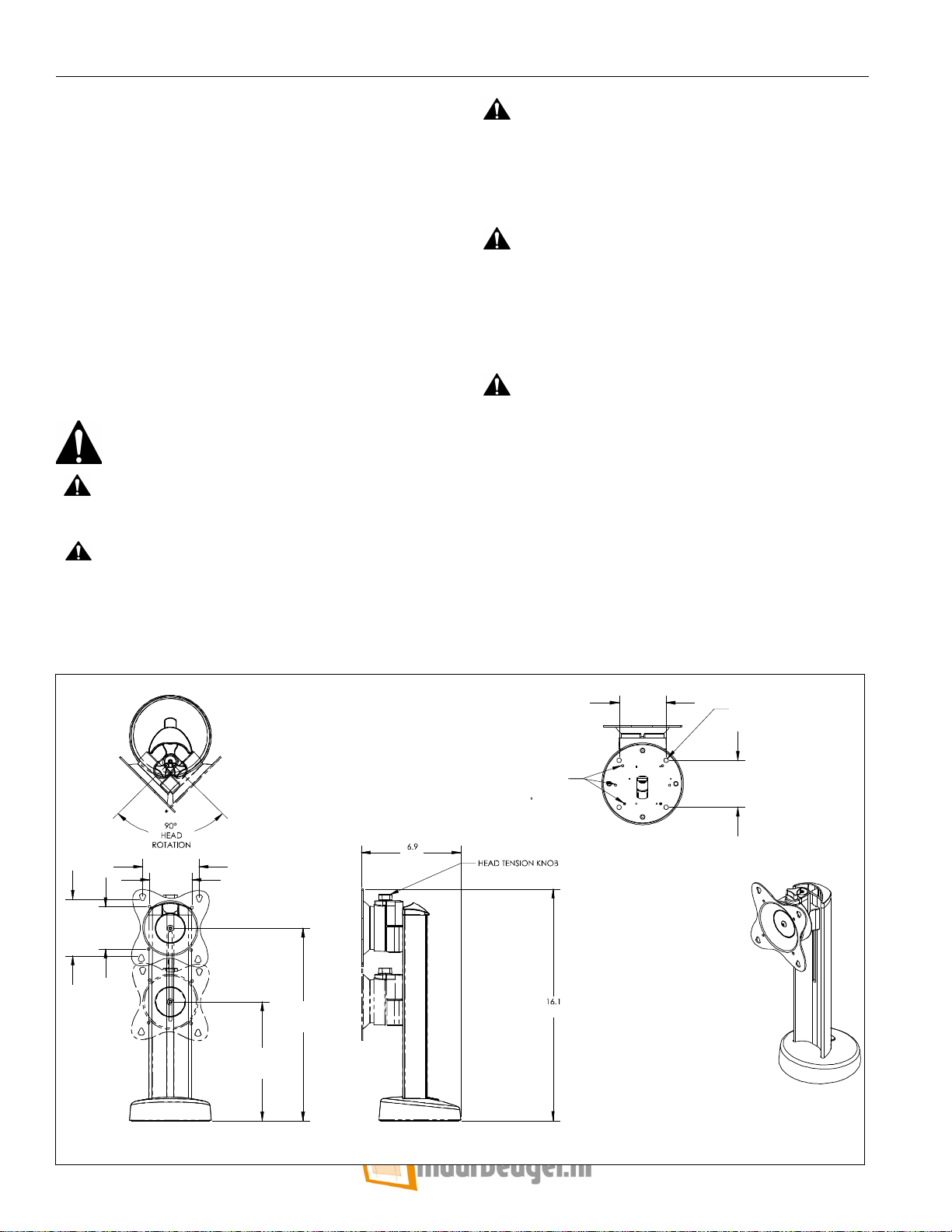

DIMENSIONS

13.4

MAX HEIGHT

8.3

MINHEIGHT

75MM

100MM

75MM

270

180

9090

180

270

2X 3 1/4

BOLT DOWN PATTERN

FOR 1/4" BOLTS

SETSCREW LOCATIONS

FOR ROTATIONAL STOP

SETTINGS IN BASE.

PRESET AT 90

[340.4]

[210.8]

[175.3]

[408.9]

[2X 82.6]

DIMENSIONS: INCHES

[MILLIMETERS]

Installation Instructions STS1

LEGEND

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Open-Ended Wrench

Llave de boca

Gabelschlüssel

Chave de bocas

Chiave a punte aperte

Steeksleutel

Clé à fourche

By Hand

A mano

Von Hand

Com a mão

A mano

Met de hand

À la main

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Drill Hole

Perforar

Bohrloch

Fazer furo

Praticare un foro

Gat boren

Percez un trou

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Remove

Quitar

Entfernen

Remover

Rimuovere

Verwijderen

Retirez

Optional

Opcional

Optional

Opcional

Opzionale

Optie

En option

Security Wrench

Llave de seguridad

Sicherheitsschlüssel

Chave de segurança

Chiave di sicurezza

Veiligheidssleutel

Clé de sécurité

STS1 Installation Instructions

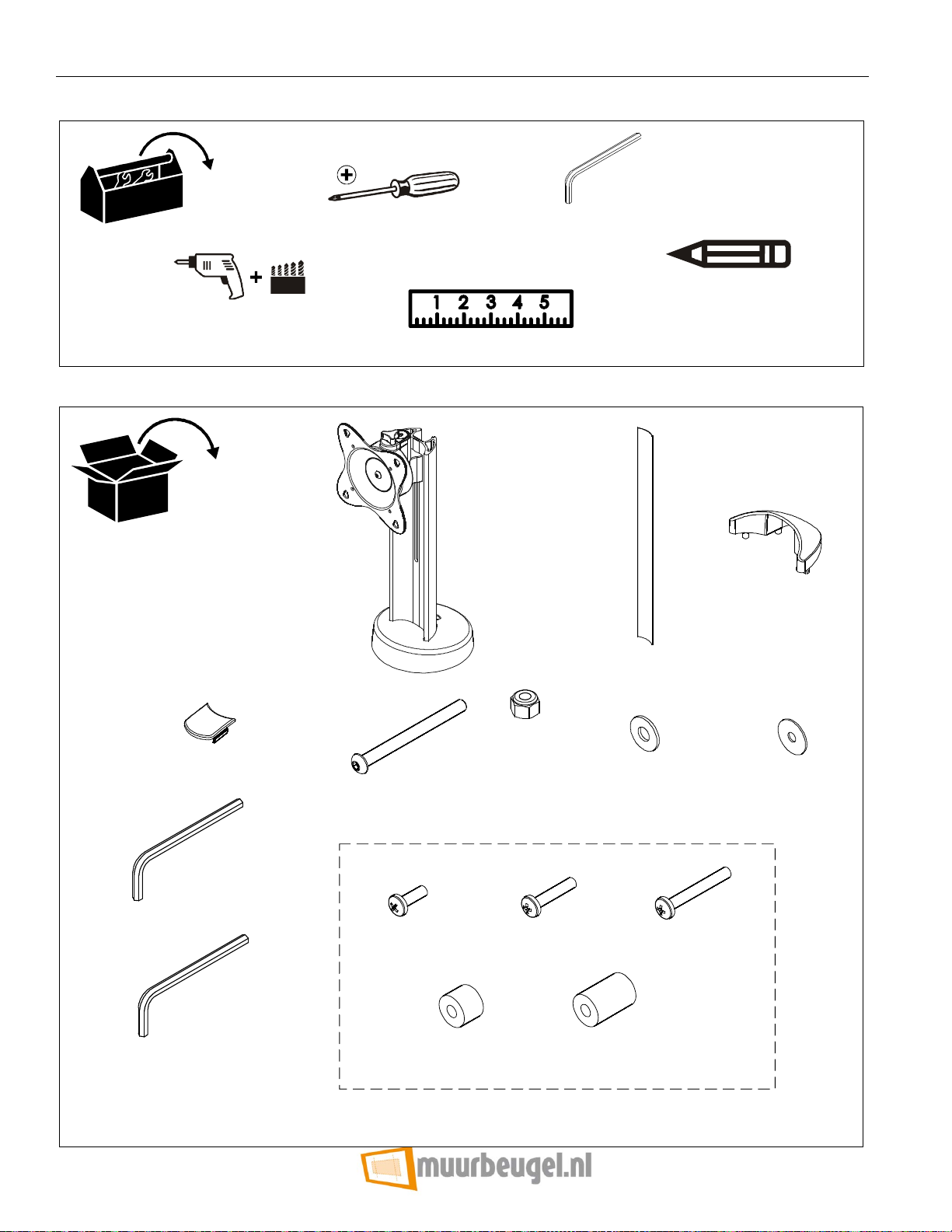

TOOLS REQUIRED FOR INSTALLATION

PARTS

5/16" (7.9mm)

3/32" (included)

5/32" (included)

A (1)

[Table stand]

B (1)

[Wire cover]

C (1)

[Top cap]

D (1)

[Base cable plug] G (4)

1/4" H (4)

1/4"

J (1) [Array hardware]

JA (4)

M4 x 12mm JB (4)

M4 x 20mm

JC (4)

M4 x 30mm

JD (4)

.500 x .194 x .750 JE (4)

.500 x .194 x .375

E (4)

1/4-20 x 3-1/4"

F (4)

1/4"

K (1)

3/32"

L (1)

5/32"

Installation Instructions STS1

INSTALLATION

Site Preparation

WARNING: EXCEEDING WEIGHT CAPACITY CAN

RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE

TO EQUIPMENT! It is the installer’s responsibility to make

sure the combined weight of all components attached to the

STS1 up to (and including) the display does not exceed 30 lbs

(13.6 kg).

WARNING: TURNING DISPLAY CAN CAUSE DAMAGE

TO SURROUNDING OBJECTS. Make certain location

provides enough area for the display to rotate ± 270° without

being obstructed, or lock display to a lesser rotation before

rotating for the first time.

Figure 1

IMPORTANT ! : The STS1 is shipped with the display

rotation set at the minimum of 90°. Base rotation may be

adjusted to 90°, 180° or 270° and locked if installation

location requires it. (See Figure 2)

Display head rotation may be adjusted in any increment

between 0° and 90°.

Setting Rotation Limits

1. Base rotation is factory-set at 90obut may be changed to

180° or 270° to allow necessary rotation. (See Figure 1)

2. Remove and save setscrews from two 90° holes in base

using 3/32" hex key (K). (See Figure 2)

3. Determine amount of rotation required in installation.

4. Place setscrews into the appropriate holes (180° or 270°)

and tighten to secure rotation amount. (See Figure 2)

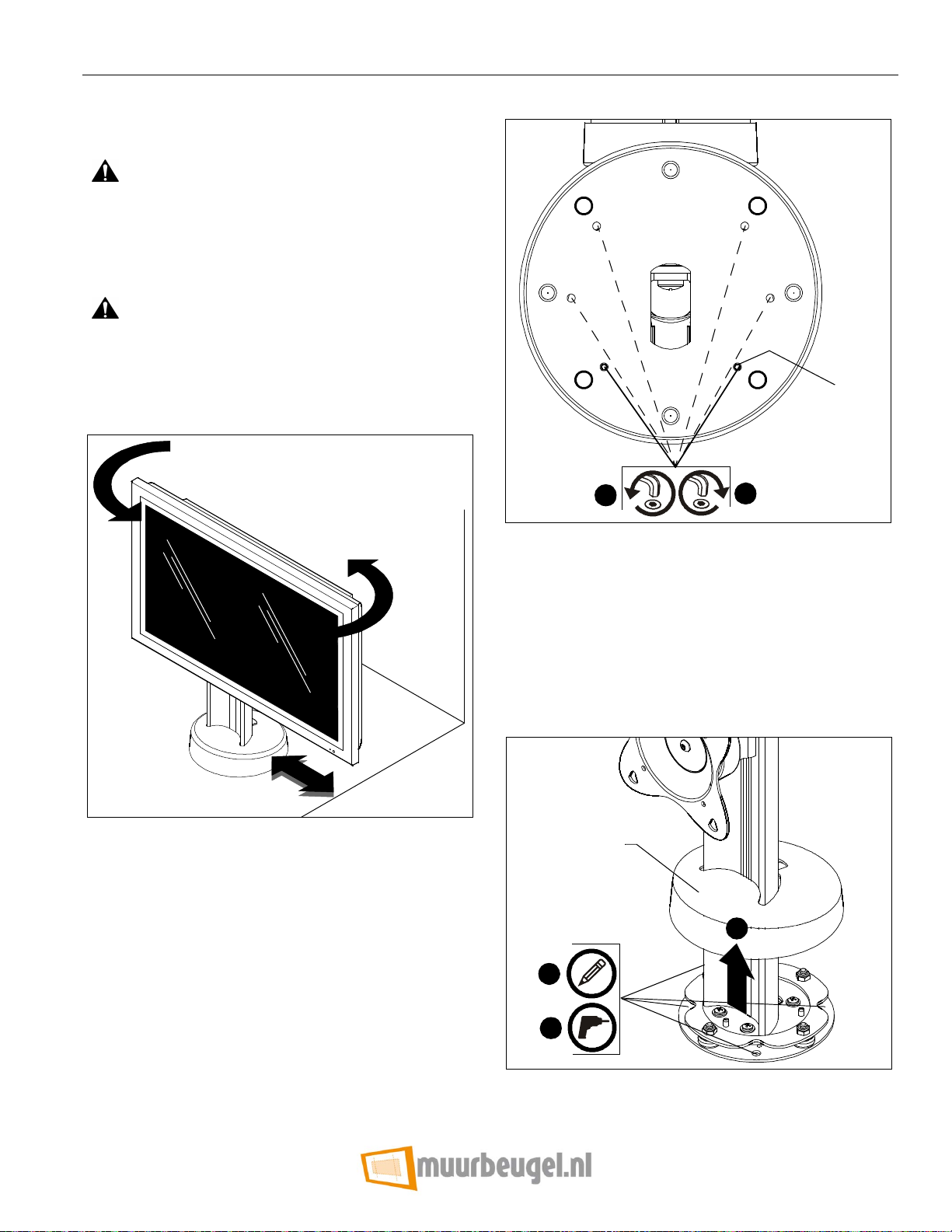

Figure 2

Attaching STS1 to Mounting Surface

1. Locate a flat surface (thickness of 3/4" minimum to 2-1/2"

maximum) on which to mount the STS1 assembly.

2. Carefully raise STS1 base cover and affix to STS1 column

using a piece of tape. (See Figure 3)

3. Mark four mounting hole locations on mounting surface.

(See Figure 3)

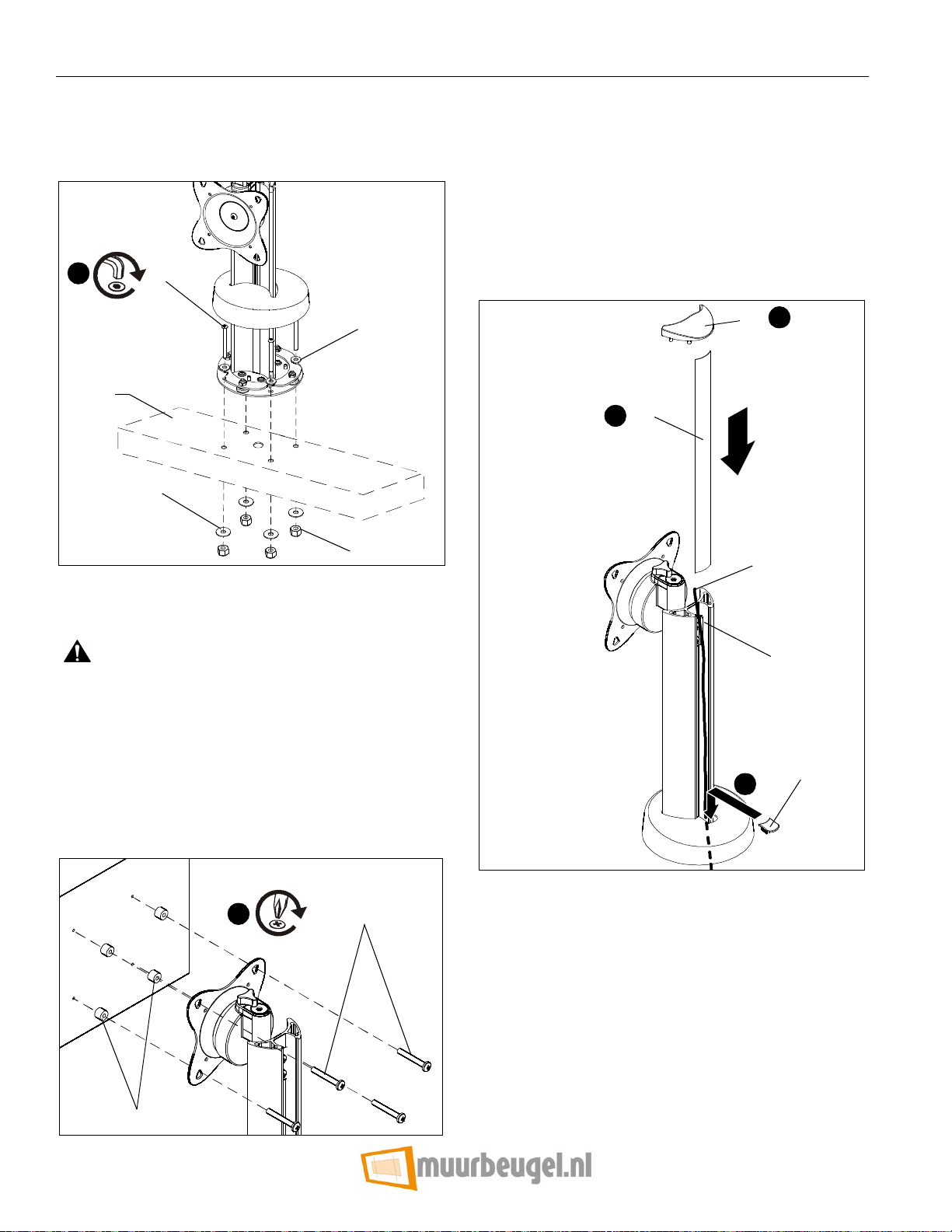

Figure 3

4. Drill four 5/16" diameter (7.9mm) holes through mounting

surfaceatmarks,andan optional1-5/8"diameter(41.3mm)

cable management hole. (See Figure 3)

180°

90°

180°

270°270°

Base rotation

preset at 90°

Base cover

STS1 Installation Instructions

5. Attach STS1 to mounting surface using 5/32" hex key (L)

and four 1/4-20 x 3-1/4" button head cap screws (E), four

flat 1/4" flat washers (G), four 1/4" fender washer (H), and

four 1/4" Nylock nuts (F). (See Figure 4)

6. Lower STS1 base cover.

Figure 4

Attaching Display

WARNING: IMPROPER INSTALLATION CAN LEAD TO

DISPLAY FALLING CAUSING SERIOUS PERSONAL

INJURY OR DAMAGE TO EQUIPMENT! Using screws of

improper size may damage your display. Properly sized

screws will easily and completely thread into display

mounting holes. If spacers are required, be sure to use longer

screws of the same diameter.

1. Select correct screws, spacers (if necessary) from the

hardware bag (J) and attachSTS1 to back of display. (See

Figure 5)

Figure 5

Cable Management

1. Run power cables from display to the back of the STS1.

2. Lay power cables down back and throughbottom of STS1,

and through mounting surface.

3. Add wire cover (B) to back of STS1 by sliding it into the

STS1 through the top. (See Figure 6)

4. Add top cap (C) to top of STS1. (See Figure 6)

5. Add base cable plug (D) to STS1 base. (See Figure 6)

Figure 6

(E) x 4

(H) x 4

(G) x 4

(F) x 4

Mounting

surface

(JA, JB or JC) x 4

(JD or JE, if required) x 4

Display

(B)

(C)

Cable path

Cable

(D)

(Display removed for clarity)

Installation Instructions STS1

Adjustments

Rotating Display

1. The display may be rotated upto 90° on the STS1 head by

using the 5/32" hex key (L) to loosen the fastener, rotating

the head in either direction, and tightening the fastener.

(See Figure 7)

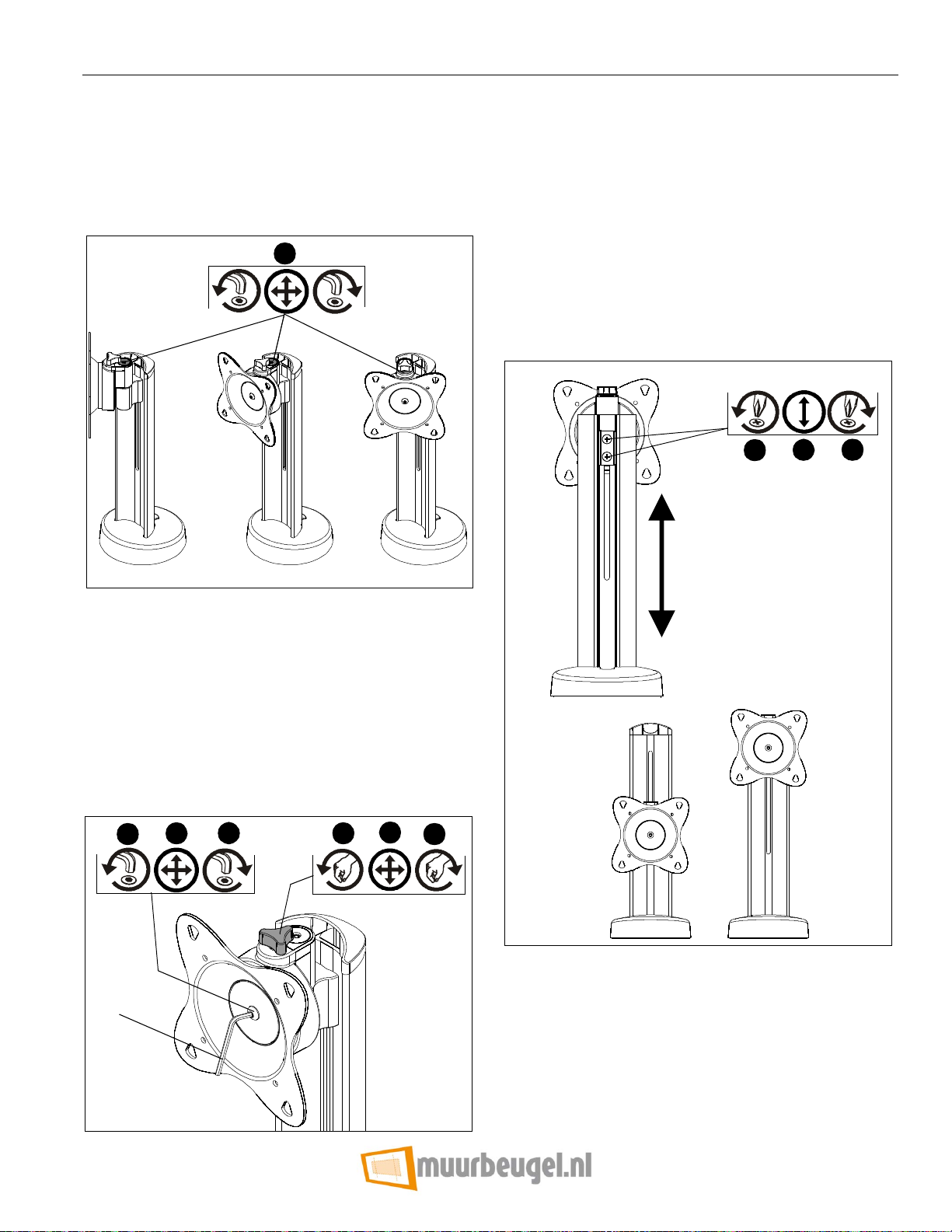

Figure 7

Display Roll, Pitch, Yaw Tension

The display roll, pitch and yaw tension can be adjusted either

using the tension adjustment knob, or the hex fastener on the

head assembly.

•Tension Adjustment Knob

1. Turn the tension adjustment knob counter-clockwise to

decrease tension. (See Figure 8)

2. Adjust STS1 head and display as required.

3. Turn adjustment knob clockwise to increase tension.

Figure 8

•Head Assembly Hex Fastener

4. Loosentheheadassemblyhexfastenerusingthe5/32"hex

key (L) to decrease tension. (See Figure 8)

5. Adjust STS1 head as required.

6. Tighten head assembly hex fastener to increase tension.

Raising/Lowering Display

1. Loosen, but do not remove, two Phillips head screws on

back of STS1 assembly. (See Figure 9)

2. Adjust display and head assembly to necessary height.

3. Tighten two Phillips head screws on back of STS1

assembly. (See Figure 9)

Figure 9

0° rotation

45° left rotation 45° right rotation

123

(L)

1 2 3

Extension Maximum

Extension

Table of contents

Other CHIEF Rack & Stand manuals

CHIEF

CHIEF FCA810V User manual

CHIEF

CHIEF PNR User manual

CHIEF

CHIEF MSP-TEQ9 User manual

CHIEF

CHIEF PAC716 User manual

CHIEF

CHIEF raxxess series User manual

CHIEF

CHIEF Fusion FCA831 User manual

CHIEF

CHIEF RMT2 User manual

CHIEF

CHIEF FCA4U User manual

CHIEF

CHIEF SSB-257 User manual

CHIEF

CHIEF Small Flat Panel In-Wall Swing Arm Mount FWDIW-I... User manual

CHIEF

CHIEF KFCD-110 User manual

CHIEF

CHIEF Thinstall MSTU User manual

CHIEF

CHIEF CM-7 User manual

CHIEF

CHIEF Kontour KRA243 User manual

CHIEF

CHIEF PSH-2000 User manual

CHIEF

CHIEF FMSSTRM User manual

CHIEF

CHIEF XFA1U User manual

CHIEF

CHIEF Structural Ceiling Plate with Flex Joint... User manual

CHIEF

CHIEF SL-150 User manual

CHIEF

CHIEF Wall Mount PDWP MB 46 L User manual

CHIEF

CHIEF FSA-1015 User manual

CHIEF

CHIEF MSP-KTPHD Series User manual

CHIEF

CHIEF KTP Series User manual

CHIEF

CHIEF PAC720 User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
