1. BEFORE YOU BEGIN

What is included

¾1 x J-Five™

¾Power Cord

¾Warranty Card

¾User Manual

Unpacking Instructions

Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that

all parts are present, and have been received in good condition. Notify the shipper immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture

must be returned to the factory, it is important that the fixture be returned in the original factory box

and packing.

AC Power

Figure 1 - AC Voltage Switch

To determine the power requirements for a particular fixture, see the label affixed to the back plate of

the fixture or refer to the fixture’s specifications chart. A fixture’s listed current rating is its average

current draw under normal conditions. All fixtures must be powered directly off a switched circuit and

cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch. Before applying power to a

fixture, check that the source voltage matches the fixture’s requirement.

Check the fixture or device carefully to make sure that if a voltage selection

switch exists that it is set to the correct line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the

line voltage applied. Damage to your fixture may result if the

line voltage applied does not match the voltage indicated on

the voltage selector switch. All fixtures must be connected to

circuits with a suitable Earth Ground.

Not all fixtures have a voltage

select switch. Please be sure to

connect to the proper voltage.

World Wide

General Information Chauvet Lighting

3000 North 29th Court

Hollywood, FL 33020

voice: 954.929.1115

fax: 954.929.5560

toll free: 800.762.1084

Technical Support Chauvet Lighting

3000 North 29th Court

Hollywood, FL 33020

voice: 954.929.1115 (Press 4)

fax: 954.929.5560 (Attention: Service)

World Wide Web www.chauvetlighting.com

J-Five 3

9/18/2007 2:53 PM

Safety Instructions

Please read these instructions carefully, which includes important

information about the: installation, usage and maintenance of this

product.

•Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction booklet.

•Always make sure that you are connecting to the proper voltage, and that the line voltage you are

connecting to is not higher than that stated on the decal or rear panel of the fixture.

•This product is intended for indoor use only!

•To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no

flammable materials close to the unit while operating.

•The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent

surfaces. Be sure that no ventilation slots are blocked.

•Always disconnect from power source before servicing or replacing fuse and be sure to replace with

same fuse size and type.

•Secure fixture to fastening device using a safety chain. Never carry the fixture solely by its head. Use

the carrying handles.

•Maximum ambient temperature (Ta) is 104°F (40°C). Do not operate fixture at temperatures higher

than this.

•In the event of a serious operating problem, stop using the unit immediately. Never try to repair the

unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center. Always use the same type spare parts.

•Never connect the device to a dimmer pack.

•Make sure the power cord is never crimped or damaged.

•Never disconnect the power cord by pulling or tugging on the cord.

•Avoid direct eye exposure to the light source while it is on.

•Do not daisy chain power to more than 50 units.

Caution! There are no user serviceable parts inside the unit. Do not open the housing or

attempt any repairs yourself. In the unlikely event your unit may require service,

please contact CHAUVET at: 954-929-1115.

J-Five 4 9/18/2007 2:53 PM

2. INTRODUCTION

Features

•Dual LED moonflower effect

•Dual rocker switches: 1 for LEDs, 1 for motors

Sound activated

Static (motors only)

Automatic

•Additional power output for daisy chaining units (max 50 units)

•Sound sensitivity knob

•Ultra bright LEDs

•Low power consumption

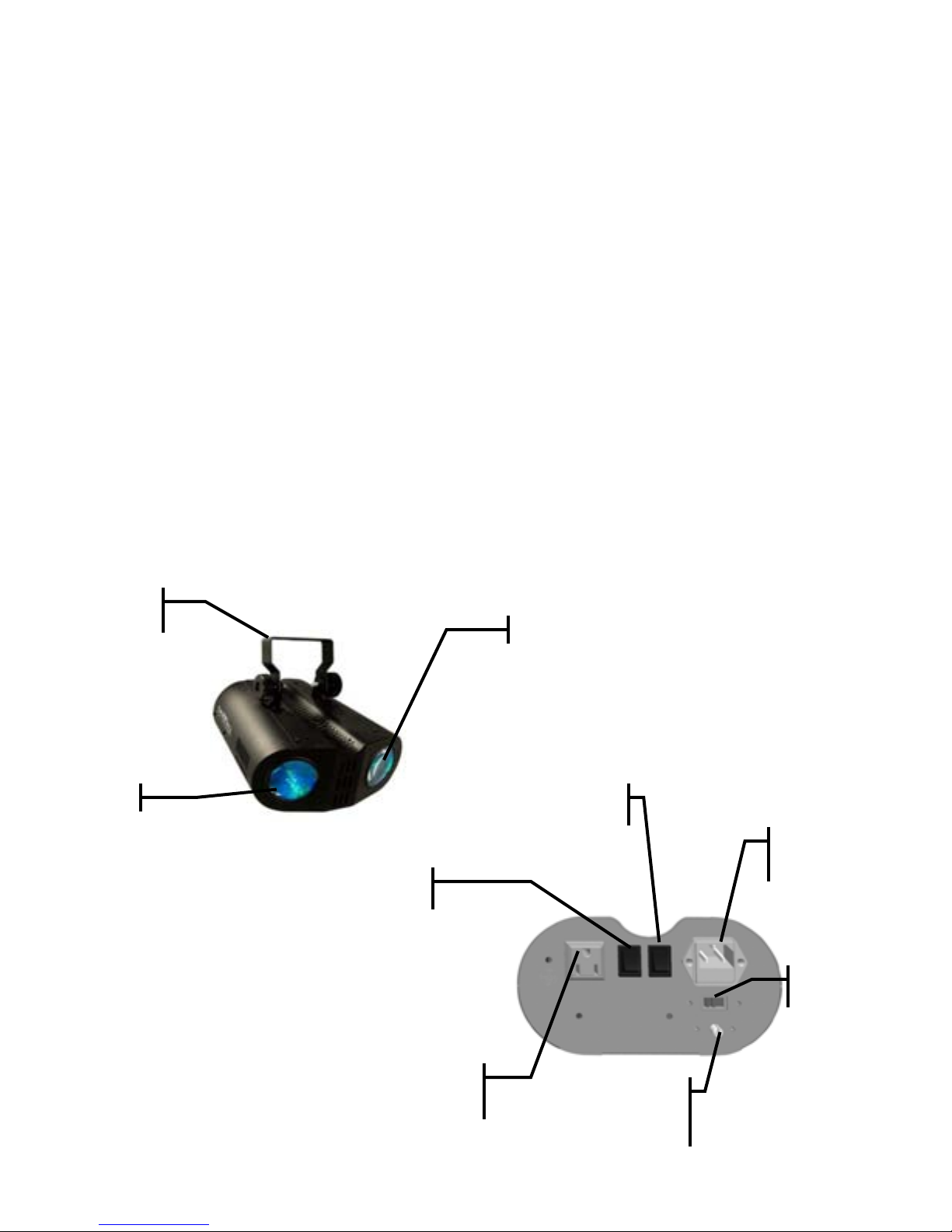

Product Overview

Hanging

Bracket

Lens

IEC Power

Connector

With Fuse holder

Sound

sensitivity

adjustment

Power Output for J-five

series only.

Max 50 units

Mode Selection

switch for movement

Mode Selection

switch for LED

Voltage Selector

switch

J-Five 5 9/18/2007 2:53 PM

3. SETUP

Disconnect the power cord before replacing a fuse and always

replace with the same type fuse.

Fuse Replacement

Hanging Clamp

Note!

Clamp is sold separatel

With a flat head screwdriver wedge the fuse

holder out of its housing. Remove the damaged

fuse from its holder and replace with exact

same type fuse. Insert the fuse holder back in

its place and reconnect power.

The fuse is located

inside this

compartment.

Remove using a flat

head screwdriver.

Mounting

ORIENTATION

This fixture may be mounted in any position provided there is adequate room for ventilation.

RIGGING

It is important never to obstruct the fan or vents pathway. Mount the

fixture using, a suitable “C” or “O” type clamp. Adjust the angle of the

fixture by loosening both knobs and tilting the fixture. After finding the

desired position, retighten both knobs.

•When selecting installation location, take into consideration lamp

replacement access and routine maintenance.

•Safety cables must always be used.

•Never mount in places where the fixture will be exposed to rain, high

humidity, extreme temperature changes or restricted ventilation.

J-Five 6 9/18/2007 2:53 PM

4. OPERATING INSTRUCTIONS

The J-Five LEDs operate in two different modes, designated by the two-position switch located on the

rear of the unit. In the O position the LEDs progress through a pre-programmed routine. In the I

position, the LEDs will react to sound, changing pattern and color based on sound input, as

determined by the microphone in the unit, and adjustable via the sensitivity knob located on the rear

of the unit.

The J-Five motors can operate in Sound-Active, Auto, or static mode. The mode is determined by the

position of the switch located on the rear of the unit. To switch between the three modes, place the

switch in either the I or II position for movement, or centered for static operation.

In the II position, the fixture operates in Sound-Active mode, the sensitivity of which can be adjusted

by the knob also located on the rear of the unit. To increase the sensitivity of the unit rotate the knob

clockwise.

In the I position the fixture operates in Auto mode, the light will rotate through a pre-programmed

routine, whether sound is present or not.

In Static mode, place switch in the O position, and the fixture will continue to light without rotating to

either an automatic or sound-activated response, determined by the two-position switch also located

on the rear of the unit.

2-Position LED Function Control Switch

=Automatic

= Sound Activated

3-Position Motor Control Switch

= Automatic

=Static

= Sound Activated

Troubleshooting

1) Verify that the power cord is plugged into both the wall and the unit, and check that the fuse is

in good working order.

2) If the unit fails to respond, place the unit in either auto or sound mode, listening for movement

of the motor inside the casing. If no sound is present, replace fuse and retry.

3) If the unit is still not working, verify the integrity of the outlet with another fixture.

If you still have a problem after trying the above solutions, please contact CHAUVET Technical

Support at the location on the next page.

J-Five 7 9/18/2007 2:53 PM

General Troubleshooting

Applies to

Symptom Solution(s)

Lights Foggers

& Snow Controllers Dimmers

& Chaser

Auto shut off Check fan thermal switch reset 9

Beam is very dim or

not bright Clean optical system or replace lamp

Check 220/110v switch for proper setting 9

Breaker/Fuse keeps

blowing Check total load placed on device 9

Chase is too slow Check users manual for speed adjustment 999

Device has no power Check for power on Mains.

Check device’s fuse. (internal and/or external) 999

Fixture is on but

there is no

movement to the

audio

Make sure you have the correct audio mode on the

control switches. If audio provided via ¼” jack, make

sure a live audio signal exists

Adjust sound sensitivity knob

999

Lamps cuts off

sporadically Possible bad lamp or fixture is overheating.

Lamp may be at end of its life. 9

Light will not come

on after power failure Some discharge lamps require a cooling off period

before the electronics in the fixture can kick start it

again, wait 5 to 10 minutes before powering up

Moves slow Check 220/110v switch for proper setting 9

No flash Re-install bulb, may have shifted in shipping 9

No light output Check slip ring & brushes for contact

Install bulb

Call service technician

Relay will not work Check reset switch

Check cable connections 9

Remote does not

work Make sure connector is firmly connected to device 99

Stand alone mode All Chauvet lighting fixtures featuring stand-alone

functions do not require additional settings, simply

power the fixture and it will automatically enter into this

mode

*Note not all items apply to all fixtures

If you still have a problem after trying the above solutions, please contact CHAUVET Technical

Support at the location below.

Technical Support

Address: Service Dept.

3000 N 29th Ct, Hollywood, FL 33020 (U.S.A.)

Support (Email): [email protected]

Telephone: (954) 929-1115 - (Press 4)

Fax: (954) 929-5560 - (Attention: Service)

Website: http://www.chauvetlighting.com

J-Five 8 9/18/2007 2:53 PM

General Maintenance

To maintain optimum performance and minimize wear fixtures should be cleaned frequently. Usage

and environment are contributing factors in determining frequency. As a general rule, fixtures should

be cleaned at least twice a month. Dust build up reduces light output performance and can cause

overheating. This can lead to reduced lamp life and increased mechanical wear. Be sure to power off

fixture before conducting maintenance.

Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust

collected on external vents and internal components. Clean all glass when the fixture is cold with a

mild solution of glass cleaner or Isopropyl Alcohol and a soft lint free cotton cloth or lens tissue. Apply

solution to the cloth or tissue and drag dirt and grime to the outside of the lens. Gently polish optical

surfaces until they are free of haze and lint.

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to

optimize light output. Cleaning frequency depends on the environment in which the fixture operates:

damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s

optics. Clean with soft cloth using normal glass cleaning fluid. - Always dry the parts carefully. - Clean

the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.

Returns Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products

returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the

fixture. Be prepared to provide the model number, serial number and a brief description of the cause

for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate

packaging is the customer’s responsibility. CHAUVET reserves the right to use its own discretion to

repair or replace product(s). As a suggestion, proper UPS packing, or double-boxing, is always a safe

method to use.

Note: If you are given a RA #, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) The RA #

5) A brief description of the symptoms

Claims

Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and

submit claims with the shipper in the event that a fixture is damaged due to shipping. Any other claim

for items such as missing component/part, damage not related to shipping, and concealed damage,

must be made within seven (7) days of receiving merchandise.

J-Five 9 9/18/2007 2:53 PM

Technical Specifications

WEIGHT & DIMENSIONS

Length............................................................................................................................. 9.8 in (249 mm)

Width .............................................................................................................................. 9.5 in (241 mm)

Height............................................................................................................................. 7.8 in (198 mm)

Weight .................................................................................................................................6 lbs (2.7 kg)

POWER

Switch-selectable power settings..............................................................120V 60Hz AC or 230V 50Hz

Fuse............................................................................................................................................2A 250V

Power Consumption....................................................................................16.2W (0.17A) max at 120V

Inrush Power .......................................................................................................17.8W (0.26A) at 120V

Power Factor.......................................................................................................................0.70 at 120V

Power Output....................................................................50 units max at 110V, 100 units max at 230V

LIGHT SOURCE

LED................................................................................2x 56 (16 Red, 24 Green, 16 Blue) 100,000 hrs

PHOTO OPTIC

Beam Angle........................................................................................................................................81°

THERMAL

Maximum ambient temperature...........................................................................................104°F (40°C)

ORDERING INFORMATION

J-Five..............................................................................................................................................J-Five

WARRANTY INFORMATION

Warranty.............................................................................................................. 1-year limited warranty

J-Five 10 9/18/2007 2:53 PM

Table of contents

Other Chauvet Light Fixture manuals

Chauvet

Chauvet Legend 1200E Wash User manual

Chauvet

Chauvet Intimidator Spot DMX-680 User manual

Chauvet

Chauvet Thruster Technical document

Chauvet

Chauvet Q-Spot 300 User manual

Chauvet

Chauvet LG-20 User manual

Chauvet

Chauvet BLACKLIGHT F-40 User manual

Chauvet

Chauvet COLORsplash JR LED-PAR83 Manual

Chauvet

Chauvet Followspot 1200 User manual

Chauvet

Chauvet Q-Spot 360-LED User manual

Chauvet

Chauvet DMX-685 User manual

Chauvet

Chauvet COLORado 3 User manual

Chauvet

Chauvet MiN Wash User manual

Chauvet

Chauvet Q-RollTM 250 User manual

Chauvet

Chauvet Q-Wash 36 User manual

Chauvet

Chauvet COLORado 3 User manual

Chauvet

Chauvet Legend 412Z User manual

Chauvet

Chauvet Batten 80i User manual

Chauvet

Chauvet Q-Wash 575 Manual

Chauvet

Chauvet PAR56 User manual

Chauvet

Chauvet PAR38US User manual

Chauvet

Chauvet LED-BANK4 User manual

Chauvet

Chauvet TFX-UVLED User manual

Chauvet

Chauvet STRIKE 1 User manual

Chauvet

Chauvet Legend 1200E Wash User manual

Popular Light Fixture manuals by other brands

Emos

Emos CLASSIC ZY1431T manual

Westinghouse

Westinghouse Outdoor Lighting Fixture owner's manual

Hedler

Hedler C 12 silent Operation manual

Blizzard Lighting

Blizzard Lighting Puck: CSI manual

Energetic Lighting

Energetic Lighting ELYSL-5004 Series installation instructions

Lightmaxx

Lightmaxx Shaft 5R user manual

Triarch

Triarch 31083 Assembly instructions

Philips

Philips 32614 Series user manual

IKEA

IKEA TIVED Assembly instructions

Lightolier

Lightolier LP200 specification

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH user manual

Martin

Martin MAC 250 Krypton user manual

Cooper Lighting

Cooper Lighting Halo L3232E Specification sheet

Stageline

Stageline ODW-2410RGBW instruction manual

Light Sky

Light Sky Tornado Series user manual

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U specification

Lightolier

Lightolier Lytespan 83ED17S specification

Lightolier

Lightolier Calculite CS8226 specification
