Chauvet Legend 412Z User manual

Quick Reference Guide

English EN

Español ES

Français FR

Legend™ 412Z QRG EN

About this

Guide

The Legend™ 412Z Quick Reference Guide (QRG) has basic product

information such as connection, mounting, menu options, and DMX values.

Download the User Manual from www.chauvetpro.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change

without notice.

Safety Notes

•DO NOT open this product. It contains no user-serviceable parts.

•DO NOT look at the light source when the product is on.

•CAUTION: This product’s housing may be hot when lights are

operating.

•Mount this product in a location with adequate ventilation, at least

20 in (50 cm) from adjacent surfaces.

•DO NOT leave any flammable material within 50 cm of this product

while operating or connected to power.

•USE a safety cable when mounting this product overhead.

•DO NOT operate this product outdoors or in any location where dust,

excessive heat, water, or humidity may affect it. (IP20)

•DO NOT operate this product if the housing, lenses, or cables appear

damaged.

•DO NOT connect this product to a dimmer or rheostat.

•ONLY connect this product to a grounded and protected circuit.

•ONLY use the hanging/mounting bracket or the handles to carry this

product. Do not carry by the moving head.

•In the event of a serious operating problem, stop using immediately.

•The maximum ambient temperature is 113 °F (45 °C). Do not operate

this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, or Mexico, contact your distributor

to request support or return a product. Visit www.chauvetpro.com

for contact

information.

EN Legend™ 412Z QRG

What is

Included

•Legend™ 412Z

•Neutrik® powerCON® power

cord

•Omega bracket with mounting

hardware

•Warranty Card

•Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input

voltage range of 100~240 VAC, 50/60 Hz.

Power Linking

You can link up to 9 Legend™ 412Z products at 120 VAC, 15 at 208 VAC, or

at 230 VAC. Never exceed this number. Power linking cords can be

purchased separately.

AC Plug

Connection

Wire (U.S.)

Wire (Europe)

Screw Color

AC Live

Black

Brown

Yellow/Brass

AC Neutral

White

Blue

Silver

AC Ground

Green/Yellow

Green

Replacing the

Fuse

1. Disconnect this product from power.

2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap

from the housing.

3. Remove blown fuse and replace with a fuse of the same type and

rating.

4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Legend™ 412Z will work with a DMX controller using a regular DMX

serial connection. A DMX Primer is available from www.chauvetpro.com.

DMX Connection

The Legend™ 412Z uses a regular DMX data connection for its DMX

personalities: 15chan, 27chan, 31chan, and 34chan. See the

User Manual to

connect and configure for DMX operation.

Legend™ 412Z QRG EN

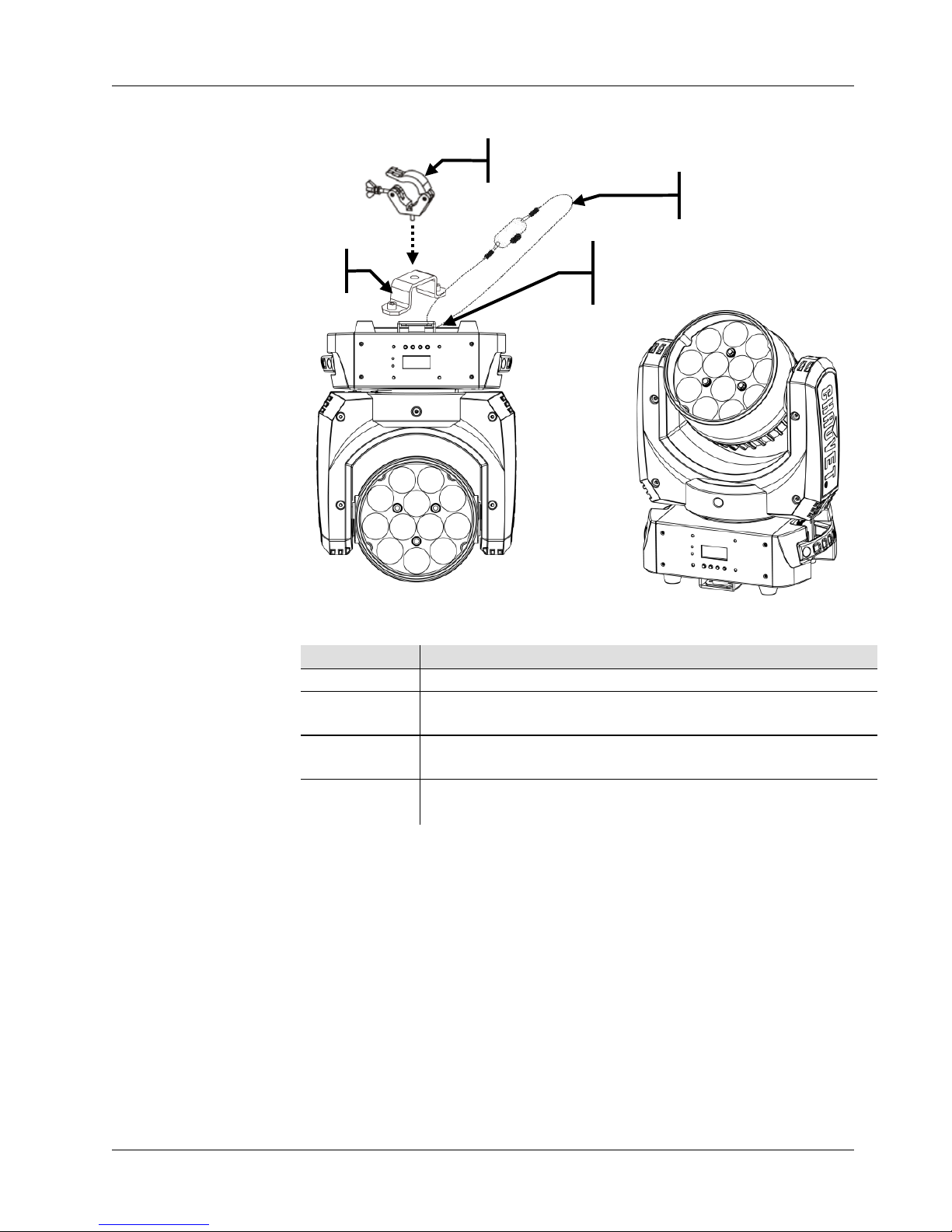

Mounting

Product

Mounting

Diagram

Control Panel

Description

Button

Function

<MENU>

Exits from the current menu or function

<ENTER>

Enables the currently displayed menu or sets the

currently selected value into the selected function

<UP>

Navigates upwards through the menu list and

increases the numeric value when in a function

<DOWN>

Navigates downwards through the menu list and

decreases the numeric value when in a function

Secure the safety cable using

the passageway on the

bottom of the product.

Overhead Mounting

Floor Mounting

Clamp

(Model #CLP-15)

Safety Cable

(Model #CH

-05)

Omega

Bracket

EN Legend™ 412Z QRG

Menu Options

Main Level

Programming Levels

Description

DMX Address

001–512

Selects the DMX starting address

Channel Mode

15chan

Selects 15–channel DMX mode

27chan

Selects 27–channel DMX mode

31chan

Selects 31–channel DMX mode

34chan

Selects 34–channel DMX mode

Pan Inverse

Yes

Defines the direction of the pan function

Tilt Inverse

Yes

Defines the direction of the tilt function

Back Light

Display backlight always on

Off

Display backlight turns off after 1 min.

White Balance

Red

125–255 Defines the color temperature when the red,

green, and blue faders are set at 100%

Green

Blue

Manual Test

Pan

000–255

Sets Pan 0–540°

Tilt

Sets Tilt 0–270°

Red1

Sets Quadrant 1 red LED intensity

Green1

Sets Quadrant 1 green LED intensity

Blue1

Sets Quadrant 1 blue LED intensity

White1

Sets Quadrant 1 white LED intensity

Red2

Sets Quadrant 2 red LED intensity

Green2

Sets Quadrant 2 green LED intensity

Blue2

Sets Quadrant 2 blue LED intensity

White2

Sets Quadrant 2 white LED intensity

Red3

Sets Quadrant 3 red LED intensity

Green3

Sets Quadrant 3 green LED intensity

Blue3

Sets Quadrant 3 blue LED intensity

White3

Sets Quadrant 3 white LED intensity

Red4

Sets Quadrant 4 red LED intensity

Green4

Sets Quadrant 4 green LED intensity

Blue4

Sets Quadrant 4 blue LED intensity

White4

Sets Quadrant 4 white LED intensity

Zoom

Sets zoom position

Dimmer

Sets dimmer value

Strobe

Selects the strobe frequency (0–20 Hz)

Auto Test

Starts the product’s test sequence

Temp.

Shows the product’s current temperature

(°C)

Fan Mode

Low

Selects the fan’s Operation mode.

High

Auto

Fixture Time

Shows the total amount of time the product

has been used (hours)

Firmware Version

Shows the version of the software that has

been installed

Reset

Resets product to its home setting

Legend™ 412Z QRG EN

DMX Values

15chan

Channel

Function

Value

Percent/Setting

Pan

000 ó255

0–540°

Fine Pan

000 ó255

Fine control of panning

Tilt

000 ó255

0–270°

Fine Tilt

000 ó255

Fine control of tilting

P/T Speed

000 ó255

Pan/Tilt speed (fast to slow)

Dimmer

000 ó255

0–100%

7 Strobe

000 ó019

020 ó039

040 ó059

060 ó079

080 ó099

100 ó119

120 ó139

140 ó159

160 ó179

180 ó199

200 ó219

220 ó255

No function

0–20 Hz

Strobe Macro 1

Strobe Macro 2

Strobe Macro 3

Strobe Macro 4

Strobe Macro 5

Strobe Macro 6

Strobe Macro 7

Strobe Macro 8

Strobe Macro 9

No function

Red

000 ó255

0–100%

Green

000 ó255

0–100%

Blue

000 ó255

0–100%

White

000 ó255

0–100%

EN Legend™ 412Z QRG

DMX Values (cont.)

15chan

(cont.)

Channel

Function

Value

Percent/Setting

12 Color Macro

000 ó019

020 ó029

030 ó039

040 ó049

050 ó059

060 ó069

070 ó079

080 ó089

090 ó099

100 ó109

110 ó119

120 ó129

130 ó139

140 ó149

150 ó159

160 ó169

170 ó179

180 ó189

190 ó199

200 ó209

210 ó219

220 ó229

230 ó239

240 ó255

No function

Macro 1

Macro 2

Macro 3

Macro 4

Macro 5

Macro 6

Macro 7

Macro 8

Macro 9

Macro 10

Macro 11

Macro 12

Macro 13

Macro 14

Macro 15

Macro 16

Macro 17

Macro 18

Macro 19

Macro 20

Macro 21

Macro 22

Macro 23

Macro Speed

000 ó255

0–100%

Zoom

000 ó255

0–100%

15 Reset

000 ó007

008 ó069

070 ó129

130 ó190

191 ó205

206 ó255

No function

Reset pan/tilt

Reset all

Pan/tilt movement blackout

Zoom presets

No function

Legend™ 412Z QRG EN

DMX Values (cont.)

27chan

Channel

Function

Value

Percent/Setting

Pan

000 ó255

0–540°

Fine Pan

000 ó255

Fine control of panning

Tilt

000 ó255

0–270°

Fine Tilt

000 ó255

Fine control of tilting

P/T Speed

000 ó255

Pan/Tilt speed (fast to slow)

Dimmer

000 ó255

0–100%

7 Strobe

000 ó019

020 ó039

040 ó059

060 ó079

080 ó099

100 ó119

120 ó139

140 ó159

160 ó179

180 ó199

200 ó219

220 ó255

No function

0–20 Hz

Strobe Macro 1

Strobe Macro 2

Strobe Macro 3

Strobe Macro 4

Strobe Macro 5

Strobe Macro 6

Strobe Macro 7

Strobe Macro 8

Strobe Macro 9

No function

Red Quadrant 1

000 ó255

0–100%

Green Quadrant 1

000 ó255

0–100%

Blue Quadrant 1

000 ó255

0–100%

White Quadrant 1

000 ó255

0–100%

Red Quadrant 2

000 ó255

0–100%

Green Quadrant 2

000 ó255

0–100%

Blue Quadrant 2

000 ó255

0–100%

White Quadrant 2

000 ó255

0–100%

Red Quadrant 3

000 ó255

0–100%

Green Quadrant 3

000 ó255

0–100%

Blue Quadrant 3

000 ó255

0–100%

White Quadrant 3

000 ó255

0–100%

Red Quadrant 4

000 ó255

0–100%

Green Quadrant 4

000 ó255

0–100%

Blue Quadrant 4

000 ó255

0–100%

White Quadrant 4

000 ó255

0–100%

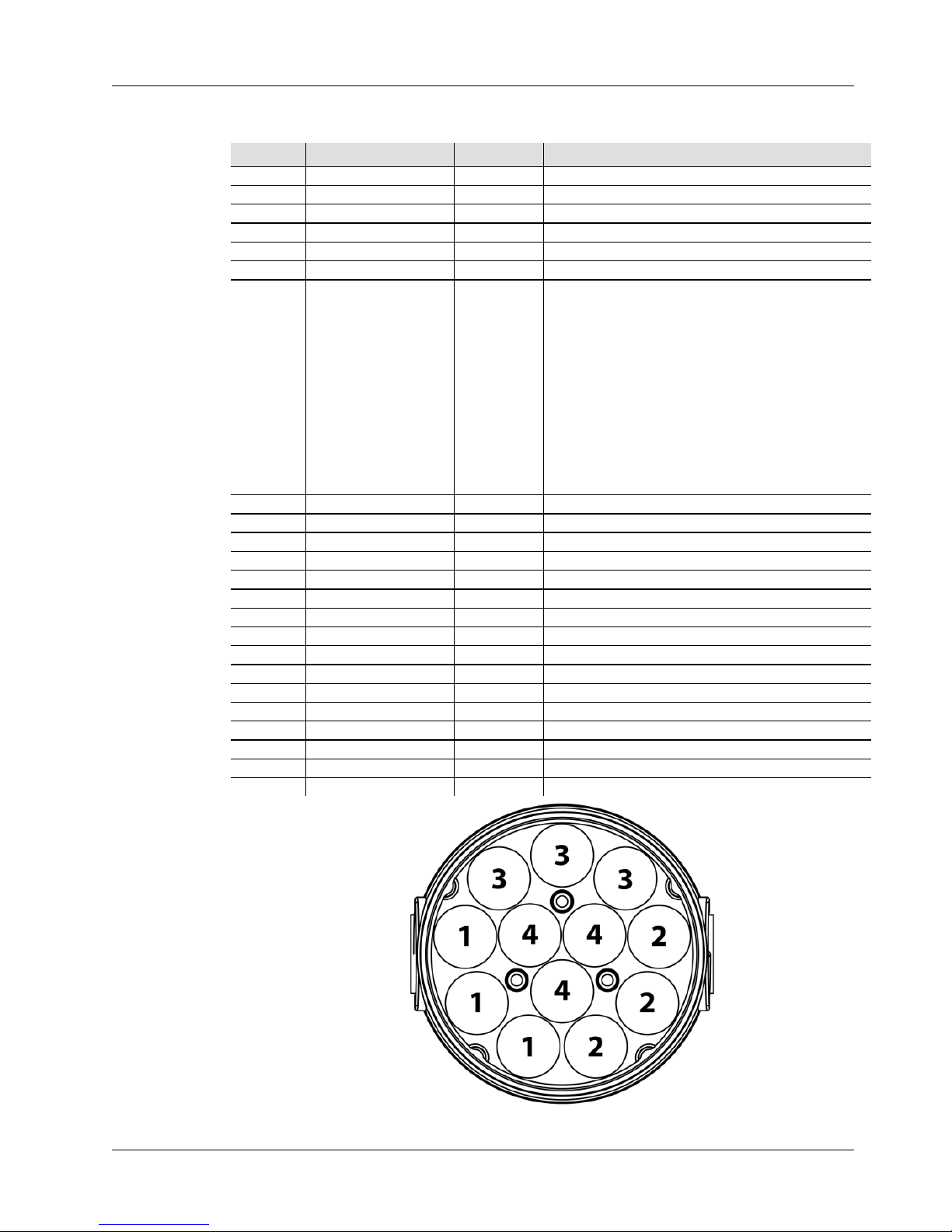

Quadrant Diagram

EN Legend™ 412Z QRG

DMX Values (cont.)

27chan

(cont.)

Channel

Function

Value

Percent/Setting

24 Color Macro

000 ó019

020 ó029

030 ó039

040 ó049

050 ó059

060 ó069

070 ó079

080 ó089

090 ó099

100 ó109

110 ó119

120 ó129

130 ó139

140 ó149

150 ó159

160 ó169

170 ó179

180 ó189

190 ó199

200 ó209

210 ó219

220 ó229

230 ó239

240 ó255

No function

Macro 1

Macro 2

Macro 3

Macro 4

Macro 5

Macro 6

Macro 7

Macro 8

Macro 9

Macro 10

Macro 11

Macro 12

Macro 13

Macro 14

Macro 15

Macro 16

Macro 17

Macro 18

Macro 19

Macro 20

Macro 21

Macro 22

Macro 23

Macro Speed

000 ó255

0–100%

Zoom

000 ó255

0–100%

27 Reset

000 ó007

008 ó069

070 ó129

130 ó190

191 ó205

206 ó255

No function

Reset pan/tilt

Reset all

Pan/tilt movement blackout

Zoom presets

No function

Legend™ 412Z QRG EN

DMX Values (cont.)

31chan

Channel

Function

Value

Percent/Setting

Pan

000 ó255

0–540°

Fine Pan

000 ó255

Fine control of panning

Tilt

000 ó255

0–270°

Fine Tilt

000 ó255

Fine control of tilting

P/T Speed

000 ó255

Pan/Tilt speed (fast to slow)

Dimmer

000 ó255

0–100%

7 Strobe

000 ó019

020 ó039

040 ó059

060 ó079

080 ó099

100 ó119

120 ó139

140 ó159

160 ó179

180 ó199

200 ó219

220 ó255

No function

0–20 Hz

Strobe Macro 1

Strobe Macro 2

Strobe Macro 3

Strobe Macro 4

Strobe Macro 5

Strobe Macro 6

Strobe Macro 7

Strobe Macro 8

Strobe Macro 9

No function

Red Quadrant 1

000 ó255

0–100%

Green Quadrant 1

000 ó255

0–100%

Blue Quadrant 1

000 ó255

0–100%

White Quadrant 1

000 ó255

0–100%

Dimmer Quadrant 1

000 ó255

0–100%

Red Quadrant 2

000 ó255

0–100%

Green Quadrant 2

000 ó255

0–100%

Blue Quadrant 2

000 ó255

0–100%

White Quadrant 2

000 ó255

0–100%

Dimmer Quadrant 2

000 ó255

0–100%

Red Quadrant 3

000 ó255

0–100%

Green Quadrant 3

000 ó255

0–100%

Blue Quadrant 3

000 ó255

0–100%

White Quadrant 3

000 ó255

0–100%

Dimmer Quadrant 3

000 ó255

0–100%

Red Quadrant 4

000 ó255

0–100%

Green Quadrant 4

000 ó255

0–100%

Blue Quadrant 4

000 ó255

0–100%

White Quadrant 4

000 ó255

0–100%

Dimmer Quadrant 4

000 ó255

0–100%

Other manuals for Legend 412Z

Table of contents

Languages:

Other Chauvet Light Fixture manuals

Chauvet

Chauvet Q-WASH 260-LED User manual

Chauvet

Chauvet intimidator scan led 100 User manual

Chauvet

Chauvet Q-Spot 200 User manual

Chauvet

Chauvet S-Mover Manual

Chauvet

Chauvet LEDsplash 2 User manual

Chauvet

Chauvet PAR56 User manual

Chauvet

Chauvet Q-Spot 250 User manual

Chauvet

Chauvet Q-Spot 250 Manual

Chauvet

Chauvet Followspot 1200 User manual

Chauvet

Chauvet LEDrain 64 User manual

Chauvet

Chauvet Q-Spot 575 User manual

Chauvet

Chauvet Q-RollTM 250 User manual

Chauvet

Chauvet STRIKE 1 User manual

Chauvet

Chauvet Q-Spot 160-LED User manual

Chauvet

Chauvet PK PAR56C User manual

Chauvet

Chauvet Q-Wash LED User manual

Chauvet

Chauvet Stepper User manual

Chauvet

Chauvet MiN Spot RGBW User manual

Chauvet

Chauvet Circus User manual

Chauvet

Chauvet MiN Spot Manual

Chauvet

Chauvet Q-Wash LED User manual

Chauvet

Chauvet LEG-3000 Manual

Chauvet

Chauvet Q-Wash 575 User manual

Chauvet

Chauvet Intimidator Color DMX-500 Technical document

Popular Light Fixture manuals by other brands

Emos

Emos CLASSIC ZY1431T manual

Westinghouse

Westinghouse Outdoor Lighting Fixture owner's manual

Hedler

Hedler C 12 silent Operation manual

Blizzard Lighting

Blizzard Lighting Puck: CSI manual

Energetic Lighting

Energetic Lighting ELYSL-5004 Series installation instructions

Lightmaxx

Lightmaxx Shaft 5R user manual

Triarch

Triarch 31083 Assembly instructions

Philips

Philips 32614 Series user manual

IKEA

IKEA TIVED Assembly instructions

Lightolier

Lightolier LP200 specification

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH user manual

Martin

Martin MAC 250 Krypton user manual

Cooper Lighting

Cooper Lighting Halo L3232E Specification sheet

Stageline

Stageline ODW-2410RGBW instruction manual

Light Sky

Light Sky Tornado Series user manual

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U specification

Lightolier

Lightolier Lytespan 83ED17S specification

Lightolier

Lightolier Calculite CS8226 specification
