Champion IUH 300 User manual

(12M) 1/03 Printed in U.S.A.

CH909-I

Undercounter High-Temperature

Dishwashing Machine

with Built-in Booster Heater

IUH300

STANDARD FEATURES

• Stainless steel, upper and lower

wash and rinse arms.

• Fresh, final rinse water replenishes wash

tank water.

• Rinse-sentry feature. Ensures proper

180°F/82°C final rinse temperature.

• Standard liquid detergent & rinse-aid

dispensing pumps.

• Top and side panels.

• Wash tank heater maintains water at required

temperature.

• Standard pumped drain, flexible fill and drain

lines and standard line strainer for total ease

of installation.

• Low .74 US gal. (2.9L)

water usage per rack.

• 150 second cycle time. 20 racks per hour

capacity.

• 13" [330mm] door opening accommodates

cafeteria trays.

• Energy efficient – only 30 Amp. breaker

required for 40°F/22°C rise.

• Complete with two 20" x 20" [508mm x

508mm]racks (one peg and one flat bottom).

Champion Industries, Inc.

P. O. Box 4149, Winston-Salem, NC 27115 USA

Tel: 336/661-1556 Fax: 336/661-1979

www.championindustries.com

SPECIFIER STATEMENT

Specified unit will be Champion model IUH300 undercounter

high temperature dishwashing machine with built-in booster.

Features include maximum 13" door opening clearance,

standard liquid detergent & rinse-aid dispensing pumps,

top and side panels. Unit will have standard pumped drain

and rinse-sentry feature to ensure proper 180°F final

rinse temperature.

IUH300 UNDERCOUNTER

Project

Item No.

Quantity

2674 N. Service Road,

Jordan Station, Ontario, Canada L0R 1S0

Tel: 800/263-5798 Fax: 905/562-4618

OPTIONS & ACCESSORIES

CST – Combination Sink/Table

Machine on Right P/N 403561

CST – Combination Sink/Table

Machine on Left P/N 403562

Flat Bottom Dish Rack P/N 101273

Peg Dish Rack P/N 101285

6" Stand P/N 710809

Undercounter High Temperature

Dishwashing Machine

with Built-in Booster Heater

IUH300

IUH300 UNDERCOUNTER

Dimensions shown in

inches and [millimeters]

Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • USA • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com

SPECIFICATIONS

Capacity

Racks per hr. 24

Motor horsepower

Wash 1/2

Water consumption

Gal. per hr. (max. use)

US Gal. (liters) 14.6 (12)

Gal. per rack

US Gal. (liters) .74 (.62)

Temperatures °F

Wash (minimum) 150/66

Rinse (minimum) 180/82

Heating

Tank heat, electric (kW) 2

Electric booster

(kW required for 40°F/22°C rise) 4

Time cycle in seconds

Wash 120

Rinse 15

Dwelll 15

Total 150

Utilities

1Electrical

220/50/1; 220/60/1; hard wiring required (see box below).

2Hot Water

140°F/60°C Min., connection for 40°F/22°C rise booster.

6 ft. long 1/2" I.D. flexible fill hose with 3/4" hose connector.

Flow pressure: 18-22 psi (124-152 kPa). PRV supplied.

3Drain connection

6 ft. long, 3/4" I.D. flexible hose; Max. drain flow - 8 US gpm; 30 lpm.

Uncrated Crated

Height* 33-1/2" [851] 39-1/2" [1003]

Width 23-5/8" [600] 25" [635]

Depth 23-7/8" [606] 25-1/2" [647]

Ship Wt. Lbs. 148/67 155/75

* Front leveling feet provided.

Warning: Plumbing and electrical connections should be made by qualified

personnel who will observe all the applicable plumbing, sanitary and safety codes

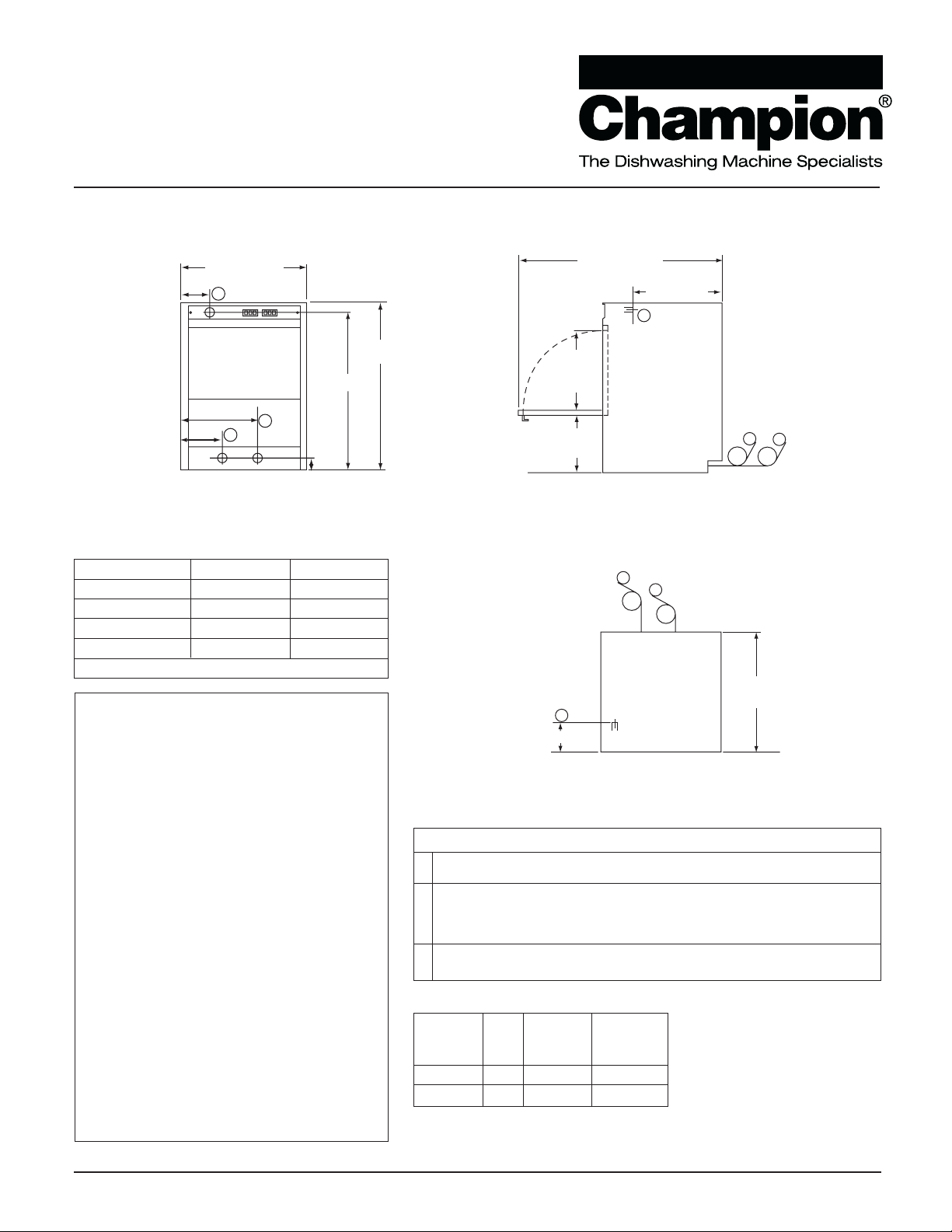

Plan View

Front View Side View

Minimum Maximum

Elec. Rated Supply Overcurrent

Specs. Amps Circuit Protective

Ampacity Device

220/50/1 21 30 30

220/60/1 22 30 30

IUH300 with 40°F Rise Electric Booster

Clearance

13"

[330]

14"

[356]

17-5/8"

[448]

38-5/8" [981]

9-1/2" [241]

14-5/8" [371]

33-1/2" [851]

23-5/8" [600]

3-3/4" [95]

30" [762]

[51]

6" [152]

23-7/8" [606]
