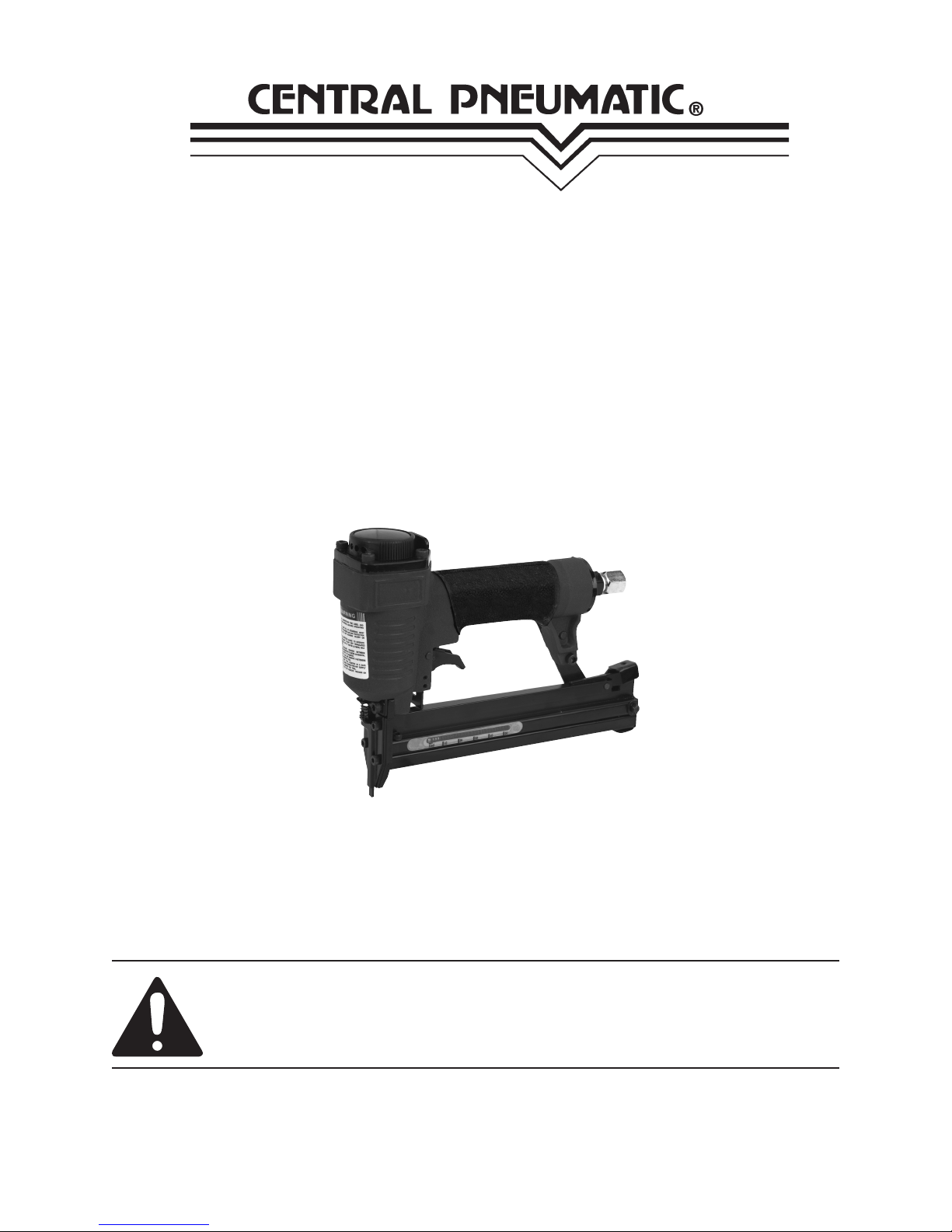

Central Pneumatic 97525 User manual

AIR NAILER/STAPLER

2-IN-1 KIT

97525

40115

ASSEMBLY and OPERATING INSTRUCTIONS

Diagrams within this manual may not be drawn proportionally.

Due to continuing improvements, actual product may differ slightly from the product described herein.

Distributed exclusively by Harbor Freight Tools®.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

Model

SKU 97525

40115 Page 2

For technical questions, please call 1-800-444-3353.

Specications

Air Inlet 1/4” - 18 NPT

Recommended Air Pressure 60 - 100 PSI, 100 PSI Max.

Magazine Capacity 100 Nails or 80 Staples

Safety Feature Single Sequential Safety Trip Mechanism

Nail Size .039-.042” Shank (18 Gauge),5/8” - 1-1/4” L

Staple Size 1/4” Crown, .039-.042” Shank (18 Gauge), 1/2” - 1-1/4” L

Accessories Oil Dropper, 2 Wrenches, 1 Coupler Plug

Note: Performance of the compressor (if powered by line voltage) may vary depending

on variations in local line voltage. Extension cord usage may also affect tool

performance.

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions,

operating and maintenance procedures, parts list and diagram. Keep your invoice with this

manual. Write the invoice number on the inside of the front cover. Keep the manual and

invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

Keep work area clean1. . Cluttered areas invite injuries.

Observe work area conditions2. . Do not use machines or power tools in damp or

wet locations. Do not expose to rain. Keep work area well lit. Do not use electrically

powered tools in the presence of ammable gases or liquids.

Keep children away3. . Children must never be allowed in the work area. Do not let

them handle machines, tools, extension cords, or air hoses.

Store idle equipment4. . When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

Use the right tool for the job5. . Do not attempt to force a small tool or attachment

to do the work of a larger industrial tool. There are certain applications for which this

tool was designed. It will do the job better and more safely at the rate for which it was

intended. Do not modify this tool and do not use this tool for a purpose for which it

was not intended.

Dress properly6. . Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically non-conductive clothes and non-skid footwear

are recommended when working. Wear restrictive hair covering to contain long hair.

Do not overreach7. . Keep proper footing and balance at all times. Do not reach over

or across running machines or air hoses.

SKU 97525

40115 Page 3

For technical questions, please call 1-800-444-3353.

8. Use eye and ear protection. Always wear ANSI-approved impact safety

goggles and appropriate hearing protection. Wear a full face shield if you

are producing metal lings or wood chips. Wear a NIOSH-approved dust

mask or respirator when working around metal, wood, and chemical dusts

and mists. Other people in the work area must also wear ANSI-approved

impact safety goggles.

Maintain tools with care9. . Keep tools clean for better and safer performance. Follow

instructions for lubricating and changing accessories. Inspect tool cords and air

hoses periodically and, if damaged, have them repaired by an authorized technician.

The handle must be kept clean, dry, and free from oil and grease at all times. Do

not operate a tool if any portion of the tool’s operating controls are inoperable,

disconnected, altered or not working properly.

Disconnect Air Hose and release any built-up air pressure10. . Never service the

Nailer, clear jams, or disassemble with the air hose attached. Always release any

built-up air even after disconnecting hose. Disconnect the Nailer when not in use.

Remove adjusting keys and wrenches11. . Check that keys and adjusting wrenches

are removed from the tool or machine work surface before attaching to an air source.

Avoid unintentional starting12. . Be sure the trigger is in the Off position when not

in use and before plugging in. Do not carry any tool with your nger on the trigger,

whether it is attached to an air source or not. Do not point the tool towards yourself or

anyone whether it contains fasteners or not.

Stay alert13. . Watch what you are doing, use common sense. Do not operate any tool

when you are tired.

Check for damaged parts14. . Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform its

intended function. Check for alignment and binding of moving parts; any broken parts

or mounting xtures; and any other condition that may affect proper operation. Any

part that is damaged should be properly repaired or replaced by a qualied technician.

Do not use the tool if the trigger does not operate properly.

Guard against electric shock15. . Prevent body contact with grounded surfaces such as

pipes, radiators, ranges, and refrigerator enclosures.

Replacement parts and accessories16. . This product is to be repaired and serviced

only by a qualied technician. When this product is serviced, only identical

replacement parts should be used. Use of any other parts will void the warranty. Only

use accessories intended for use with this tool. Approved accessories are available

from Harbor Freight Tools.

Do not operate tool if under the inuence of alcohol or drugs17. . Read warning

labels if taking prescription medicine to determine if your judgement or reexes are

impaired while taking drugs. If there is any doubt, do not operate the tool.

Use proper size and type extension cord18. . If an extension cord is required, it must

be of the proper size and type to supply the correct current to the compressor without

SKU 97525

40115 Page 4

For technical questions, please call 1-800-444-3353.

heating up. Otherwise, the extension cord could melt and catch re, or cause electrical

damage to the tool. Check your air compressor’s manual for the appropriate size cord.

It is also possible that the use of an extension cord may cause your circuit breaker to

trip or your panel fuse to break. If this happens, either use the compressor without an

extension cord or nd a larger amperage circuit to use.

Maintenance19. . The maintenance outlined in the maintenance section should be

performed regularly. For your safety, this product should be serviced or repaired

regularly only by a qualied technician.

Compressed air only20. . Never use combustible gas as a power source.

21. Do not load nails with the trigger or safety depressed. Unintentional

ring may occur. Do not load nails when the air hose is connected to the

tool. Always assume that the tool contains fasteners.

Disconnect air supply before loading Nailer22. . Before reloading (or making any

adjustments to) the Nailer make sure that the compressed air is disconnected.

Fire fasteners into an appropriate work surface only23. . Do not attempt to re

fasteners into surfaces too hard to penetrate. Do not drive fasteners on top of other

fasteners, or at too steep of an angle. Fasteners can ricochet causing personal injury.

Never re the Nailer into the air, or point it toward yourself or another person. Always

wear ANSI approved safety goggles during use, maintenance, and reloading.

Do not re fasteners too close to the edge of a workpiece24. . They may split the

workpiece and y free, causing personal injury.

Take caution as some woods contain preservatives such as copper chromium25.

arsenate (CCA) which can be toxic. When stapling or nailing these materials extra

care should be taken to avoid inhalation and minimize skin contact.

Some dust created by power sanding, sawing, grinding, drilling, and other construction26.

activities, contain chemicals known [to the State of California] to cause cancer, birth

defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints

• Crystalline silica from bricks and cement or other masonry products

• Arsenic and chromium from chemically treated lumber

(California Health & Safety Code § 25249.5, et seq. )

Stay within air pressure capacity27. . Never operate the Nailer above 100 PSI.

Hold tool away from head and body28. . During operation the Nailer may kick back

causing injury.

Transport Nailer safely29. . Always disconnect air supply when moving the tool in the

workplace. Carry the tool by the handle and avoid contact with the trigger.

The warnings, cautions, and instructions discussed in this instruction manual cannot30.

cover all possible conditions and situations that may occur. It must be understood by

the operator that common sense and caution are factors which cannot be built into this

product, but must be supplied by the operator.

SKU 97525

40115 Page 5

For technical questions, please call 1-800-444-3353.

Unpacking

When unpacking, check to make sure the parts listed on page 9 are included. If any parts

are missing or broken, please call Harbor Freight Tools at the number on the cover of this

manual as soon as possible.

Testing The Single Sequential Safety Trip Mechanism

Warning: Even though the nailer should be empty during this procedure, ALWAYS point

the nailer/Stapler at a piece of scrap wood when testing.

1. The Nailer/Stapler should not re if the nose is not depressed against the workpiece.

This tool has a contact safety tip mechanism, which is designed to prevent inadvertent

ring. The tool will only re if the Safety (42) is resting on the workpiece prior to pulling

the Trigger (38).

2. Make sure the tool is disconnected from the air supply.

Operation

For best service you should incorporate an oiler, regulator, and inline lter, as shown in the

diagram above. Hoses, couplers, oilers, regulators, and lters are all available at Harbor

Freight Tools.

1. You will need to prepare a 1/4” air connector (sold separately) to connect to the air inlet

on the Nailer/Stapler First, wrap the 1/4” air connector (not included) with pipe thread

seal tape before connecting to a 3/8” ID Air Source Hose (not included). Connect the

Air Source Hose to the Air Plug (77).

Note: If you are not using an automatic oiler system, before operation, add a few drops of

Pneumatic Tool Oil to the airline connection. Add a few drops more after each hour of

continual use.

2. Set the air pressure on your compressor to 60-100 PSI. Do not exceed the maximum

air pressure of 100 PSI.

3. Check the air connection for leaks.

Note: The amount of air pressure effects how deep the nails/staples will be driven. It

is suggested that you experiment on scrap material.

4. Check the air connection for leaks and disconnect the Nailer/Stapler.

Nailer/

Stapler

1/4”-18 NPT

SKU 97525

40115 Page 6

For technical questions, please call 1-800-444-3353.

3. Empty the magazine of nails or staples.

4. Check that the Trigger (38) and the Safety (42) on the nose of the tool, move freely,

without sticking.

5. Connect the air supply to the tool at the Air Plug (77) and set at the recommended 60-

100 PSI, and not over the maximum 100 PSI.

6. Test the tool by depressing the Safety (42) on the nose of the tool against the workpiece

without pulling the Trigger (38). The tool must not cycle (re). If it cycles (res), stop

immediately and take the tool to a qualied service technician for repair.

7. Hold the tool away, or off of the workpiece. The Safety (42) or nose of the tool should

return to its original position. Squeeze the Trigger (38). The tool should not cycle (re).

If it cycles (res), stop immediately and take the tool to a qualied service technician.

8. Depress the Safety (42) against the workpiece and squeeze the Trigger (38). The tool

must cycle (re) once only. Release the trigger and squeeze it again. The tool must

cycle (re) once only. With the Trigger held, carefully lift the nailer and press it against

the workpiece again. The tool must not cycle (re). If it fails to act in the manner

explained in bold, have it repaired by a qualied service technician.

Operation - Testing The Single Sequential Safety Trip Mechanism (continued)

Loading Nails or Staples

ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN

RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL. Other

people in the work area must also wear ANSI approved impact safety goggles.

Warning! Make sure the Nailer/Stapler is not attached to the air hose whenever loading

the tool.

1. Depress the Latch (67) and pull back on the Magazine Tail Cover (72), opening Magazine

A (61).

2. Insert the brad nails into the Magazine, letting the pointed end ride on the rail of Magazine

B (53). If loading staples, t the crown of the staples so they t over, and ride on the rail

of the Magazine B (53).

3. After the nails or staples reach the nose of the tool, close Magazine A (61).

Note: The window gauge on Magazine A (61) lets you know how many nails or staples remain.

Operating the Stapler/Nailer

1. Attach the Nailer/Stapler to the air supply at the Air Plug (77). Start your compressor

and check the pressure making sure it is set at the recommended 60-100 PSI and not

over the maximum 100 PSI.

2. To re, place the nose of the Nailer/Stapler on the workpiece. The Nailer/Stapler should

not re if the Safety (42) is not depressed. Once depressed, gently and briey squeeze

the Trigger (38) once. Do not re repeatedly; nails or staples could bounce off of one

another, damaging the work piece or causing PERSONAL INJURY.

SKU 97525

40115 Page 7

For technical questions, please call 1-800-444-3353.

Anytime any maintenance or repairs are done (including clearing jams), FIRST:

1. Disconnect the Nailer/Stapler from the air hose.

2. Empty Magazine A (61) completely.

3. Attempt to re the Nailer/Stapler into a piece of scrap wood to ensure that it is

disconnected and is incapable of ring any staples.

4. Always leave Magazine A (61) open during maintenance. The Magazine is spring-

loaded and may cause parts or a fastener to y out of the Nailer/Stapler.

Clearing Jams

1. Disconnect tool from air hose, empty Magazine A

(61) of fasteners, release any built-up air pressure,

and leave the magazine open, as explained above.

2. While doing this step and the next 2 steps, hold the

Nailer/Stapler pointed away from you and any other

people or fragile objects - see Figure 1. Remove all

three Safety Cover Bolts (48) on the Safety Cover

(47) - see Figure 2.

3. Lift the Safety Cover (47) off the top of the Nailer/

Stapler - see Figure 3.

4. Carefully slide the Driver Cover (50) off around the

Safety (42). Note the position of the tab on the Driver

Cover (50). Remove the jammed fastener; pliers

may be necessary to remove a stuck fastener.

5. Inspect the Driver (17A) for bends or breakage. If

it is damaged, do not use the tool until it is repaired

by a qualied technician.

6. Lightly oil the Driver (17A) and replace the Driver

Cover (50) with the tab in the Cover facing the Driver

Guide (52). Replace the Safety Cover (47), being

careful to line up the bolt holes and t the Safety

(42) into the slot. Replace and securely tighten all

of the Safety Cover Bolts (48). Make sure that the

Safety (42) moves without sticking.

7. Reload the Nailer/Stapler.

8. Reconnect the Nailer/Stapler to the air hose.

9. Press the Safety (42) of the Nailer/Stapler against

an appropriate piece of scrap wood.

10. Test re the Nailer/Stapler several times, checking

for proper operation.

11. Disconnect the Nailer/Stapler, remove the fasteners,

and store the Nailer/Stapler in a location out of

children’s reach.

FIGURE 1

FIGURE 2

Safety

Cover (47)

Safety Cover

Bolts (48)

FIGURE 3 Safety

(42)

Safety

Cover (47)

FIGURE 4

Safety

Cover (47)

Driver

Cover (50)

tab

SKU 97525

40115 Page 8

For technical questions, please call 1-800-444-3353.

Troubleshooting Guide

Stop using the Nailer/Stapler immediately if any of the following problems occur.

Repairs and part replacements must be done only by a qualied technician.

All procedures in bold on this chart are to be attempted only be a qualied technician.

Problem Likely Cause Solution

Air leaking at Trigger area. O-Rings in Valve Body (92) are

damaged.

Replace O-Rings and check contact

trip operation.

Air leaking between

Housing and Nose.

Loose screws in Housing.1.

Damaged O-Rings/Bumper (85).2.

Tighten screws.1.

Replace O-Rings or Bumper (85).2.

Air leaking between

Housing and Cap (4).

Loose screws.1.

Damaged Gasket (9).2.

Tighten Screws.1.

Replace Gasket (9).2.

Runs slowly or has power

loss.

Insufcient oil.1.

Broken Spring in Cylinder Cap2.

(4).

Exhaust is blocked.3.

Lubricate as instructed.1.

Replace Compression Spring (8).2.

Clean Cap (4) or replace damaged3.

parts.

Tool skips a nail.

Worn Bumper (85) or damaged1.

Pusher Spring.

Dirt in Driver Guide (52).2.

Inadequate airow to Nailer/3.

Stapler.

Worn or dry O-Ring on Piston.4.

Damaged O-Ring on Trigger5.

Valve.

Cap Gasket (9) leaking.6.

Replace Bumper (85) or Pusher1.

Spring.

Clean channels in Driver Guide2.

(52).

Check hose and compressor3.

ttings.

Replace or lubricate O-Rings.4.

Replace O-Rings.5.

Replace Gasket (9).6.

Fasteners are jammed.

Guide on driver is worn.1.

Fasteners are wrong size or2.

damaged.

Magazine or Nose screws are3.

loose.

Driver (17A) is damaged.4.

Replace Guide.1.

Use correct, undamaged Fasteners.2.

Tighten screws.3.

Replace Driver (17A).4.

Nailer/Stapler will not drive

down tight.

Rounded Driver (17A) slipping1.

off fastener crown.

Lack of air pressure.2.

Slow cycling and loss of power.3.

Replace Driver (17A).1.

Supply correct pressure (60-1002.

PSI).

Check Compression Spring (8) for3.

broken coils or reduced length.

Make sure Exhaust is clear.

Blade driving fastener too

deeply.

Worn Bumper (85) and/or Piston

Spacer.

Replace either or both parts.

All procedures in bold on this chart are to be attempted only be a qualied technician.

Anytime any maintenance or repairs are done, FIRST:

1. Disconnect the Nailer/Stapler from the air hose.

2. Empty Magazine A (61) completely.

3. Attempt to re the Nailer/Stapler into a piece of scrap wood to ensure that it is

disconnected and is incapable of ring any staples.

4. Always leave Magazine A (61) open during maintenance. The Magazine is spring-

loaded and may cause parts or a fastener to y out of the Nailer/Stapler.

SKU 97525

40115 Page 9

For technical questions, please call 1-800-444-3353.

Maintenance

Warning! Always disconnect the tool from the air compressor and then empty the magazine

of nails or staples before attempting to inspect or perform maintenance to the Nailer/

Stapler.

1. Inspect all of the nuts and screws and make sure they are securely fastened.

2. Periodically lubricate the driving mechanism and magazine with a light oil. Wipe down

with a clean cloth. Never use gasoline or ammable solvents to clean the tool.

3. Inspect your air compressor according to manufacturer’s instructions.

Warning! If you detect any air leaks, power loss, the Nailer/Stapler skips driving, drives too

deep, or not deep enough, take the Nailer/Stapler to a qualied service technician.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL

AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY

REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO

MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS

OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT

ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED

TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING

OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR

ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Parts List

Part Description

1Exhaust Deector

3 Hex. Bolt

4 Head Cap

5 Seal

6 Internal Lining

7 O-Ring

8 Compression Spring

9 Gasket

10 O-Ring

11 Head Valve Piston

12 O-Ring

13 O-Ring

14 O-Ring

16 O-Ring

17A Piston & Driver

25 Body

26 Nozzle

34 Spring

36 Spring Pin

37 E-Ring

38 Trigger

39 Pin

40 Safety Guide

41 Spring Pin

42 Safety

43 Non-Marking Tip

Part Description

44 Hex Bolt

45 Stopper

46 Compression Spring

47 Safety Cover

48 Safety Cover Bolt

49 Spacer

50 Driver Cover

51 Hex. Bolt

52 Driver Guide

53A Magazine B

54 Steel Bar

55 Pusher Unit

56 Spring Holder

58 Spring

59 Spring Washer

60 Hex Bolt

61 Magazine A

62 Magazine Bracket

63 Hex Bolt

64 Hex Bolt

65 Lock Nut

66 Retainer Pin

67 Latch

68 Spring

69 O-Ring

70 Hex Bolt

Part Description

71 Cylinder Pin

72 Magazine Tail Cover

73 Lock Nut

74 Hand Grip

75 O-ring

76 End Cap

77 Air Plug

78 Collar

79 Fixed Ring

80 O-Ring

81 Ling Ring

82 O-Ring

83 Cylinder

84 Ling Ring

85 Bumper

86 Seal

87 Trigger Valve Upper

88 Spring

89 O-Ring

90 Trigger Plunger

91 Trigger Plate

92 Trigger Valve Lower

93 Trigger Plate

SKU 97525

40115 Page 10

For technical questions, please call 1-800-444-3353.

Assembly Drawing

NOTE: Some parts are listed and shown for illustration purposes only and are

not available individually as replacement parts.

This manual suits for next models

Table of contents

Other Central Pneumatic Nail Gun manuals

Central Pneumatic

Central Pneumatic 96364 Parts list manual

Central Pneumatic

Central Pneumatic 68023 Installation manual

Central Pneumatic

Central Pneumatic 39092 User manual

Central Pneumatic

Central Pneumatic 93680 User manual

Central Pneumatic

Central Pneumatic 90193 User manual

Central Pneumatic

Central Pneumatic 98751 User guide

Central Pneumatic

Central Pneumatic 68019 Installation manual

Central Pneumatic

Central Pneumatic 68057 User manual

Central Pneumatic

Central Pneumatic 92917 User manual

Central Pneumatic

Central Pneumatic 41209 User manual

Central Pneumatic

Central Pneumatic 98733 Installation manual

Central Pneumatic

Central Pneumatic 93257 User manual

Central Pneumatic

Central Pneumatic 93656 User manual

Central Pneumatic

Central Pneumatic 44923 Parts list manual

Central Pneumatic

Central Pneumatic 68068 Assembly instructions

Central Pneumatic

Central Pneumatic 93909 Installation manual

Central Pneumatic

Central Pneumatic 91053 User manual

Central Pneumatic

Central Pneumatic 40115 User manual

Central Pneumatic

Central Pneumatic 93656 User manual

Central Pneumatic

Central Pneumatic 98751 Installation manual

Central Pneumatic

Central Pneumatic 42528 Parts list manual

Central Pneumatic

Central Pneumatic 68019 User manual

Central Pneumatic

Central Pneumatic Contractor Series User manual

Central Pneumatic

Central Pneumatic 98917 Installation manual

Popular Nail Gun manuals by other brands

Performance Tool

Performance Tool M643 owner's manual

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head instruction manual

Parkside

Parkside PET 25 B1 Operation and safety notes

Senco

Senco Fusion Technology F-35XP operating instructions

Grizzly

Grizzly G1847 instruction manual

Ryobi

Ryobi R18N18G Original instructions

Black & Decker

Black & Decker 492848-00 instruction manual

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 user manual

Metabo HPT

Metabo HPT NR 3690DC Instruction and safety manual

Surtek

Surtek CN650 User manual and warranty

Makita

Makita GF600 instruction manual

Parkside

Parkside PET 25 B1 Operation and safety notes

Senco

Senco AirFree 25 operating instructions

Freeman

Freeman P50LSLW manual

Aicon PRO

Aicon PRO DAC4507 instruction manual

DAJ

DAJ XR150A user manual

Makita

Makita AN923 instruction manual

Grizzly

Grizzly T20644 instruction manual
