Central Pneumatic 92917 User manual

COIL ROOFING NAILER

3/4”TO 1-3/4” FASTENER LENGTH CAPACITY

92917

93253

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

Manual Revised 05/06

SKU 92917 & 93253 For technical questions, please call 1-800-444-3353. Page 2

Speciﬁcations

92917 93253

Unit Weight 8 lb. 6 lb.

Housing Material Aluminum Alloy Magnesium

Fastener Length Capacity 3/4” to 1-3/4” Long

Fastener Thickness 0.12” Diameter (Approximately)

Magazine Capacity 120 Nails

Operating PSI 70 to 100

Air Consumption 2.5 CFM @ 90 PSI

Triggering Type Full-Sequential Safety Mechanism

Accessories

5mmHexWrench,Pneumatic

Tool Oil, Coil of 120 Nails,

Carrying Case

5mmHexWrench,Pneumatic

Tool Oil

Save This Manual

You will need this manual for the safety warnings and precautions, assembly, operat-

ing, inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

Keep work area clean. Cluttered areas invite injuries.

Observe work area conditions. Do not use machines or power tools in damp or

wet locations. Do not expose to rain. Keep work area well lit. Do not use electri-

cally powered tools in the presence of ﬂammable gases or liquids.

Keep children away. Children must never be allowed in the work area. Do not let

them handle machines, tools, extension cords, or air hoses.

Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

Use the right tool for the job. Do not attempt to force a small tool or attachment

to do the work of a larger industrial tool. There are certain applications for which

this tool was designed. It will do the job better and more safely at the rate for which

REV 09/05; 12/05

SKU 92917 & 93253 For technical questions, please call 1-800-444-3353. Page 3

it was intended. Do not modify this tool and do not use this tool for a purpose for

which it was not intended.

Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically nonconductive clothes and nonskid foot

wear are recommended when working. Wear restrictive hair covering to contain

long hair.

Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines or air hoses.

Use eye and ear protection. Always wear ANSI-approved impact

safety goggles and appropriate hearing protection. Wear a full face shield

if you are producing metal ﬁlings or wood chips. Wear a NIOSH-approved

dust mask or respirator when working around metal, wood, and chemi-

cal dusts and mists. Other people in the work area must also wear ANSI-approved

impact safety goggles.

Maintain tools with care. Keep tools clean for better and safer performance. Fol-

low instructions for lubricating and changing accessories. Inspect tool cords and

air hoses periodically and, if damaged, have them repaired by a qualiﬁed techni-

cian. The handle must be kept clean, dry, and free from oil and grease at all times.

Do not operate a tool if any portion of the tool’s operating controls are inoperable,

disconnected, altered or not working properly.

Disconnect Air Hose and release any built-up air pressure. Never service the

Nailer, clear jams, or disassemble with the air hose attached. Always release any

built-up air even after disconnecting hose. Disconnect the Nailer when not in use.

Remove adjusting keys and wrenches. Check that keys and adjusting wrenches

are removed from the tool or machine work surface before attaching to an air

source.

Avoid unintentional starting. Be sure the trigger is in the Off position when not

in use and before plugging in. Do not carry any tool with your ﬁnger on the trigger,

whether it is attached to an air source or not. Do not point the tool towards yourself

or anyone whether it contains fasteners or not.

Stay alert. Watch what you are doing, use common sense. Do not operate any

tool when you are tired.

Check for damaged parts. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform

its intended function. Check for alignment and binding of moving parts; any broken

parts or mounting ﬁxtures; and any other condition that may affect proper operation.

Any part that is damaged should be properly repaired or replaced by a qualiﬁed

technician. Do not use the tool if the trigger does not operate properly.

10.

11.

12.

13.

14.

SKU 92917 & 93253 For technical questions, please call 1-800-444-3353. Page 4

Guard against electric shock. Prevent body contact with grounded surfaces such

as pipes, radiators, ranges, and refrigerator enclosures.

Replacement parts and accessories. This product is to be repaired and serviced

only by a qualiﬁed technician. When this product is serviced, only identical replace-

ment parts should be used. Use of any other parts will void the warranty. Only use

accessories intended for use with this tool. Approved accessories are available

from Harbor Freight Tools.

Do not operate tool if under the inﬂuence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgement or reﬂexes are

impaired while taking drugs. If there is any doubt, do not operate the tool.

Use proper size and type extension cord. If an extension cord is required for the

air compressor, it must be of the proper size and type to supply the correct current

to the compressor without heating up. Otherwise, the extension cord could melt

and catch ﬁre, or cause electrical damage to the tool. Check your air compressor’s

manual for the appropriate size cord. It is also possible that the use of an exten-

sion cord may cause your circuit breaker to trip or your panel fuse to break. If this

happens, either use the compressor without an extension cord or ﬁnd a larger

amperage circuit to use.

Maintenance. The maintenance outlined in the maintenance section should be

performed regularly. For your safety, this product should be serviced or repaired

regularly only by a qualiﬁed technician.

Compressed air only. Never use combustible gas as a power source.

Do not load nails with the trigger or safety depressed. Uninten-

tional ﬁring may occur. Do not load nails when the air hose is con-

nected to the tool. Always assume the tool contains fasteners.

Disconnect air supply before loading the Nailer. Before reloading (or making

any adjustments to) the Nailer, make sure the compressed air is disconnected.

Fire fasteners into an appropriate work surface only. Do not attempt to ﬁre

fasteners into surfaces too hard to penetrate. Do not drive fasteners on top of other

fasteners, or at too steep an angle. Fasteners can ricochet causing personal injury.

Never ﬁre the Nailer into the air, or point it toward yourself or another person. Always

wear ANSI approved safety goggles during use, maintenance, and reloading.

Do not ﬁre fasteners too close to the edge of a workpiece. They may split the

workpiece and ﬂy free, causing personal injury.

Take caution, as some woods contain preservatives such as copper chromium

arsenate (CCA) which can be toxic. When stapling or nailing these materials extra

care should be taken to avoid inhalation and minimize skin contact.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

SKU 92917 & 93253 For technical questions, please call 1-800-444-3353. Page 5

WARNING: Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities contain chemicals known (to the State of

California) to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

*Lead from lead-based paints

*Crystalline silica from bricks and cement and other masonry products

*Arsenic and chromium from chemically treated lumber.

(California Health & Safety Code § 25249.5, et seq.)

Stay within air pressure capacity. Never operate the Nailer above 100 PSI.

Hold tool away from head and body. During operation the Nailer may kick back

causing injury.

Transport Nailer safely. Always disconnect air supply when moving the tool in the

workplace. Carry the tool by the handle to avoid contact with the trigger.

Avoid working alone. If an accident happens, an assistant can bring help.

Note: Performance of the compressor (if powered by line voltage) may vary depending

on variations in local line voltage. Extension cord usage may also affect the tool

performance.

Warning: The warnings, cautions, and instructions discussed in this instruction

26.

27.

28.

29.

30.

SKU 92917 & 93253 For technical questions, please call 1-800-444-3353. Page 6

Note: To connect this tool, we recommend you use Air Plug (83, not included). For smoother

operation and to extend the life-span of the tool, put 3-5 drops of pneumatic tool oil

in the attached Air Plug (83) before each use.

Unpacking

When unpacking, check to make sure all parts shown in the Parts List on page 13

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number on the cover of this manual as soon as possible.

Operation

For best service, you should incorporate an oiler, regulator, and inline ﬁlter, as

shown in the diagram below. Hoses, couplers, oilers, regulators, and ﬁlters are all avail-

able at Harbor Freight Tools.

ROOFING

NAILER

Testing the Full Sequential Safety Trip Mechanism

Warning: Even though the nailer should be empty during this procedure,

ALWAYS point the nailer at a piece of scrap wood when testing.

Make sure the tool is disconnected from the air supply.

Completely empty the Nail Canister (90) of nails.

The Nailer should not ﬁre if the nose is not depressed against the workpiece.

Make sure the Trigger (73) and nose move freely, without sticking - see the illustra-

tion on the following page.

REV 11/05

SKU 92917 & 93253 For technical questions, please call 1-800-444-3353. Page 7

Connect the air supply to the tool at the Air Plug (83). Set the regulator at the rec-

ommended 70 PSI to 100 PSI, and set not to go over the maximum 100 PSI.

Test the tool by depressing the nose against the workpiece without pulling the Trig-

ger (73). The Tool must not cycle (ﬁre). If it cycles (ﬁres), stop immediately and

have it repaired by a qualiﬁed service technician.

Hold the tool away or off of the workpiece. The nose of the tool should return to its

original position. Squeeze the Trigger (73). The tool should not cycle (ﬁre). If the

tool ﬁres, stop immediately and have it repaired by a qualiﬁed service technician.

Depress the nose against the workpiece and squeeze the Trigger (73). The tool

must cycle (ﬁre) only once. Release the Trigger and squeeze it again. The tool

must not cycle (ﬁre). With the Trigger held, carefully lift the nailer and press it

against the workpiece again. The tool must not cycle (ﬁre). If it fails to perform

in the manner explained in bold, have it repaired by a qualiﬁed service technician.

Loading Coil Nails

ALWAYS WEAR ANSI-APPROVED IMPACT SAFETY GOGGLES WHEN

RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL.

Other people in the work area must also wear ANSI-approved impact safety

goggles.

Warning! Make sure the Nailer is not attached to the air hose whenever loading

the tool.

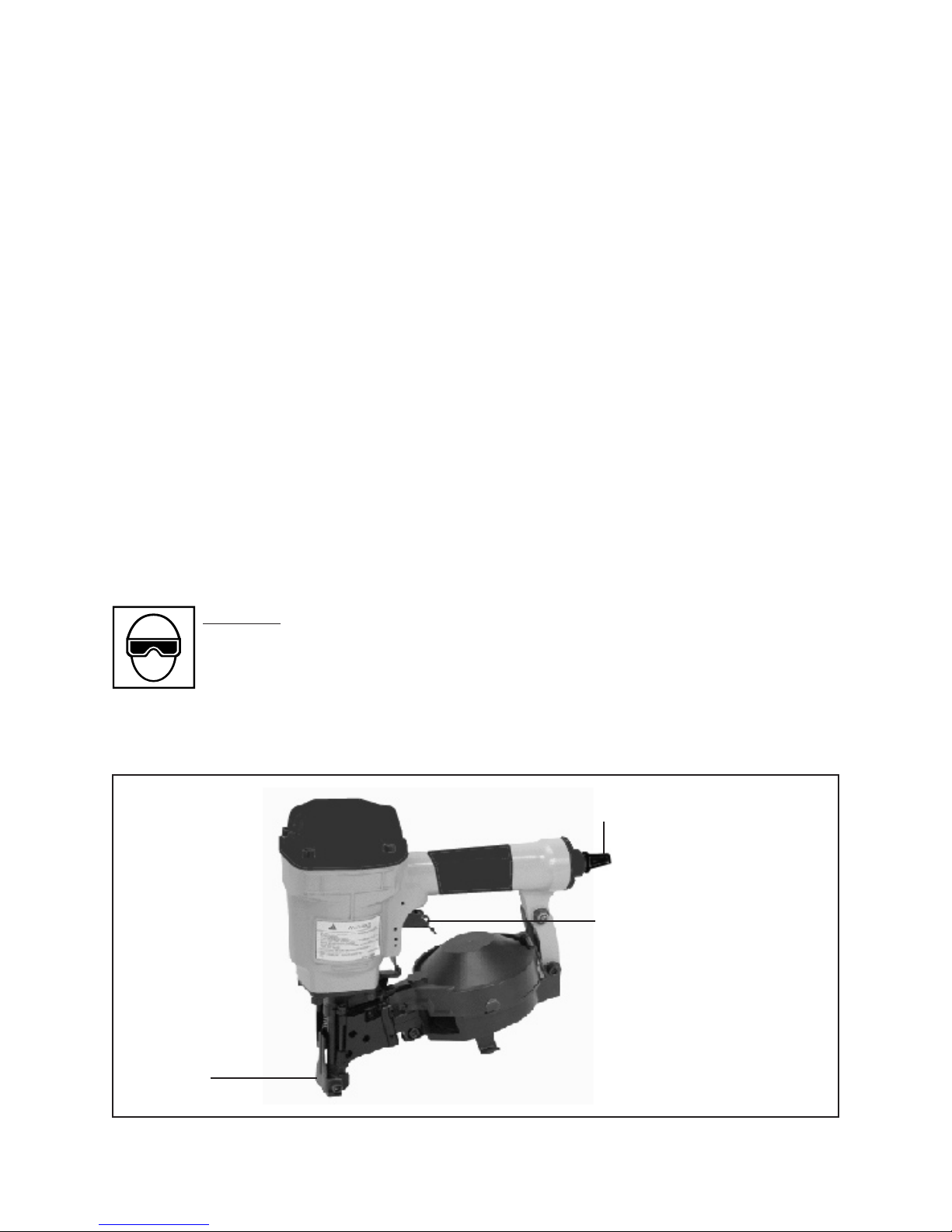

NOSE

TRIGGER (73)

AIR PLUG (83)

SKU 92917 & 93253 For technical questions, please call 1-800-444-3353. Page 8

To open the Canister (90), press down on the Pin (91) and swing the Door (53) and

Canister Cover (84) open.

Check the Canister Platform (86) inside the Canister (90). The Platform can be

adjusted up and down to use various lengths of nails from 3/4” to 1-3/4”:

A. 3/4” Long Nails

(Use top setting).

B. Between 3/4” and 1-3/4” Long Nails

(Use middle setting).

C. 1-3/4” Long Nails

(Use bottom setting).

CANISTER COVER

(84)

CANISTER COVER (84)

(TURN TO ADJUST)

CANISTER (90)

NAILS

CANISTER PLATFORM (86)

DOOR

(53)

DOOR

(53)

PIN (91)

FEED PAWL (51)

SKU 92917 & 93253 For technical questions, please call 1-800-444-3353. Page 9

Place a coil of Nails (99) around the Canister Platform (86) in the Nail Canister

(90).

Uncoil enough nails to reach the Feed Pawl (51). Place the second nail on the coil

between the teeth of the Feed Pawl, making sure the nail head ﬁts in the slot in the

upper portion of the Feed Pawl.

Swing the Canister Cover (84) closed. Then, close the Door (53). Make sure the

Door closes securely. If it does not engage, the nail head is not in the slot in the

upper portion of the Feed Pawl (51).

To Adjust The Shingle Gauge:

The Bracket (96) controls roof shingle spacing. To adjust the Bracket to work with a

particular width of shingles, use the accessory Hex Wrench (97) to loosen the two

Screws (28) on the Bracket. Slide the Bracket forward or backward to the desired

spacing. Then, retighten the two Screws.

BOTTOM

VIEW

SCREWS

(28)

BRACKET

(96)

SHINGLE SPACING

Operating the Nailer

Attach the Nailer to the air supply at the Air Plug (83). Start your compressor and

check the pressure making sure it is set at the recommended 70-100 PSI and not

to go over the maximum 100 PSI.

To ﬁre, place the nose of the Nailer on the workpiece. The Nailer should not ﬁre if

the nose is not depressed. Once depressed, gently and brieﬂy squeeze the Trigger

(73) once. Do not ﬁre repeatedly. Nails could bounce off of one another, damag-

ing the workpiece or causing PERSONAL INJURY.

Caution: When the Trigger (73) is depressed, the Rooﬁng Nailer will ﬁre if the Nose

of the tool comes in contact with anything.

SKU 92917 & 93253 For technical questions, please call 1-800-444-3353. Page 10

Do not press the Nose of the Rooﬁng Nailer against the work surface with extra force.

Allow the tool to do the work. Always allow the tool to recoil off the workpiece.

Caution: While working on roofs, tar and dirt may build up on the Nose of the Roof-

ing Nailer. This can prevent normal operation. Remove buildup with a nonﬂammable

solvent. NEVER use gasoline or other ﬂammable solvents. Do not immerse the

Rooﬁng Nailer in an approved solvent beyond the height of the nail heads, to avoid

getting the solvent into the drive cylinder of the tool. Make sure to dry off the Roof-

ing Nailer before use. Any oil ﬁlm left after cleanup will accelerate tar buildup.

When ﬁnished using the Rooﬁng Nailer, always disconnect the tool from its com-

pressed air supply. Empty the Nail Canister (90) completely of nails. Attempt to

ﬁre the Rooﬁng Nailer into a piece of scrap wood to ensure it is disconnected and

is incapable of ﬁring any nails. Always leave the Nail Canister open during this

procedure. The Canister is spring loaded and may cause parts or a nail to ﬂy

out of the Rooﬁng Nailer.

Make sure to store the Rooﬁng Nailer in its accessory Carrying Case and in a clean,

dry, safe location out of reach of children.

ROOFING SHINGLE

NOSE

TRIGGER (73)

AIR SUPPLY HOSE

(NOT INCLUDED)

Other manuals for 92917

This manual suits for next models

Table of contents

Other Central Pneumatic Nail Gun manuals

Central Pneumatic

Central Pneumatic Professional 97512 User manual

Central Pneumatic

Central Pneumatic Contractor 97526 Parts list manual

Central Pneumatic

Central Pneumatic 68027 User manual

Central Pneumatic

Central Pneumatic 94446 User manual

Central Pneumatic

Central Pneumatic 67450 Original instruction manual

Central Pneumatic

Central Pneumatic 44923 Parts list manual

Central Pneumatic

Central Pneumatic 69927 User manual

Central Pneumatic

Central Pneumatic Contractor 97524 User manual

Central Pneumatic

Central Pneumatic 40115 User manual

Central Pneumatic

Central Pneumatic 96364 Parts list manual

Central Pneumatic

Central Pneumatic 68057 User manual

Central Pneumatic

Central Pneumatic 41164 Quick reference guide

Central Pneumatic

Central Pneumatic 68020 User manual

Central Pneumatic

Central Pneumatic 69575 Assembly instructions

Central Pneumatic

Central Pneumatic 46309 User manual

Central Pneumatic

Central Pneumatic 93496 User manual

Central Pneumatic

Central Pneumatic 66872 User manual

Central Pneumatic

Central Pneumatic 98751 Installation manual

Central Pneumatic

Central Pneumatic 69450 User manual

Central Pneumatic

Central Pneumatic 47612 Contractor Series Installation manual

Central Pneumatic

Central Pneumatic 93496 User manual

Central Pneumatic

Central Pneumatic 98733 Installation manual

Central Pneumatic

Central Pneumatic Contractor Series User manual

Central Pneumatic

Central Pneumatic 98917 Installation manual

Popular Nail Gun manuals by other brands

Performance Tool

Performance Tool M643 owner's manual

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head instruction manual

Parkside

Parkside PET 25 B1 Operation and safety notes

Senco

Senco Fusion Technology F-35XP operating instructions

Grizzly

Grizzly G1847 instruction manual

Ryobi

Ryobi R18N18G Original instructions

Black & Decker

Black & Decker 492848-00 instruction manual

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 user manual

Metabo HPT

Metabo HPT NR 3690DC Instruction and safety manual

Surtek

Surtek CN650 User manual and warranty

Makita

Makita GF600 instruction manual

Parkside

Parkside PET 25 B1 Operation and safety notes

Senco

Senco AirFree 25 operating instructions

Freeman

Freeman P50LSLW manual

Aicon PRO

Aicon PRO DAC4507 instruction manual

DAJ

DAJ XR150A user manual

Makita

Makita AN923 instruction manual

Grizzly

Grizzly T20644 instruction manual
