Carrier Performance TP-NHP User manual

Installation Instructions

TP-PAC, TP-PHP

TP-NAC, TP-NHP

PerformancetSeries

AC / HP Thermostat

A07049 A07048

Programmable Control Non−Programmable Control

Designed and Assembled in the U.S.A.

NOTE: Read the entire instruction manual before starting the installation.

US patents: US7287709 B2, US20080147242 A1, USD582800 SI, US20060165149 A1, US6956463 B2.

TABLE OF CONTENTS

PAGE

SAFETY CONSIDERATIONS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTRODUCTION 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTALLATION CONSIDERATIONS 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTALLATION 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SYSTEM START−UP AND CHECKOUT 38. . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATIONAL INFORMATION 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WIRING DIAGRAMS 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

THERMOSTAT CONFIGURATION RECORD 58. . . . . . . . . . . . . . . . . . . . . .

SAFETY CONSIDERATIONS

Read and follow manufacturer instructions carefully. Follow all local electrical

codes during installation. All wiring must conform to local and national electrical

codes. Improper wiring or installation may damage AC/HP Control.

Recognize safety information. This is the safety−alert symbol . When you see

this symbol on the equipment and in the instruction manual, be alert to the

potential for personal injury.

Understand the signal words DANGER, WARNING, and CAUTION. These

words are used with the safety−alert symbol. DANGER identifies the most

serious hazards which will result in severe personal injury or death. WARNING

signifies a hazard which could result in personal injury or death. CAUTION is

used to identify unsafe practices which may result in minor personal injury or

product and property damage. NOTE is used to highlight suggestions which will

result in enhanced installation, reliability, or operation.

INTRODUCTION

Carrier’s 7−day, 5/2−day, 1−day programmable and non−programmable

Performance Series Thermostat Control is a wall−mounted, low−voltage

temperature control in either a single unit or a two−piece unit. In two−piece

configuration, the relays are located near the equipment and a two−wire

connection is used between the Display Module and the Equipment Control

Module. Single−piece installation requires more wiring and results in a higher

profile. The EdgeThermostat has no need for batteries to store

user−configured settings in memory. During power loss its internal memory

saves settings for unlimited time, and the clock continues to run for at least 24

hours. An extension of Carrier’s proven line of thermostats; it provides separate

setpoints for heating and cooling.

In the Edge Thermostat Control programmable configuration, different heating

and cooling setpoints and times are programmable for 4 periods per day or 2

periods per day. Programming can be done for 7 days per week, 5/2 days per

week, or 1 day. The programmable Thermostat Control can also be user

configured as a non−programmable Thermostat Control.

The non−programmable Thermostat Control features Touch ’N’ Gosettings

for quick and easy temperature change without complicated programming

schedules. And, its Touch ’N’ Go technology enables the user to switch between

three different user−configurable settings through intuitive buttons located just

below the display.

INSTALLATION CONSIDERATIONS

Power

This control is powered by 24VAC only. It requires 24VAC (Rh and/or Rc and C

terminals) of the low−voltage transformer to be connected to it for proper

operation. It will not operate without these 2 connections. Rh and Rc are

connected via PCB breakout jumper. See Fig. 1. For applications using two

24VAC transformers, one in the indoor unit and one in the outdoor unit, connect

the common from each to the C terminal. Connect R from the indoor unit to the

Rh terminal. Connect R from the outdoor unit to the Rc terminal. Then, break

jumper on the circuit board. The W signal is taken from the Rh power and the G

signal is taken from the Rc power. If the thermostat has been installed in a

two−transformer application that is later changed to a single−transformer

installation, installer must install a field supplied jumper between Rc and Rh.

Depending on the installation, up to 14 wires may be required. Installation as

two−piece unit is recommended. Only 2 wires are required for connection

between Display Module and Equipment Control Module. These two wires (V+

and Vg) do not provide ordinary 24VAC. They carry a combination of power

and communications data that is unique to these products.

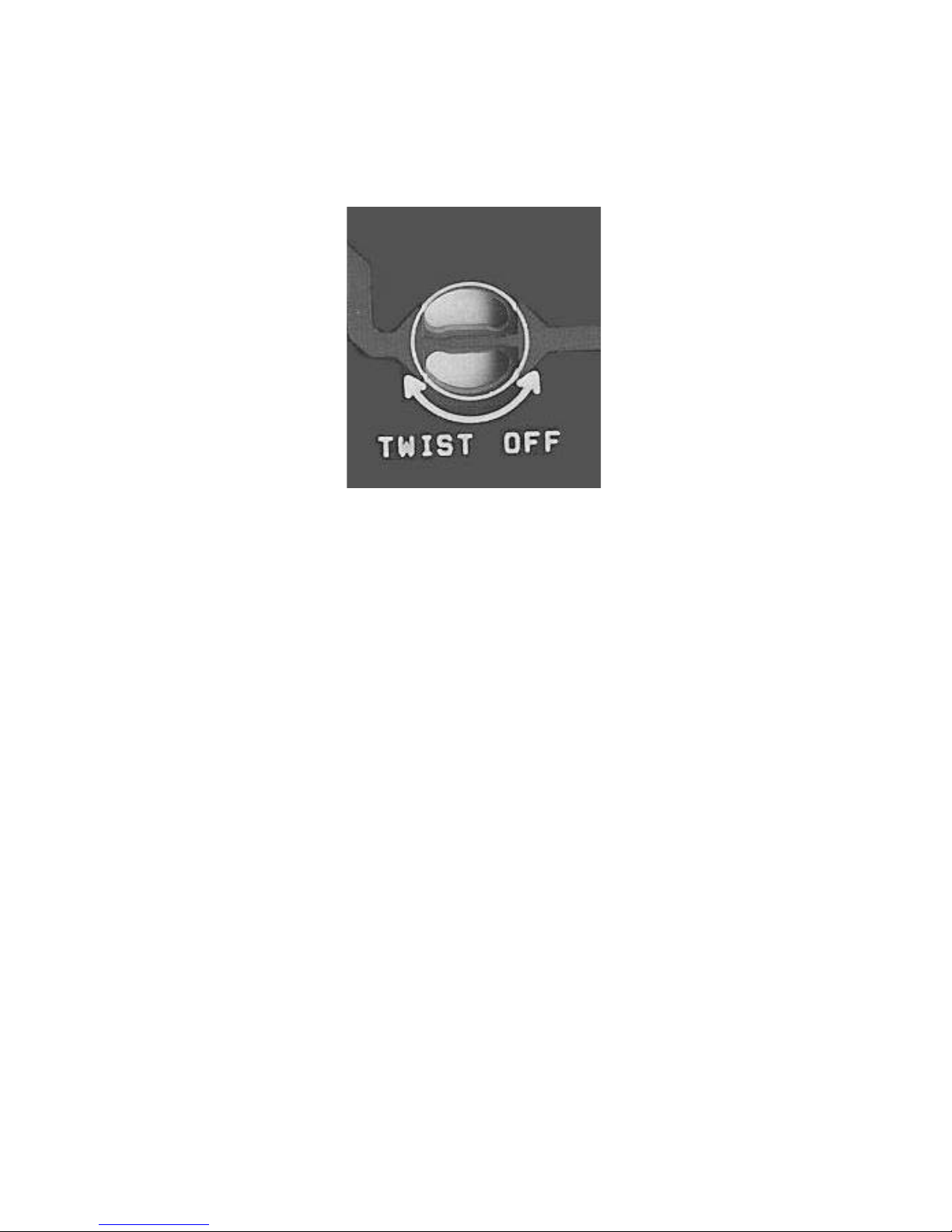

A07052

Fig. 1 −PCB Breakout Jumper

Models

There are programmable and non−programmable models for all applications.

They can be configured for AC or HP installations, allowing it to be used in

place of all Carrier thermostats. Programmable thermostats may be configured as

non−programmable if user desires.

Outdoor Temperature Sensor

The outdoor air temperature sensor is not included with the AC/HP Control. It is

available as an accessory, part number TSTATCCSEN01−B. Optimum

performance is obtained when an outdoor temperature sensor is used with the

AC/HP Control. Plan installation so that 2 wires can be run from Equipment

Control Module to an outdoor location, preferably on the north side of the house

or refer to Installation Instructions included with the outdoor temperature sensor

for simplified connection. Sensor can be mounted to outdoor unit and existing

dedicated sensor wires may be used for its connection. Details are provided in

sensor instructions.

Remote Indoor Temperature Sensor

A remote temperature sensor may be used with the programmable heat pump

and programmable air conditioner thermostats where it is desirable to install the

thermostat in a limited access location while measuring the temperature in the

living space. The remote room sensor may be used as a stand alone or average

with local sensor.

Two−Piece Thermostat Configuration

The Performance Series AC/HP Control can be installed in one of two

configurations. The control may be installed as a single−piece thermostat or it

may be split into two pieces and mounted in separate locations. As a single−piece

unit, all required wiring must be brought to the Equipment Control Module for

connection to the terminal strip. In two−piece configuration, the Display Module

can be mounted in the living space while the Equipment Control Module may be

mounted near the indoor furnace or fan coil. Connection from the display to the

Equipment Control Module requires only two wires. All other control wires are

connected to the Equipment Control Module from the HVAC equipment. This

configuration results in a slimmer display and locates the Equipment Control

Module containing the switching relays away from the main living space where

relay clicking will not be heard.

The model numbers on the Display Module and the Equipment Control Module

(ECM) must match or unpredictable results may occur.

Two−wire pigtail replacement part number is TX−2WR−05.

Wiring

Wire length should be no more than 250 ft (76m). Use 22 AWG for normal

wiring applications. Continuous wire lengths over 100 ft (30.5m) should use 20

AWG or larger.

INSTALLATION

Carton contains the following components. See Fig. 2 for programmable models

or Fig. 3 for non−programmable models.

A07754

Fig. 2 −TP−PAC / TP−PHP Carton Contents

1. Display Module

2. Stand−off for Equipment Control Module

3. Screws and pig tail

4. Equipment Control Module

A07755

Fig. 3 −TP−NAC / TP−NHP Carton Contents

1. Display Module

2. Stand−off for Equipment Control Module

3. Screws and pig tail

4. Equipment Control Module

AC/HP Control Location

AC/HP Control should be mounted:

Approximately 5 ft (1.5m) from floor.

Close to or in a frequently used room, preferably on an inside parti-

tioning wall.

On a section of wall without pipes or duct work.

AC/HP Control should NOT be mounted:

Close to a window, on an outside wall, or next to a door leading to the

outside.

Exposed to direct light or heat from a lamp, sun, fireplace, or other

temperature−radiating objects which could cause a false reading.

Close to or in direct airflow from supply registers and return−air regis-

ters.

In areas with poor air circulation, such as behind a door or in an al-

cove.

Installer should determine whether control will be installed as single−piece or

two−piece. In single−piece configuration, as many as 14 wires may need to run

to wall mounting location for connection to the control. In two−piece

configuration, the Display Module and Equipment Control Module are

connected by two wires.

Install AC/HP Control

ELECTRICAL OPERATION HAZARD

Failure to follow this warning could result in personal injury or

death.

Before installing AC/HP Control, turn off all power to

equipment. There may be more than 1 power disconnect.

!WARNING
