Carrier KSACN0901AAA User manual

Specifications subject to change without notice. OM-KSACN0901-02

Owner’s Manual

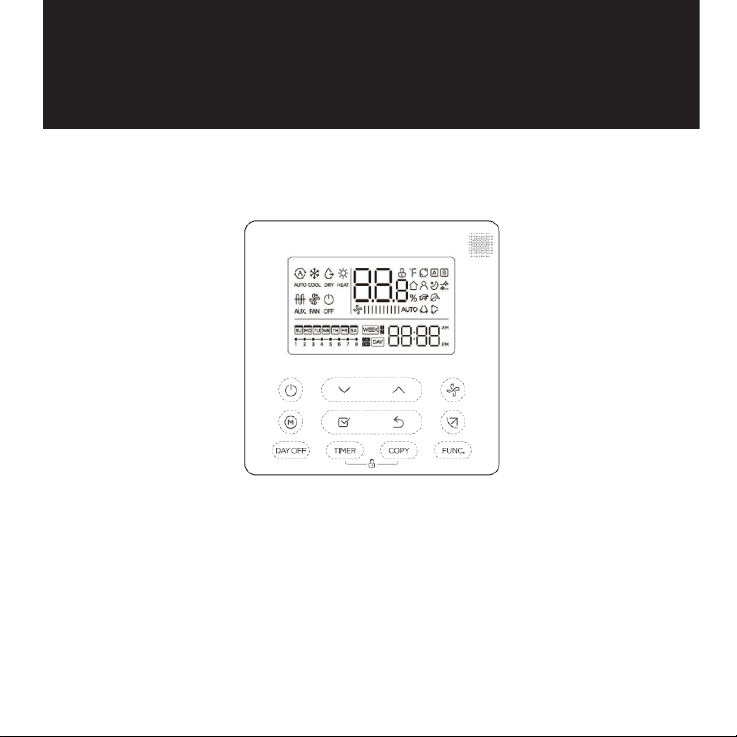

Fig. 1 — Wired Controller

NOTE: Images are for illustration purposes only. Actual models may differ slightly.

Wired Remote Controller

7 Day Programmable Thermostat

Ductless Systems

KSACN0901AAA (High Wall)

2 Specifications subject to change without notice. OM-KSACN0901-02

TABLE OF CONTENTS

PAGE

SAFETY CONSIDERATIONS...........................................................................................3

WIRED CONTROLLER FEATURES AND FUNCTIONS...............................................5

WIRED CONTROLLER DISPLAY ...................................................................................6

WIRED CONTROLLER FUNCTIONS .............................................................................7

INITIAL SETUP..................................................................................................................8

WEEK AND DAY SETTINGS FOR WEEK 1 ................................................................16

WEEKLY TIMER OPERATION .....................................................................................18

WEEK AND DAY SETTINGS FOR WEEK 2 ................................................................23

WIRED CONTROLLER ERROR CODES ......................................................................32

QUERIES AND SETTINGS .............................................................................................33

TECHNICAL INDICATION AND REQUIREMENT .....................................................38

NOTE: In order to properly service the wired controller, read this manual carefully prior to

operating the unit. Keep this manual after reading for future reference.

OM-KSACN0901-02 Specifications subject to change without notice. 3

SAFETY CONSIDERATIONS

Installing, starting up, and servicing air-conditioning equipment can be hazardous due to system

pressures, electrical components, and equipment location (roofs, elevated structures, etc.). Only

trained, qualified installers and service mechanics should install, start-up, and service this equipment.

Untrained personnel can perform basic maintenance functions such as cleaning coils.

When working on the equipment, observe precautions in the literature and on tags, stickers, and labels

attached to the equipment.

Follow all safety codes. Wear safety glasses and work gloves. Keep a quenching cloth and fire

extinguisher nearby when brazing. Use care in handling, rigging, and setting bulky equipment.

Read these instructions thoroughly and follow all warnings or cautions included in the literature and

attached to the unit. Consult the local building codes and National Electrical Code (NEC) for special

requirements. Recognize safety information.

This is the safety-alert symbol . When you see this symbol on the unit and in instructions or

manuals, be alert to the potential for personal injury. Understand these signal words: DANGER,

WARNING, and CAUTION. These words are used with the safety-alert symbol.

DANGER identifies the most serious hazards which will result in severe personal injury or death.

WARNING signifies hazards which could result in personal injury or death. CAUTION is used to

identify unsafe practices which may result in minor personal injury or product and property damage.

NOTE is used to highlight suggestions which will result in enhanced installation, reliability, or

operation.

4 Specifications subject to change without notice. OM-KSACN0901-02

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury or death. Before beginning any modification or

installation of this kit, ensure the main electrical disconnect is in the OFF position. Ensure power is

disconnected to the fan coil unit. On some systems both the fan coil and the outdoor unit may be on the

same disconnect. Tag the disconnect switch with a suitable warning label. There may be more than one to

disconnect.

CAUTION

EQUIPMENT DAMAGE HAZARD

Failure to follow this caution may result in equipment damage or improper operation. Do not install the wired

controller in an area subjected to excessive steam, oil or sulfide gas. Doing so may damage the controller

and/or cause it to fail.

CAUTION

OM-KSACN0901-02 Specifications subject to change without notice. 5

WIRED CONTROLLER FEATURES AND FUNCTIONS

Fig. 2 — Wired Controller

Features:

•LCDdisplay

• Malfunction code display for error code

display

• 4-way wire layout design, smooth rear

surface makes it easier to position the wires

and install the controller

• Room temperature display

• Weekly timer

Functions:

• Mode: select AUTO-LOW-DRY-HEAT-FAN

• Fan Speed: AUTO/LOW/MEDIUM/HIGH

• Swing (on some models)

• Timer ON/OFF

• Temperature Setting

• Weekly Timer

• FOLLOW ME

• Turbo

• 24-Hour System

• 12-Hour System

• 8 degree heating function (on some models)

•Sleep

• Auto-restart

• Individual louver control (on some models)

• Automatic airflow test

• Child Lock

• LCD display

•Clock

6 Specifications subject to change without notice. OM-KSACN0901-02

WIRED CONTROLLER DISPLAY

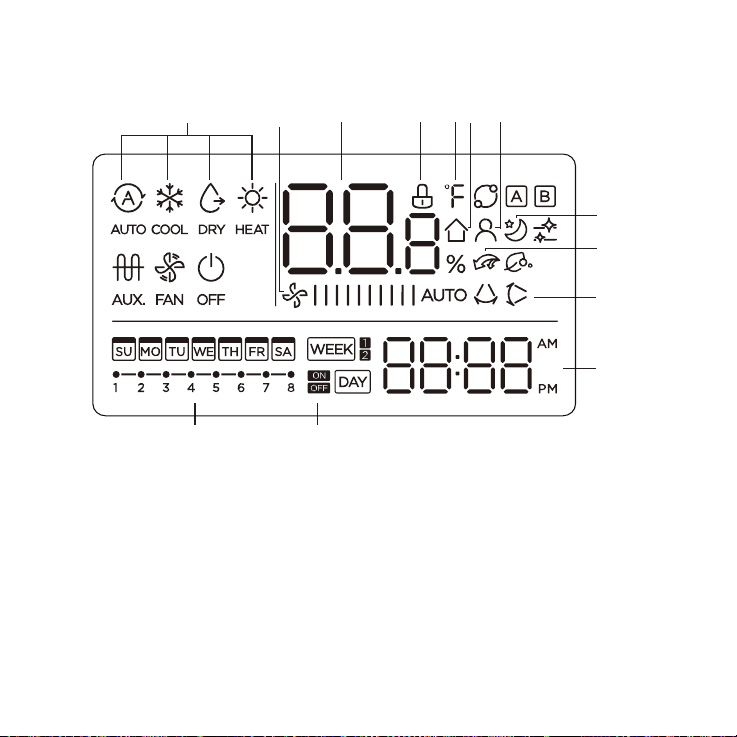

Fig. 3 — Wired Controller Display

1. Operation mode indication

2. Fan speed indication

3. Temperature display

4. Lock indication

5. °F / °C indication

6. Room temperature indication

7. Follow Me function indication

8. Sleep mode indication

9. Electric Auxiliary Heat/Turbo Function

NOTE: AHU models only have Turbo function.

10. Left-Right Swing

11. Clock display

12. ON/OFF Timer

13. Timer Display

12345

13 12

OM-KSACN0901-02 Specifications subject to change without notice. 7

WIRED CONTROLLER FUNCTIONS

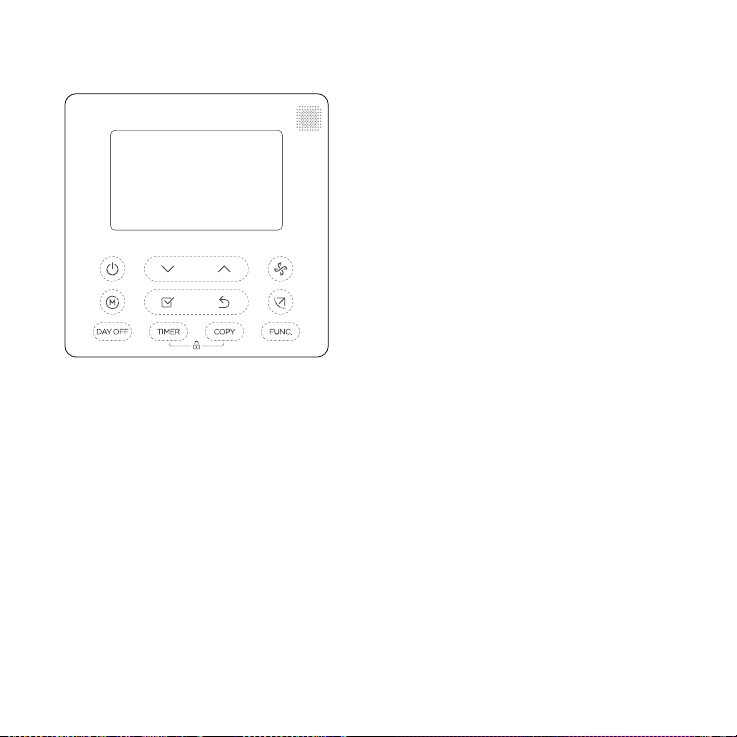

Fig. 4 — Wired Controller Functions

1. Power

2. Mode

3. Day Off/Del

4. Adjust

5. Confirm

6. Timer

7. Fan Speed

8. Back

9. Swing

10. Function

11. Copy

12. IR (Infrared) Signal Receiver

611

8 Specifications subject to change without notice. OM-KSACN0901-02

INITIAL SETUP

Set the current day and time

NOTE: The Wired Controller can be powered

ON or OFF during this step.

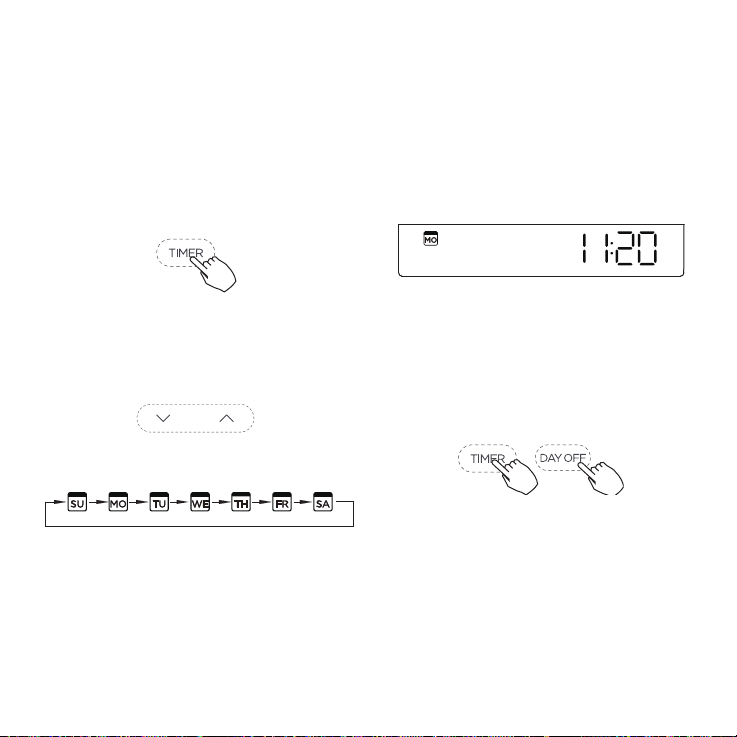

1. Press TIMER for 2 seconds or more to set

the current date and time. The TIMER display

flashes (see Fig 5).

Fig. 5 —Timer

2. Press the UP or DOWN arrow (Fig. 6) to

set the week day; the selected week day

will flash (Fig. 7).

Fig. 6 —Up or Down Arrows

Fig. 7 — Days of the Week

3. Press TIMER to confirm. If there is no

button pressed within 10 seconds, the

displayed week day will be saved.

4. Press the UP or DOWN arrows (Fig. 6) to

set the current time. Press repeatedly to

adjust the current time in 1-minute

increments. Press and hold to adjust the

current time continuously. Press TIMER to

confirm. If there is no button pressed within

10 seconds the displayed time is saved.

Fig. 8 — Week Day and Time

5. Time scale selection: Press TIMER (see

Fig. 5) and DAY OFF (Fig. 9) for 2 seconds

to alternate the clock time display between

the 12 hour and 24 hour formats.

Fig. 9 — Timer

ex. Monday 11:20

OM-KSACN0901-02 Specifications subject to change without notice. 9

Start and Stop Operation

•PressPOWER (Fig. 10) to power on the

controller.

Fig. 10 — Power

To Set the Operation Mode

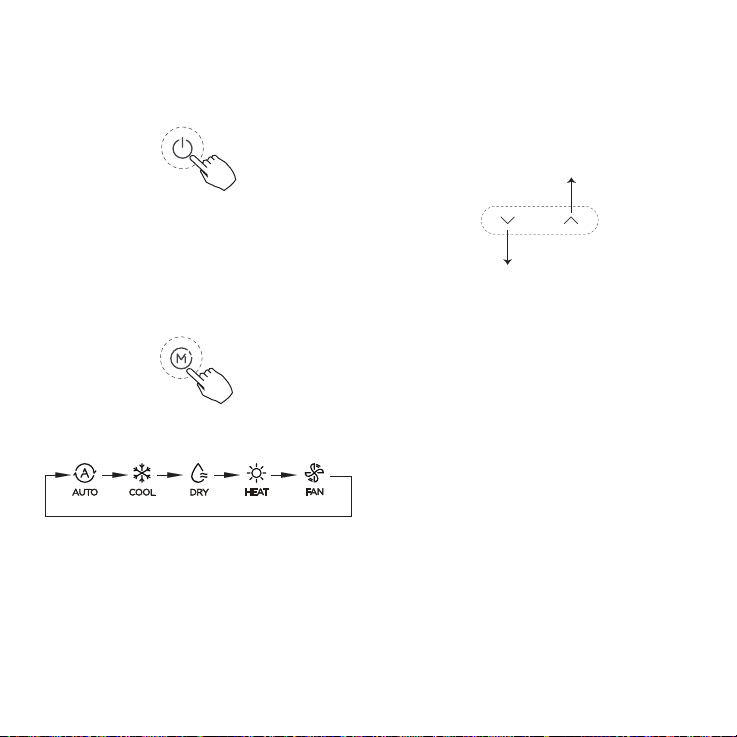

•PressMODE (see Fig. 11) to set the

OPERATION MODE (see Fig. 12) (HEAT

function is invalid for a COOL only type unit).

Fig. 11 — Mode

Fig. 12 — Operation Modes

Room Temperature Setting

1. Press the

DOWN

arrow (Lower or Raise

(see Fig.13)) to set the room temperature.

NOTE: This function in unavailable in FAN mode.

Fig. 13 — Up or Down Arrows (Lower and

Raise)

Indoor Setting Temperature Range:

62°F~86°F (17°C~30°C)

2. °F and °C Scale Selection - Press and

hold the UP or DOWN arrow for 3 seconds

to alternate the temperature display

between the °F and °C scale.

Lower

Raise

10 Specifications subject to change without notice. OM-KSACN0901-02

Fan Speed

•PressFAN SPEED to set the fan speed.

NOTE: This function is unavailable when the

unit is in AUTO or DRY mode.

Fig. 14 — Fan Speed

Keypad Tone

Enable Keypad Tone

•PressSWING and FUNC. together (Fig. 15)

for 3 seconds to enable the keypad tone.

Disable Keypad Tone

•PressSWING and FUNC. together (Fig. 15)

for 3 seconds to disable the keypad tone.

Fig. 15 — Keypad Tone Set

Use the Child Lock Function

Activate the Child Lock

•PressTIMER and COPY (Fig. 16) together

for 3 seconds to activate the CHILD LOCK

function and lock all the buttons on the wired

controller. When the CHILD LOCK function is

activated, the LOCK icon appears (Fig. 17).

De-activate the Child Lock

•PressTIMER and COPY (Fig. 16) together

for 3 seconds to deactivate the CHILD LOCK

function.

Fig. 16 — Timer and Copy

Fig. 17 — Child Lock

HIGHAUTO LOW MED
