Carrier AIRCONDITIONER ZC User manual
Air Conditioner Owner`s Guide
Acondicionador de Aire Manual del Usuário
Climatiseur Manuel de L`utilisateur
READ THE OWNER` GUIDE BEFORE U ING
Por favor lea el manual detenidamente antes de usar su aire aire condicionado
Nota: Las instrucciones en Español empiezan en la página 26.
Lisez attentivement toutes les directives avant d`installer votore appareil.
Note: Les instruciones en Français commencent a la page 50.
MODEL ZC - Cool Only
ZH - Heat Cool
ZQ - Heat Pump
A FEW WORDS ABOUT YOUR NEW AIR CONDITIONER
Thank you for choosing a Carrier Air Conditioner! You can feel confident in your selection because the same
pride in craftsmanship and engineering knowledge that went into Carrier equipment installed in the Astrodome
in Texas, the Sistine Chapel in ome; the United States Capitol halls of Congress, and thousands of other
installations worldwide has gone into the construction of your unit.
One of the principal advantages of owning a Carrier room air conditioner with electric heat is that the unit
heats AND cools, so it can be used year-round! (Only on models with heat feature)
While cooling, your new Carrier unit also filters and dehumidifies. In cold weather, the unit gently heats
and circulates air throughout the room. Carrier room air conditioners with electric heat quietly give you
maximum cooling comfort!
This Owner's Guide will supply you with all the information you need for installing, operating and maintaining
your new unit. Take a few moments to discover how to get the most in cooling comfort and economical
operation from your new room air conditioner.
SOME SUGGESTIONS
1. To avoid installation difficulties, read instructions completely before starting. This publication
contains information pertinent to the installation and operation of your new room air conditioner.
2. When possible, install unit on a shaded side of the house or building.
CAUTION
Coil fins on chassis are sharp and chassis is heavy. Chassis removal can cause personal injury.
3. Make sure that wall mounting area is structurally sound enough to support the unit.
4. For heat units, the heat is not for primary source of heat.
5. oom air conditioners are designed to fit easily into standard double-hung windows.
However, some window frame design variations require changes to modification to
the window for safe, proper installation. If assistance is needed, please call your local Carrier
Distributor. If there is no distributor in your area, call 1-800-CA IE (227-7437).
1
2
3
4
5
6
7
8
9
10
11
12
RECEIVING THE AIR CONDITIONER
GETTING ACQUAINTED WITH THE AIR CONDITIONER
AIR CONDITIONER WITH REMOTE CONTROL
OPERATING THE ELECTRONIC UNIT WITH THE REMOTE CONTROL
OPERATING UNIT FROM THE CONTROL PANEL
(WITHOUT THE REMOTE CONTROL)
AIR DIRECTION AND EXHAU T CONTROL
TIP TO ACHIEVE MAXIMUM EFFICIENCY AND COMFORT
WHERE AND HOW TO IN TALL THE AIR CONDITIONER TO
ACHIEVE A BETTER PERFORMANCE
DRAIN Y TEM OPTION
AFETY IN TRUCTION
MAINTENANCE AND PRE ERVATION
PRACTICAL OLUTION
INDEX
INDICE / INDICE
4
5
6
7
11
12
13
14
17
22
22
24
1. RECEIVING THE AIR
CONDITIONER
ead the instructions in the User's Manual.
Keep the Manual. It is always useful.
Unpack the unit.
Check if the unit exterior is in perfect condition.
Check if the items provided with the unit are inside the
box.
1 - User's Manual
2 - Seal
3 - Drain pan
4 - Screws (4)
5 - emote control and batteries
6 - ear drain
In case there is any damage, or if one of the mentioned
items is missing, contact the store that sold it to you.
4
For your saf ty w ar glov s.
NOTE
Th window installation acc ssory kit
com s with cooling only units.
NOTE
5
2. GETTING ACQUAINTED WITH THE
AIR CONDITIONER

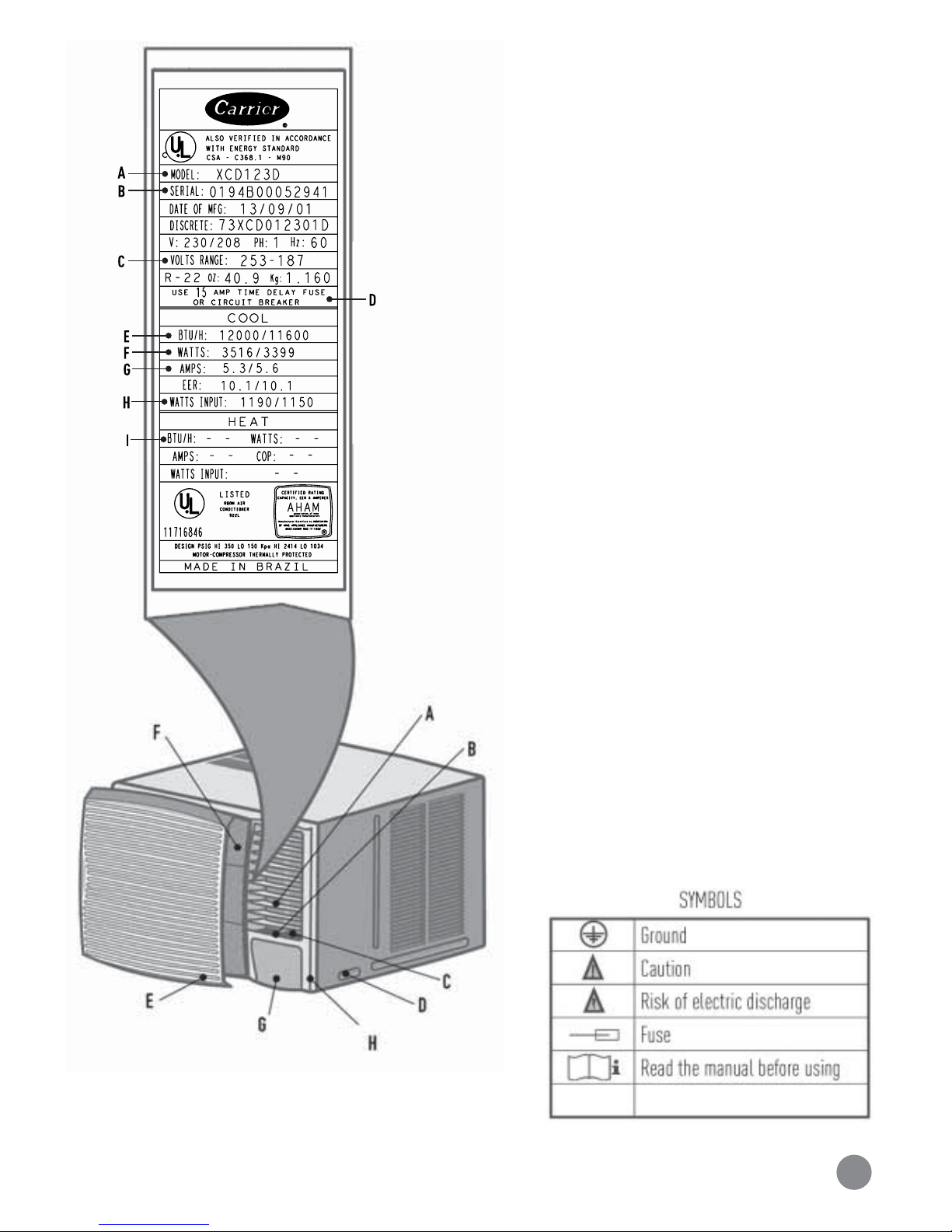

Check the appliance technical characteristics on the
nameplate.
Cabinet
A - Horizontal louvers for the air flow
B - Vertical louvers for the air flow
C - Air exhaust control
D - Safety screws (both sides)
E - Filter cover
F - Filter
G - Control panel
H - Front Grille
Na eplate
A - Model
B - Serial number
C - Voltage (V)
D - Circuit Breaker (A)
E - Cooling capacity (Btu/h and W)
F - Power consumption (W)
G - Current (A)
H - Power efficiency (W/W)
I - Heating capacity (Btu/h and W)
6
3. AIR CONDITIONER WITH REMOTE CONTROL
Control panel
Main display (indicates the selected temperature or mode)
In ord r to chang th t mp ratur unit from C lsius to Fahr nh it d gr s, or vic -v rsa,
simultan ously pr ss th S l ct button and (+) for 3 s conds on th control pan l.
On/Off
Energy Saver
Turbo mode
Heating mode
Temperature and Timer adjustment
Timer
Cooling mode
De-humidification mode
Fan mode
Speed setting
Sleep mode
Auto mode
1 - On/Off
2 - Filter cleaning indicator
3 - Timer on indicator
4 - Selector
Re ote control
Turbo
NOTE
7
4. OPERATING THE ELECTRONIC
UNIT WITH THE REMOTE CONTROL
Insert two 1.5 V AAA batteries (supplied with the
electronic model unit), opening the cover on the rear
of the remote control.
Ti er operation, turn the unit off or on at a
deter ined ti e (from 1 to 12 hours), press the Timer
button. If the unit is off, after the programming, it will
turn on at the end of the set time. If it is on, it will
turn off at the end of the period.
In order to set the ti e to turn on and off, press the
buttons (+) or (-) until the desired time (in number of
hours) is achieved.
When this function is activated, the corresponding
indicator remains lit on the panel.
The battery useful life is around one year.
Use only new batteries. Use only specified batteries.
To turn on or off the unit, press the On/Off button.
Th unit "b ps" v ry tim an
op ration is activat d.
NOTE
Th unit display will turn off 5 minut s
aft r th mod is activat d, and th Tim r
indicator will r main lit.
NOTE
To increase or reduce the te perature in the room,
press the buttons (+) or (-), as required.
To display the roo te perature, press buttons (+)
and (-) simultaneously for 3 seconds.
These buttons set the time hour by hour, up to 12 hours.
8
When this function is activated, the letter is displayed
on the panel.
To cool, press the Cooling mode button.
To heat, press the Heating function button.
When this function is activated, the letter is displayed
on the panel.
To canc l this function, pr ss th Tim r
button again, and s t th tim to z ro.
NOTE
Th t mp ratur rang s from 18ºC / 65°F
to 32ºC / 90°F. To s t th maximum or th
minimum, th unit b ps twic .
NOTE
Only for mod ls with h at f atur .
NOTE
9
When this function is activated, the letter is displayed
on the panel.
In order to circulate air (without cooling or heating),
press the Fan button.
When this function is activated, the letter is displayed
on the panel.
To auto atically adjust the unit according to the room
temperature variations, alternating between cool and
heat and high, medium or low speed, activate the Auto
mode.
The speed can be selected among one of the three
existing levels.
To set the fan speed, press the fan speed button.
The selected speed (air flow) will be indicated on the
control panel as follows:
To eli inate the air hu idity in the room, press the
De-humidification button. This function gradually
removes the room humidity, with little changes to the
temperature, providing more comfort.
When this function is activated, the letter is displayed
on the panel. The unit will always operate in low cooling.
Th Fan Function only circulat s th air in
th room.
NOTE
The Energy Saver function reduces the consumption of
power, turning off the fan when the compressor or
resistance is off. The function is activated and de-
activated by means of the remote control. When the
function is activated, the display exhibits the acronym
.
10
To save power, press the Energy Saver button.
In order to cool or heat the room quickly, set the
temperature as desired, and press the Turbo mode
button.
When this function is activated, the letter T is displayed
on the panel.
The Turbo function will turn off as soon as the selected
temperature is reached, and from then on, it will operate
in last selected mode.
To auto atically set the roo te perature during
sleep ti e, providing more cost-effectiveness and
comfort, activate the Sleep mode.
After this mode is activated, the unit will increase (in
cooling) or decrease (in heating) the set temperature
in 1ºC / 2°F per hour, during the first two hours,
remaining at this temperature for more than 6 hours.
When the total 8-hour period has elapsed, the unit will
return to the initial temperature. On the display,
will appear (sleep - to sleep).
Th unit display will turn off 5 minut s
aft r th mod activation, and th Tim r
indicator r mains.
NOTE
