• Soft starting and soft stopping of AC motors.

• Integrated electronic overload protection (Class 10)*.

• Serial communication (Modbus) over RS485**.

* RSGD VD210, VD210C, VX210, VX210C, VX310C, VX311C models only,

** RSGD VD210C, VX210C, VX310C, VX311C models only.

Three phase AC motor soft starter

Benets

• Easy to use. The RSGD is equipped with a self-

learning algorithm that automatically adjusts the

start parameters to optimise the motor starts and

stops.

• Fast installation and set-up. Only 3 settings are

required (FLC, ramp-up and ramp-down).

• Compact dimensions. 12 - 45 Arms in 45 mm wide

housing, 55 - 100 Arms in 75 mm wide housing.

• Integrated protection. Diagnostic functions

provide additional protection. RSGD is also

equipped with an overload protection (Class 10).*

• Torque control during ramp-down. Smoother

deceleration of the load.

• Complete monitoring. The RSGD is equipped

with a Modbus/RTU communication port by 2-wire

RS485 connection.**

• Guided model selection. Easy to use selection

tool to select the appropriate soft starter model

depending on the application type.

Description

RSGD is an extremely compact and easy to use

3-phase soft starter for AC induction motors rated

up to 100 Arms.

The starting parameters can be easily set-up

through 3 selector switches.

The integrated motor overload protection (Class

10)* and Modbus communication** result in a

higher installation exibility.

Applications

RSGD soft starters are the ideal solution for 3-phase xed speed AC induction motor applications where there

is the need to reduce the starting current and/or minimise stresses on the motor during start and stop.

The RSGD o󰀨ers a number of integrated diagnostic functions that can replace additional components inside

the electrical panel.

Typical applications include: compressors, pumps and fans.

Main functions

Carlo Gavazzi LTD

RSGD

RSGD DS ENG26/05/2022

References

Code Option Description Notes

R-

S-Soft starter

G-General purpose

D-Dual phase control

40 220 – 400 VAC +10% -15% operational voltage (Ue)

60 220 – 600 VAC +10% -15% operational voltage (Ue)

12 12 Arms

Rated operational current

@ 40 °C

16 16 Arms

25 25 Arms

32 32 Arms

45 45 Arms

55 55 Arms

70 70 Arms

85 85 Arms

100 100 Arms

E0 110 - 400 VAC +10% -15% control voltage (Uc)

Supply voltage: internally supplied RSGD40 only

F0 24 VAC/DC +10% -10% control voltage (Uc)

Supply voltage: internally supplied

FF 24 VAC/DC +10% -10% control/supply voltage

Supply voltage: externally supplied

RSGD60 models from 55 Arms to

100 Arms only

GG 100 - 240 VAC +10% -15% control/supply voltage

Supply voltage: externally supplied RSGD60 only

V-

DNo heatsink RSGD 45 mm only

XWith heatsink

22 relay outputs RSGD 45 mm only

33 relay outputs RSGD 75 mm only

1With integrated motor overload protection (Class 10)

0Without motor overload protection RSGD 45 mm only

1With fan RSGD 100 Arms only

0No fan

-Without communication RSGD 45 mm only

CWith Modbus communication

Enter the code entering the corresponding option instead of .

Order code

RSGD V

Carlo Gavazzi LTD

RSGD

RSGD DS ENG26/05/2022

Operational voltage: 400 VAC Operational voltage: 600 VAC

Rated opera-

tional current

(Ie)

Control voltage

110 - 400 VAC

Control voltage

24 VAC/DC

Control / supply

voltage

100 - 240 VAC

Control / supply

voltage

24 VAC/DC

12 Arms

RSGD4012E0VD200

RSGD4012E0VD210

RSGD4012E0VD210C

RSGD4012F0VD200

RSGD4012F0VD210

RSGD4012F0VD210C

RSGD6012GGVD210

RSGD6012GGVD210C -

16 Arms

RSGD4016E0VD200

RSGD4016E0VD210

RSGD4016E0VD210C

RSGD4016F0VD200

RSGD4016F0VD210

RSGD4016F0VD210C

RSGD6016GGVD210

RSGD6016GGVD210C -

25 Arms

RSGD4025E0VD200

RSGD4025E0VX210

RSGD4025E0VX210C

RSGD4025F0VD200

RSGD4025F0VX210

RSGD4025F0VX210C

RSGD6025GGVX210

RSGD6025GGVX210C -

32 Arms

RSGD4032E0VD200

RSGD4032E0VX210

RSGD4032E0VX210C

RSGD4032F0VD200

RSGD4032F0VX210

RSGD4032F0VX210C

RSGD6032GGVX210

RSGD6032GGVX210C -

45 Arms

RSGD4045E0VX200

RSGD4045E0VX210

RSGD4045E0VX210C

RSGD4045F0VX200

RSGD4045F0VX210

RSGD4045F0VX210C

RSGD6045GGVX210

RSGD6045GGVX210C -

55 Arms RSGD4055E0VX310C RSGD4055F0VX310C RSGD6055GGVX310C RSGD6055FFVX310C

70 Arms RSGD4070E0VX310C RSGD4070F0VX310C RSGD6070GGVX310C RSGD6070FFVX310C

85 Arms RSGD4085E0VX310C RSGD4085F0VX310C RSGD6085GGVX310C RSGD6085FFVX310C

100 Arms RSGD40100E0VX311C RSGD40100F0VX311C RSGD60100GGVX311C RSGD60100FFVX311C

Selection guide

Carlo Gavazzi LTD

RSGD

RSGD DS ENG26/05/2022

Information Where to nd it

RSGD 45 mm instruction manual http://cga.pub/?eb523b

RSGD 75 mm instruction manual http://cga.pub/?aa922f

RSGD troubleshooting guide http://cga.pub/?a92131

RSGD 45 mm Modbus

communication protocol http://cga.pub/?41562d

RSGD 75 mm Modbus

communication protocol http://cga.pub/?2fe6d0

RSGD 45 mm Monitor software http://cga.pub/?6f9b0c

RSGD 75 mm Conguration software http://cga.pub/?e4fb5a

RS-USB driver http://cga.pub/?f3bda2

RSGD 45 mm CAD drawings http://cga.pub/?0bdae1

RSGD 75 mm CAD drawings http://cga.pub/?0f0b10

Further reading

Carlo Gavazzi LTD

RSGD

RSGD DS ENG26/05/2022

Category Type Trip Class Ramp-up

setting [s]

Ramp-down

setting [s]

Compressors

Scroll compressor 5 1 0

Screw compressor 5 2 to 5 0

Piston compressor 5 2 0

Centrifugal compressor 10 10 0

Pumps

Hydraulic pump 5 2 0

Centrifugal pump (start time <10sec) 5 5 to 10 10

Centrifugal pump (start time >10sec) 10 10 to 20 15

Piston pump 10 5 to 10 0

Fans

Centrifugal fan (<0.5m diameter) 10 5 to 10 0

Centrifugal fan (>0.5m diameter) 20 15 to 30* 0

Vacuum blowers 10 5 to 10 0

Feeders Screw feeder 10 2 to 10 0

Auger 10 5 to 10 0

Rotating machinery

Agitators 10 5 to 15 0

Mixers 10 5 to 10 0

Saws (<0.5m diameter) 10 5 to 10 5

Saws (>0.5m diameter) 20 15 to 30* 10

Grinder 20 15 to 30* 0

Crusher 30 20 to 30* 0

Conveyors 10 5 to 10 5

Note: when using the RSGD on high inertia loads (Trip Class 20, 30) ensure that enough time is left between starts to allow

the RSGD to cool down.

For Class 20 or 30 operation, an external overload device may be required.

* For RSGD 45 mm models set ramp-up time to 20.

Selection guide and typical application settings

Carlo Gavazzi LTD

RSGD

RSGD DS ENG26/05/2022

Motor

FLC [A]

HP Rating

@ 230V

Power kW

@ 400V Trip class 5 Trip class 10 Trip class 20 Trip class 30

6 1.5 3

RSGD4012..

VD200

RSGD4012..

VD210 / C

RSGD4012..

VD200

RSGD4012..

VD210 / C

RSGD4025..

VD200

RSGD4012..

VD210 / C

RSGD4025..

VD200

RSGD4012..

VD210 / C

9 2 3.7

RSGD4012..

VD200

RSGD4012..

VD210 / C

RSGD4012..

VD200

RSGD4012..

VD210 / C

RSGD4025..

VD200

RSGD4016..

VD210 / C

RSGD4032..

VD200

RSGD4025..

VX210 / C

12 3 5.5

RSGD4012..

VD200

RSGD4012..

VD210 / C

RSGD4016..

VD200

RSGD4012..

VD210 / C

RSGD4045..

VX200

RSGD4025..

VX210 / C

RSGD4045..

VX200

RSGD4025..

VX210 / C

16 5 7.5

RSGD4016..

VD200

RSGD4016..

VD210 / C

RSGD4025..

VD200

RSGD4016..

VD210 / C

RSGD4045..

VX200

RSGD4032..

VX210 / C

RSGD4045..

VX200

RSGD4032..

VX210 / C

22 7.5 11

RSGD4025..

VD200

RSGD4025..

VX210 / C

RSGD4032..

VD200

RSGD4025..

VX210 / C

RSGD4045..

VX200

RSGD4045..

VX210 / C

RSGD4045..

VX200

RSGD4045..

VX210 / C

30 10 15

RSGD4032..

VD200

RSGD4032..

VX210 / C

RSGD4045..

VX200

RSGD4032..

VX210 / C

RSGD4055..

VX310C

RSGD4070..

VX310C

37 10 18.5

RSGD4045..

VX200

RSGD4045..

VX210 / C

RSGD4045..

VX200

RSGD4045..

VX210 / C

RSGD4070..

VX310C

RSGD4085..

VX310C

45 15 22

RSGD4045..

VX200

RSGD4045..

VX210 / C

RSGD4045..

VX200

RSGD4045..

VX210 / C

RSGD4085..

VX310C

RSGD40100..

VX311C

55 20 30 RSGD4055..

VX310C

RSGD4055..

VX310C

RSGD40100..

VX311C -

70 25 37 RSGD4070..

VX310C

RSGD4070..

VX310C - -

85 30 45 RSGD4085..

VX310C

RSGD4085..

VX310C - -

100 30 55 RSGD40100..

VX311C

RSGD40100..

VX311C - -

• Contact Carlo Gavazzi representative for further information.

• Option “E0”: 110 - 400 VAC or option “F0”: 24 VAC/DC.

Carlo Gavazzi LTD

RSGD

RSGD DS ENG26/05/2022

Purpose Component name / code Notes

Manual motor starters

GMS-32 -

GMS-63 -

GMS-100 -

S: standard

H: high breaking capacity

Finger guards RFCG X6 6 pcs per box

Cooling fan RFAN-75-40 12 X1

For RSGD..100 only

Rated voltage : 12 VDC

Power consumption: 0.6 W

PC interface cable (Isolated USB to TTL cable) RS-USB For RSGD..12 to RSGD..45 only

CARLO GAVAZZI compatible components

Motor

FLC [A]

HP rating

@ 480 V

HP Rating

@ 600 V Trip class 5 Trip class 10 Trip class 20 Trip class 30

2.7 1.5 2

RSGD6012VD210 / C

3.9 2 3

5 3 4

6 3 5 RSGD6012..

VD210 / C

RSGD6012..

VD210 / C

RSGD6012..

VD210 / C

RSGD6012..

VD210 / C

9 5 7.5 RSGD6012..

VD210 / C

RSGD6012..

VD210 / C

RSGD6016..

VD210 / C

RSGD6025..

VX210 / C

11 7.5 10 RSGD6012..

VD210 / C

RSGD6012..

VD210 / C

RSGD6025..

VX210 / C

RSGD6025..

VX210 / C

16 10 15 RSGD6016..

VD210 / C

RSGD6016..

VD210 / C

RSGD6032..

VX210 / C

RSGD6032..

VX210 / C

22 15 20 RSGD6025..

VX210 / C

RSGD6025..

VX210 /C

RSGD6055..

VX310C

RSGD6055..

VX310C

27 20 25 RSGD6032..

VX210 / C

RSGD6032..

VX210 / C

RSGD6055..

VX310C

RSGD6055..

VX310C

32 20 30 RSGD6032..

VX210 / C

RSGD6032..

VX210 / C

RSGD6070..

VX310C

RSGD6070..

VX310C

41 30 40 RSGD6045..

VX210 / C

RSGD6045..

VX210 / C

RSGD6085..

VX310C

RSGD6085..

VX310C

52 40 50 RSGD6055..

VX310C

RSGD6055..

VX310C

RSGD60100..

VX311C -

70 50 60 RSGD6070..

VX310C

RSGD6070..

VX310C - -

85 60 75 RSGD6085..

VX310C

RSGD6085..

VX310C - -

100 75 100 RSGD6085..

VX310C

RSGD60100..

VX311C - -

• Contact Carlo Gavazzi representative for further information.

• Option “GG”: 100 - 240 VAC or option “FF”: 24 VAC/DC.

Note: Option FF available only for RSGD 75 mm models

Caution: the actual motor amps may be higher or lower than the average values listed above. We suggest to

use the actual motor current as listed on the motor nameplate. Use this table as a guide only.

Carlo Gavazzi LTD

RSGD

RSGD DS ENG26/05/2022

Element Component Function

ARamp-up time selector Sets the desired motor starting time.

BRamp-down time selector Sets the desired motor stopping time.

CFLC knob selector Sets the motor full load current (FLC). The FLC is setting is used by the RSGD for

the overload protection and for the maximum current allowed during motor start.

DTest/Reset

Simulate overload alarm (press for 1 sec when RSGD is in Idle state)

Enable/disable dry run function (press for 3 sec when RSGD is in Idle state)*

Set alarm recovery mode (press for 5 sec when RSGD is in Idle state)

Enable/disable overload function (press for 8 sec when RSGD is in Idle state)*

Reset alarms (press for < 1 sec when RSGD is in alarm mode and alarm mode

is Manual)

Enable/disable phase sequence protection (press for 10 sec when RSGD is in

Idle state)

Note: While the Test/Reset button is pressed the LED E5 will start ashing with a fre-

quency of 1 Hz (1/sec) in order to help the user count the number of seconds elapsed.*

E1 LED indicators Supply. Indicates that the RSGD supply is ON.

E2 LED indicators

Manual. Indicates the alarm reset mode.

Manual reset mode - LED ON, Auto reset mode - LED OFF

(Factory default setting: Auto, LED OFF)

E3 LED indicators

Phase sequence. Indicates if the wrong phase sequence protection is enabled

(LED OFF) or disabled (LED ON).

(Factory default setting: Enabled, LED OFF)

E4 LED indicators Alarm. Indicates that the RSGD is in alarm. The number of ashes indicates the

alarm type.

E5 LED indicators Ramping/bypass. Indicates whether RSGD is in ramping (ashing) or bypass (fully

ON).

QR QR code Scan to link to troubleshooting guide.

Structure

* RSGD VD210C, VX210C models only.

Carlo Gavazzi LTD

RSGD

RSGD DS ENG26/05/2022

Ramp-up Mode of operation

1 or 2 seconds

• When the ramp-up knob is in position 1 or 2, the RSGD will follow a self learning current

limit algorithm.

• As soon as A1-A2 (or ST for RSGD60 models) control voltage signal is applied, the RSGD

will start to ramp-up the motor.

• At the very rst start the current limit will be 4 x FLC setting.

• In the subsequent starts, the RSGD will automatically adjust the current limit setting to

maintain the motor start time as close as possible to the ramp-up time setting.

≥ 5 seconds

• When the ramp-up knob is in position 5 or above, the RSGD will follow a self-learning

current ramp algorithm.

• The RSGD will start with a set of default parameters for starting torque.

• Depending on the ramp-up time setting, the RSGD will apply a current ramp algorithm to

start the motor as close as possible to the set ramp-up time.

• During the motor start, the current will be limited to a maximum of 3.5 x FLC setting.

• In the subsequent starts, the RSGD will continue to adjust the starting parameters of initial

torque and current ramp to ensure that the motor is started as close as possible to the set

ramp-up time.

Ramp-down Mode of operation

1 to 30 seconds

• During ramp-down, the RSGD works on a torque control algorithm for smoother stopping

of the motor.

• As soon as the control voltage signal A1-A2 (or ST for RSGD 60 models) is removed, the

RSGD will slow down the motor gradually according to the ramp-down setting.

• The power semiconductors will be switched OFF as soon as the time (as per ramp-down

setting) has elapsed unless there is a risk of exceeding the maximum temperature on the

semiconductors. In such a case the RSGD will leave the motor to coast to stop.

0 seconds • If the ramp-down knob is set to 0, the RSGD will leave the motor to coast to stop (no ramp-

down).

The RSGD series of soft starters works on two distinct self-learning algorithms depending on the ramp-up time

settings.

Mode of operation

Carlo Gavazzi LTD

RSGD

RSGD DS ENG26/05/2022

Features

RSGD 45 mm RSGD 75 mm

Material PA66

Assembly DIN or panel

Protection grade IP20

Weight 0.5 to 0.75 kg approx. 2.3 kg

Overvoltage category Cat. III

General

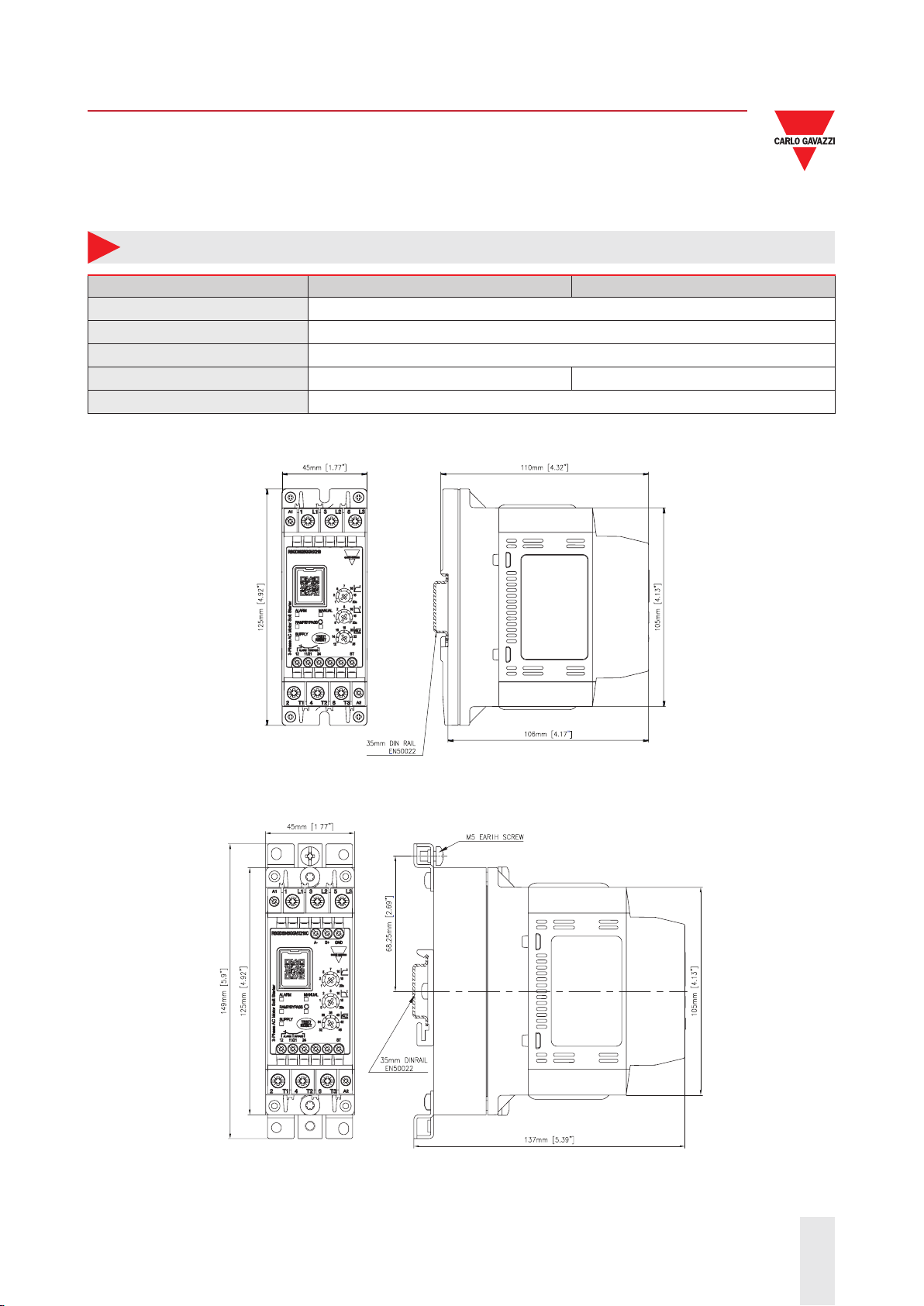

Fig. 1 RSGD..12..VD200 to RSGD..32..VD200, RSGD..12..VD210/C to RSGD..16..VD210/C

Fig. 2 RSGD4045..VX200, RSGD..25VX210/C to RSGD..45..VX210/C

This manual suits for next models

Table of contents

Other CARLO GAVAZZI Controllers manuals

CARLO GAVAZZI

CARLO GAVAZZI RSGD User manual

CARLO GAVAZZI

CARLO GAVAZZI NRGC Series User manual

CARLO GAVAZZI

CARLO GAVAZZI VariFlex3 RVLF Series User manual

CARLO GAVAZZI

CARLO GAVAZZI RSBD Operating instructions

CARLO GAVAZZI

CARLO GAVAZZI VariFlex3 RVLF Series User manual

CARLO GAVAZZI

CARLO GAVAZZI Sx2WEB Series User manual

CARLO GAVAZZI

CARLO GAVAZZI RSBS User manual

CARLO GAVAZZI

CARLO GAVAZZI RSBS Series User manual

CARLO GAVAZZI

CARLO GAVAZZI RSWT Series User manual

CARLO GAVAZZI

CARLO GAVAZZI VariFlex2 RVDF Series Assembly instructions

CARLO GAVAZZI

CARLO GAVAZZI RSBT Series User manual

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

Emerson

Emerson SW93 owner's manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Siemens

Siemens OpenAir GMA 1 Series Mounting instructions

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual
