Car-Interface CI-RL4-MZD88 User manual

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

r.LiNK Video-inserter

CI-RL4-MZD88

Compatible with

Mazda Fahrzeuge with MZD Connect Infotainment

and 8.8inch ultrawide monitor

Video-inserter for front- and rear-view camera

and two additional video sources

Product features

Video-inserter for factory-infotainment systems

1 CVBS Input for rear-view camera

1 CVBS Input for front camera

2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)

Automatic switching to rear-view camera input on engagement of the reverse gear

Automatic front camera switching after reverse gear for 10 seconds

Activatable parking guide lines for rear-view camera (not available for all vehicles)

Video-in-motion (ONLY for connected video-sources)

Video-inputs PAL and NTSC compatible

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Connectors –video interface

1.4. Settings of the 8 Dip switches (black)

1.4.1. Activating the front camera input (dip 1)

1.4.2. Enabling the interface’s video inputs (dip 2-3)

1.4.3. Rear-view camera setting (dip 5)

1.4.4. Activating the guide lines (dip 6)

1.5. Settings of the 4 Dip switches (CAN function –red)

2. Installation

2.1. Place of installation

2.1.1. Place of installation –video interface

2.1.2. Place of installation –daughter PCB

2.2. Connection schema

2.3. Installation and connection –daughter PCB

2.3.1. Warning notes concerning the installation of ribbon cables

2.4. Connection–picture signal cable

2.5. Connection–10pin Power/CAN cable

2.6. 12pin interface cable

2.7. Power supply output

2.8. Connection - video sources

2.8.1. Audio-insertion

2.8.2. After-market front camera

2.8.3. After-market rear-view camera

2.8.3.1. Case 1: Video-interface receives the reverse gear signal

2.8.3.2. Case 2: Video interface does not receive the reverse gear signal

2.9. Connection video-interface –keypad

3. Interface operation

4. Picture settings

5. Specifications

6. FAQ –Trouble shooting

7. Technical support

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. Apart from using this

product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-

camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to

one year after purchase we offer free software-updates for our interfaces. To receive a free

update, the interface has to be sent in at own cost. Wages for de-and reinstallation and

other expenditures involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

Before the final installation in the vehicle of the video sources, we recommend a test-run

to ensure the compatibility of vehicle and interface. Due to changes in the production of

the vehicle manufacturer there’s always a possibility of incompatibility.

1.1. Delivery contents

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

Page4

Compatibility

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For audio inserting, use the possibly existing factory audio-AUX-input or

a FM-modulator. If 2 AV-sources shall be connected to the

infotainment, for audio switching an additional electronic part is

required.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-view

camera is only possible while the reverse gear is engaged. To delay the

switch-back, an additional electronic part is required.

After market front camera The front camera will automatically be switched for 10 seconds after

disengaging the reverse gear. A manually front camera switching is

possible by external keypad.

Guidelines Displayed guidelines are not available in all vehicles.

1.2. Checking the compatibility of vehicle and accessories

Brand

Compatible vehicles

Infotainment systems

Mazda

Vehicles since about model year 2019 with

MZD Connect - 8.8inch ultrawide monitor

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

Page5

1.3. Connection - Video-Interface

The video-interface converts the connected after-market sources video signals into an RGB

digital signal which is inserted in the factory monitor using separate trigger options and it

reads vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video

interface.

1.4. Settings of the 8 Dip switches (black)

Some settings have to be selected by the 8 dip-switches at the

video-interface. Dip position down is ON and position up is OFF.

See the following chapters for detailed information.

*The front camera will automatically be switched for 10 seconds after disengaging the

reverse gear.

The camera power supply +12V will automatically be provided by the green wire "Reverse-Out"

when the reverse gear is engaged, plus 10 seconds delay for the front camera, and also +12V

when the front camera is manually selected by external keypad (see chapter "Power Supply

Output").

Dip

Function

ON (down)

OFF (up)

Front camera

enabled*

disabled

Power supply

output

(red wire)

+12V (max. 3A) when reverse gear

is engaged incl. 10 seconds delay

and +12V by manual switching to

front camera by keypad

+12V (max. 3A) ACC

CVBS AV1-input

enabled

disabled

CVBS AV2-input

enabled

disabled

No function

Set to OFF

Rear-view cam type

after-market

factory or none

Guide lines

disabled

enabled

No function

Set to OFF

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

Page6

1.4.1. Activating the front camera input (dip 1)

If set to ON, the interface switches for 10 seconds from the rear-view camera to the front

camera input after having disengaged the reverse gear. In addition, a manual switch-over to

the front camera input is possible via keypad (short press) from any image mode.

Description of the power supply output: see chapter “Power supply output”.

1.4.2. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed when switching through the interface’s video

sources. It is recommended to enable only the required inputs, disabled inputs will be

skipped when switching through the video-interfaces inputs.

1.4.3. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to

display factory rear-view camera.

If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the

reverse gear is engaged.

1.4.4. Activating the guidelines (dip 6)

If set to OFF, the guidelines will be shown on the display. If set to ON, the guide lines won’t

be visible on the display.

Note: If there is no communication between interface and the vehicle`s CAN-bus (several

vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s

operation, even if they once appear after having switched the system to powerless

Note: Dips 4, 7 und 8 are out of function and have to be set to OFF.

1.5. Settings of the 4 Dip switches (CAN function - red)

Dip position down is ON and position up is OFF.

Navigation / System

Dip 1

Dip 2

Dip 3

Dip 4

All vehicles

OFF

For all vehicles, use the OFF position of all the 4 dip switches.

After each Dip-switch-change a power-reset of the Can-box has to be performed!

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

Page7

2. Installation

Switch off the ignition and disconnect the vehicle’s battery! The interface needs a

permanent 12V source. If -according to factory rules- a disconnection of the battery has to

be avoided, it should be sufficient to use the vehicle’s sleep-mode. In case, the sleep-mode

doesn’t succeed, the battery has to be disconnected with a resistor lead.

The Interface needs a permanent power supply! If power isn’t directly taken from the

battery, the connection’s power has to be checked for being start-up proven and

permanent.

Before a final installation, we recommend a test-run to ensure the compatibility of the

vehicle and the interface. Due to changes in the production of the vehicle manufacturer

there’s always a possibility of incompatibility.

2.1. Place of installation

2.1.1. Place of installation –video-interface

The video-interface has to be installed on the backside of the head-unit.

2.1.2. Place of installation - daugter PCB

The daughter PCB has to be installed inside the monitor housing.

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

Page8

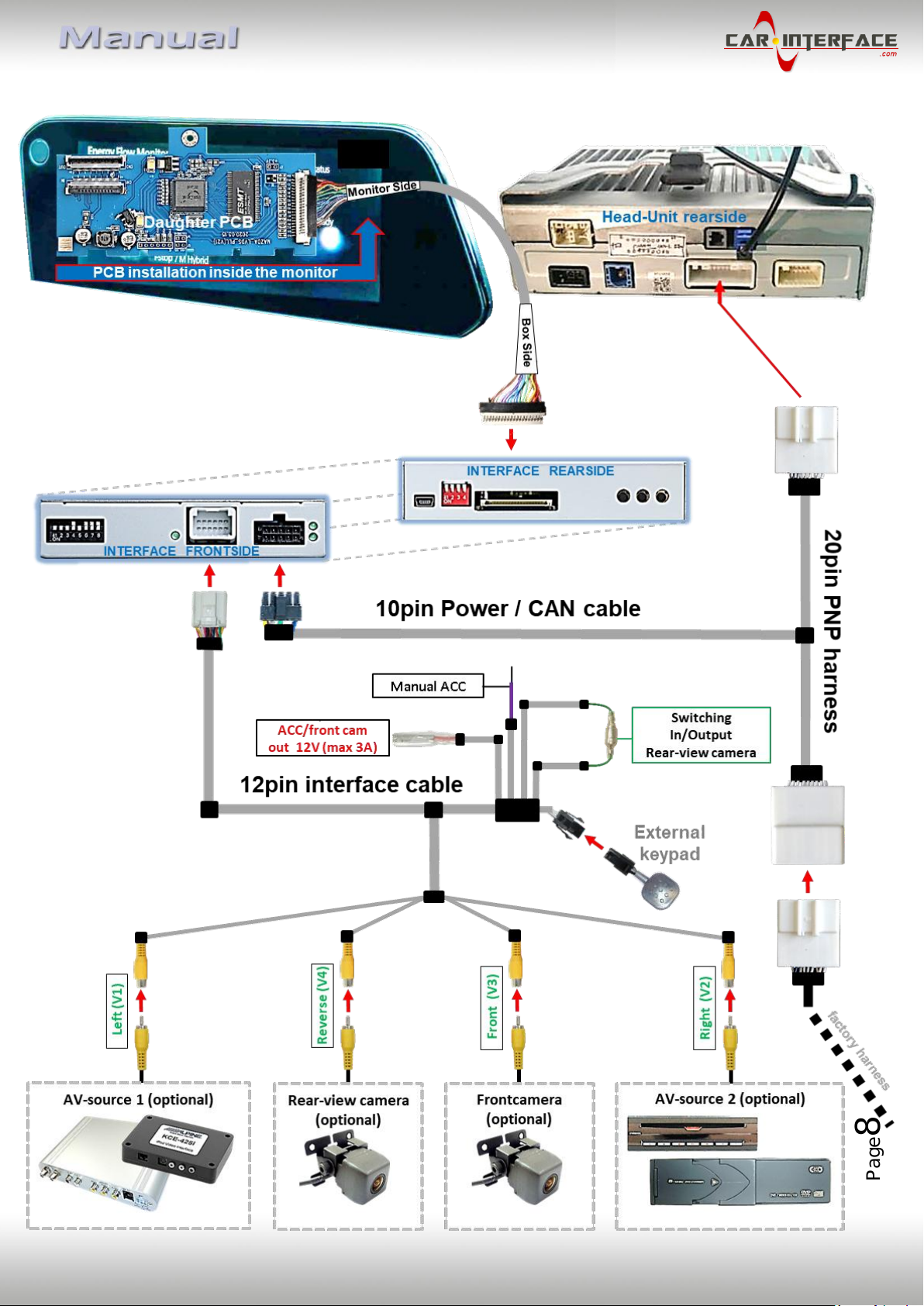

2.2. Connection schema

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

Page9

2.3. Connections and installation –daughter PCB

Version 29.01.2021 HW: CAM(V100)/(V21) CI-RL4-MZD88

Page10

2.3.1. Warning notes, concerning the installation of ribbon cables

1) The contacting ends of ribbon cables always have to be installed in a straight and

precise 180° position to the connector. Each deviation from a perfect contact position will

curse faulty contact and even danger of short circuit

2) The ribbon cable’s contacting side always has to correspond to the contacting side of

the connector, concerning the mounting position.

3) Avoid cable contusion or cable injury caused by sharp-edged metal.
