Car-Interface CI-C2-MK-AUX User manual

Version 20.09.2017 CI-C2-MK-AUX

c.LOGiC Interface

CI-C2-MK-AUX

Compatible with BMW Professional navigation

systems

without iDrive (MK2-MK4)

Product features

• Full plug and play multimedia interface

• 2 AV-inputs with separate IR-control channels

• control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, …

• after-market rear-view camera input (optional adapter is necessary)

• automatic switching to after-market rear-view camera input

• rear-view camera power (+12V max. 1A)

• Rear-seat-entertainment video-output for Video-sources connected to the c.LOGiC

• power-on remote-out trigger-signal (+12V max. 1A) to switch on connected devices

• video-in-motion

Version 20.09.2017 CI-C2-MK-AUX

Page1

Contents

1. Prior to Installation

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

2. Connection schema

3. Installation

3.1. Interconnecting interface-box and harnesses

3.2. Connections to the navigation computer or –if existing –to the TV-tuner

3.3. Connections to radio module

3.4. Connecting peripheral devices

3.4.1. AV-source(s)

3.4.2. Installing AV-source’s IR-sensor additionally

3.4.3. After-market rear-view camera

3.4.4. After-market rear-seat-entertainment

3.5. System settings/VI SETTINGS

3.5.1. Audio settings

3.5.2. Assigning device control for connected AV-source

3.5.3. Rear-view camera function

3.6. DIP switch settings

4. Operation

4.1. Activation of the video-in-motion function

4.2. Selecting the c.LOGiC as current AV-source

4.3. Switching to AV1 and AV2

4.4. Picture settings

4.5. Button assignment table

5. Specifications

Appendix A –Device control table

Version 20.09.2017 CI-C2-MK-AUX

Page2

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

If remote function for a peripheral device shall be used, additional an IR-

Remote cable and Y-adapter are needed, see chapter AV-source(s) .

Take down the SW-version and HW-version of the interface boxes, and store this

manual for support purposes.

Interface-box

C2C-M700

HW_____ SW_____

Harness

C3C-BM700

Version 20.09.2017 CI-C2-MK-AUX

Page3

1.2. Check compatibility of vehicle and accessories

Requirements

Vehicle 3series (E46), 5series (E39), 7series (E38), X5 (E53), X3 (E83), Z4

(E85/86)

with AUX-input at the radio module (from approx 10/2002)

Navigation Navigation system Professional without iDrive

(MK2-MK4)

Limitations

Factory-audio-AUX-input The factory audio-AUX-input is used for audio-insertion by the

c.LOGiC. Alternative use of the AUX-input is only possible by

additional switch-box integration.

After-market rear-view Compatible with NTSC-cameras only.

camera

Version 20.09.2017 CI-C2-MK-AUX

Page4

2. Connection schema

Version 20.09.2017 CI-C2-MK-AUX

Page5

3. Installation

Switch off ignition and disconnect the vehicle’s battery! If according to factory rules

disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in

sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a

resistor lead.

Place of installation is at the navigation computer or the factory TV-tuner (if existing and not

removed) and at the radio module.

If there is a factory TV-tuner inside the car, you have to connect the harness C3C-BM700 to

the TV-tuner and not to the navigation computer!

The radio module and navigation computer are located at the rear end for the 3series (E46),

5series (E39) and 7series (E38) on the left hand side the radio module of the 7series is

located behind lining in the car wing).

The X5 (E53) radio module is located underneath the

boot lining, next to the battery.

The navigation computer is located on the left hand side

behind the boot lining.

Version 20.09.2017 CI-C2-MK-AUX

Page6

3.1. Interconnecting interface-box and harnesses

Plug harness C3C-BM700 into 14pin of interface-box C2C-M700.

Plug female 18pin AMP connector of C3C-BM700 into male 18pin AMP connector of

interface-box C2C-M700.

Version 20.09.2017 CI-C2-MK-AUX

Page7

3.2. Connections to the navigation computer or –if existing –to the TV-tuner

If there is a factory TV-tuner inside the car, you have to connect the harness C3C-BM700 to

the TV-tuner and not to the navigation computer!

Disconnect blue female 18pin connector of vehicle harness from the back of the

navigation computer or the factory TV-tuner (if existing and not removed).

Plug blue male 18pin AMP connector of harness C3C-BM700 into blue female 18pin

AMP connector of vehicle harness.

Plug blue female 18pin AMP connector of harness C3C-BM700 into blue male 18pin

AMP connector of navigation computer or of the factory TV-tuner (if existing and not

removed).

Note: If an existing factory TV-tuner will be removed the optionally available harness CAB-

BMW200 is necessary!

Version 20.09.2017 CI-C2-MK-AUX

Page8

3.3. Connections to radio module

Loosen the female Quadlock connector to the radio module.

Loosen the black female 12pin connector from chamber B

of the female Quadlock connector.

Push the insert from female 12pin connector’s plastic cab

from the side.

Pin the audio cables of harness C3C-BM700 to the

dissambled vehicle’s female 12pin connector:

Yellow cable Pin 3

Blue cable Pin 4

Black cable Pin 10

If the chambers of the female 12pin connector are occupied,

isolate and remove the existing pins.

Push the black plastic cap onto the female 12pin connector

and insert it into the female Quadlock connector. Reconnect

the female Quadlock connector to the radio module.

Vehicle female

12pin connector

Vehicle female

12pin connector

Vehicle female

12pin connector

Quadlock Steckplatz

Radiomodul

Version 20.09.2017 CI-C2-MK-AUX

Page9

3.4. Connecting peripheral devices

It is possible to connect up to 2 after-market AV-sources, after-market rear-view camera and

rear-seat-entertainment to the c.LOGiC.

Before final installation of the peripheral devices, we recommend to test-run the c.LOGiC

functions to detect incompatibility of vehicle, navigation, factory accessories or peripheral

devices as soon as possible.

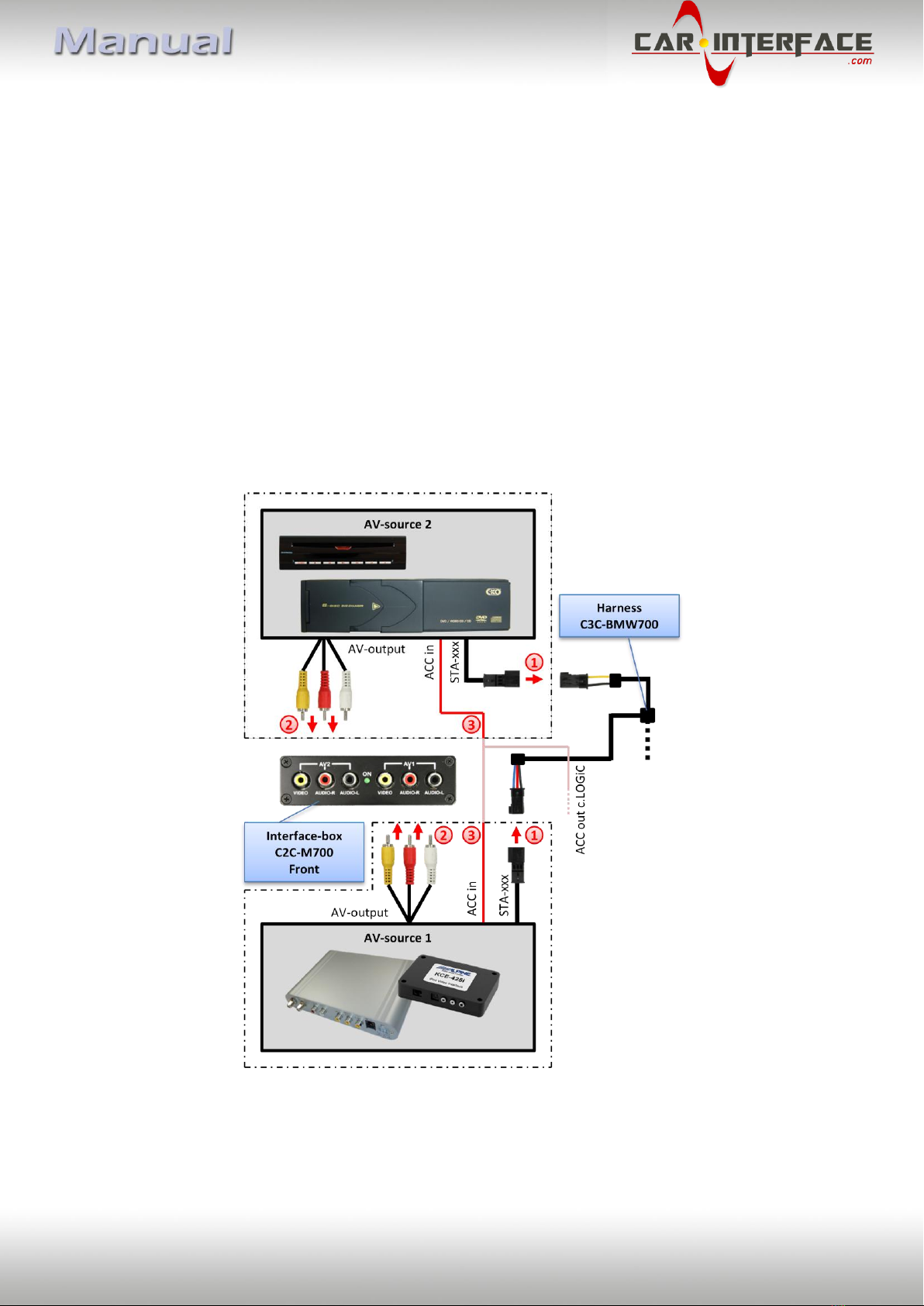

3.4.1. AV-source(s)

The c.LOGiC interface has the possibility to connect and remotely control by navigation

buttons up to 2 pre-programmed devices. The device list in the device control table shows

the pre-programmed remote channels and the related IR-remote cables STA-xxx which must

be ordered separately for the control of the device.
