Canon Lunar Globe User manual

* This model was designed for Papercraft and may differ from the original in some respects.

* Build the model by carefully reading the Assembly Instructions, in the parts sheet page order.

Assembly Instructions : Three A4 sheets (No. 1 to No. 3)

name

After cutting out the hole,

glue the reinforcement to

the reverse side, taking

care to ensure it doesn't

obstruct the fold lines.

Attach the red cir-

cles into place at

these positions.

Front side of the Moon

Back side of the Moon

Cut out the upper half base. Use scissors to

cut out the center hole. Cut out the center by

first cutting with scissors along the red line

connecting the center to the exterior.

Cut out the front side of

the Moon (upper half)

and the back side of

the Moon (upper half)

and glue them together

using the central tabs.

Glue the back side of the Moon (upper half) to

the upper half base by attaching the red circles

on the back side of the Moon (upper half) into

place on the glue tabs near the joints of the

upper half base, as shown in the illustration.

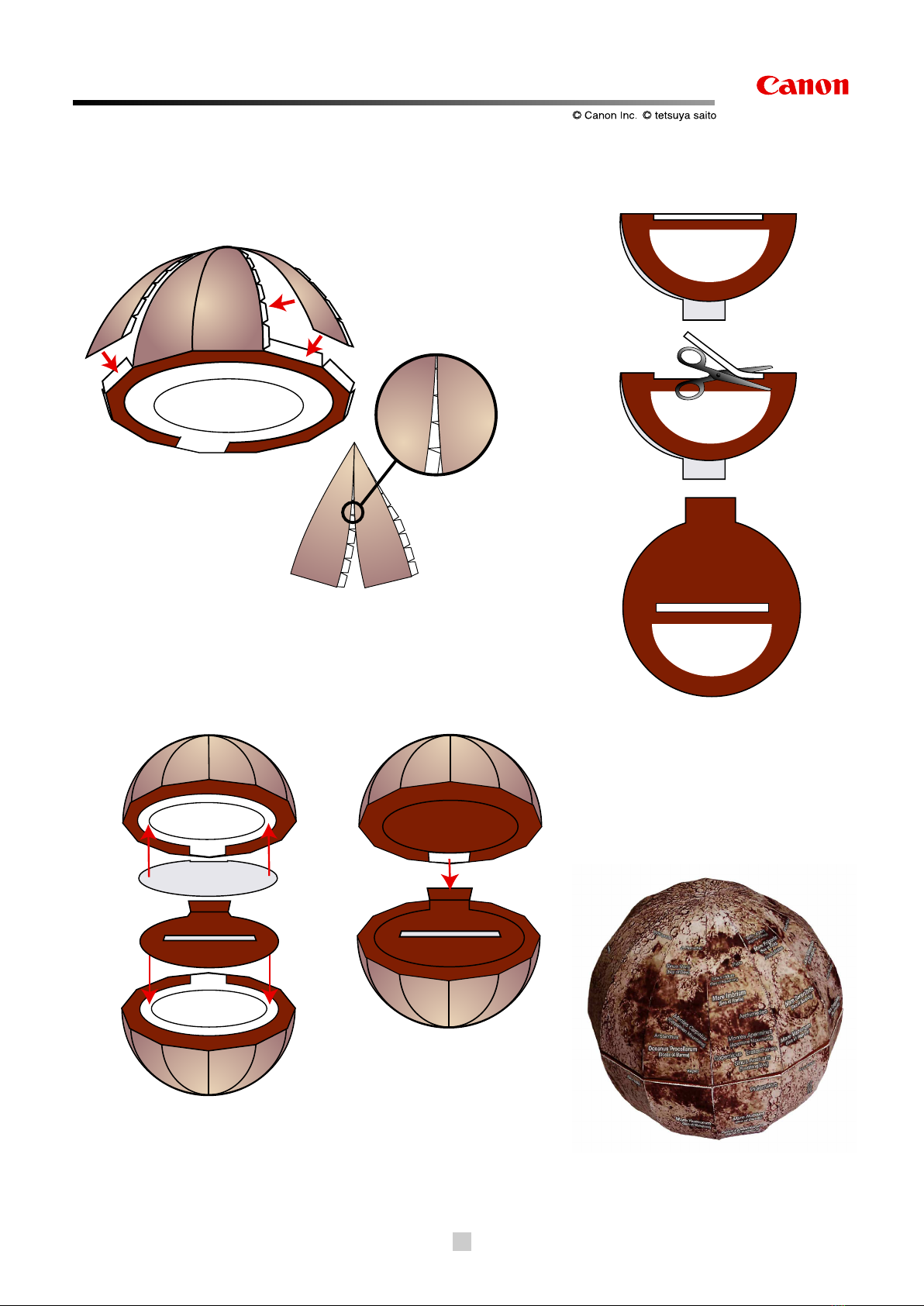

Assembling the main body of the lunar globe

1. 2. 3.

Lunar Globe : Assembly Instructions

Glue the parts of the upper half together so that its

shape is semispherical. To fit the parts together

correctly, gently fold the tabs inward, then align the

surface features (e.g., craters) while holding the upper

half base down with your finger and gently pulling on

the tabs. Assemble the lower half in the same way.

Glue the upper half base lid to the

upper half base and the lower half

base lid to the lower half base to cover

their holes.

6. Glue the upper half and the lower half

together at the joint.

Fold the lid of the lower half base in half and cut out

a slot so that Moon story plates can be inserted.

Flatten out the lid.

Reinforce the thin tabs near

the top, using a brush or

other implement to apply

glue from the reverse side.

Lunar Globe : Assembly Instructions

Stand 3

After folding stands 1, 2, and 3 according to

the directions, arrange the three hexagons on

the three parts so that they are positioned

face to face. Glue them together so that the

colored parts facing each other face upward.

Stand 1

Stand 2

Align and glue the rear surfaces of the Moon

story plates together.

Insert the Moon story plates into the slot on

the lower half.

Assembling the stand

Finished!

Lunar Globe : Assembly Instructions
