Canon VB-H47 User manual
Installation Guide
EN
18 (0.71)
Φ132 (5.20)
R55 (R2.17)
161(6.34)
90°
10°
155 (6.10)
47 (1.85)
47 (1.85)
15 (0.59)
15 (0.59)
4-M3
48 (1.89) 112.5 (4.43)
/
Unit: mm (in.)
Please be sure to read the “Safety Precautions”section for correct use.
Caution
Request a professional installer for all installation work. Never try to install
the camera yourself. Doing so may result in unforeseen accidents such as
dropping the camera or electric shock.
Some cameras are not available in certain countries or regions.
Network Camera
2
Introduction
Included Items
Camera Power connector
Printed Materials
User Manuals
■Types of User Manuals
The following describes the different camera user manuals.
Installation Guide (this document)
This describes precautions and procedures for installing the camera.
Operation Guide
This explains the camera initial settings, camera viewer operations, settings on the Settings
page, and troubleshooting, etc.
Specifications
This lists the camera specifications.
■Notes
Any unauthorized reproduction of this document is prohibited.
The contents of this document are subject to change without any prior notice.
This document has been prepared with the utmost attention to accuracy. If you have any
comments, however, please contact a Canon sales representative.
Canon shall assume no liability for any outcome of using this product, notwithstanding
items listed above.
■Symbols Indicating Camera Models
Explanations that differ depending on the camera model are indicated by the camera
name and the following symbols.
H47
: VB-H47
M46
: VB-M46
Trademarks
• SD, SDHC, and SDXC logos are trademarks of SD-3 C, LLC.
• All other company or product names used in this document are trademarks or registered
trademarks of their respective holders.
3
Part Names
7
10
11
12
9
13
1 2
34 5 6
8
14
1.
Audio input terminal (common LINE IN and MIC IN) (P.15)
2. Audio output terminal (LINE OUT) (P.15)
3. 100Base-TX LAN connector (P.11) 4. Power connection terminal (P.12)
5. Reset Switch*1 6. External Device I/O Terminals (P.13)
7. Fixing screw hole for tripod 8. Label*2
9. Safety wire attachment 10. LED (Blue)*3
11. Memory card cover 12. Lens
13. Camera head 14. Rating label
*1 : Please refer to the “Operation Guide” for the method to reset the camera.
*2 : It is recommended to write down the serial number and MAC address before installing the
camera.
*3 : LED
LED Status
On When powered on, during reboot, during normal use (when set to“ON”*)
Blinking Updating the firmware, or initializing settings
Off Lights up for a few seconds at startup, then turns off (when set to “OFF”*)
*Refer to“Operation Guide”
4
Before Installing the Camera
When Using a Memory Card
Insert a memory card before installing the camera.
5
Installing the Camera
A ceiling mount cover or indoor dome housing is necessary to install the camera on a
ceiling. The installation method using the ceiling mount cover is explained here.
43 x 84 mm (1.69 x 3.31 in)
Use the template to make mounting screw holes and wiring holes in the ceiling.
The template is included in the ceiling mount cover (sold separately).
M3 x 4
Attach the ceiling bracket to the camera.
Ceiling bracket and screws are included in the ceiling mount cover (sold separately).
1
2
6
Installing the Camera
Install the safety wire (0.7 m)(27.56 in.).
After firmly attaching the wire to the anchor or structure, secure it to the camera.
Safety wires are included in the ceiling mount cover (optional).
The screws (nominal diameter: M3, length: 6 mm (0.24 in.), head shape: bind) are to be
fastened to the camera.
3
7
Installing the Camera
4
Fix the camera, which has the ceiling bracket is attached, to the ceiling.
Be sure to separately prepare mounting screws, according to the installation location and
material.
(Nominal diameter: M4, Head Shape: pan, x 4)
8
Installing the Camera
5
6
Connect the cables that are passed through the wiring holes to the camera.
For power supply, refer to“Power Supply” (P. 11).
For network terminal, refer to “Interface”(P. 18).
Cutout section
Install the ceiling mount cover.
Align the ( ) mark on the ceiling mount cover with the ( I ) mark on the back of the
camera, and turn it clockwise to the position of the ( I ) mark to mount it.
If the cables cannot be stored above a ceiling made of concrete, etc., or if the cables do
not fit within the ceiling mount cover, bend the cutout section of the ceiling mount cover
using diagonal pliers, etc., to create a cutout through which to guide the cables.
9
Installing the Camera
External dimensions of the ceiling mount cover (sold separately).
14- 4.5 ( 0.18)
4- 3.4 ( 0.13)
4- 4.5 ( 0.18)
4- 3.4 ( 0.13)
180 (7.09) 66
(2.60)
45
(1.77)
22 (0.87)
160 (6.30)
140 (5.51)
116 (4.57)
20
(0.79)
20
(0.79)
144 (5.67)
65
(2.56)
83.5 (3-9/32)
85.7 (3-3/8)
85.7 (3-3/8)
83.5 (3-9/32)
46 (1-13/16)
46 (1-13/16)
Junction box plate
Ceiling bracket Unit: mm (in.)
10
Installing the Camera

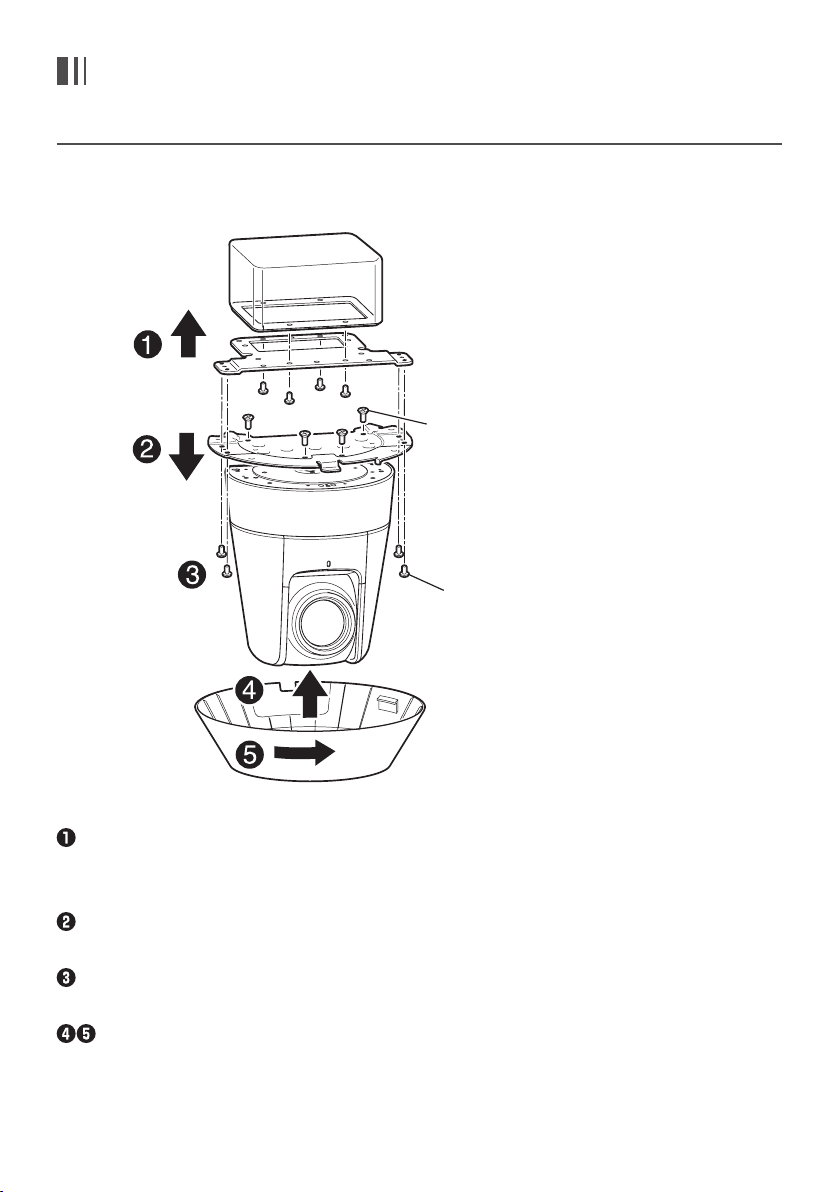

When Using the Junction Box
Use the mounting bracket of the junction box included in the ceiling mount cover (sold
separately).
M3 x 4
M3 x 4
Install the junction box plate on the junction box. Prepare the screws separately by
referring to the instruction manual of the junction box and the external dimensions of
the junction box plate (P.9).
Install the ceiling bracket to the camera. The screws are included in the ceiling mount
cover (sold separately).
Fix the camera, which has the ceiling bracket attached, to the junction box. The screws
are included in the ceiling mount cover (sold separately).
Install the ceiling mount cover (P.8).
