Canon ImagePROGRAF L24e User manual

P/N:5600T221



P/N:5600T221

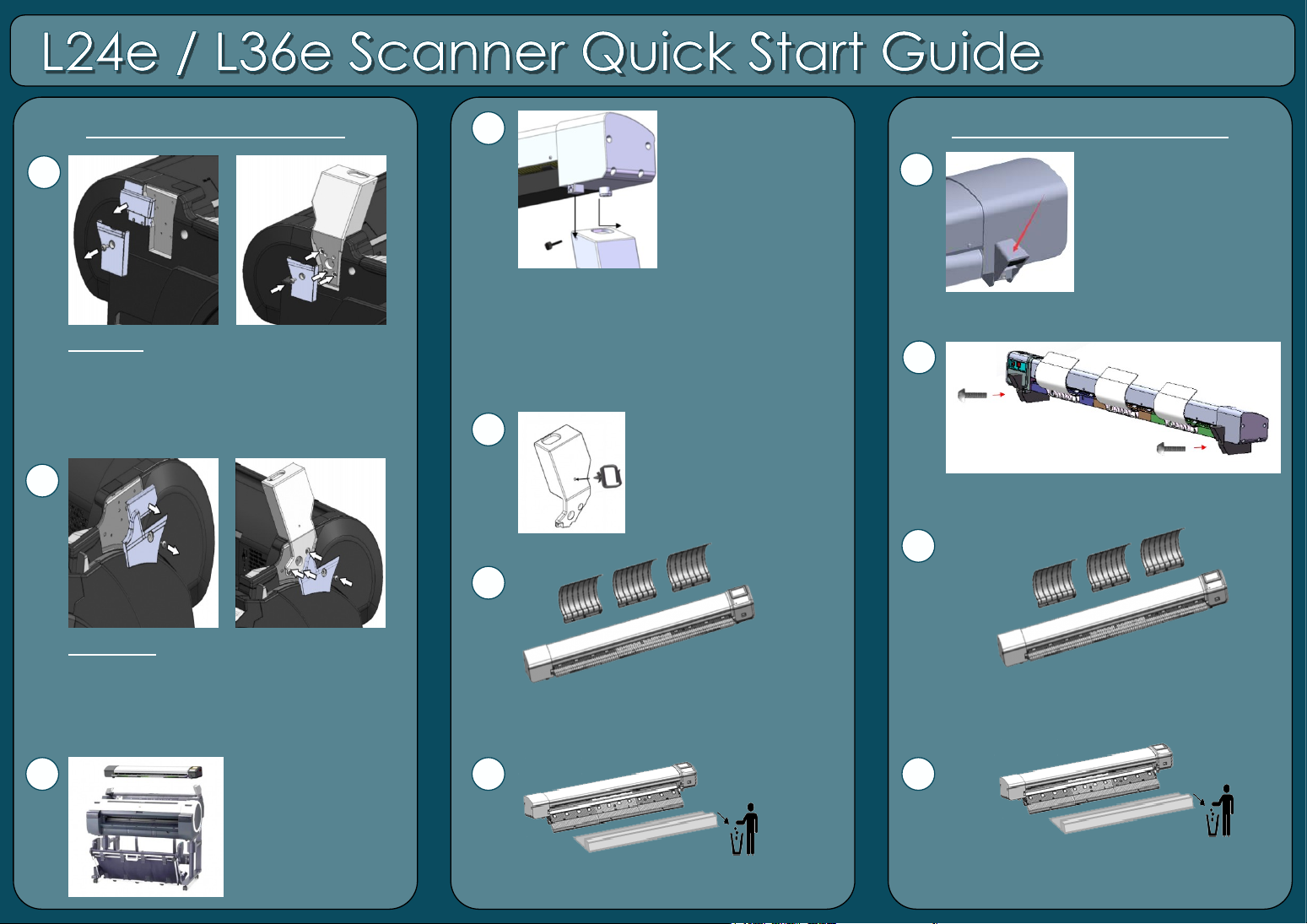

Left side: Remove panels from the

printer as shown.

Fit the left scanner mount using 3 of

the screws supplied, and then replace

lower cover only.

Right side: Remove panels from the

printer as shown.

Fit the right scanner mount using 3 of

the screws supplied, and then replace

lower cover only.

Place scanner on

scanner mounts.

Place the scanner’s feet in the holes

on top of the scanner mounts and

pull the scanner to the front.

Secure in place using the 2 thumb

screws provided.

Installation to a printer

Fit Document Return Guides to

scanner.

Fit Cable Clips.

Remove shipping packing from

scanner.

Installation to a desktop

Fit Document Return Guides to

scanner.

Remove shipping packing from

scanner.

Fit the desktop feet to scanner.

Fit the locking screw.

P/N:5600T221

Power on.

Insert CD into PC.

Browse CD.

Select Auto-run.

Install “ScanApp Le”.

Select maintenance videos.

Select documentation folder.

xxx.xxx.xxx

Configure scanner network

address.

Connect Power and Network Quick COPY

Insert document into the centre

of the scanner, face up.

Select COPY function and

press the Green button.

Collect your copy from the printer.

Printers Available

IPF770:xxxxxxxxxxxxxxx

Select target printer.

Connect power and network

cables.

P/N:5600T221

Quick SCAN to USB Quick SCAN to PC

Insert document into the centre of

the scanner, face up.

Insert USB memory stick

(FAT32, 128GB max).

Do not use a USB extension

cable.

Select SCAN to USB function and

press the Green button.

Wait before removing USB stick.

Ensure “ScanApp Le” is running

Insert document into the centre of

the scanner, face up.

Select SCAN to PC function and

press the Green button.

Wait for transfer to PC.

Select target PC.

PC’s Available

xxxxxxxxxxxxxxx
