Chapter 7 Daily Cleaning

Daily Cleaning

To ensure high-quality image scanning, regularly clean your DR-6080/9080C as

described below.

■Before you clean the scanner, turn OFF the scanner and computer and disconnect

the power cord from the power outlet. Otherwise, it might cause an electrical shock.

■Never clean the scanner with any kind of organic solvent, such as alcohol, benzene,

or paint thinner. It might cause a fire and electrical shock, or cause the exterior of the

scanner to disfigure of discolor.

■Never spray mild detergent or water directly on the scanning glasses. The spray could

penetrate below the glass and contaminate the internal light source and lenses.

Cleaning the Main Unit

Wipe the scanner with a firmly wrung cloth moistened slightly with water or mild

detergent. Then wipe off with a clean, dry cloth.

CAUTION

Cleaning the Document Detection Sensor

Dust and debris that collects on the sensor will cause false recognition. Clean the

sensor periodically so that dust and debris do not collect on it.

Sensor

Cleaning the Scanning Glasses and Rollers

A probable cause of stripes appearing on scanned images or dirt appearing on

scanned documents is dirt on the scanning glasses or rollers. Clean the scanning

glasses and rollers regularly.

Press the power switch to turn OFF the scanner, and unplug the

power cord from the power outlet.

Close the document eject tray extension if it is open.

Open the upper scanner.

Press the open/close button, and lift up the upper scanner gently until it

stop and locks in the open position.

7.1 Daily Cleaning

Chapter 7 Daily Cleaning

Use a clean, soft cloth to wipe the scanning glasses.

Be sure to clean both scanning glasses, the one below and one above.

Never spray mild detergent or water directly on the scanning glasses. The spray

could penetrate below the glass and contaminate the internal light source and

lenses.

Scanning Glasses

CAUTION

Wipe the rollers with a firmly wrung cloth moistened with water.

Rollers are located at the positions indicated in the figure below.

Feeding Rollers

Pickup Rollers

Retard Rollers

Feed Rollers

Platen Rollers

Remove the pickup roller, retard roller, and feed roller. (See

“Installing and Removing the Rollers,” on p.91.)

Use cloth from which all the water has been wrung out to wipe off

the rollers.

7.1 Daily Cleaning

Chapter 7 Daily Cleaning

Replace the rollers that you removed. (See “Installing and

Removing the Rollers,” on p.91.)

Carefully close the upper scanner.

Press the upper scanner down firmly on both sides to close it.

If you press the upper scanner down only on one side, the opposite side

will not be fully closed. Make sure that you hear it click into place.

If paper jams or double-feed (feeding of two or more document pages) occurs

frequently in spite of your having cleaned the rollers, a probable cause is roller

friction. If this happens, replace the rollers. Contact your service representative.

Important

Cleaning the Shading Plates

If scanned images appear scratchy even after you have cleaned the rollers, the

shading plates inside the scanner may be dirty. If this happens, clean the shading

plates.

The power to the scanner is ON when you are cleaning the shading plates so be very

careful.

Open the upper scanner.

Press the open/close button, and lift up the upper scanner gently until it

stops and locks in the open position.

Press the [Start] key.

The shading plates come out from above the platen rollers.

Shading Plates

Wipe the shading plates with a firmly wrung cloth moistened with

water or mild detergent.

7.1 Daily Cleaning

CAUTION

Chapter 7 Daily Cleaning

Press the [Stop] key.

The shading plates retract.

Carefully close the upper scanner.

Press the upper scanner down firmly on both sides to close it.

If you press the upper scanner down only on one side, the opposite side

will not be fully closed. Make sure that you hear it click into place.

If there is no change in the appearance of the image after you have cleaned the

shading plates, contact your service representative.

Important

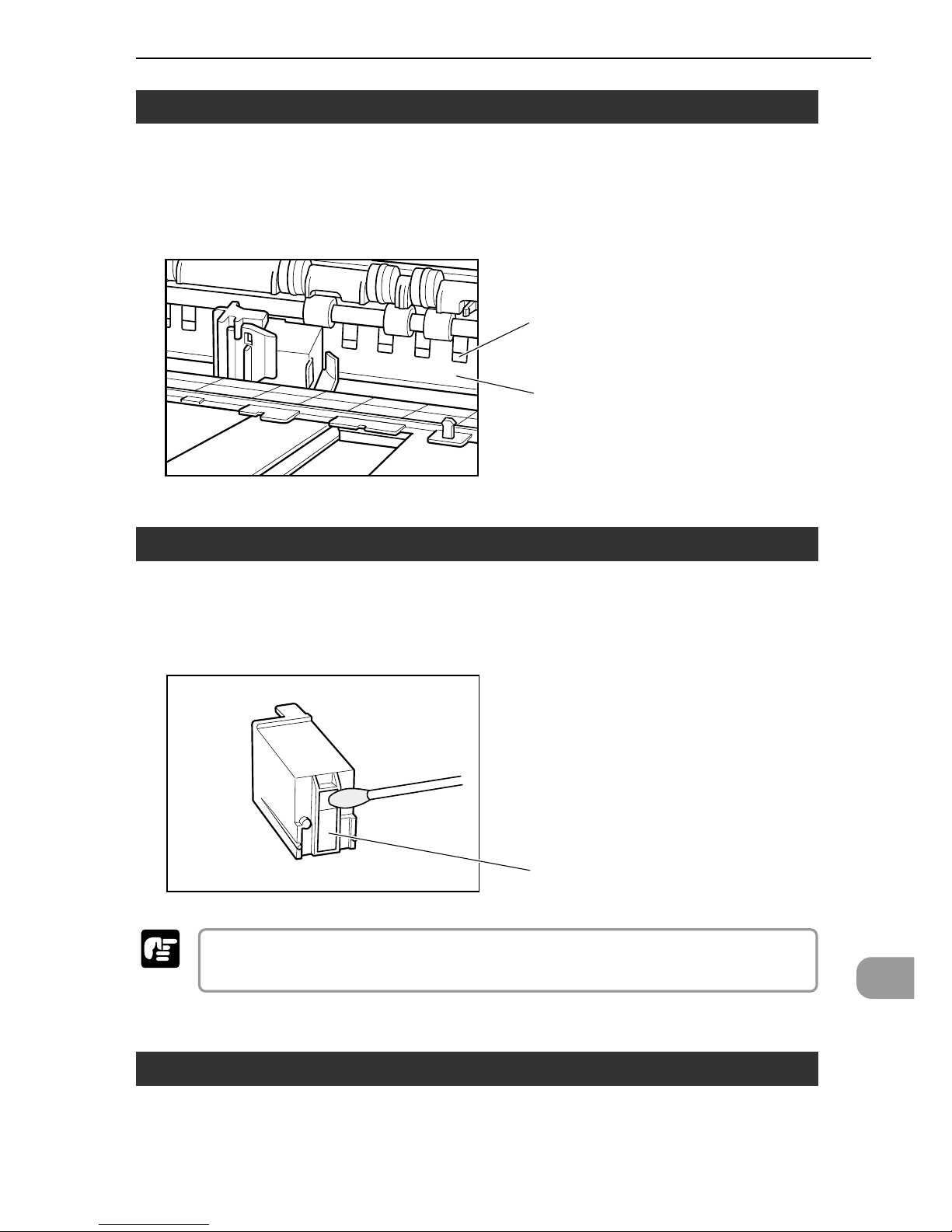

Cleaning the Guide Plate (When Using the Imprinter)

Ink that collects on the guide plate inside the optional imprinter may stain the

documents when they are scanned. Clean off the ink with water and a mild

detergent on a soft cloth that has been firmly wrung, and then thoroughly dry it

with a dry cloth.

Ink Absorber

Guide Plate

Cleaning the Ink Jet Nozzles (When Using the Imprinter)

Ink that collects around the ink jet nozzle may stain your documents or cause the

text to appear scratchy. Remove the ink jets and clean them periodically with

cotton swabs.

Contact

Do not touch the contact while you are cleaning the ink jet nozzles. Doing so may

cause incorrect printing.

Power Outlet

If you leave the power plug connected to the power outlet for a long period of

time, dust may accumulate at the power outlet, and cause a fire or electrical

shock. Clean it periodically.

Important

7.1 Daily Cleaning
